New Moline Sheeting Line Front End

Item #: 5093015

Sell Us Yours

Description

2016 Unused Moline Sheeting Line Front End including Tote Lift, Chunker, 3-Roll Extruder, with complete touch screen controls. Still in orignal manufacturers skids. Never installed.

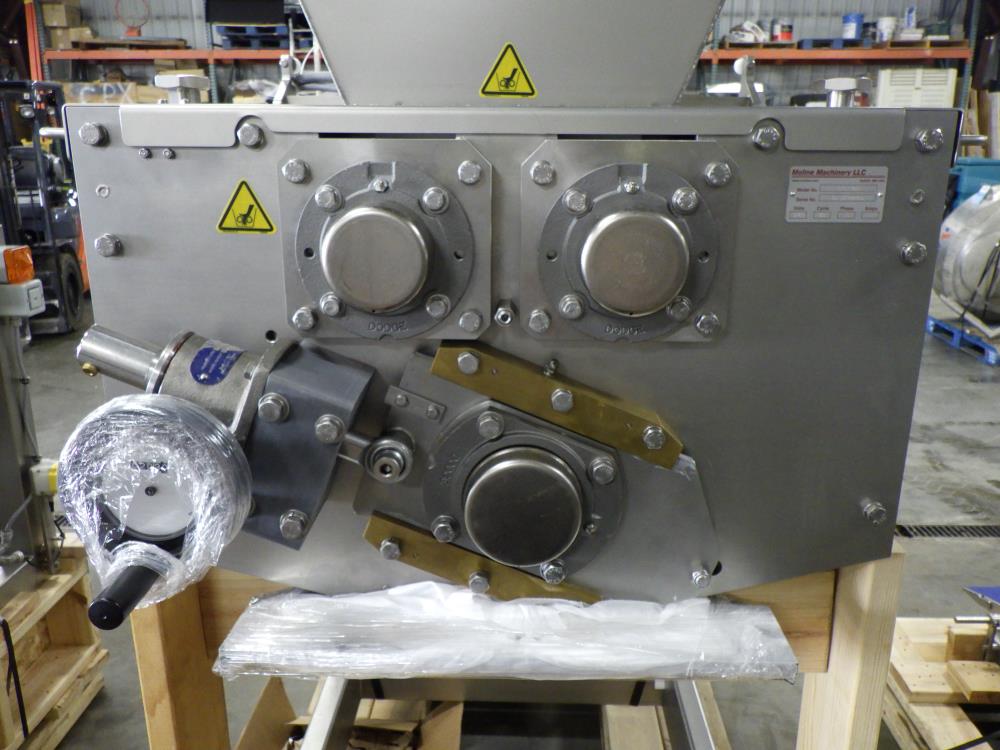

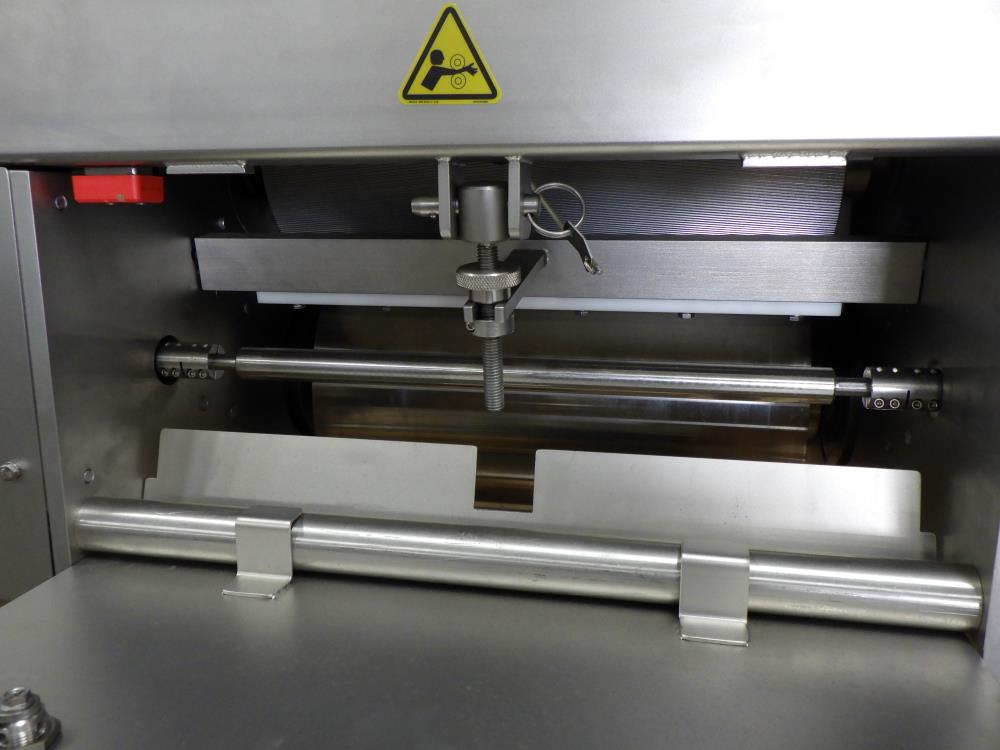

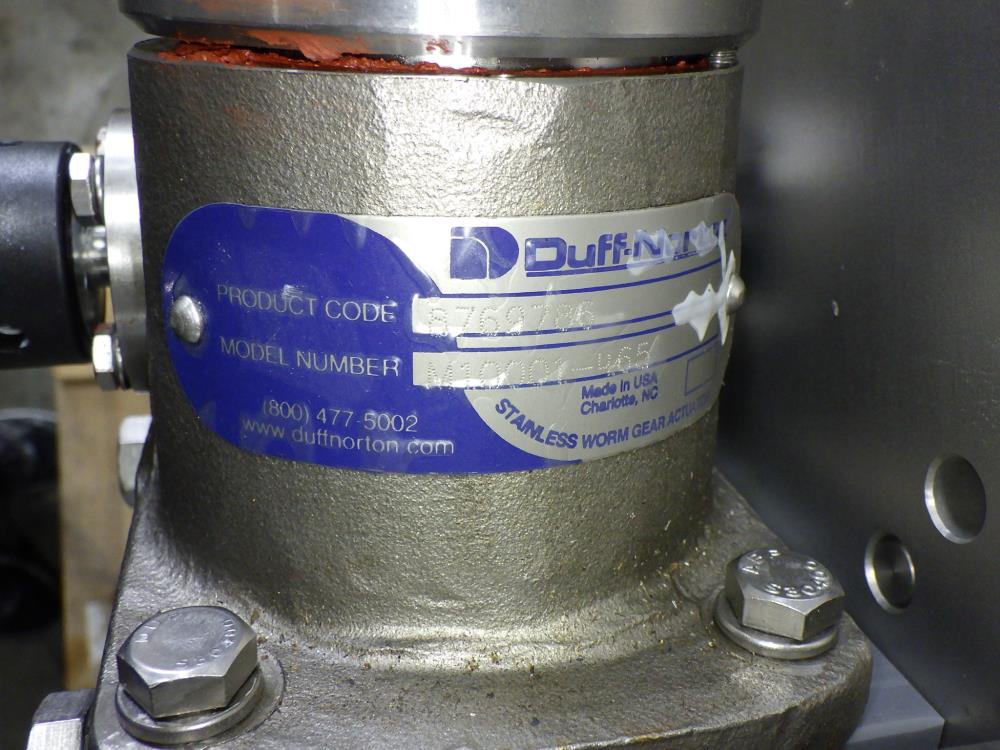

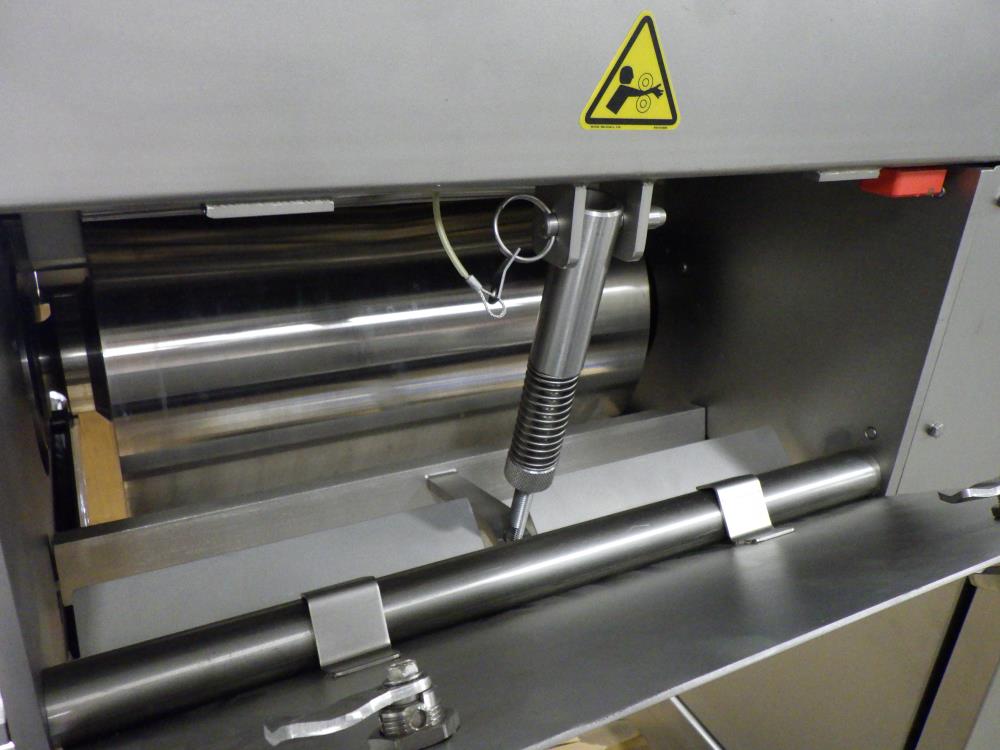

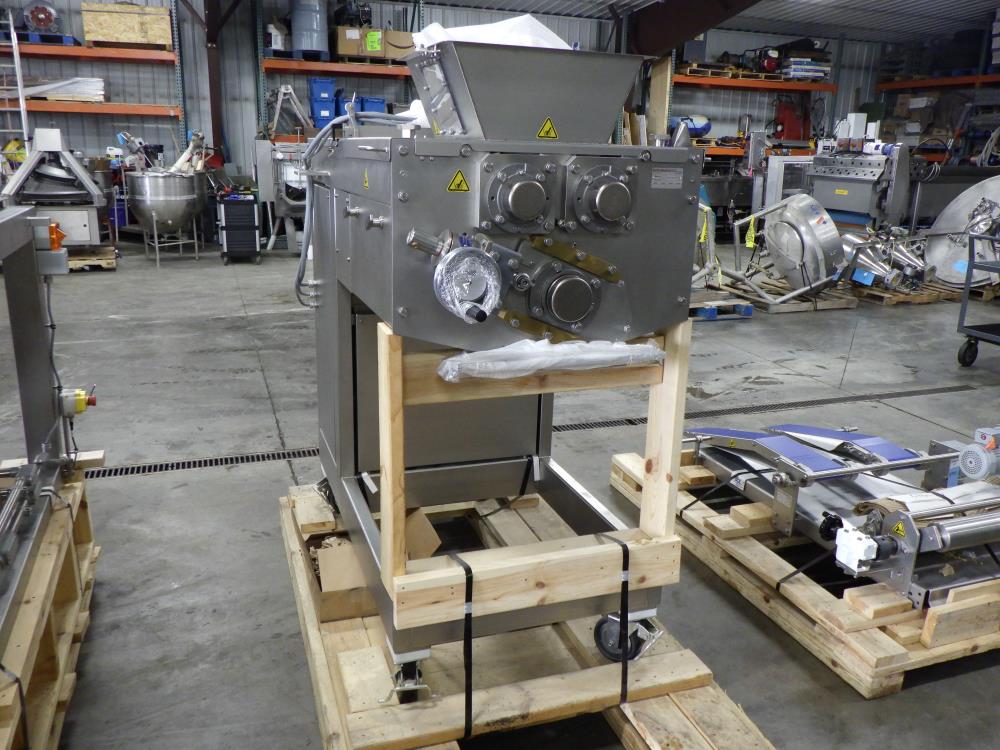

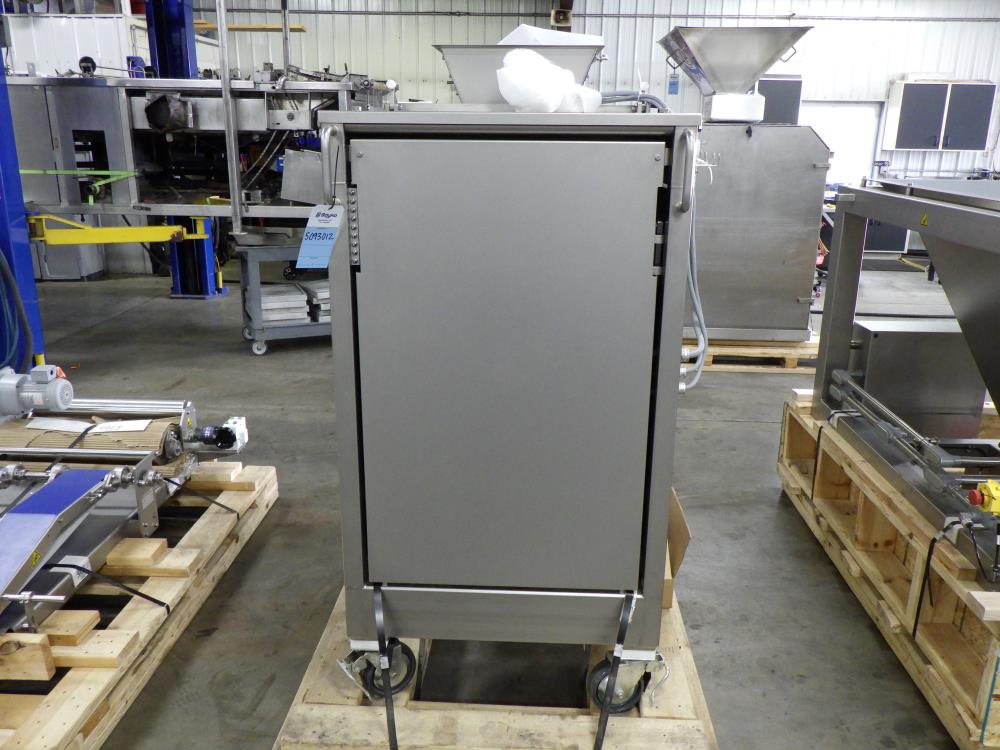

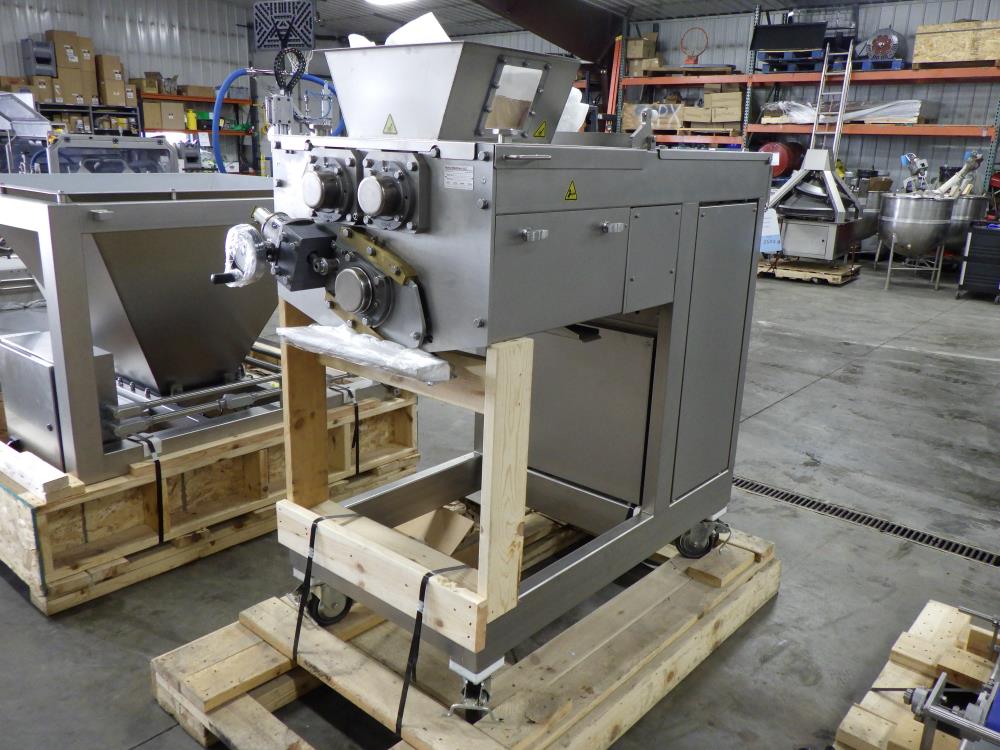

New Moline Tri-Roll Extruder

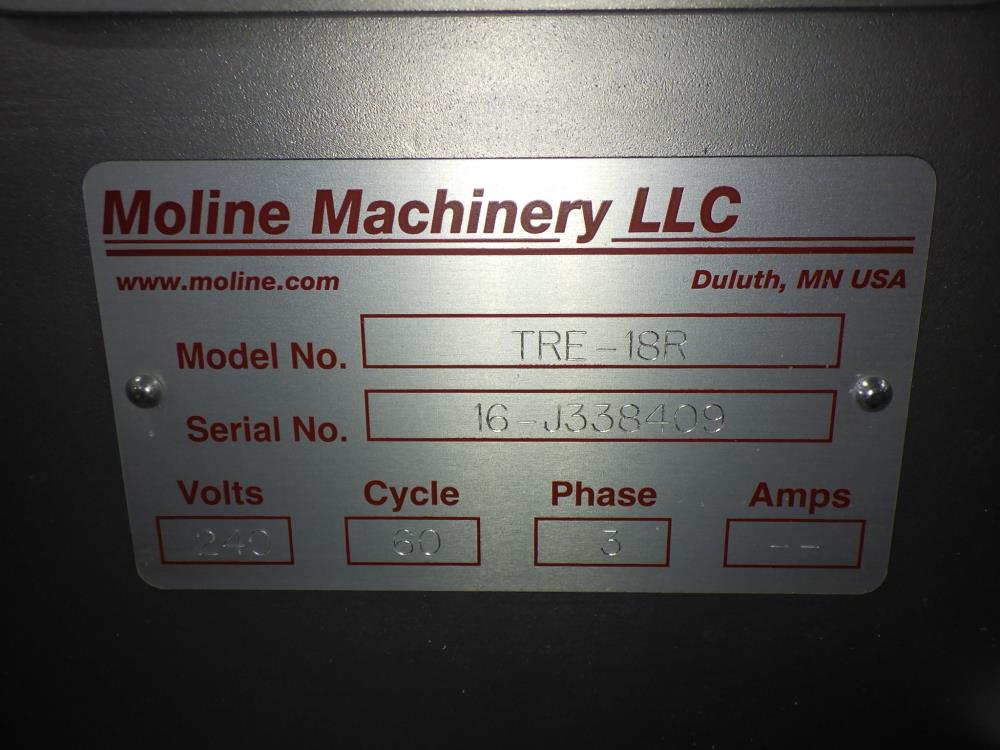

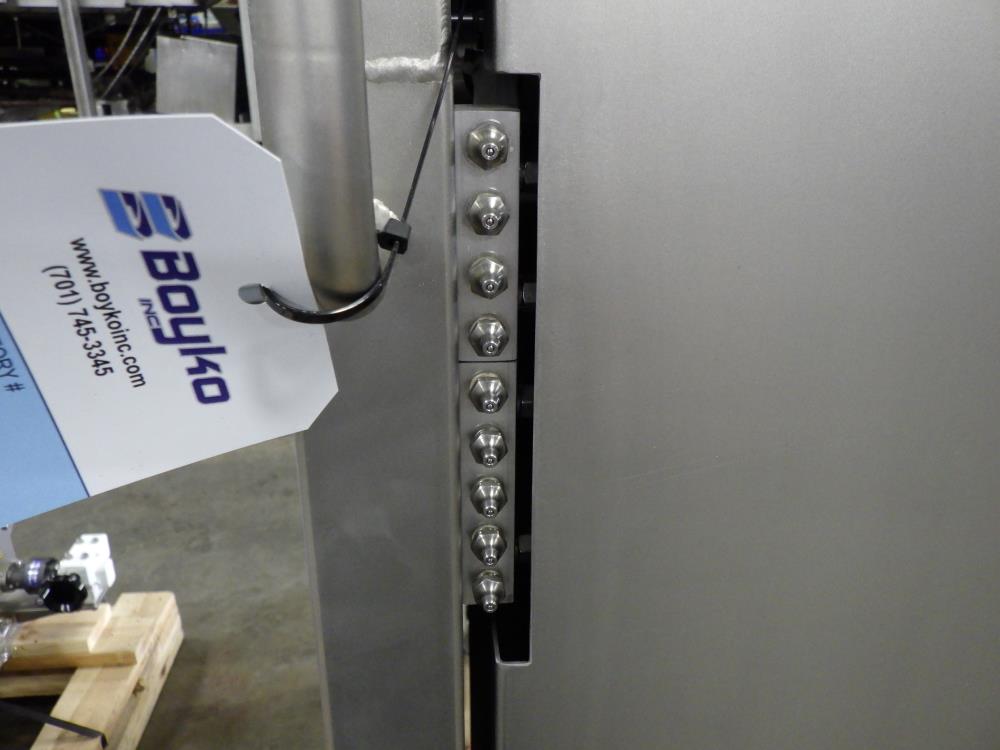

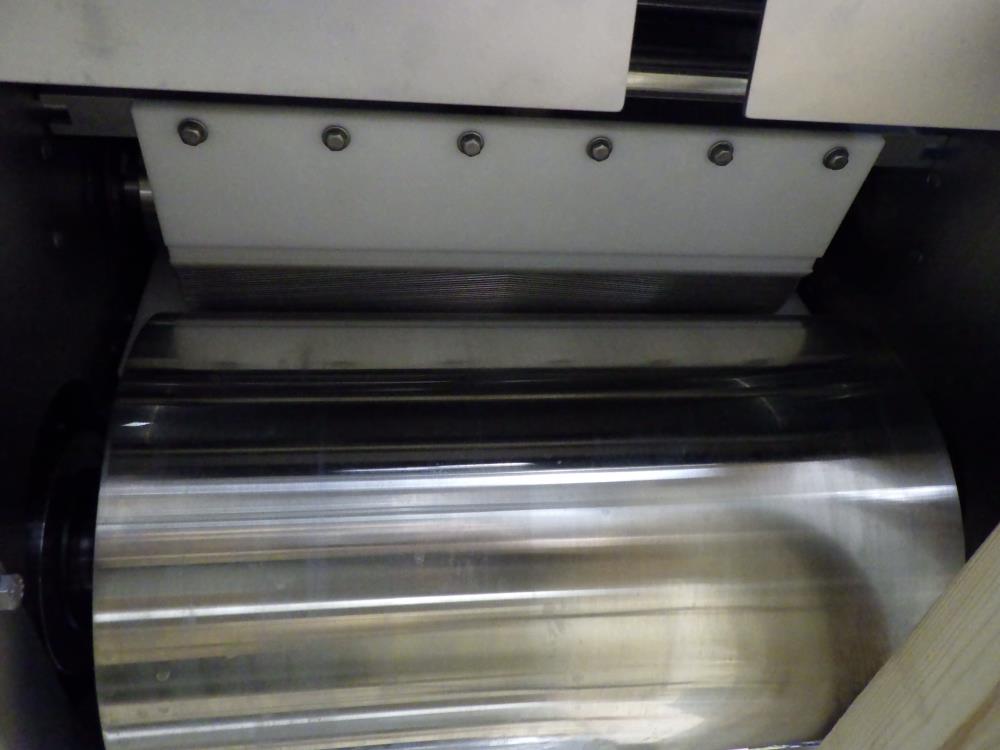

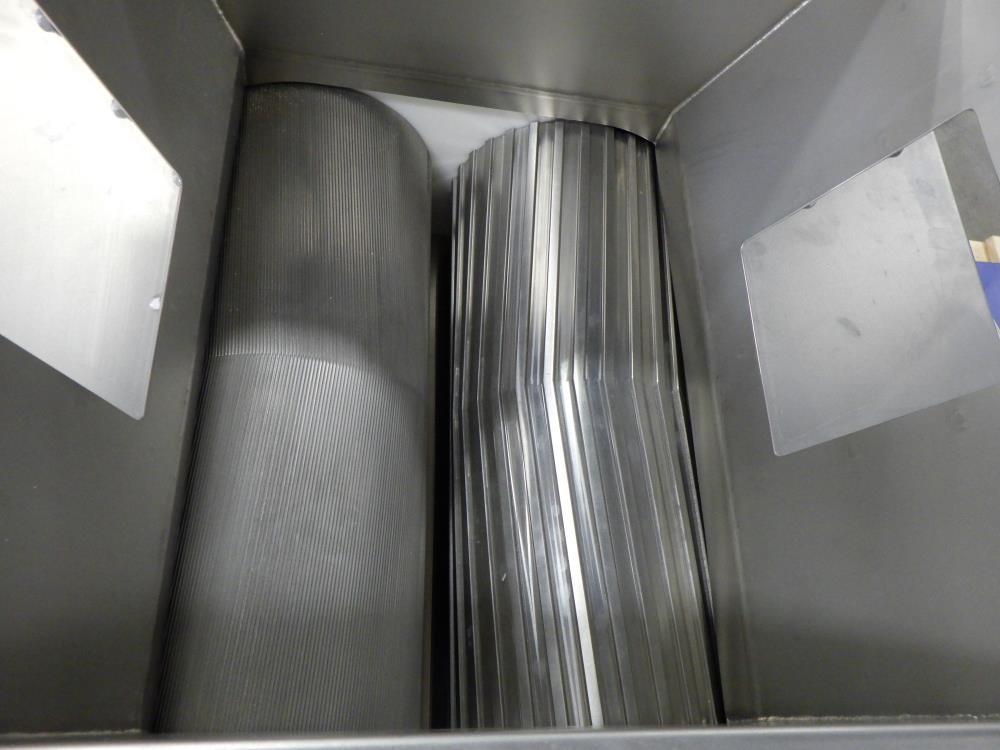

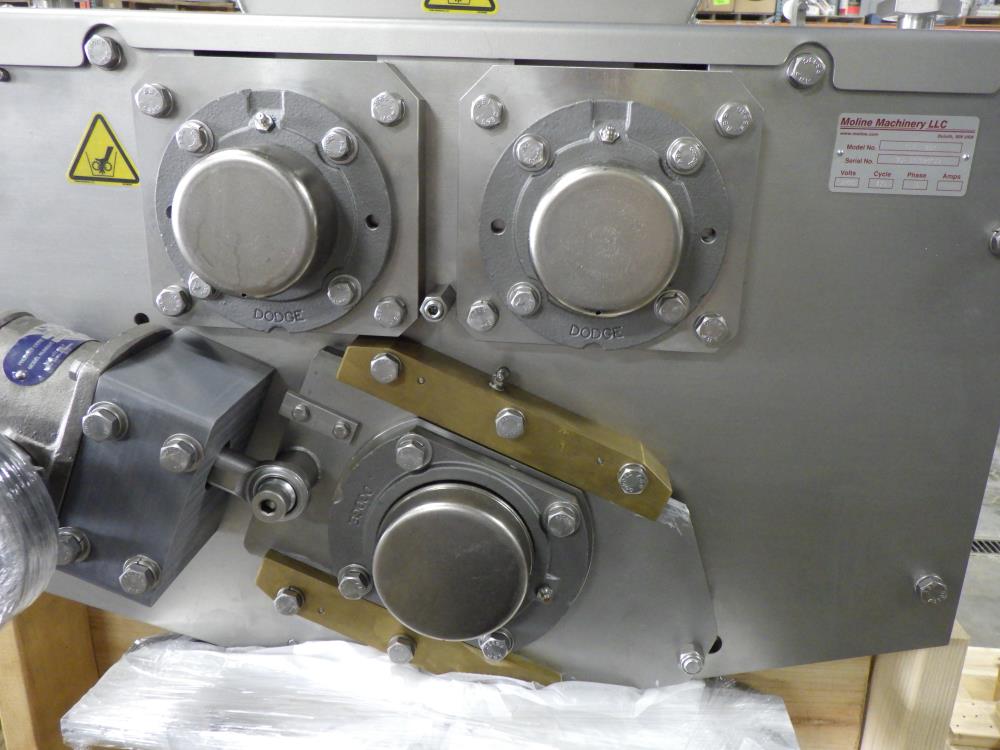

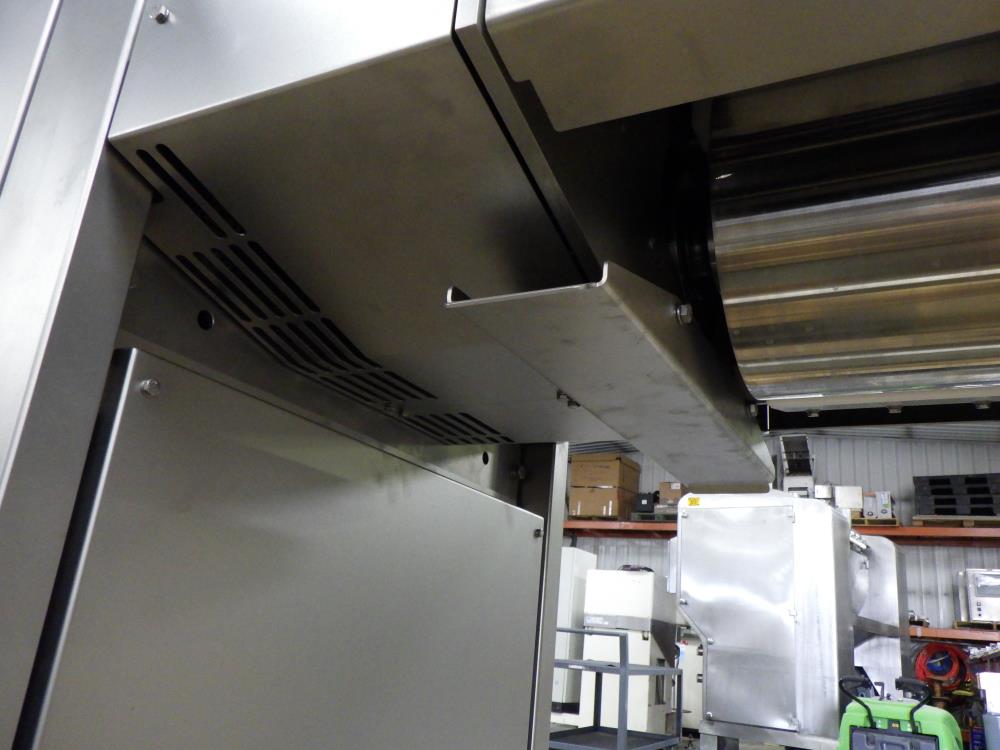

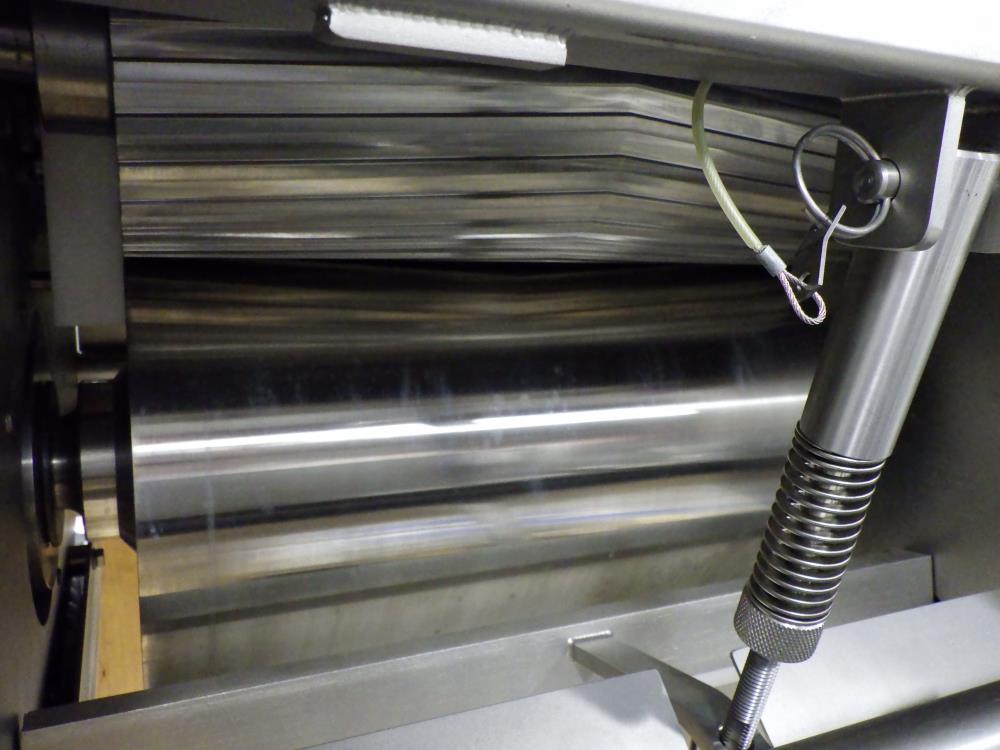

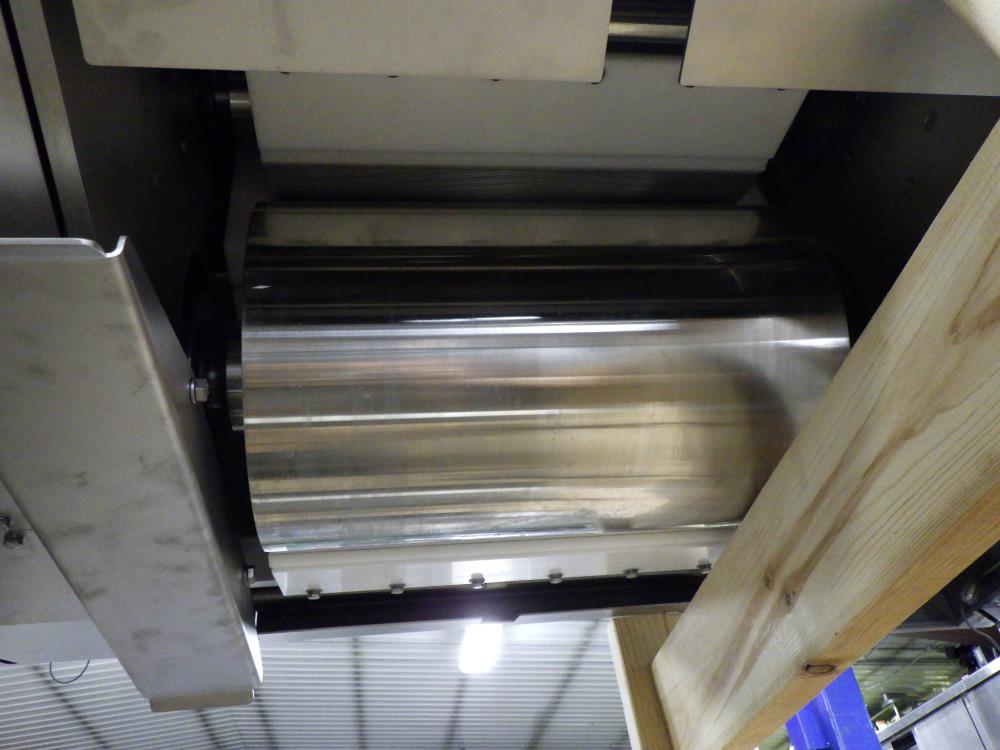

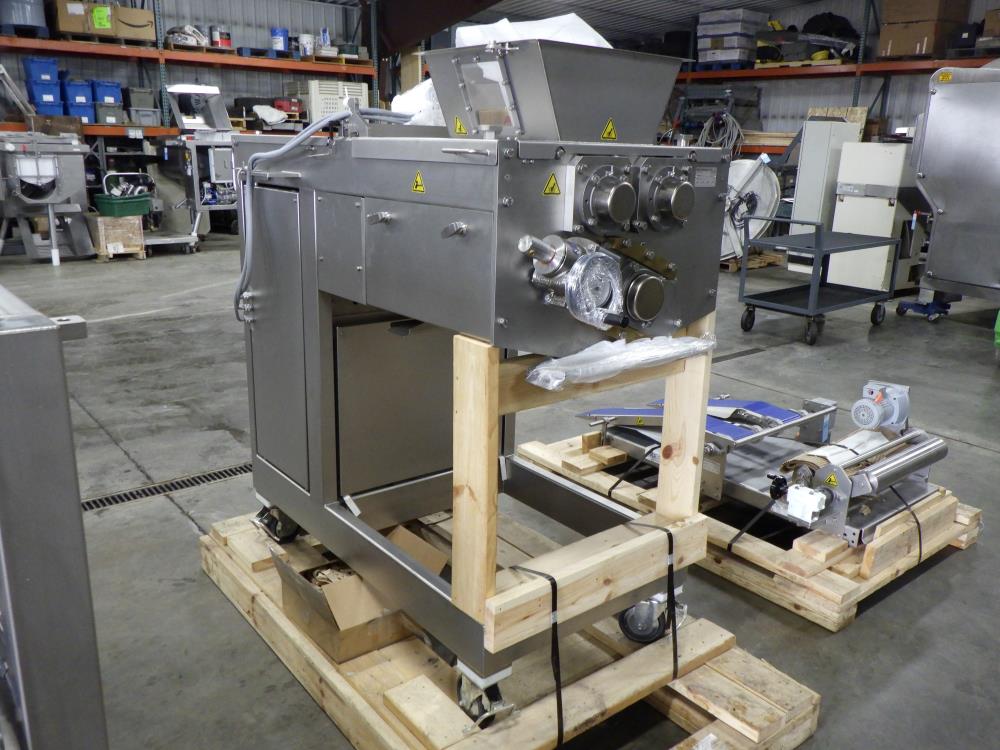

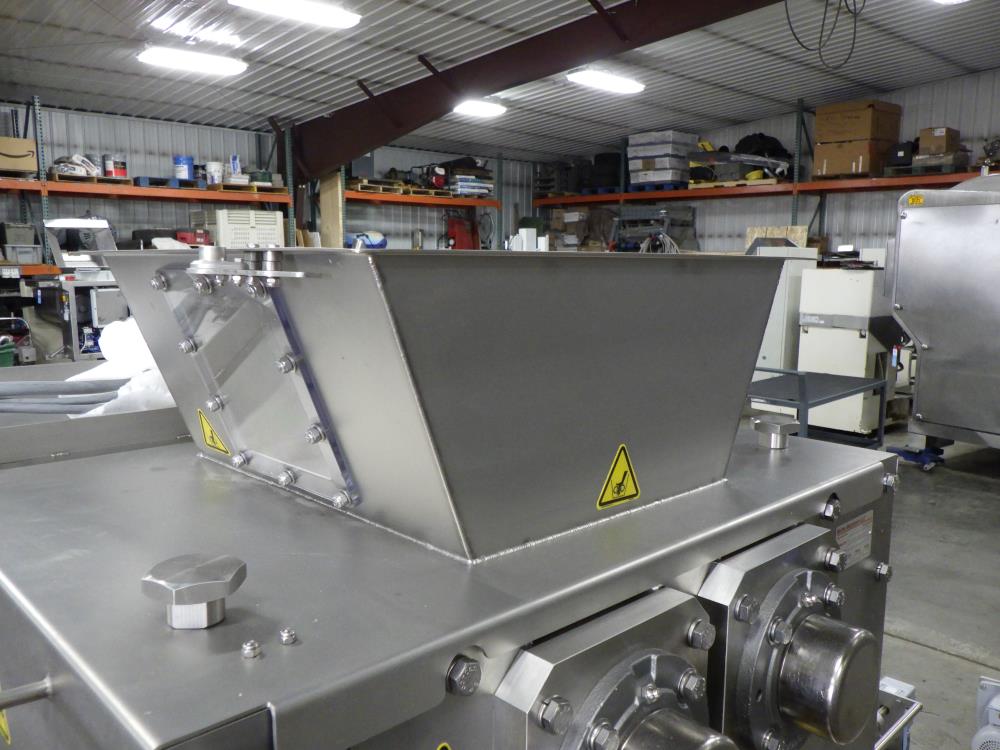

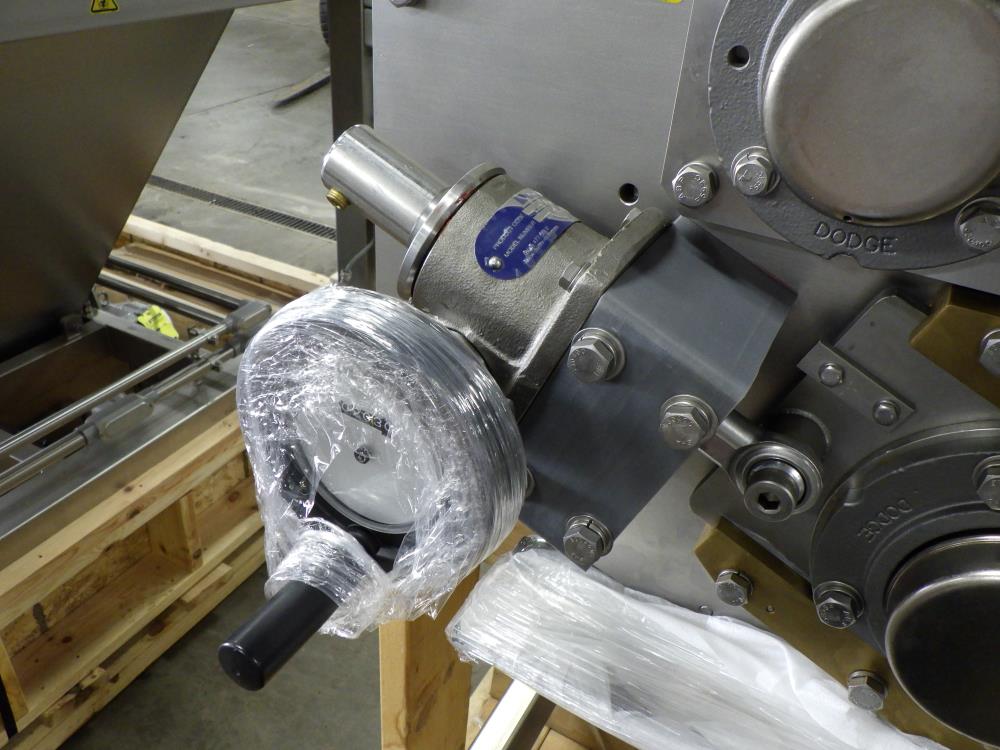

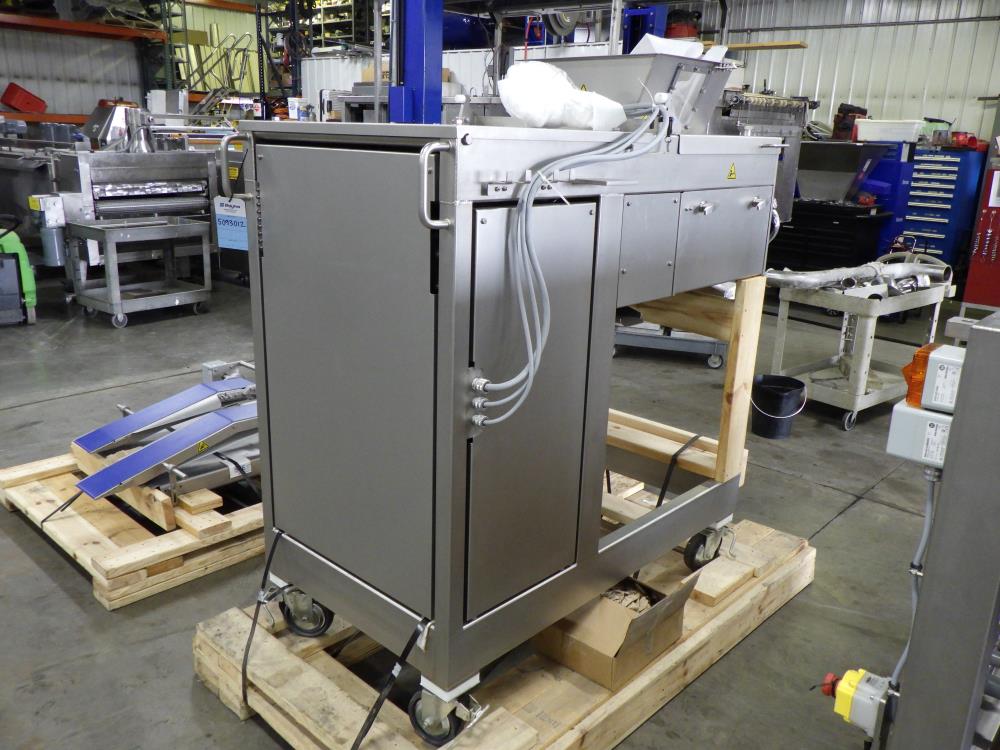

2016 Moline 3-roll extruder. Model TRE-18R, SN 16-J338409. 18 in. wide extruder. (2) 18 in. wide corrugated top rolls with chevron pattern, (1) 18 in. wide x 12 in. diameter smooth bottom roll. Adjustable width extruding, manual turn knob. Central grease zirk block for inside bearings. Heavy gauge stainless steel construction. On locking casters. Electrical requirements 240 volt, 3 phase, 60 hz.

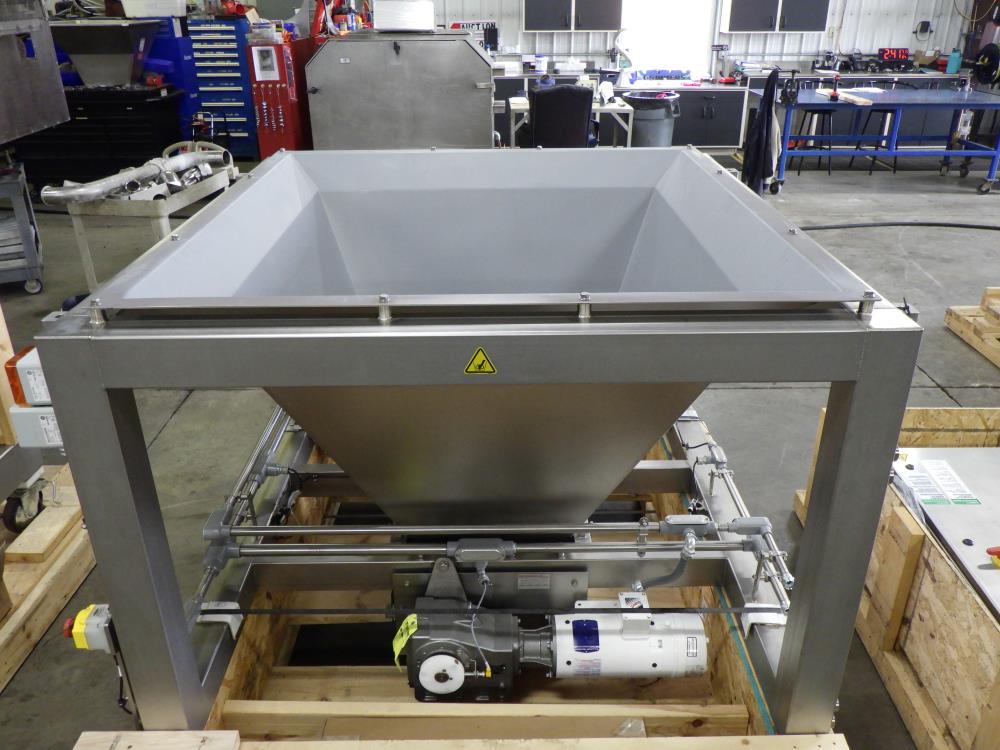

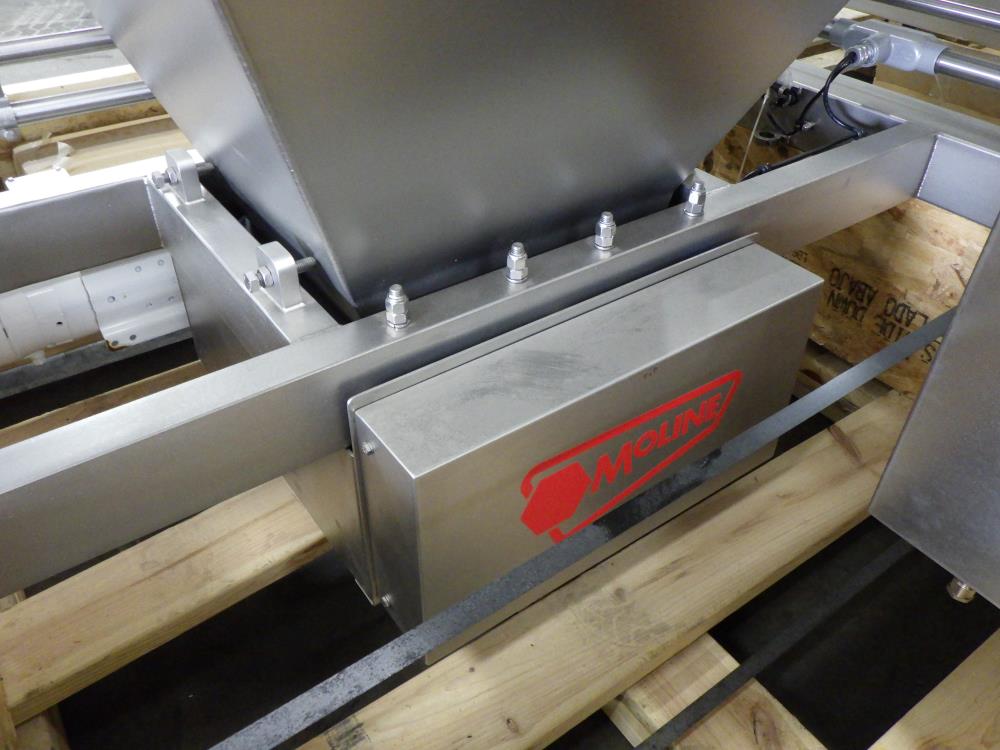

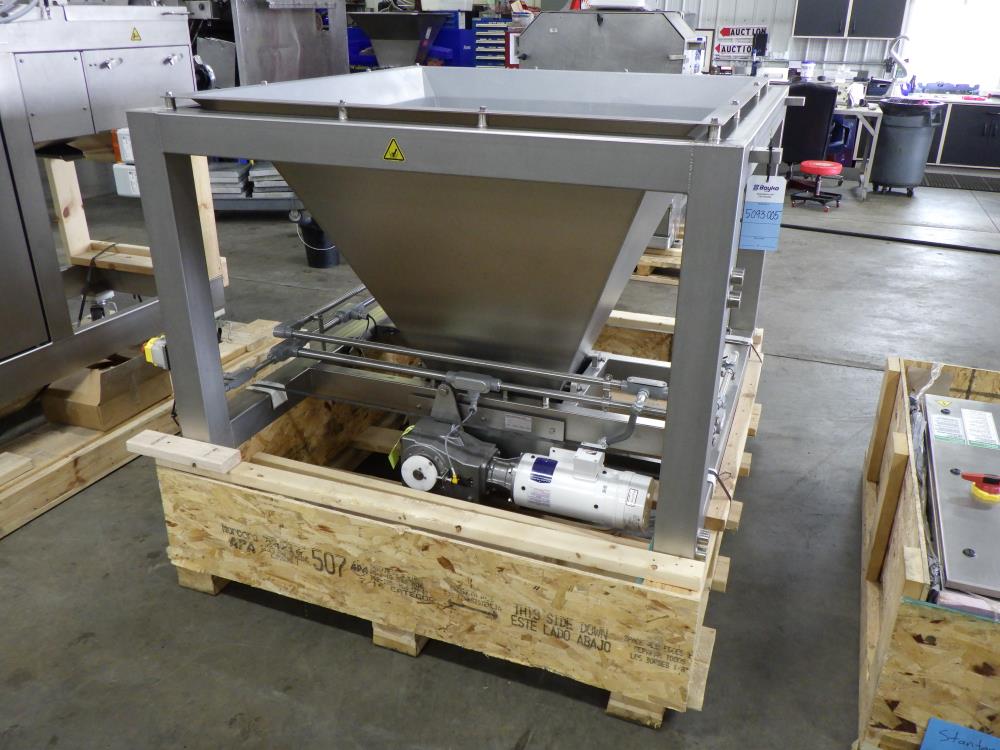

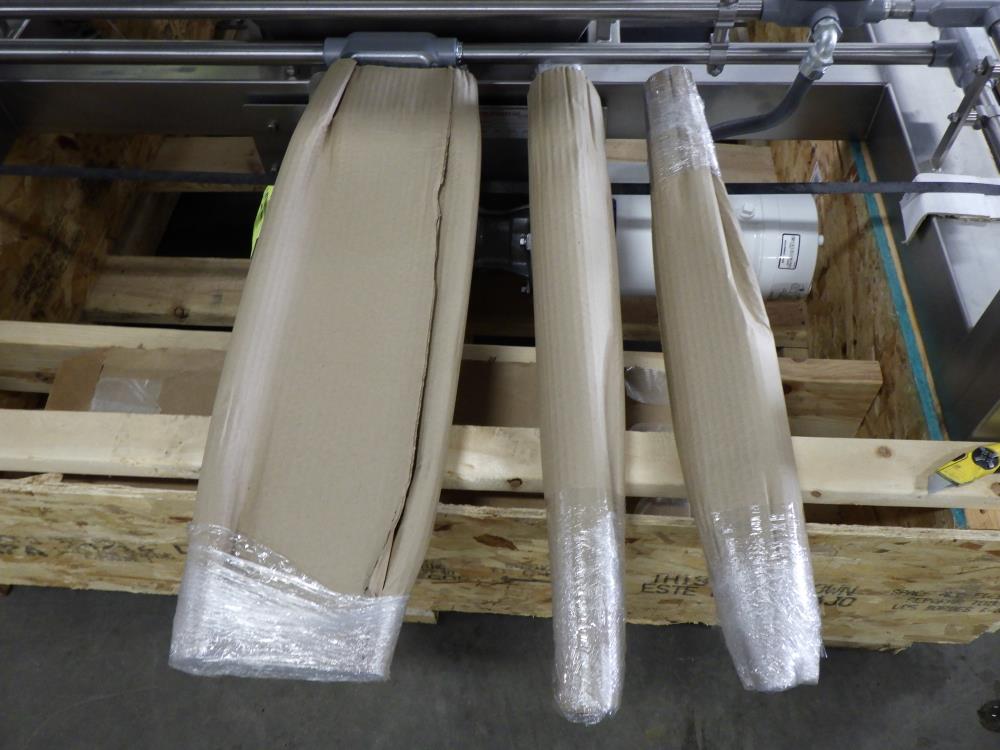

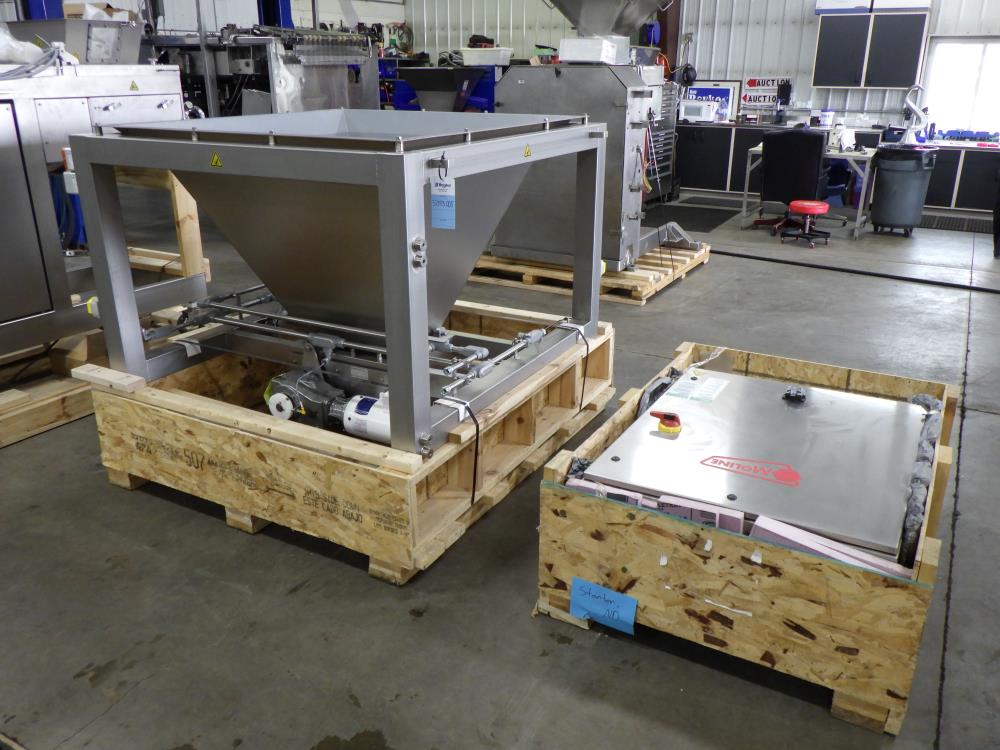

New Moline Starwheel Chunker

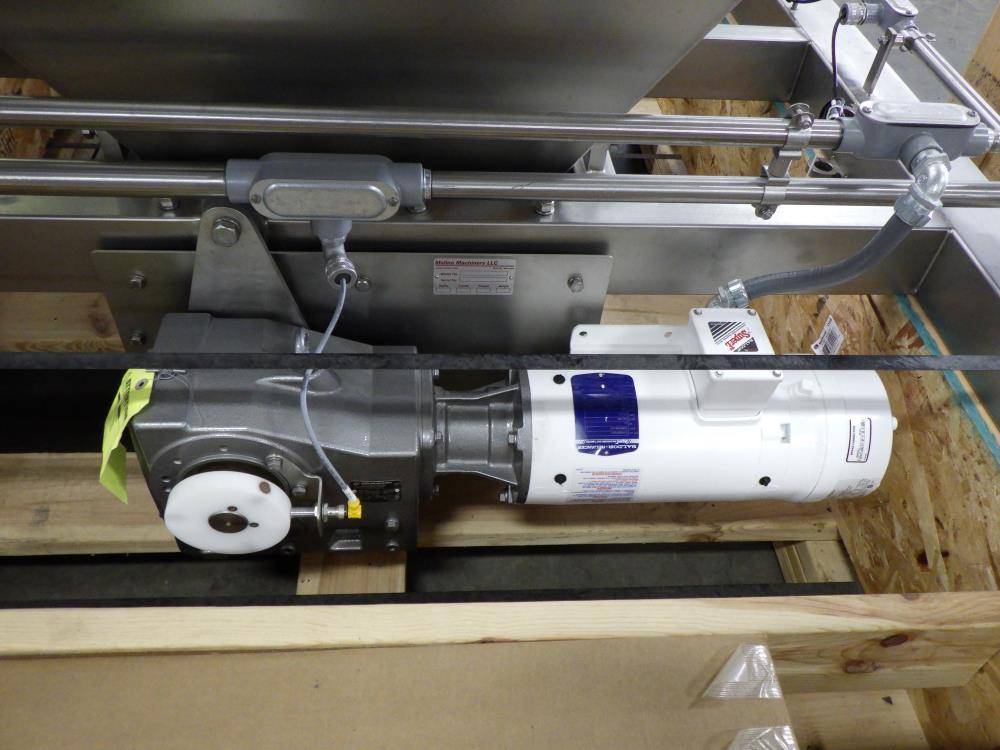

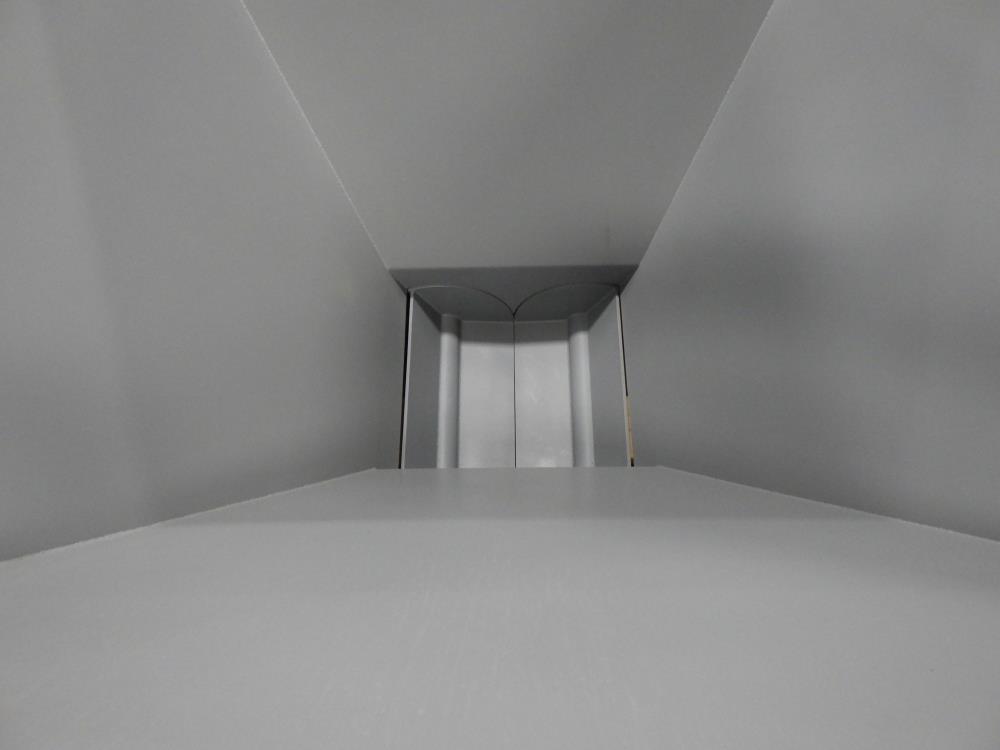

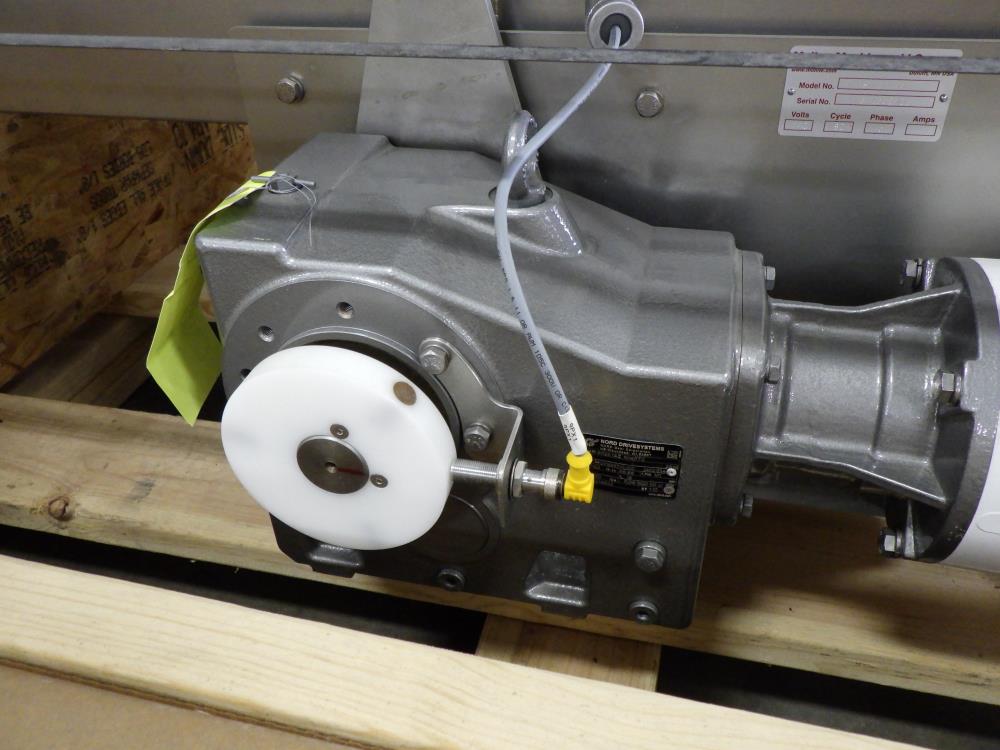

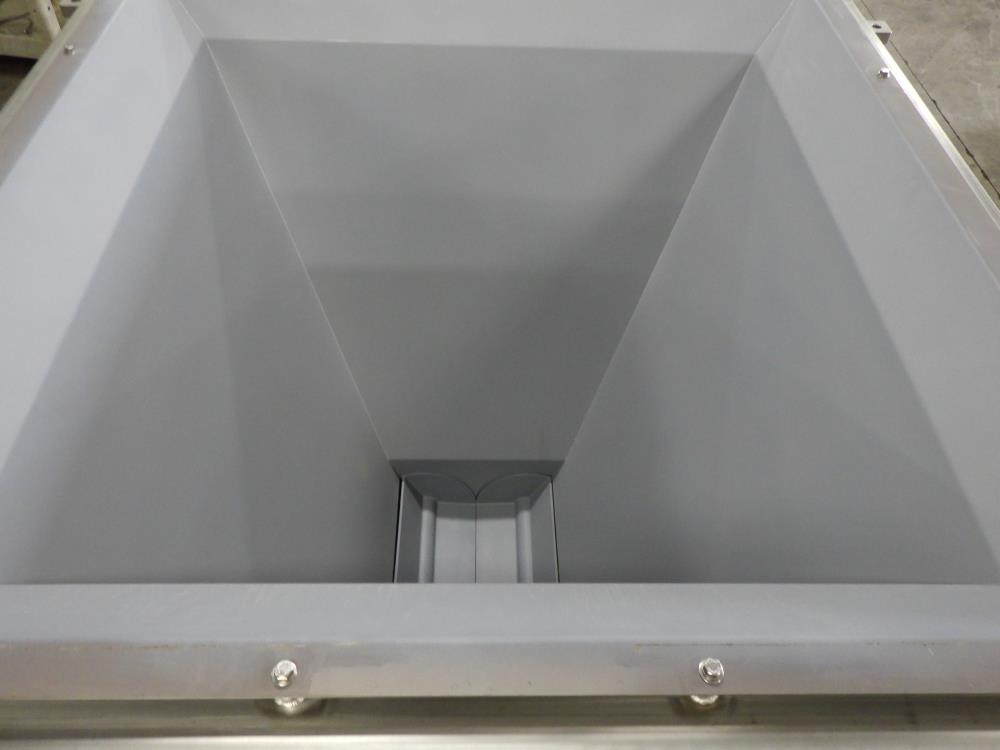

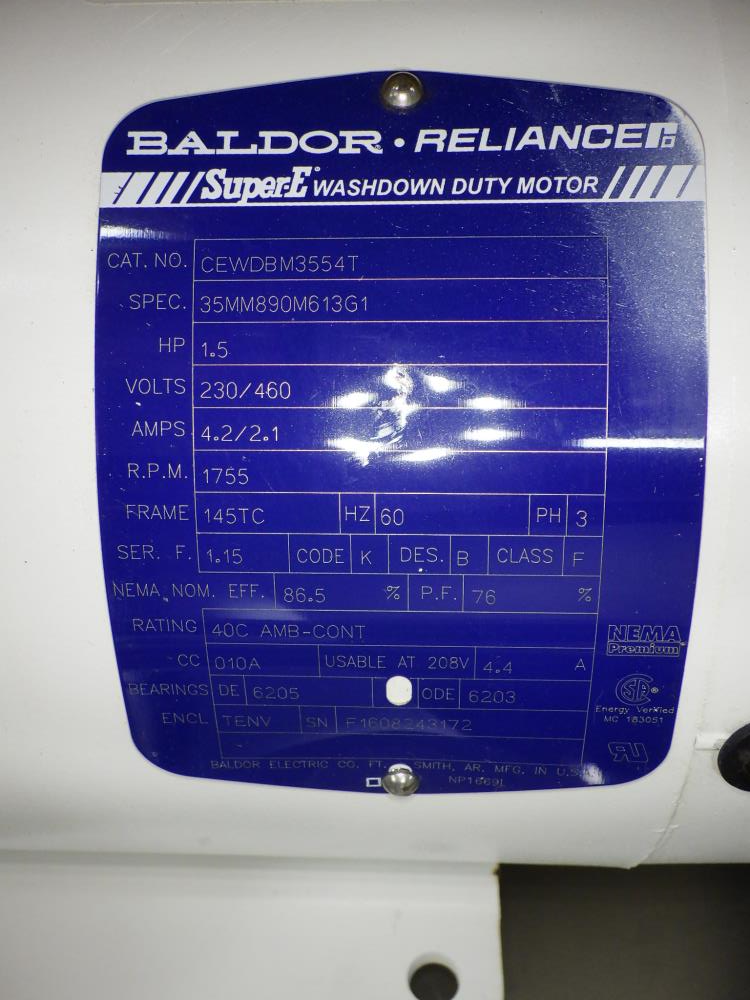

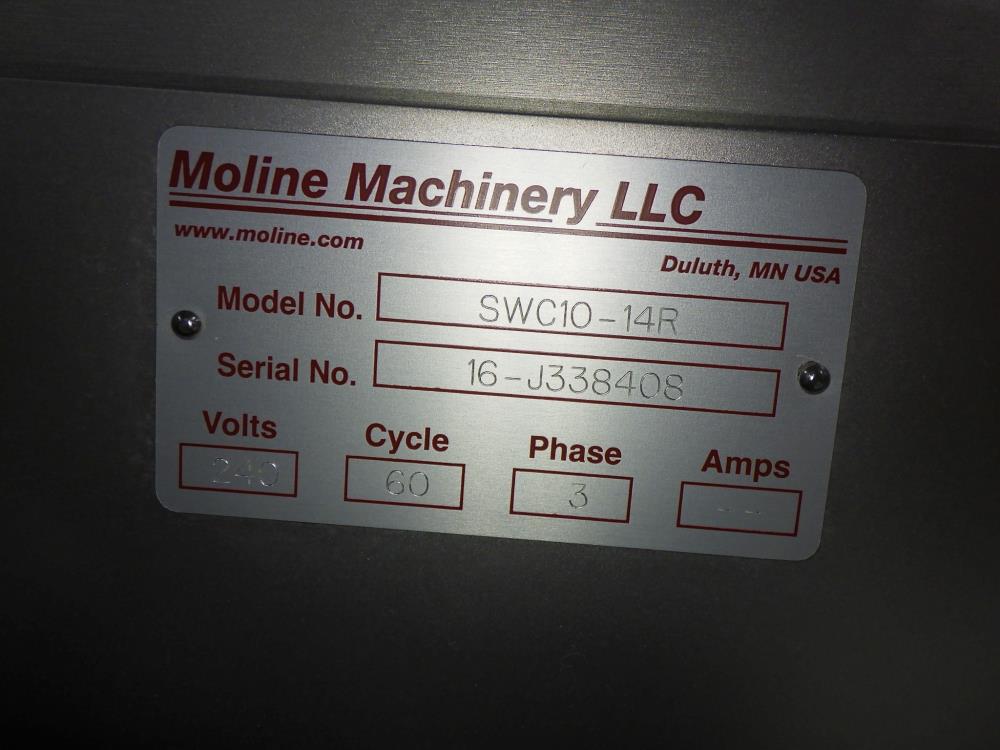

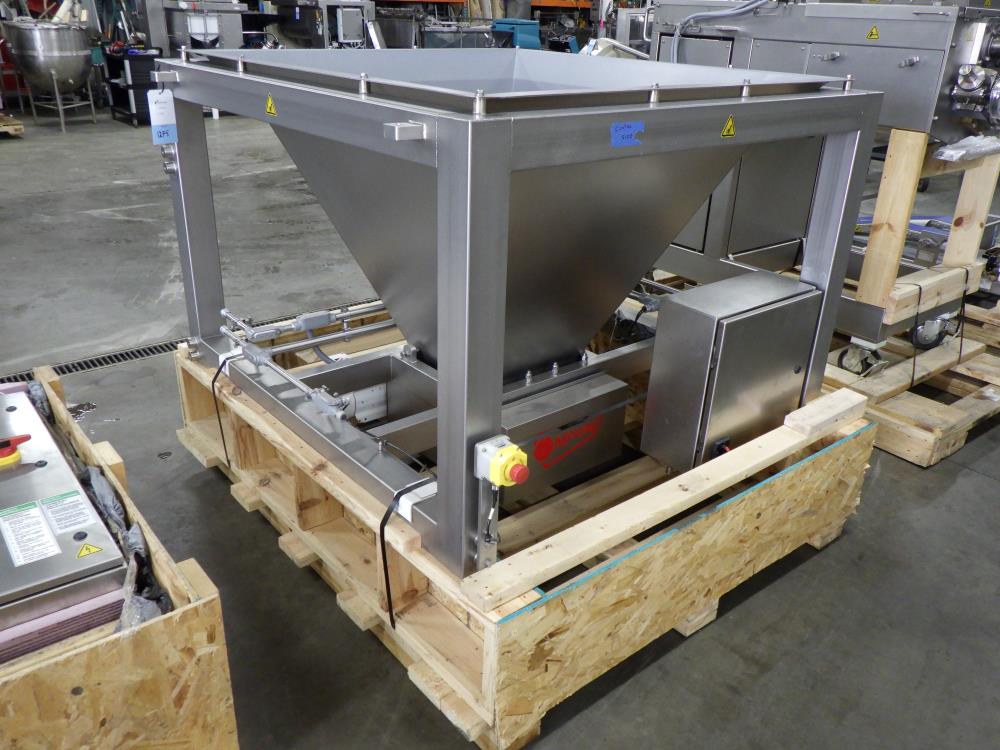

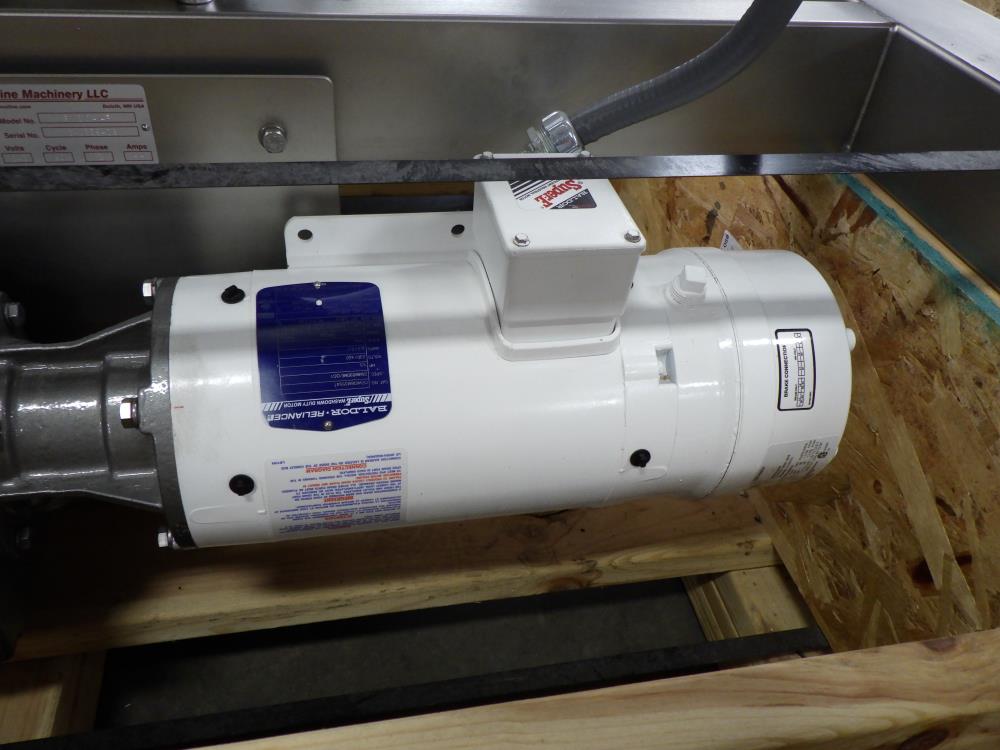

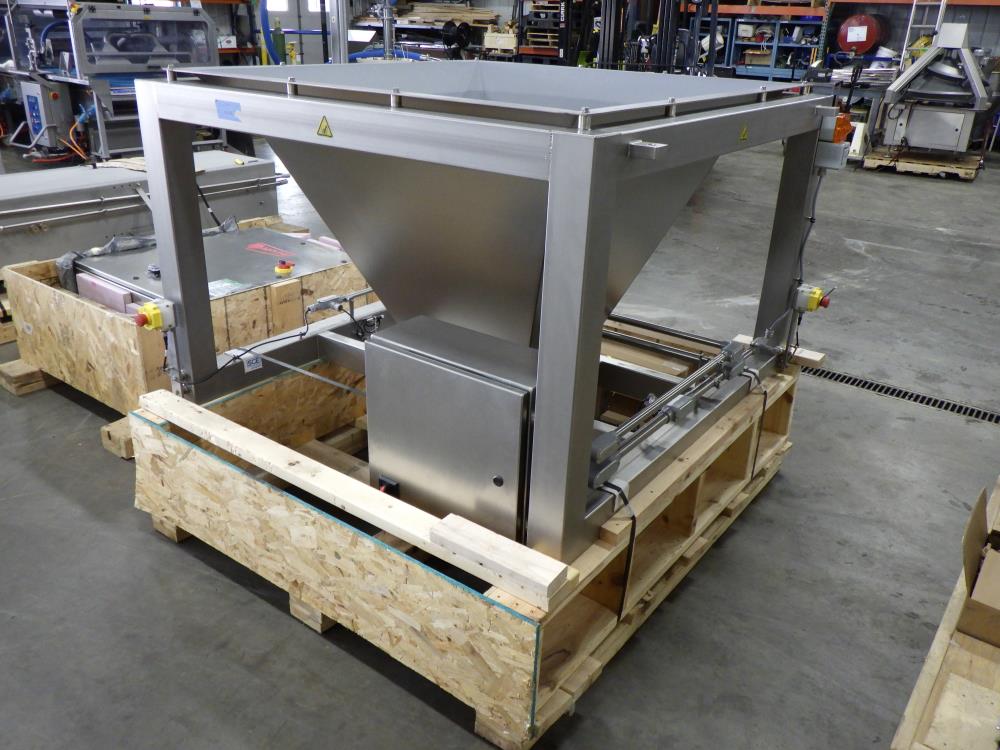

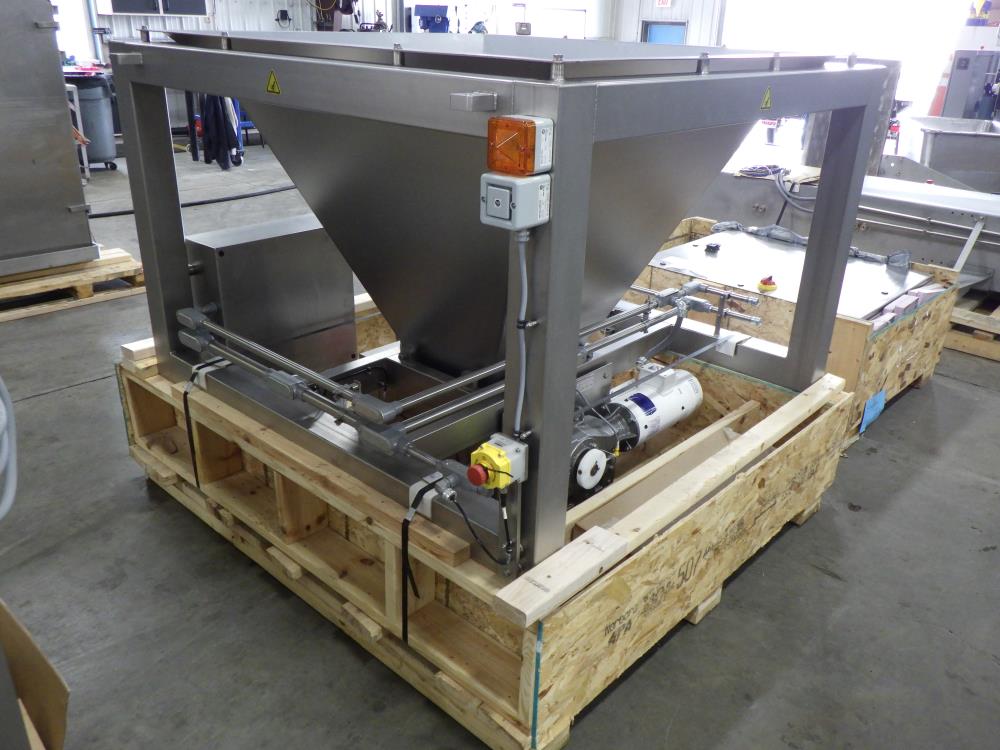

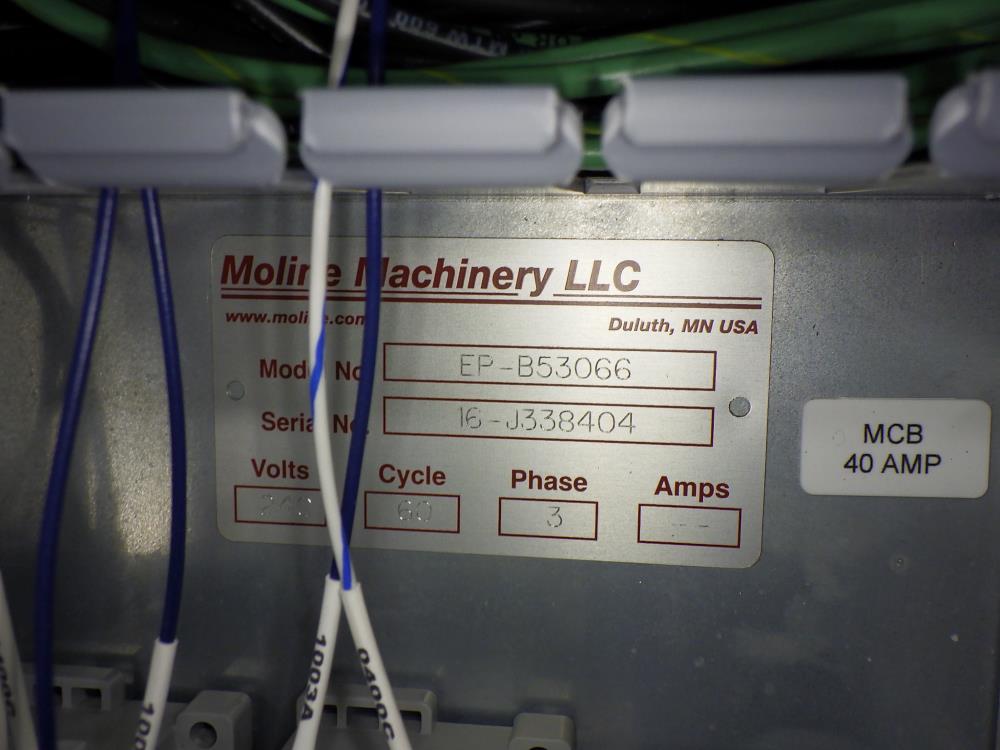

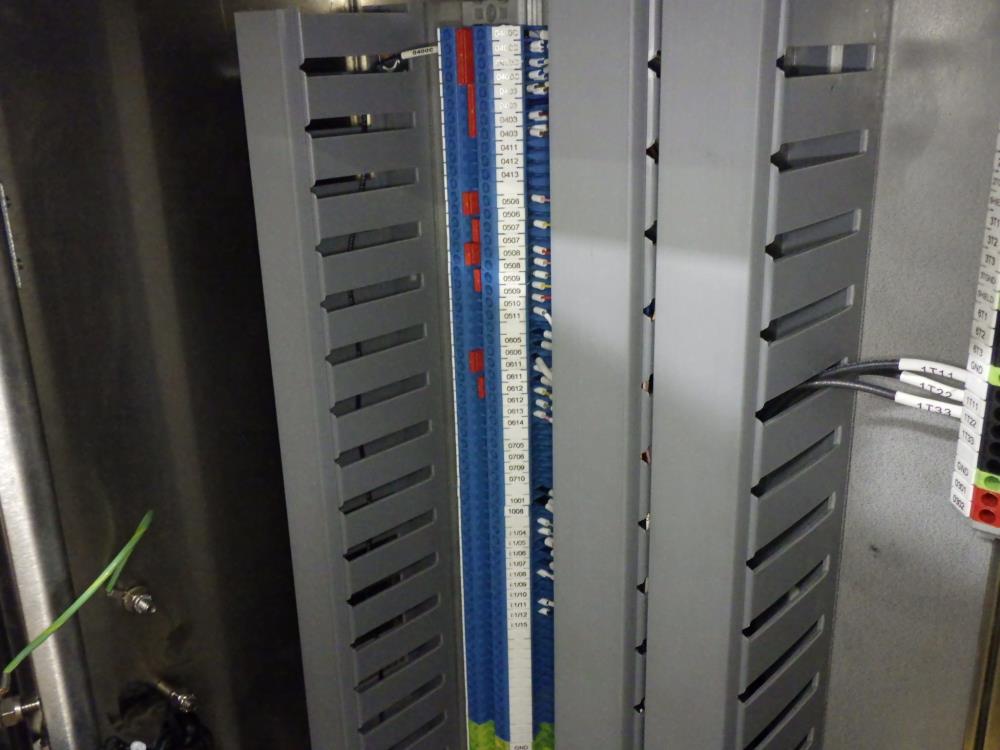

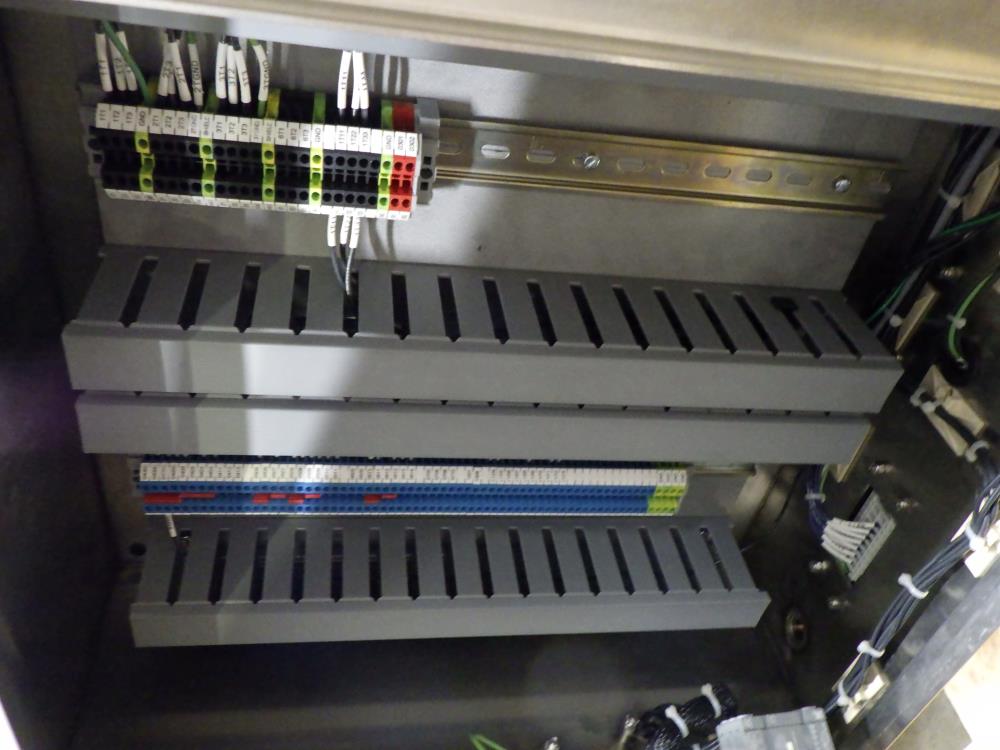

2016 Moline rotary dough chunker. Model SWC10-14R, SN 16-J338408. Starwheel paddles 14 in. long, 10 in. spacing between centers of blades. Baldor 1.5 hp drive for paddles. SS hopper, coated for optimum dough release. Heavy gauge SS frame. 600 lbs. hopper capacity. SS control panel. (2) E-stops, beacon light with horn. Electrical requirements 240 volt, 3 phase, 60 hz.

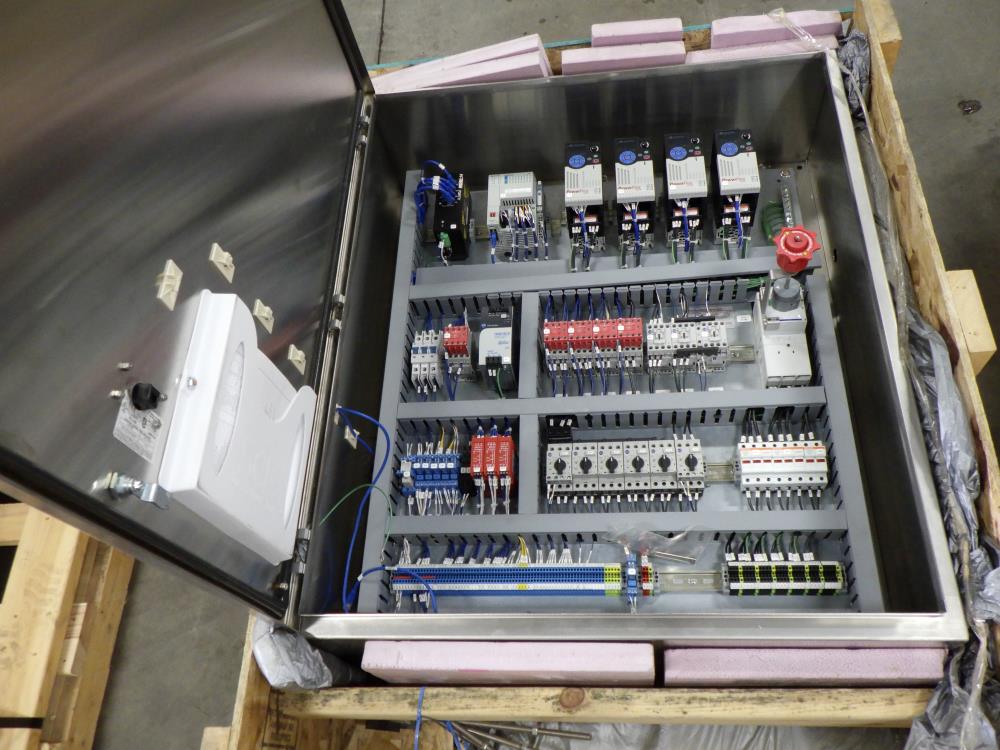

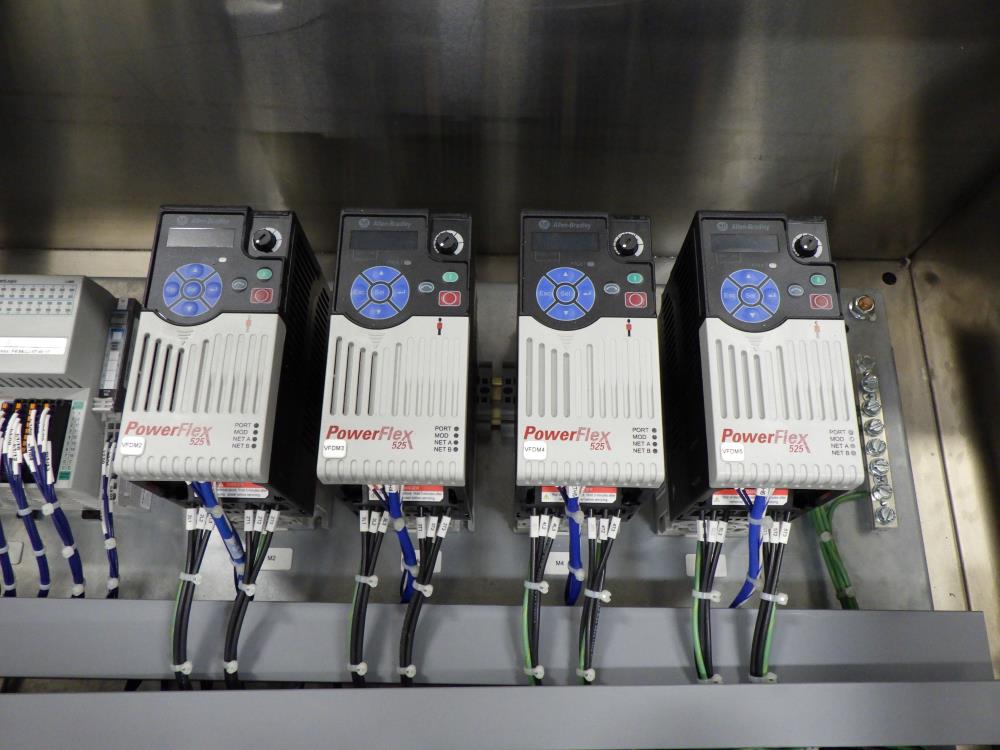

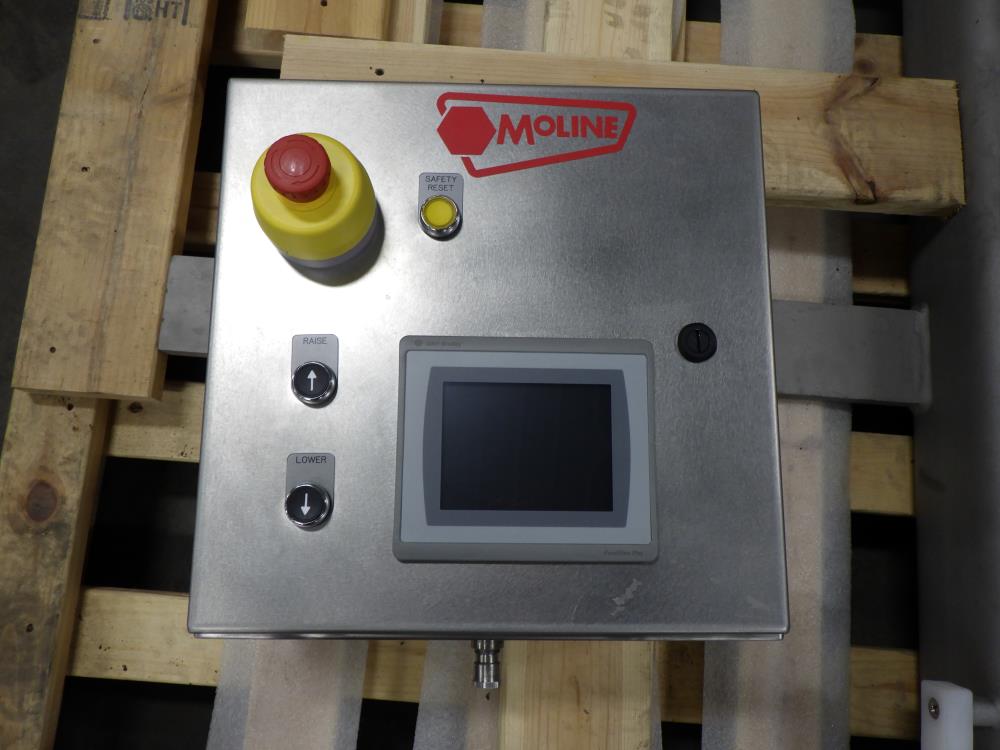

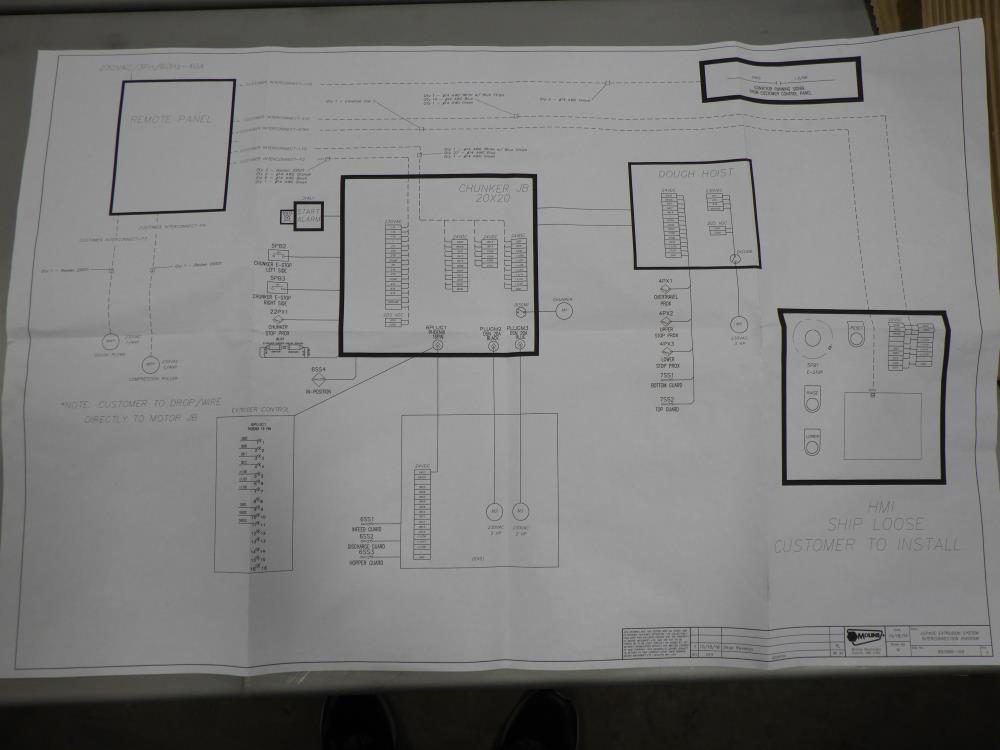

New Moline SS Control Panel

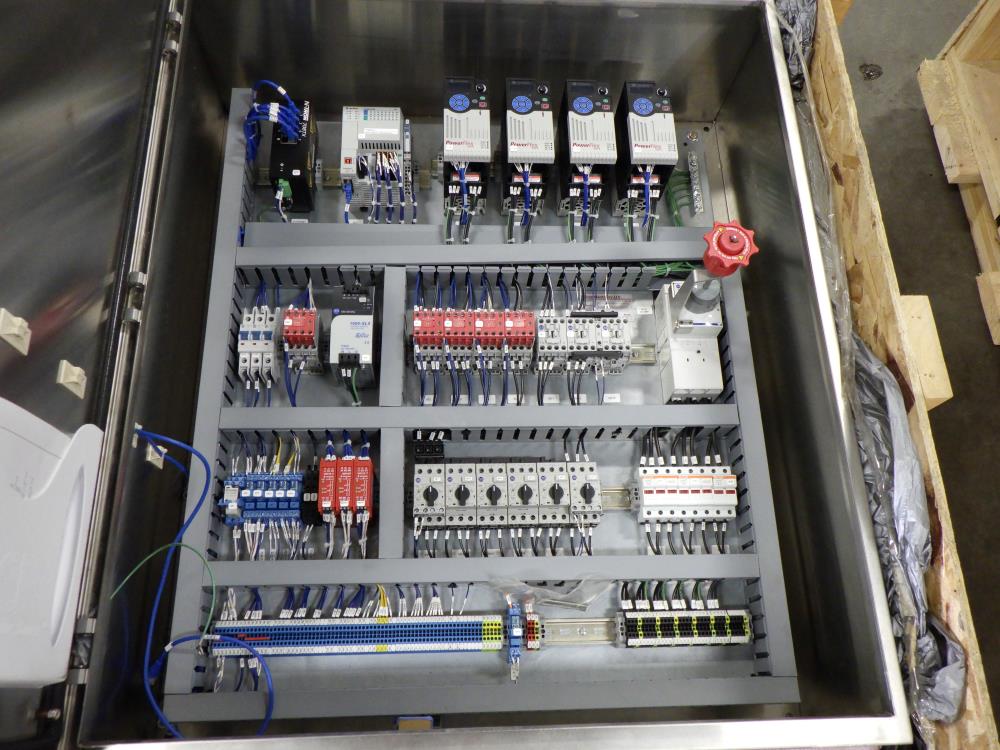

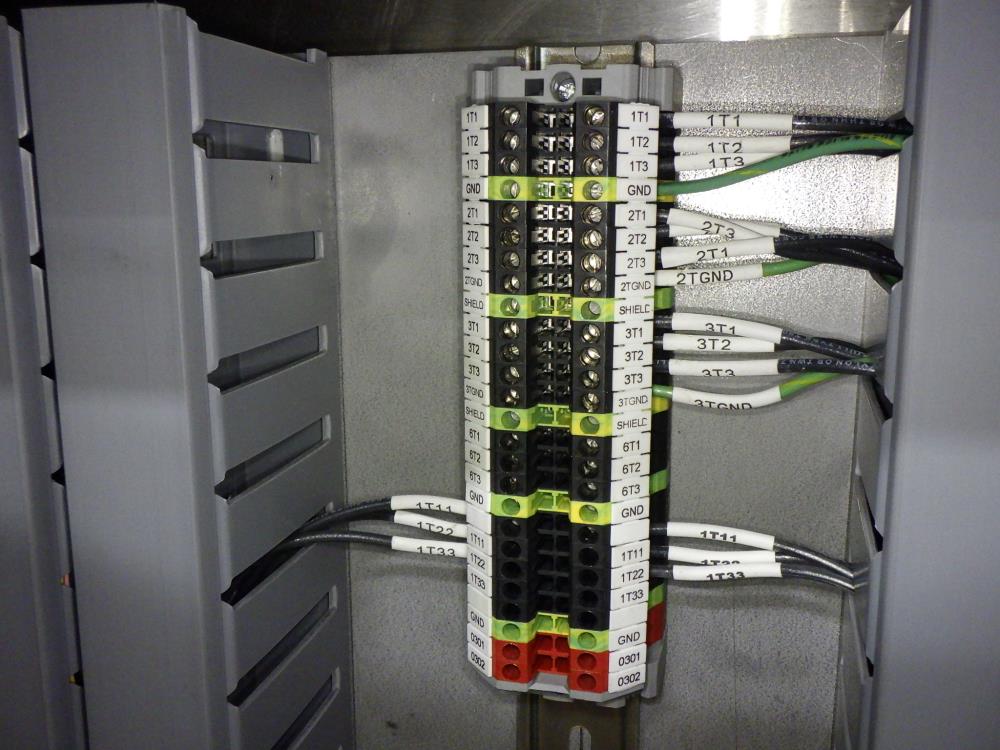

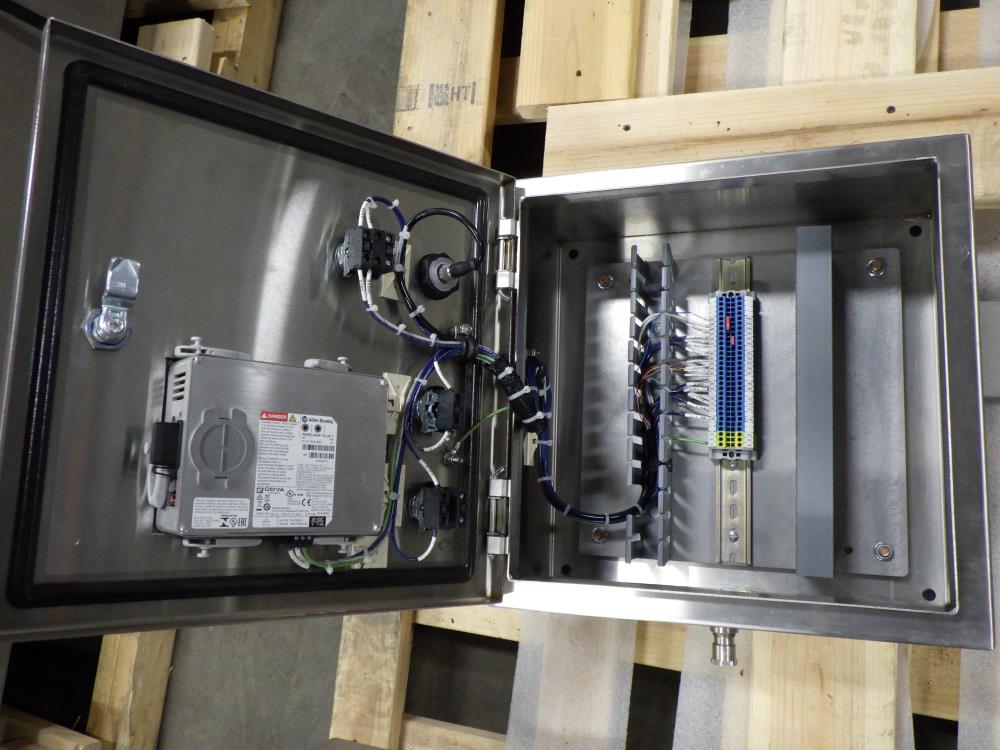

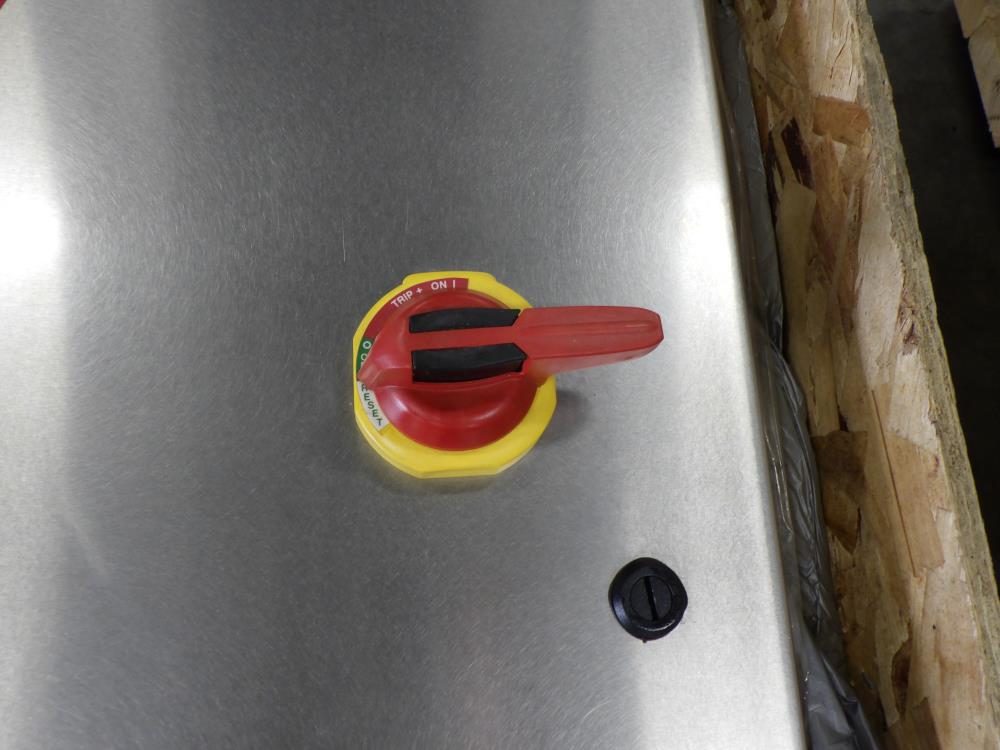

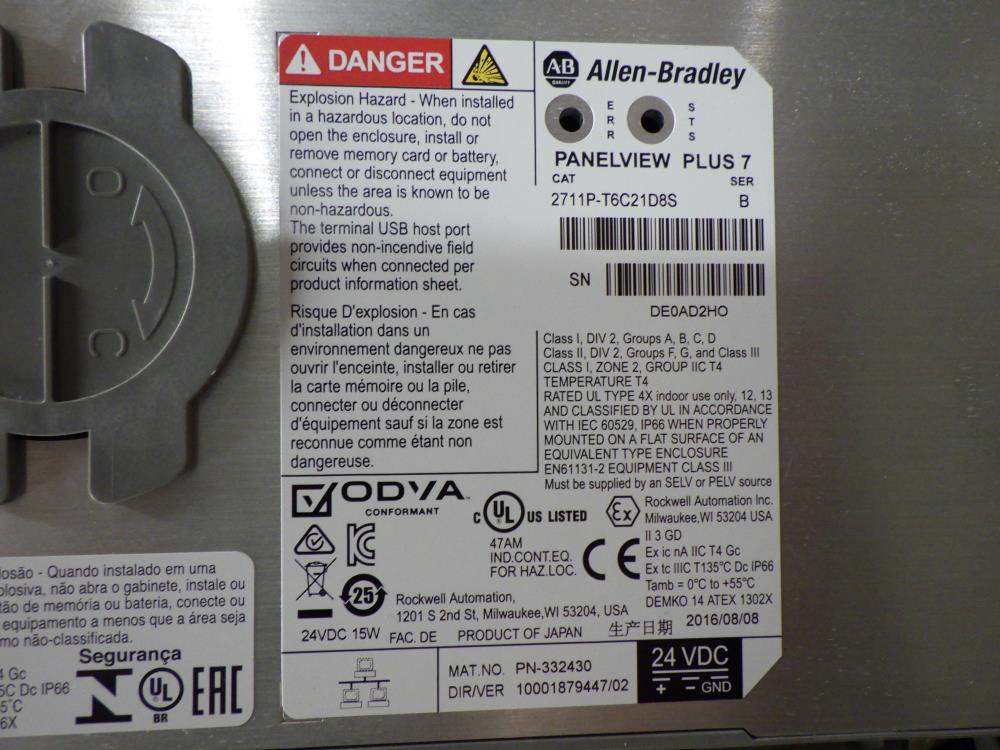

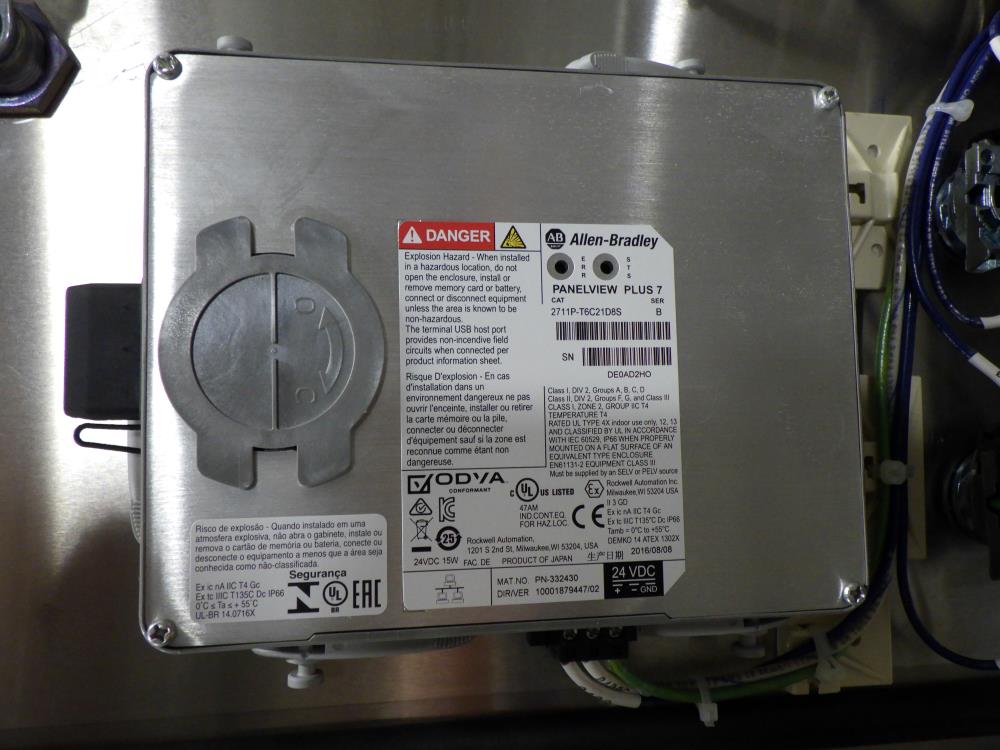

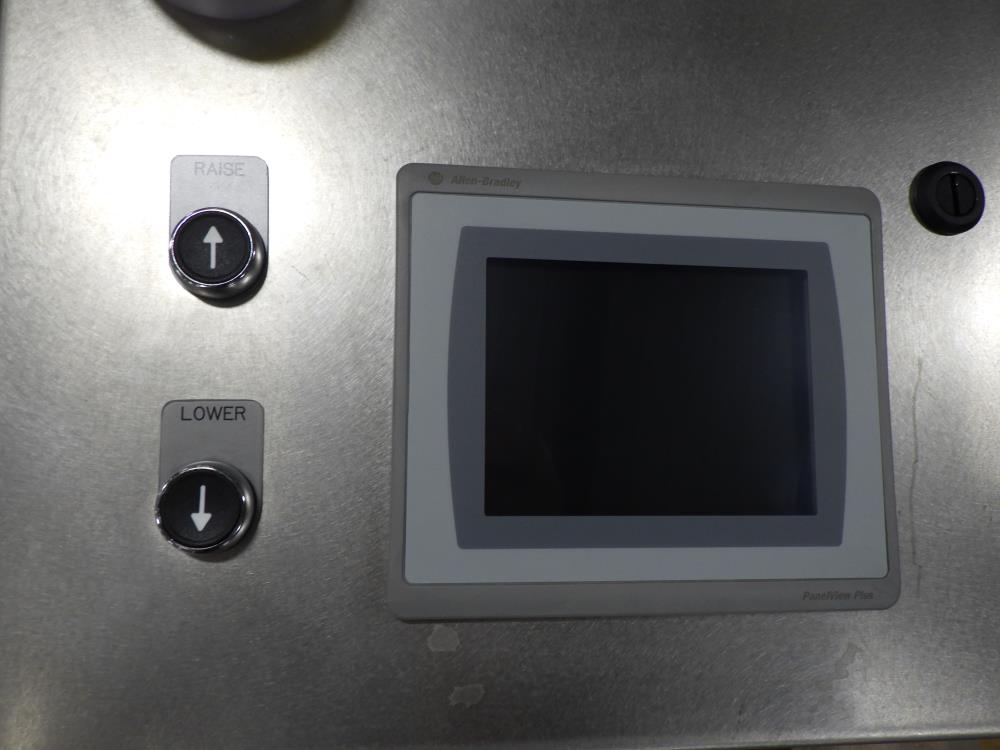

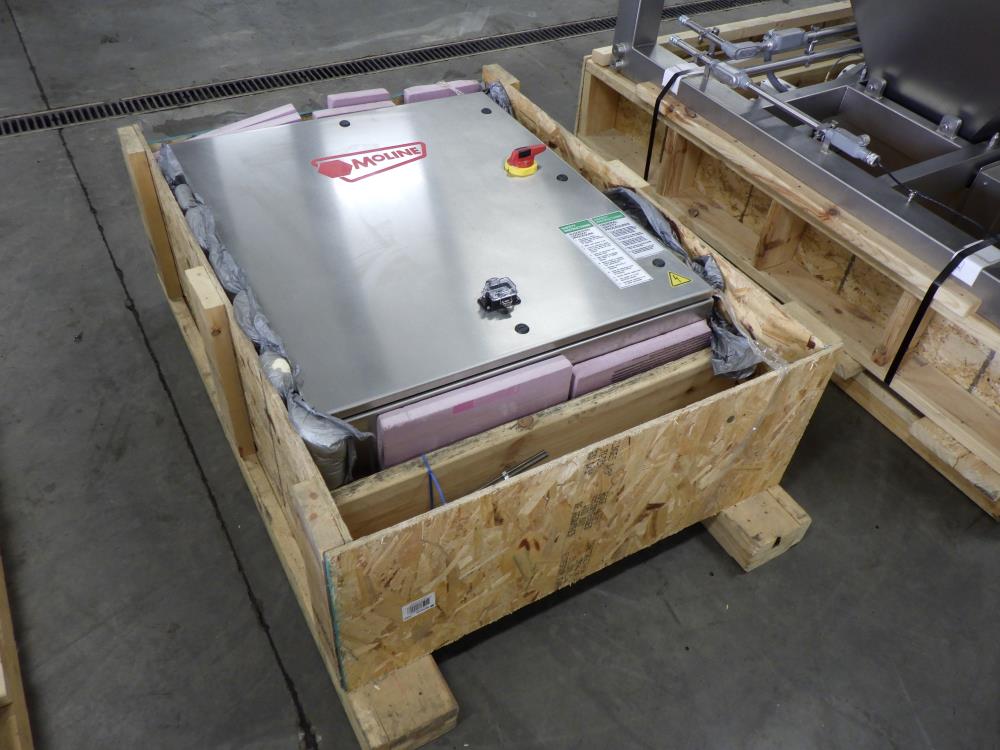

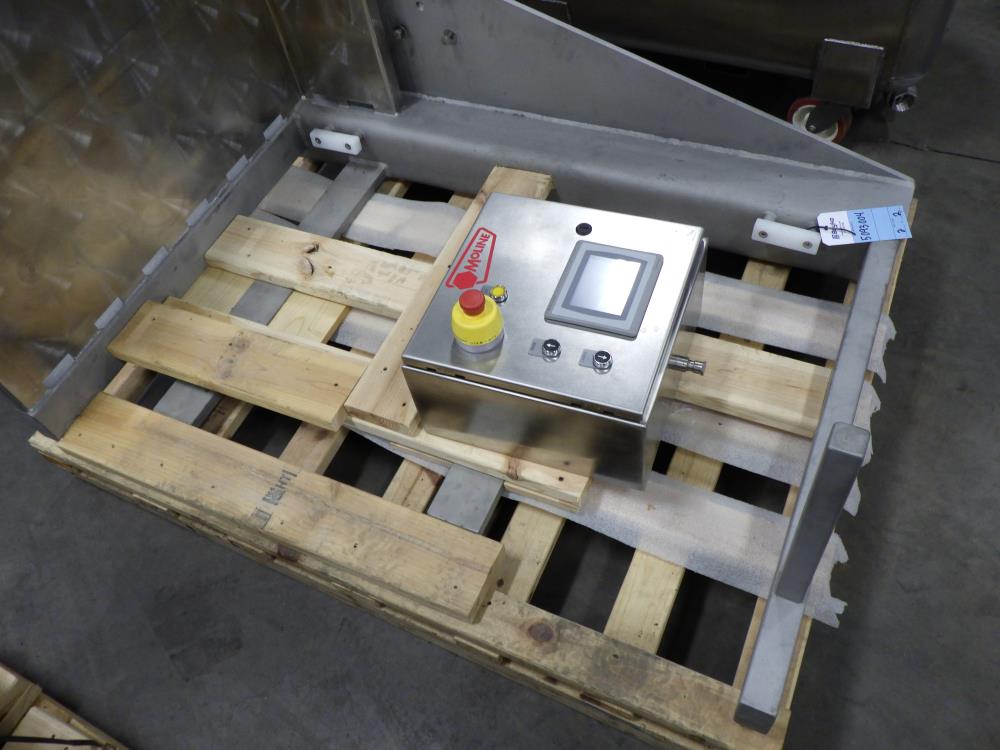

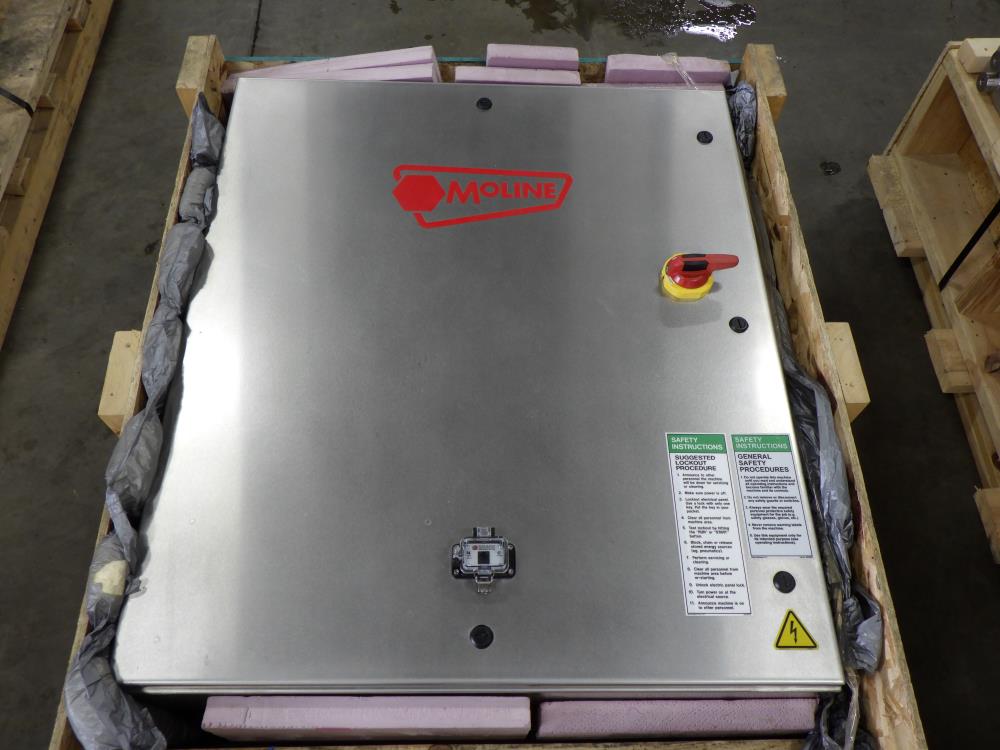

2016 Moline SS master control panel. 36 in. wide x 14 in. deep x 42 in. tall. Includes separate SS control panel with Allen Bradley Panelview Plus touch screen HMI for master control of system.

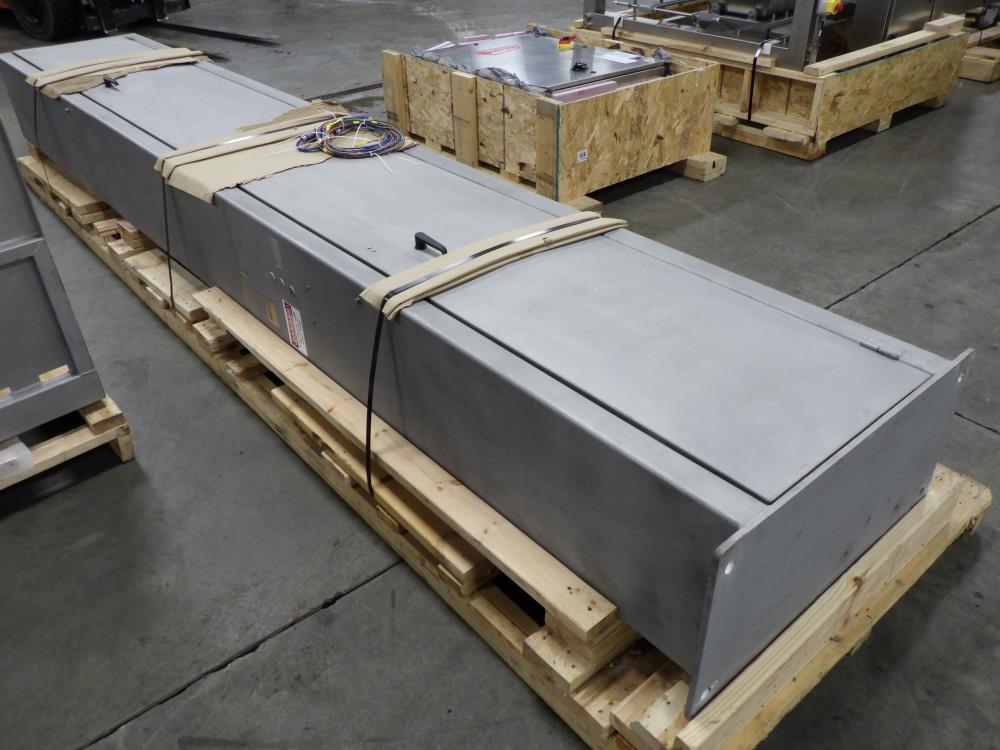

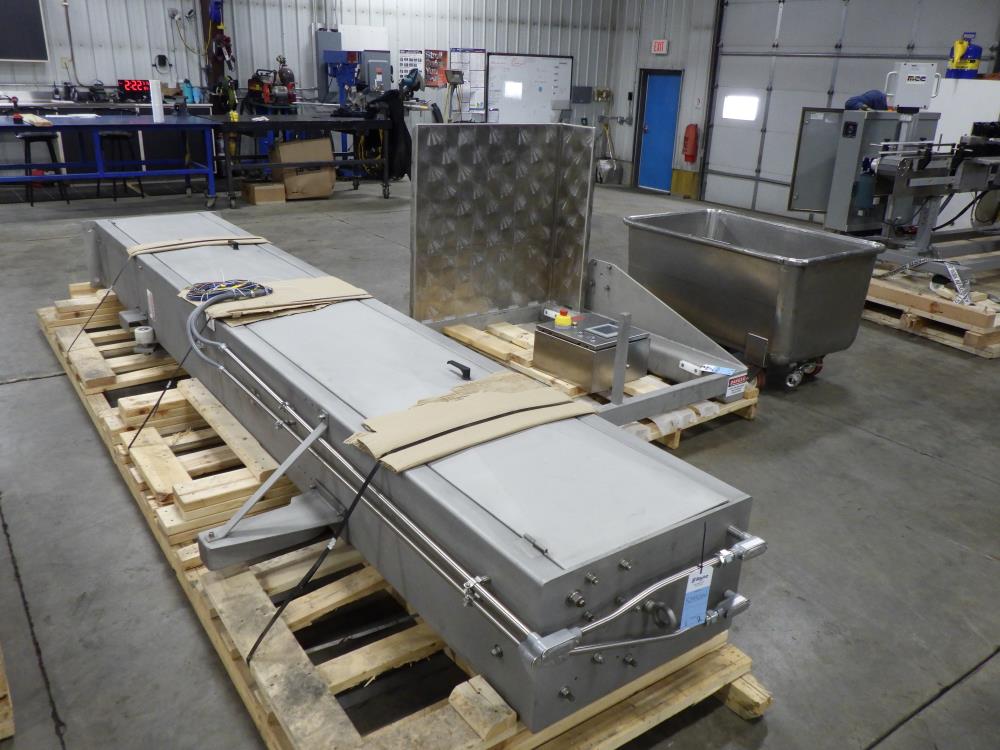

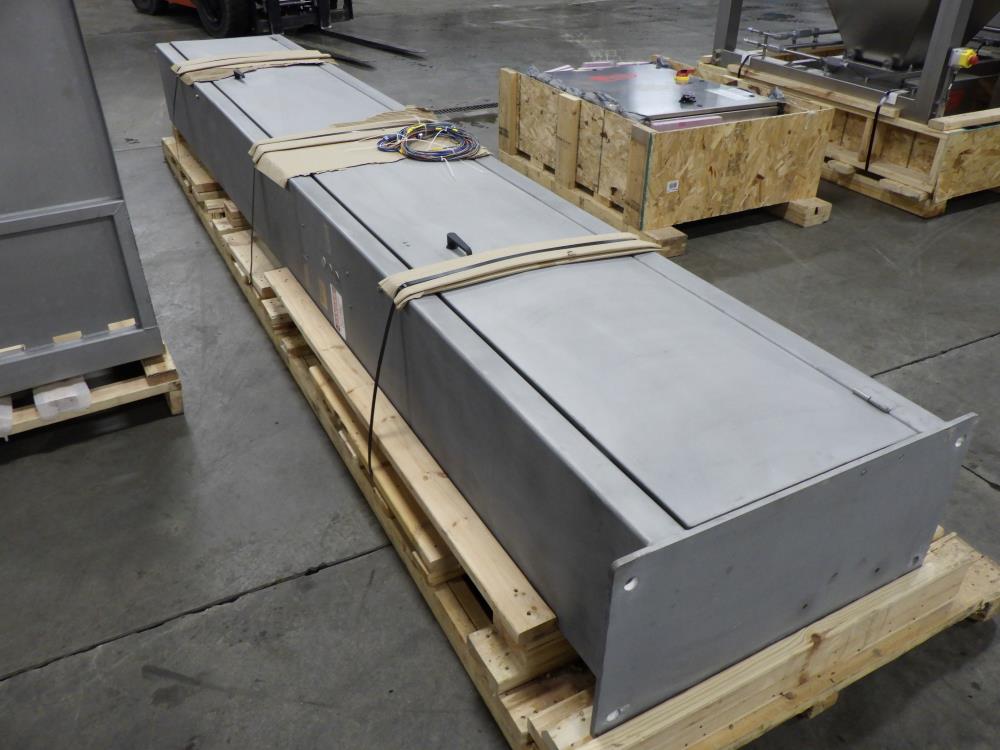

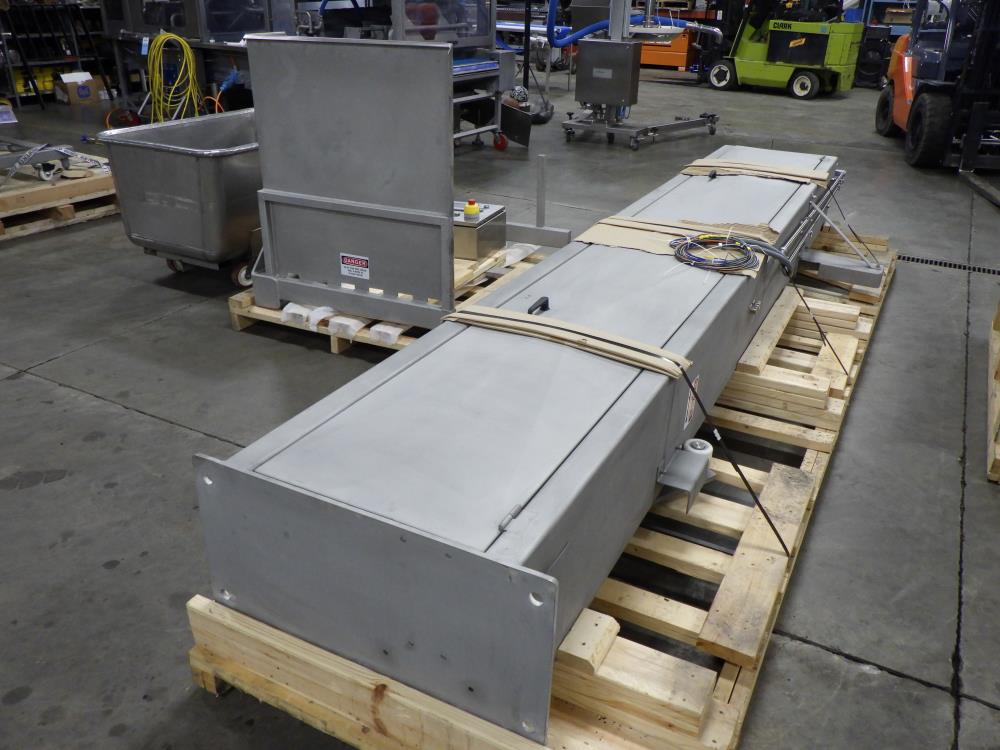

New A-One SS Single Column Dumper

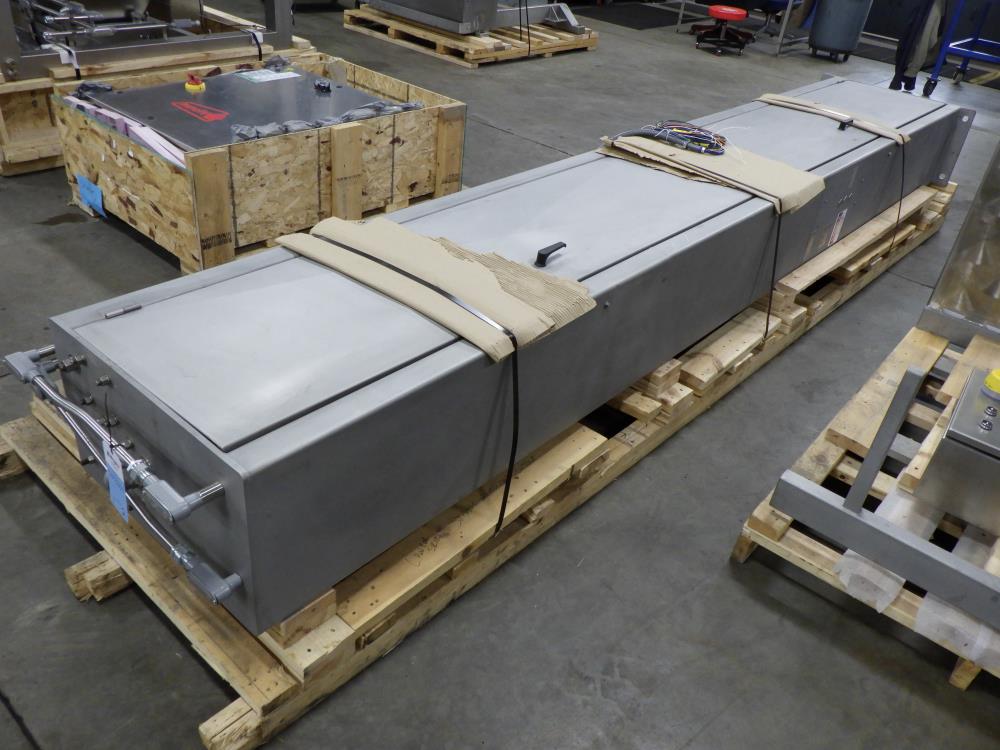

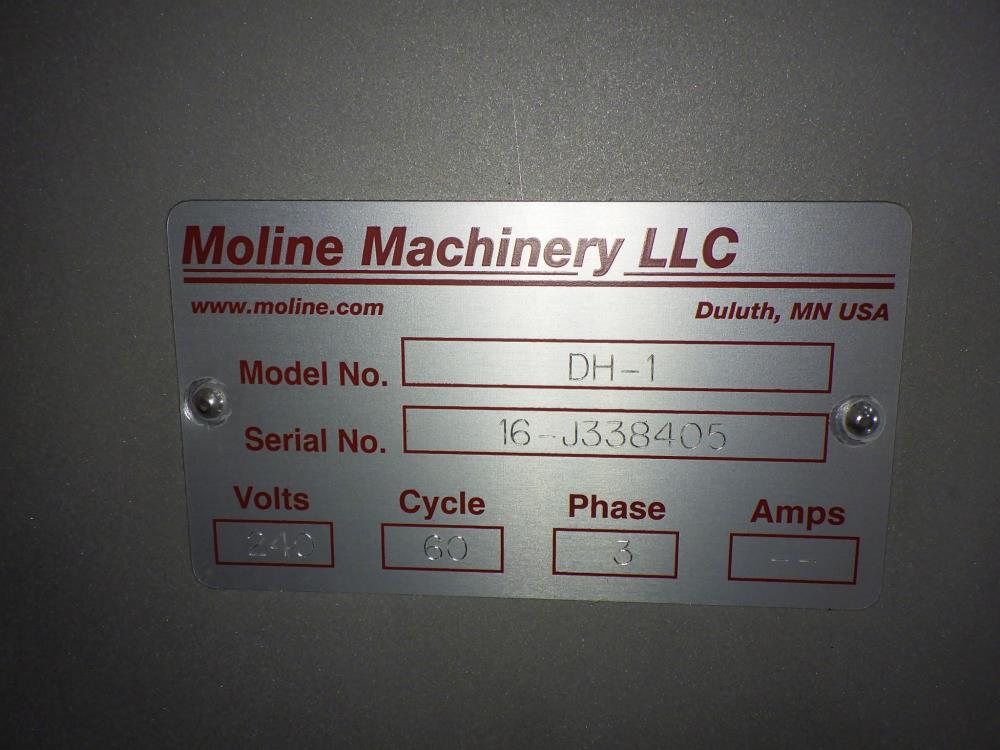

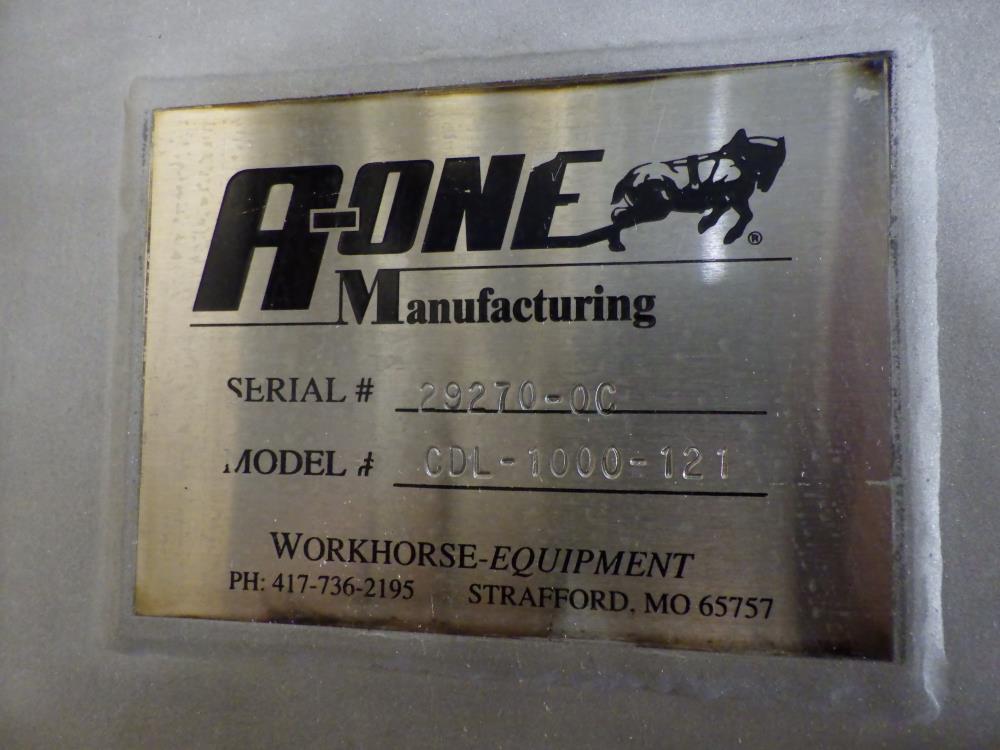

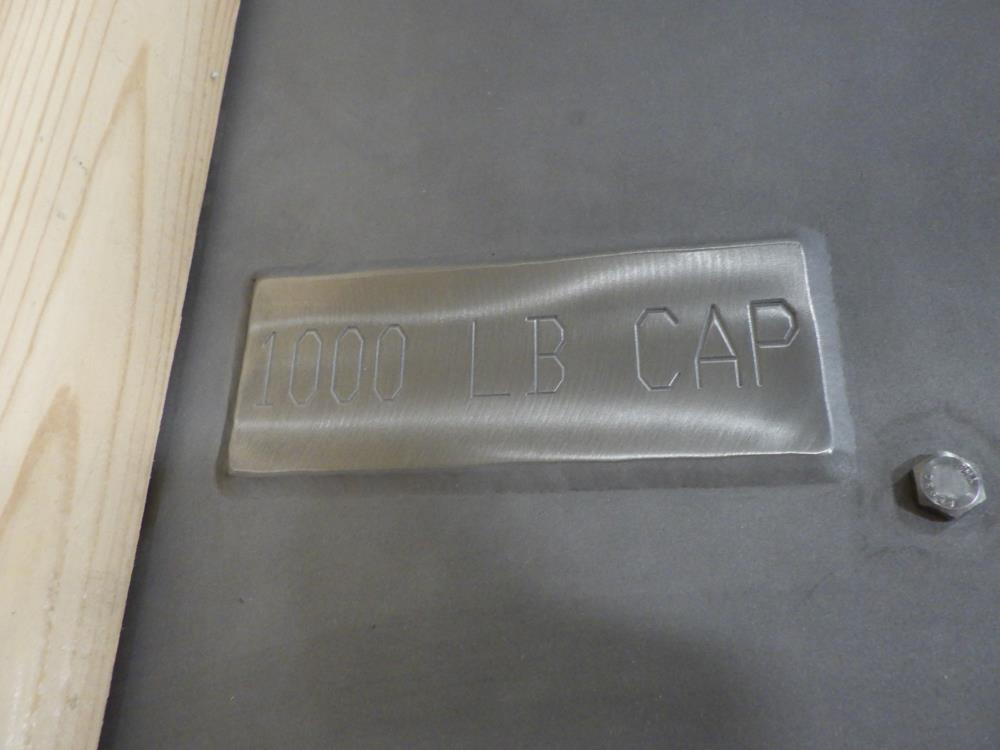

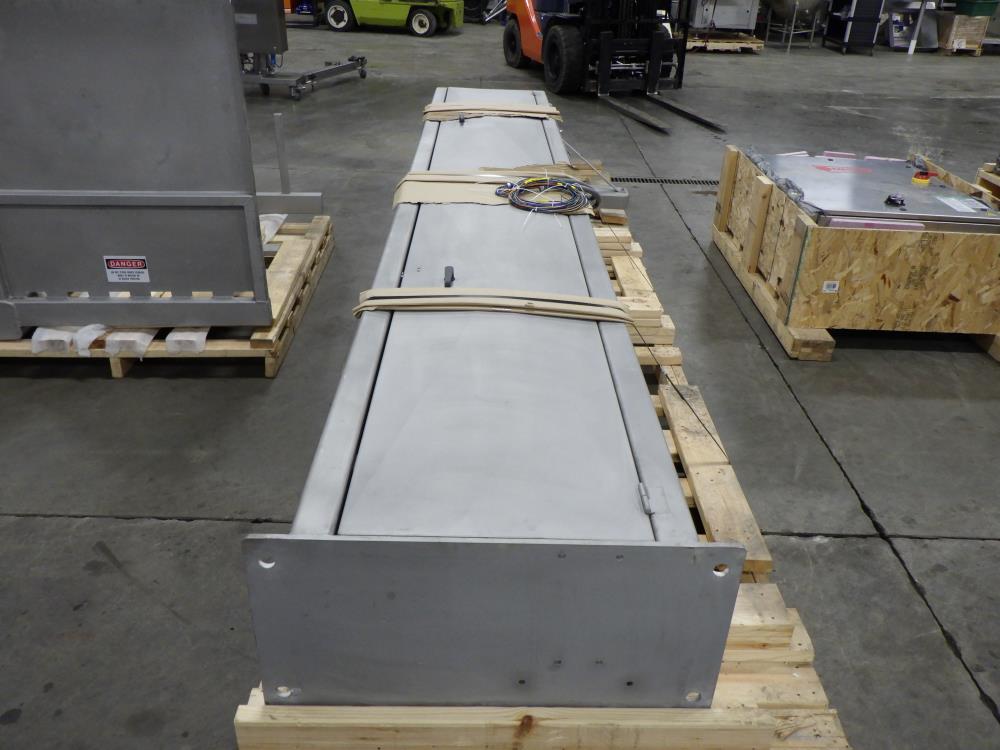

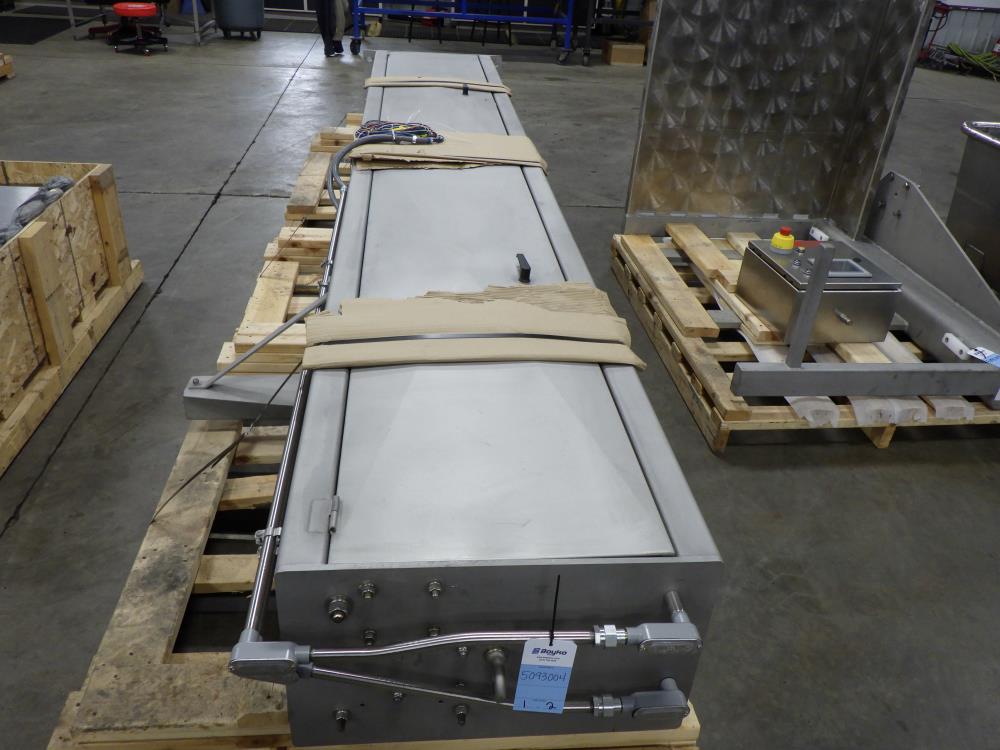

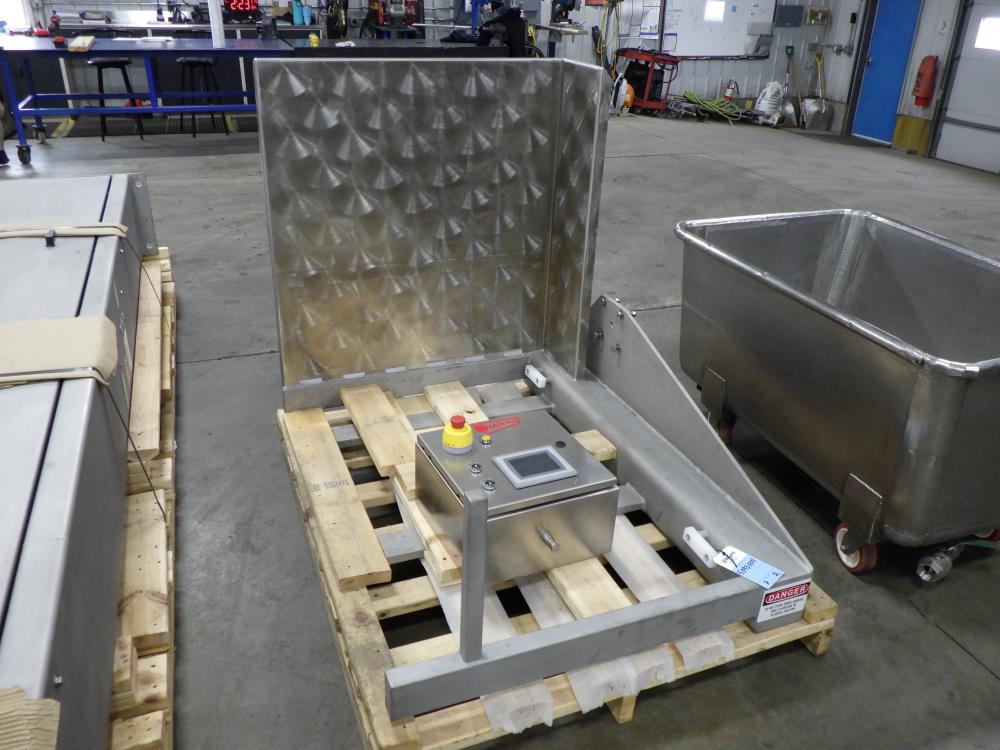

2016 A-One SS tote lift. Model CDL-1000-121, SN 29270-OC. 1000 lb. capacity. Moline tag, Model DH-1, SN 16-J338405. 132 in. tall pivot height. 178 in. tall overall. Electrical requirements 240 volt, 3 phase, 60 hz.

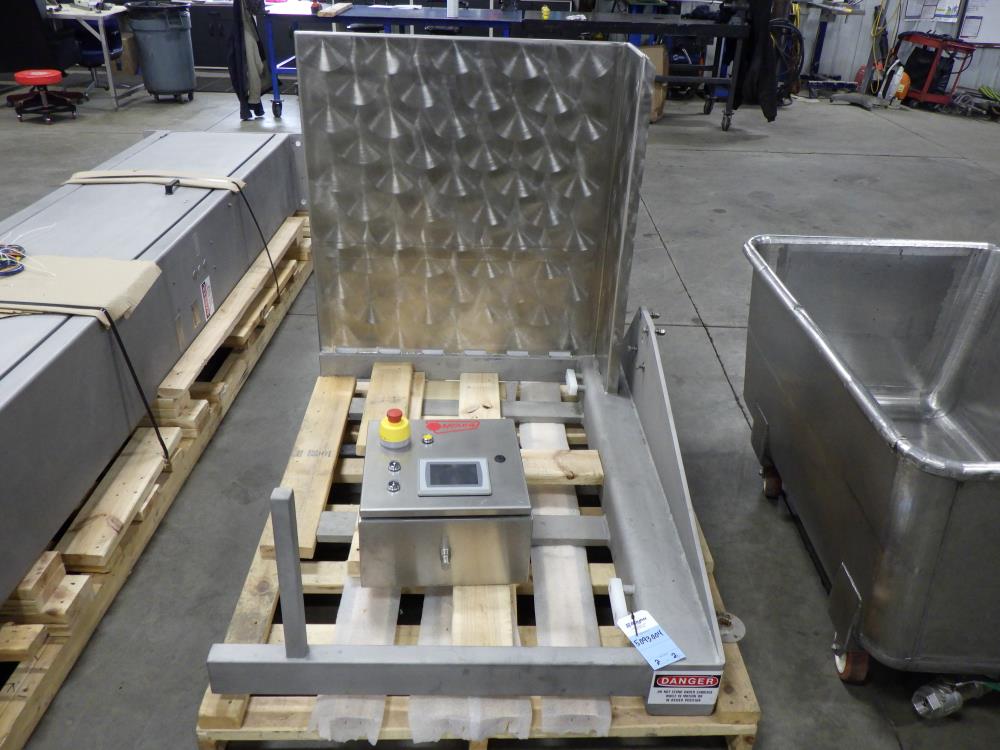

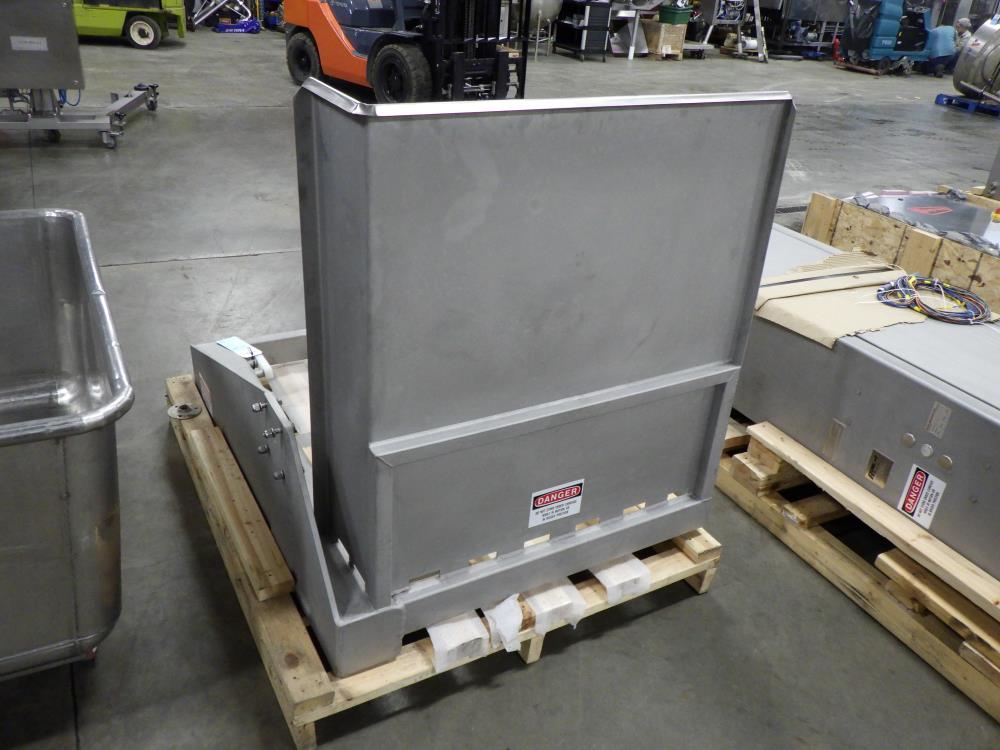

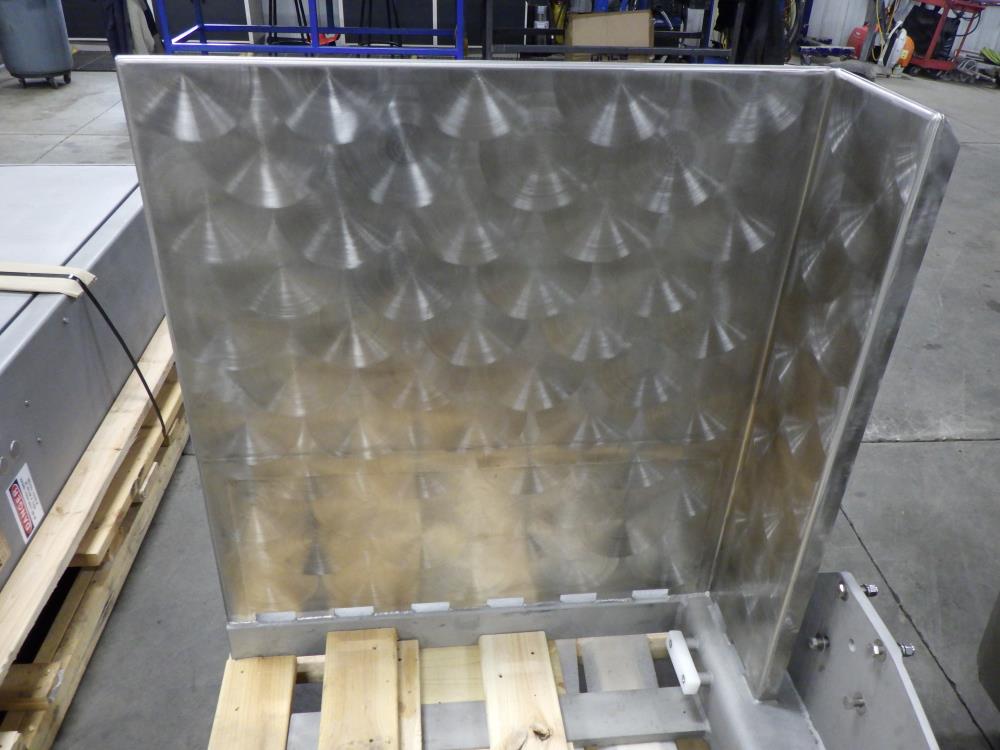

Includes lift arm with fork pockets. Forks 31 in. long x 4 in. wide x 1 in. thick, 21 in. spacing in between forks. Has SS chute for guiding dough out of the tote. 46 in. tall x 39 in. wide.

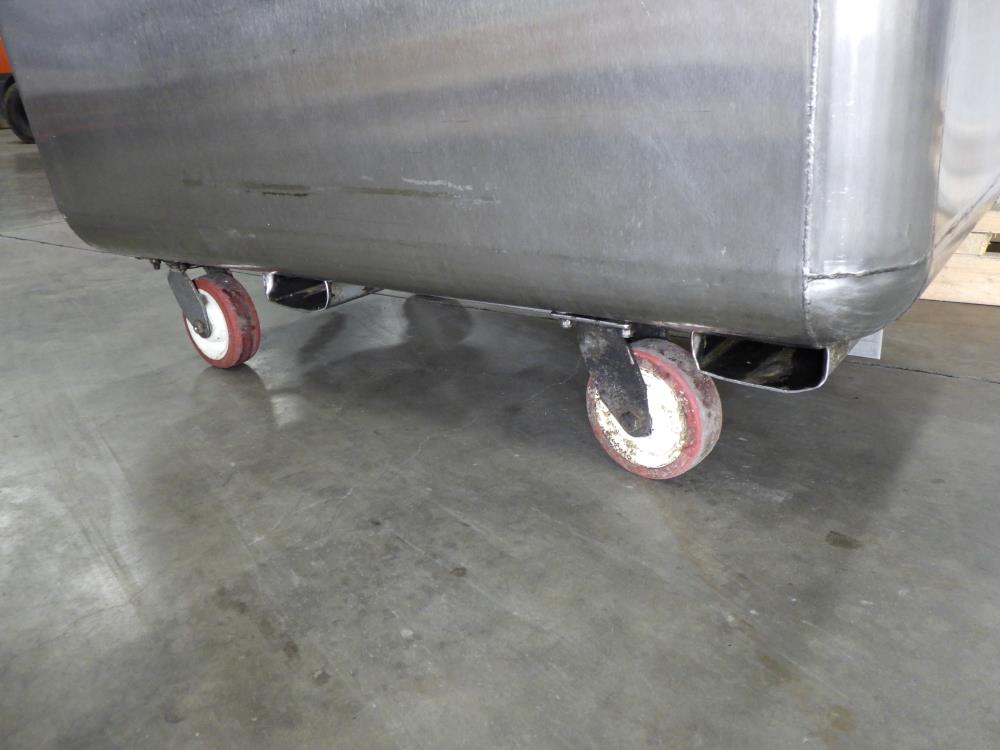

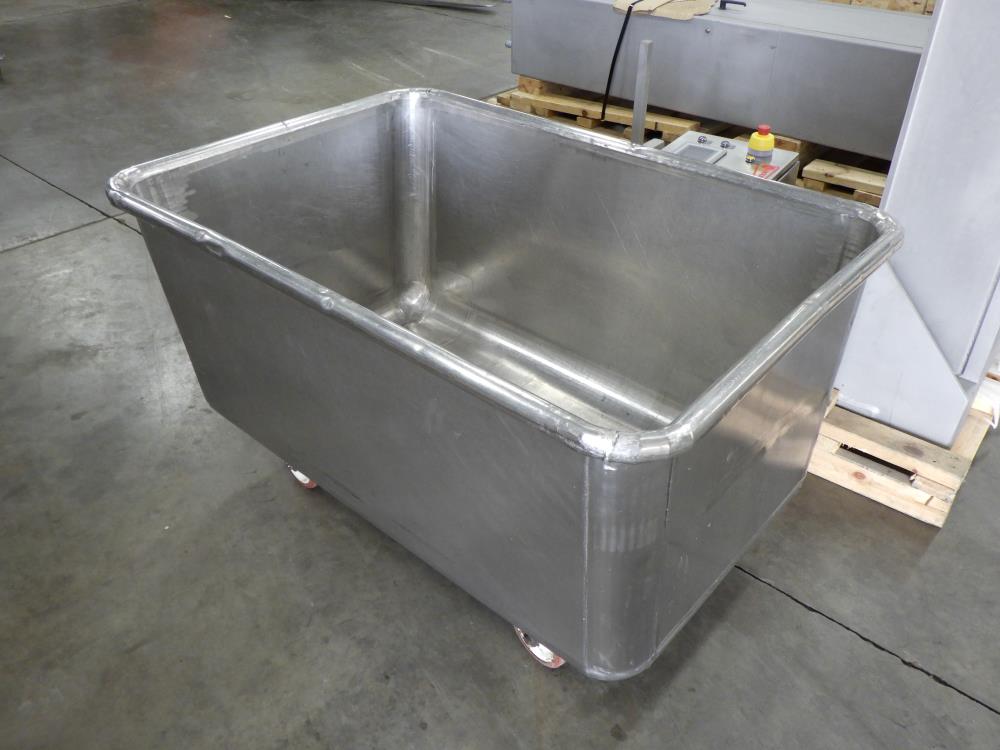

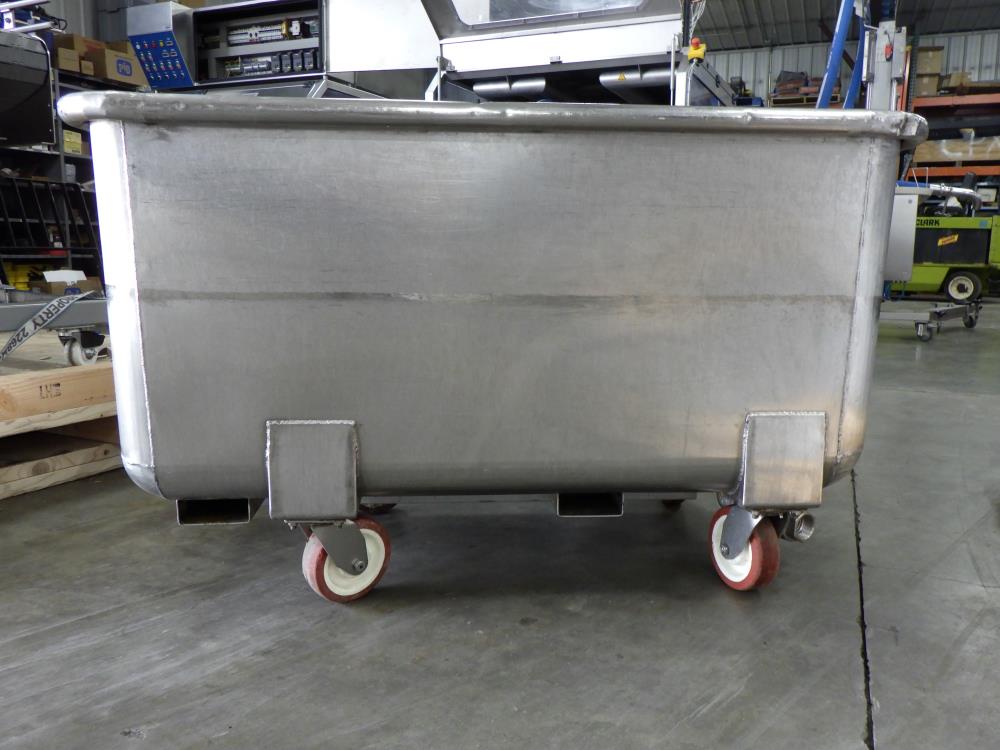

Includes (1) used SS tote. Inside dimensions 48 in. long x 32 in. wide x 24 in. tall. 2 in. diameter drain with ball valve. On castes

Shipping Dimensions:

Extruder: OAD 80 in. long x 46 in. wide x 74 in. tall, 2550 lbs.

Chunker: OAD 75 in. long x 69 in. wide x 59 in. tall, 1275 lbs.

Control Panel: OAD 60 in. long x 44 in. wide x 22 in. tall, 377 lbs.

Tote Lift: OAD 15 ft. long x 48 in. wide x 24 in. tall, approximately 2500 lbs.

Lift Arm: OAD 60 in. long x 48 in. wide x 55 in. tall, 575 lbs.

Tote: OAD 52 in. long x 36 in. wide x 32 in. tall, 202 lbs.

Specifications

Category :

Bakery Equipment

Sub-Category :

Make-Up Line

Manufacturer :

Moline

Year Built :

2016

Material of Construction :

Stainless Steel

Condition :

New
