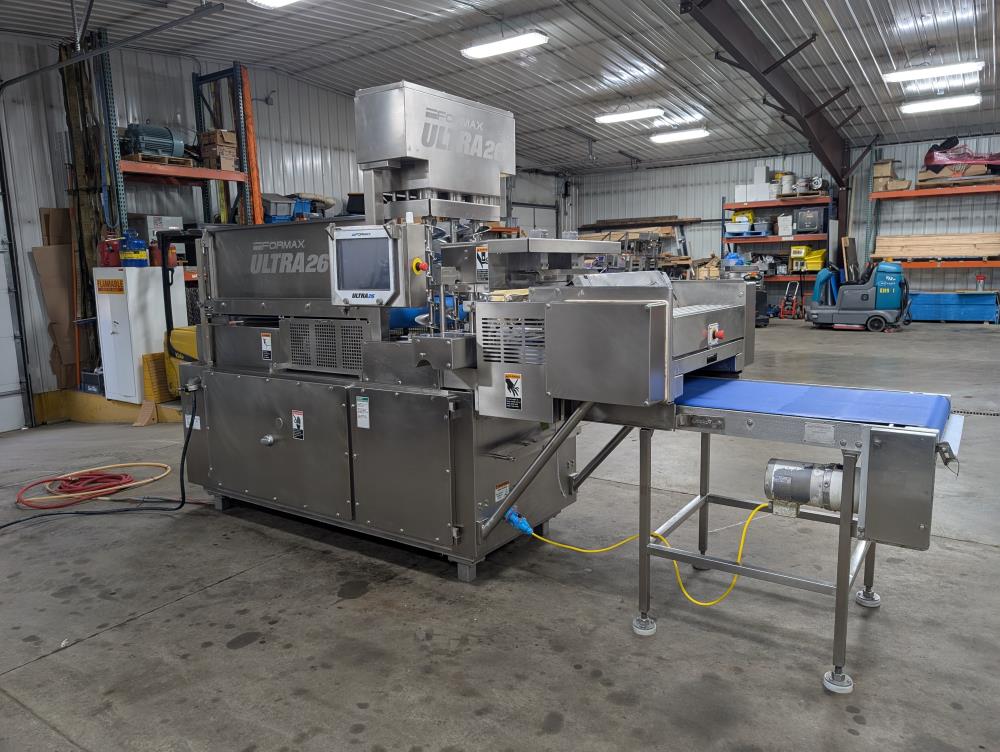

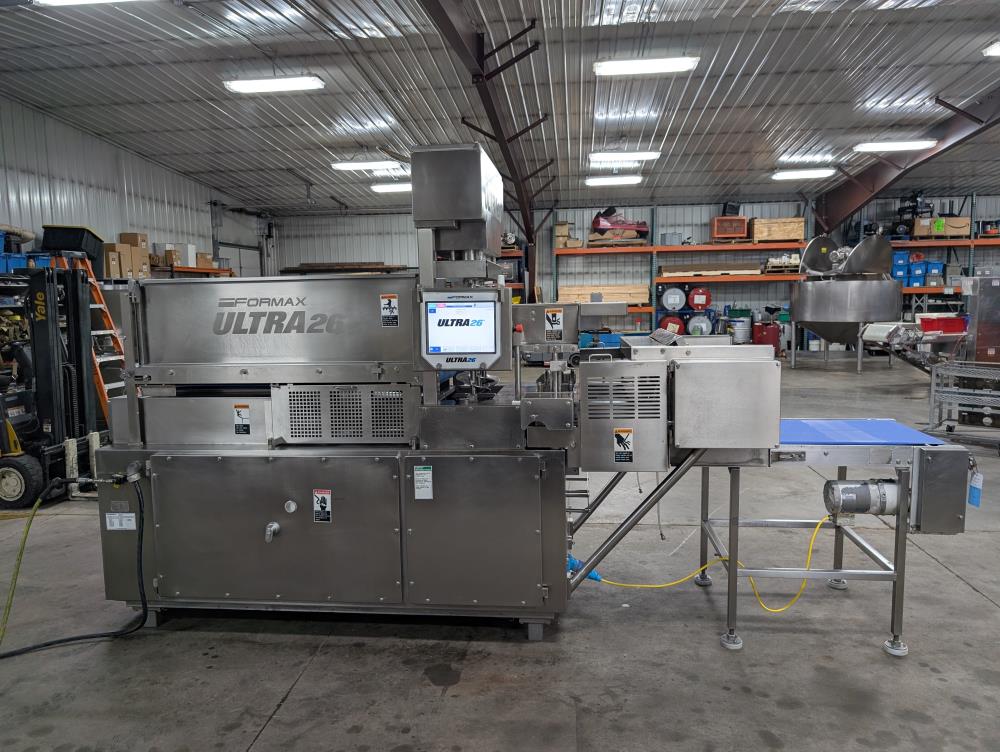

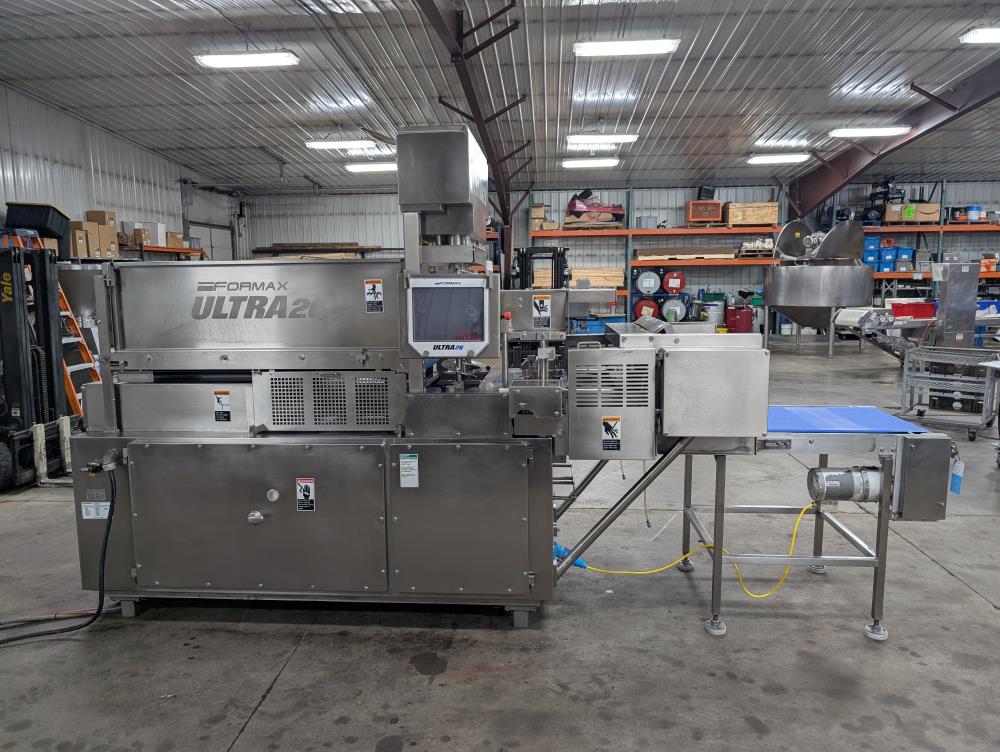

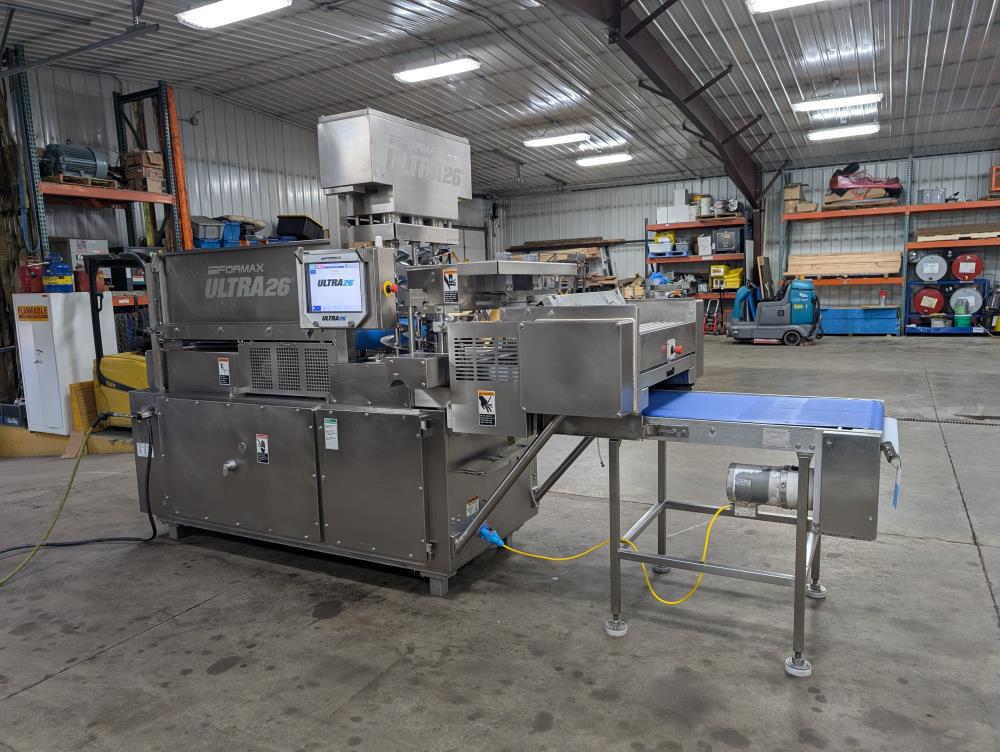

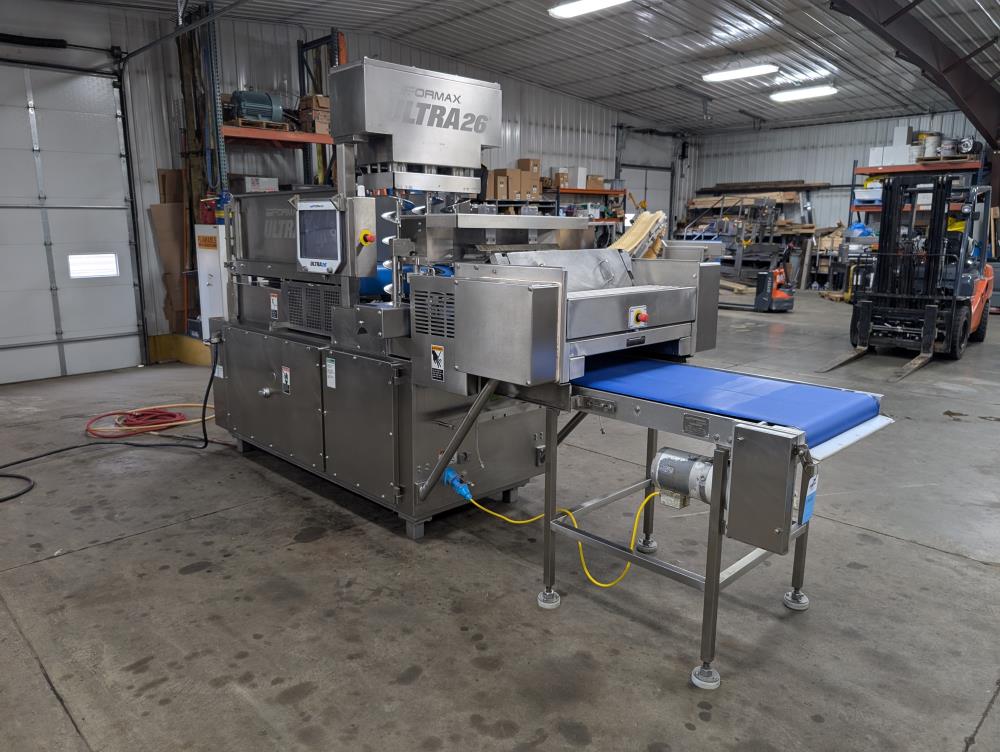

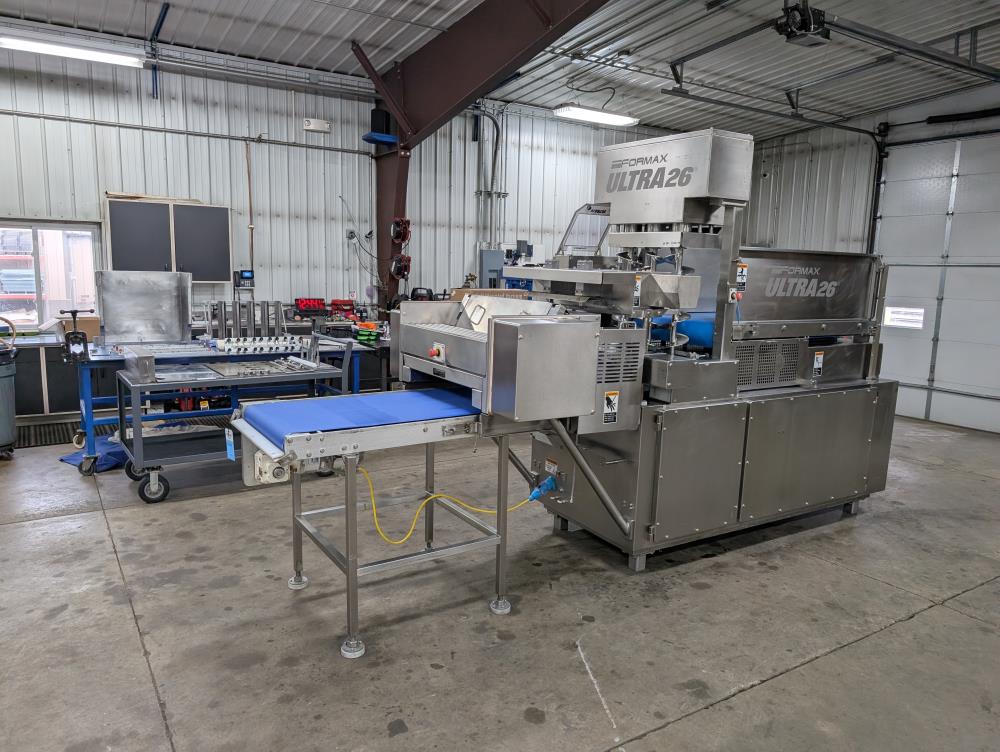

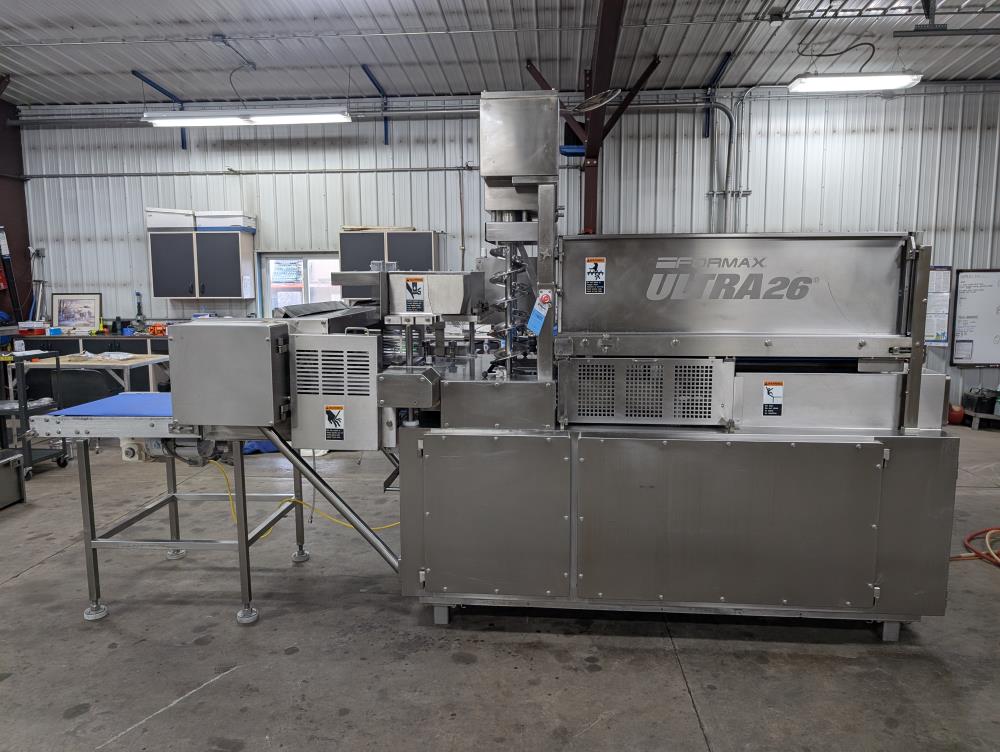

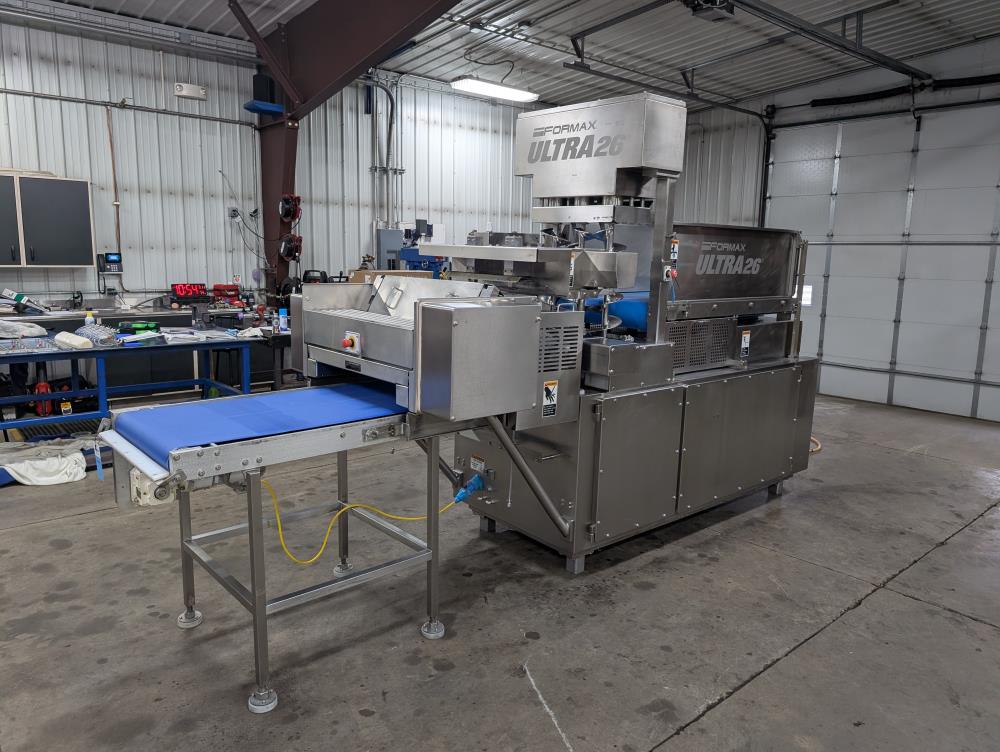

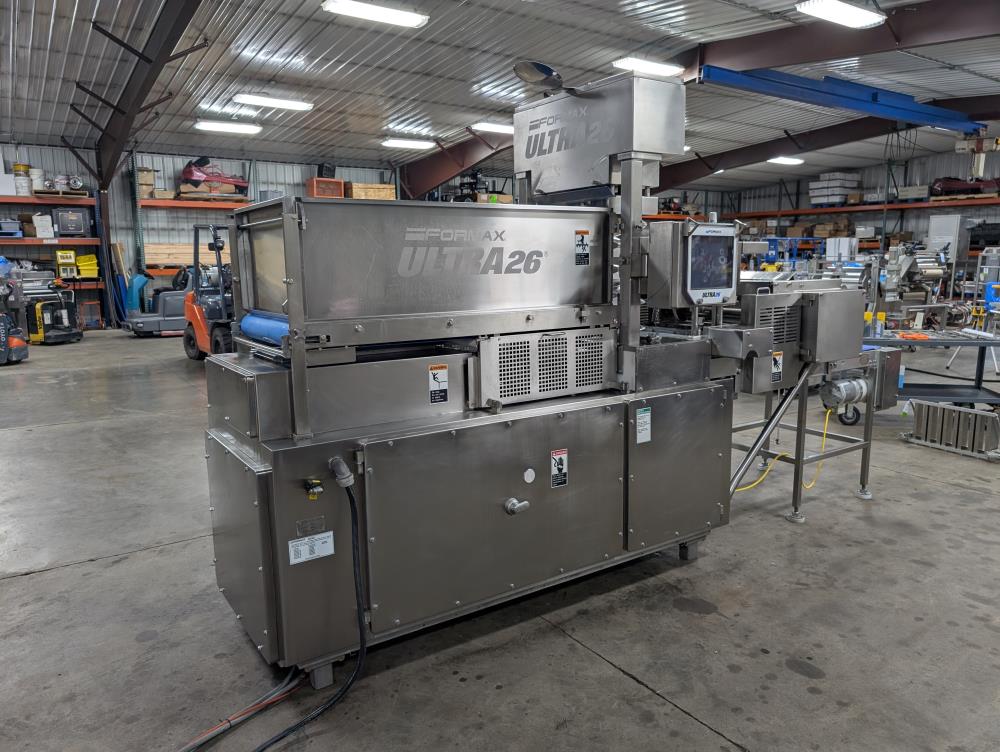

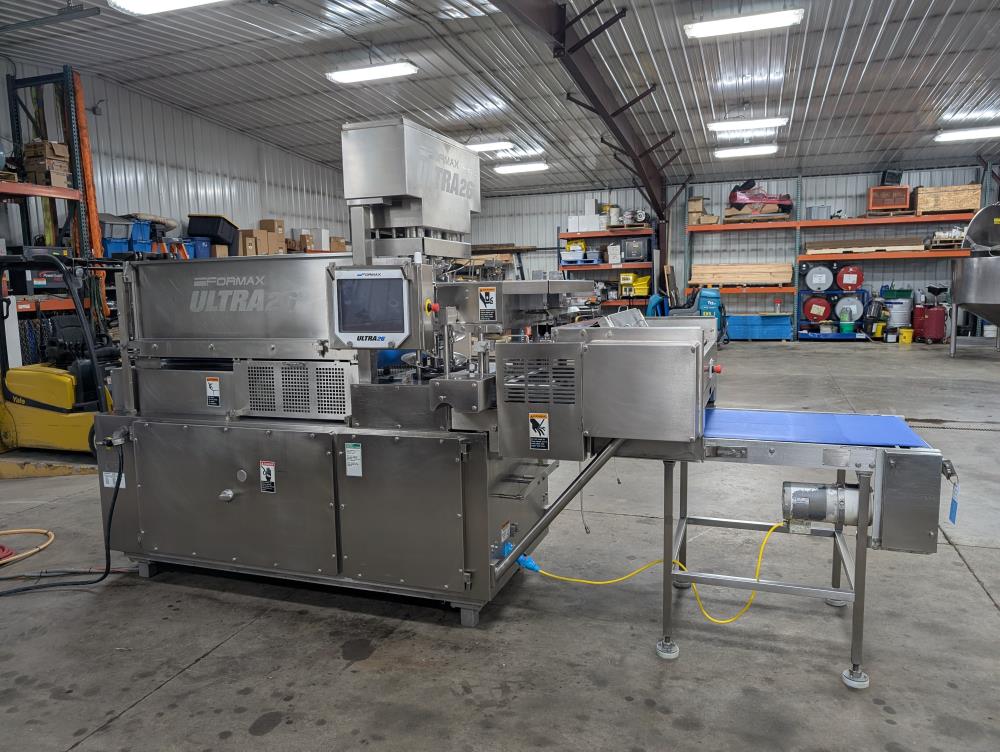

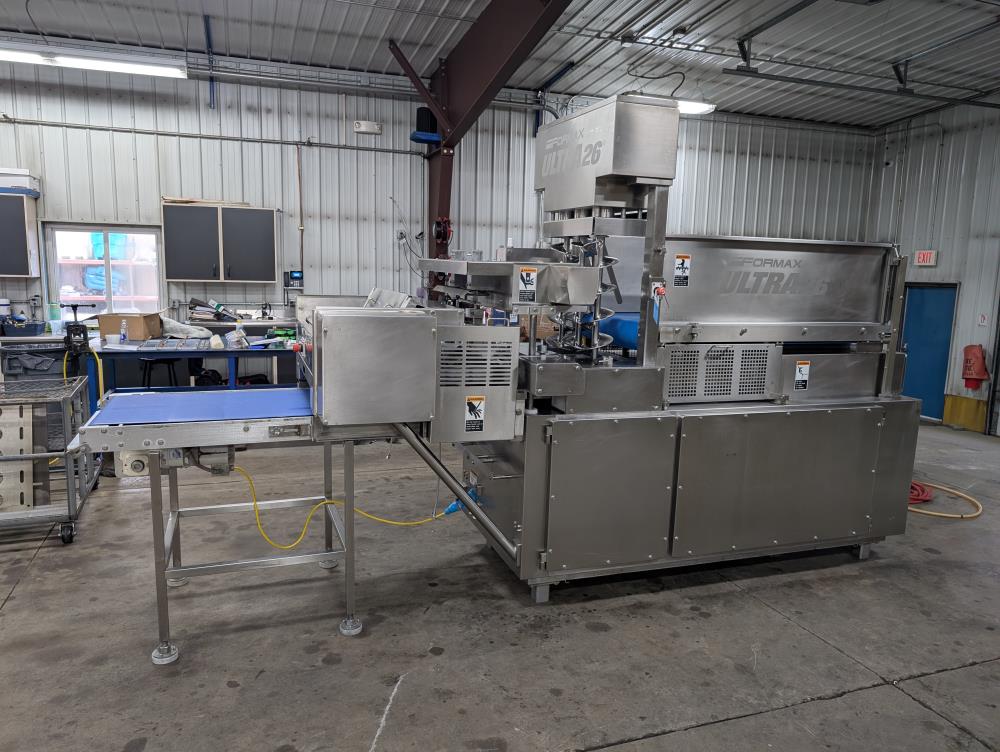

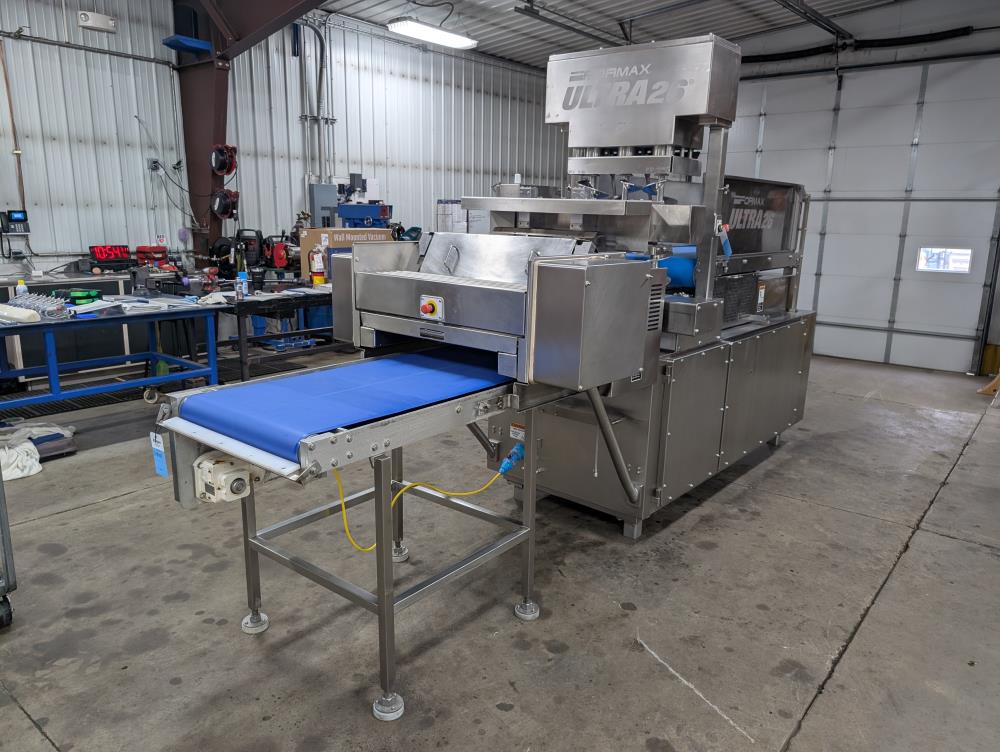

Used Formax Ultra 26 Former with Transfer Conveyor

Item #: 5178003

ITEM SOLD

Sell Us Yours

Description

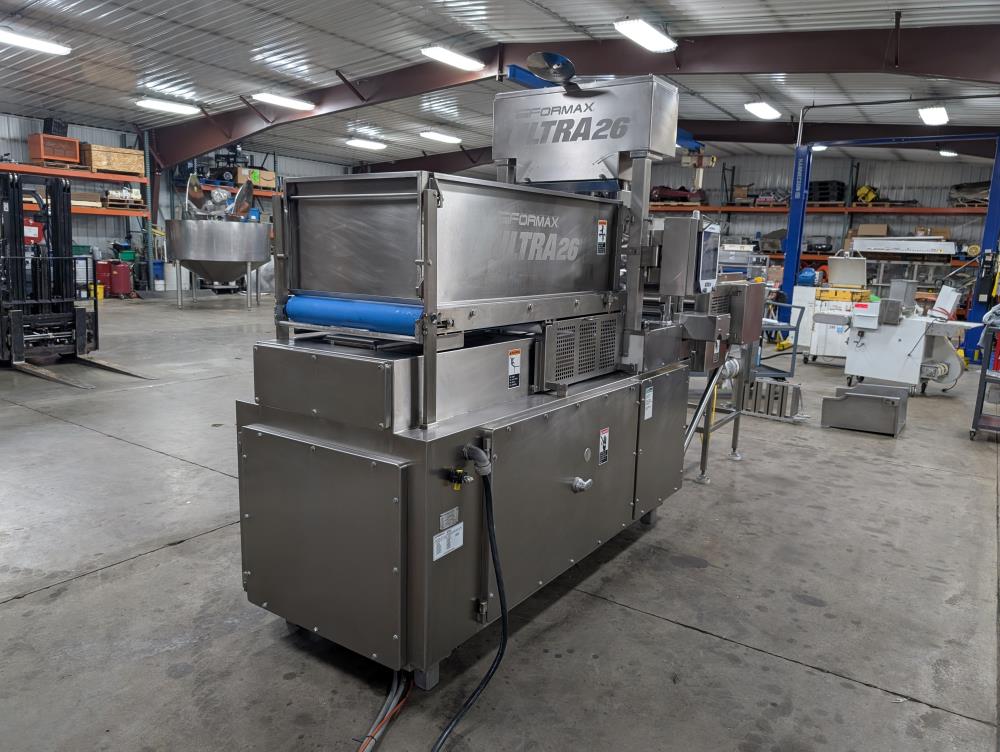

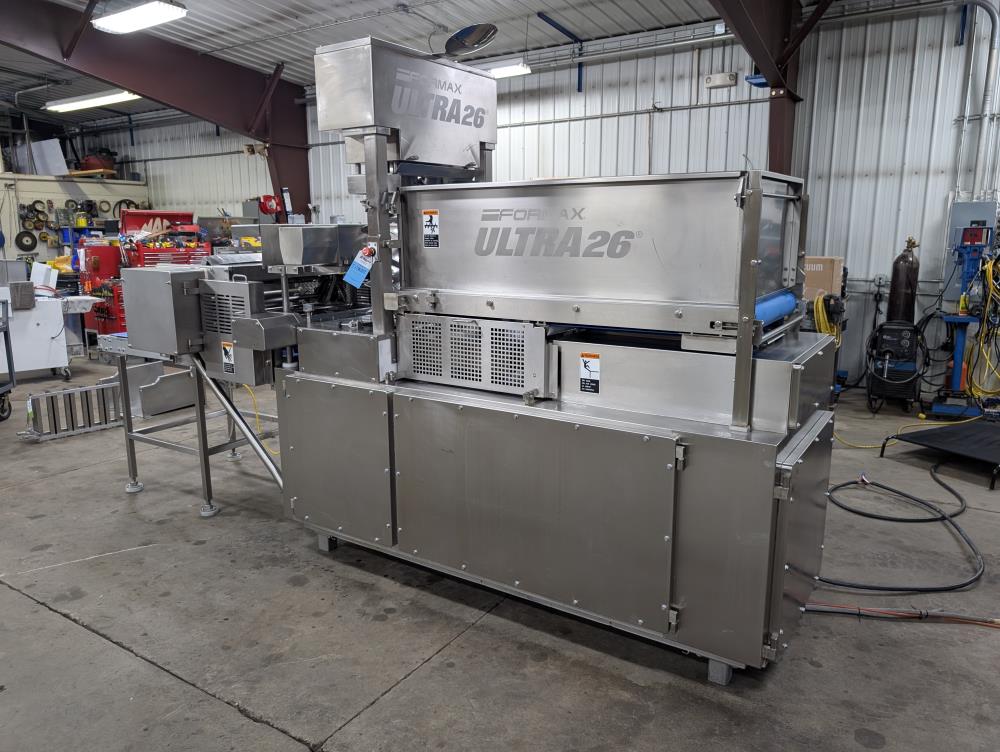

The Formax Ultra 26 Former is a high-performance industrial food forming system, designed for precision and high-capacity food production. Featuring a stainless steel 1000-lb. hopper, servo mold plate drive, and hydraulic compression system, this former delivers consistent product shaping and efficient operation.

Key Features & Specifications:

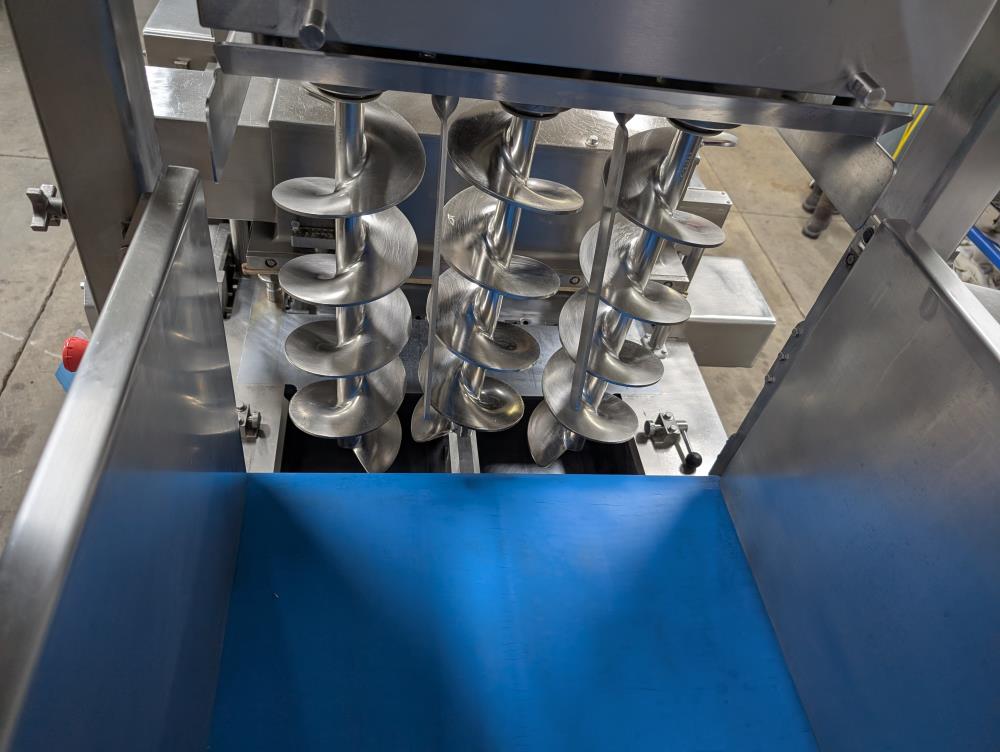

Product Feed System:

Product feed conveyor: 74 in. long x 27 in. wide
Integrated drive roller eliminates chains, sprockets, and separate motor

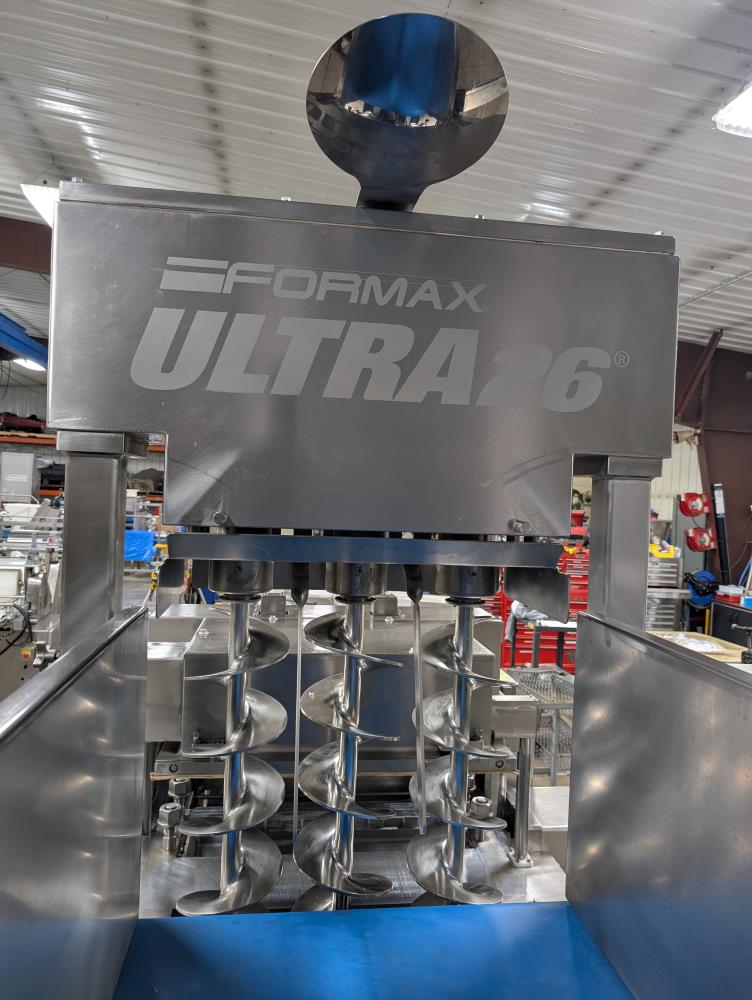

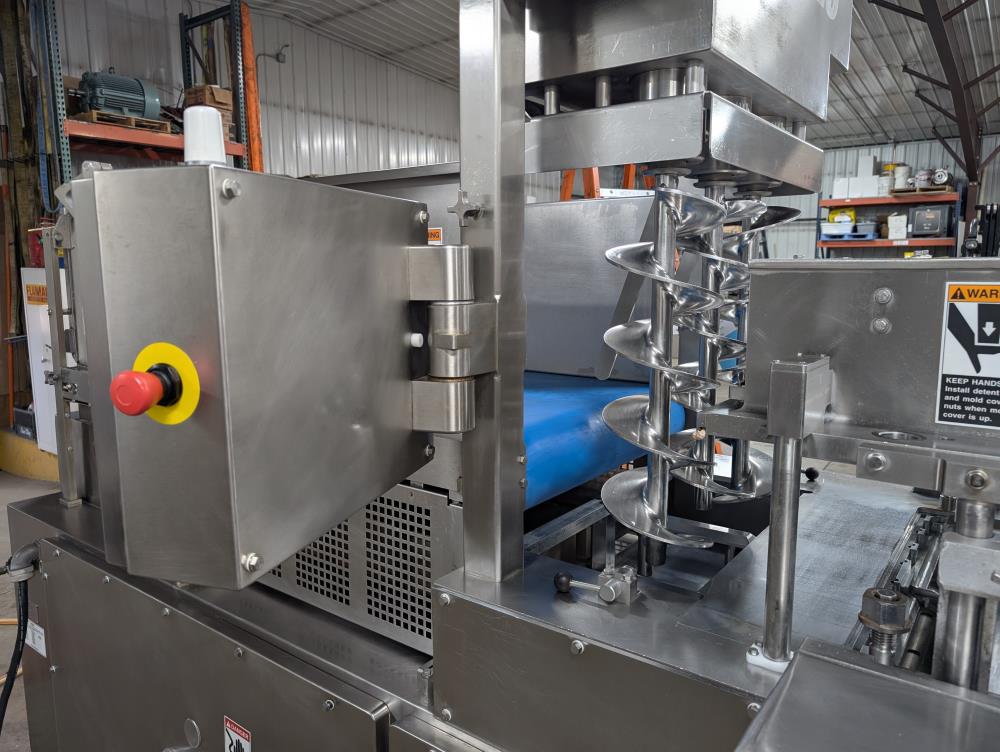

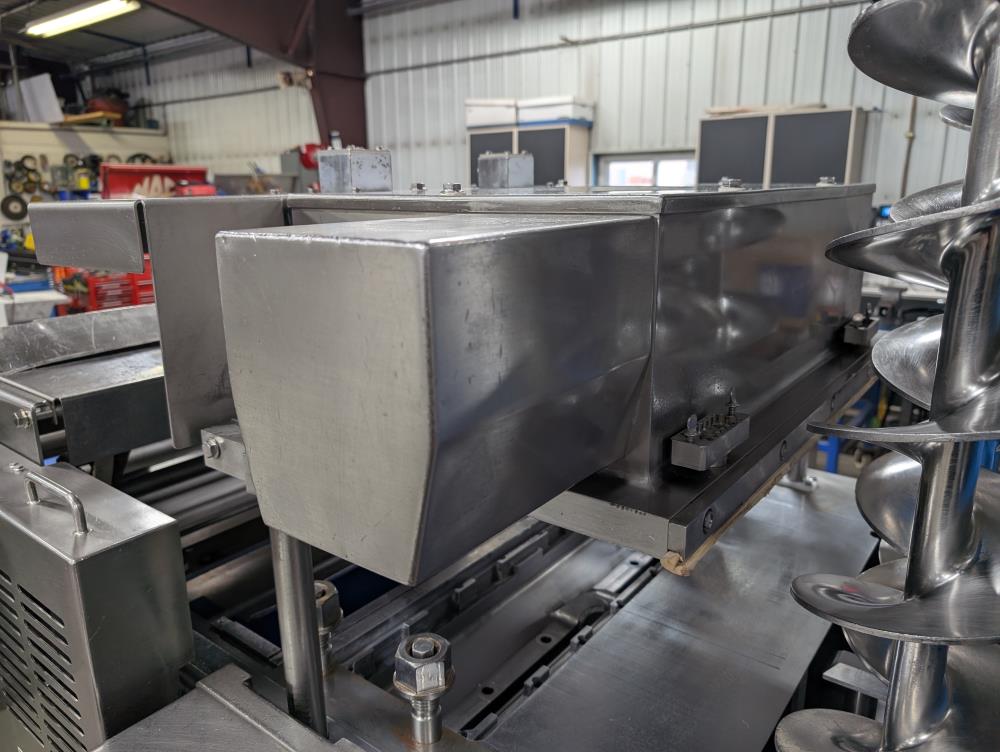

Hopper & Capacity:

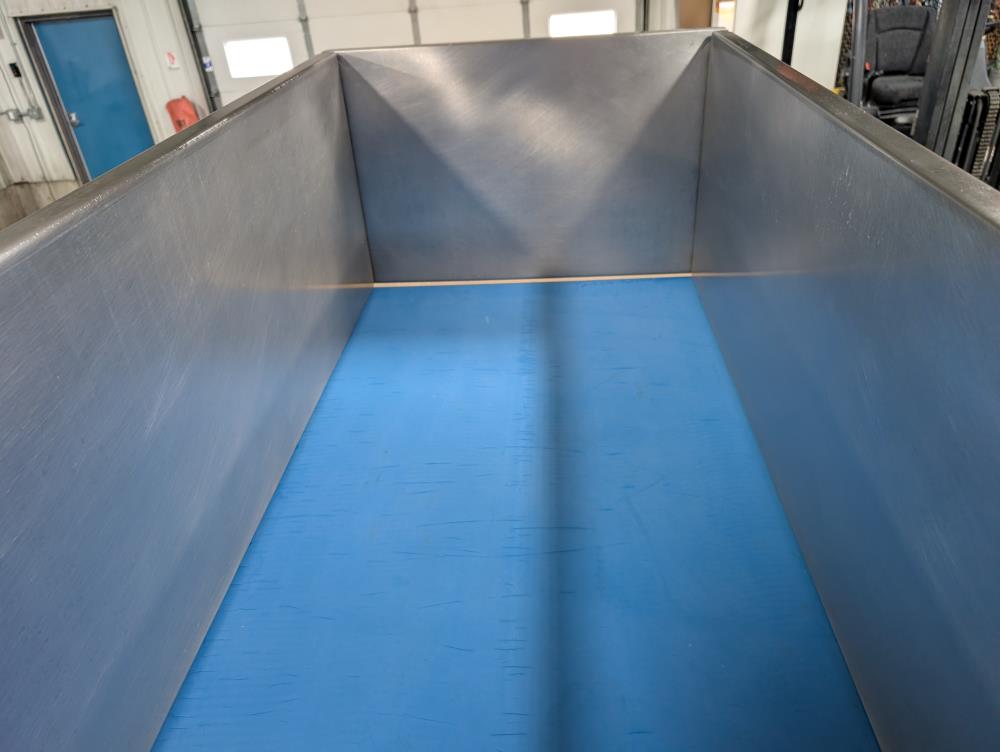

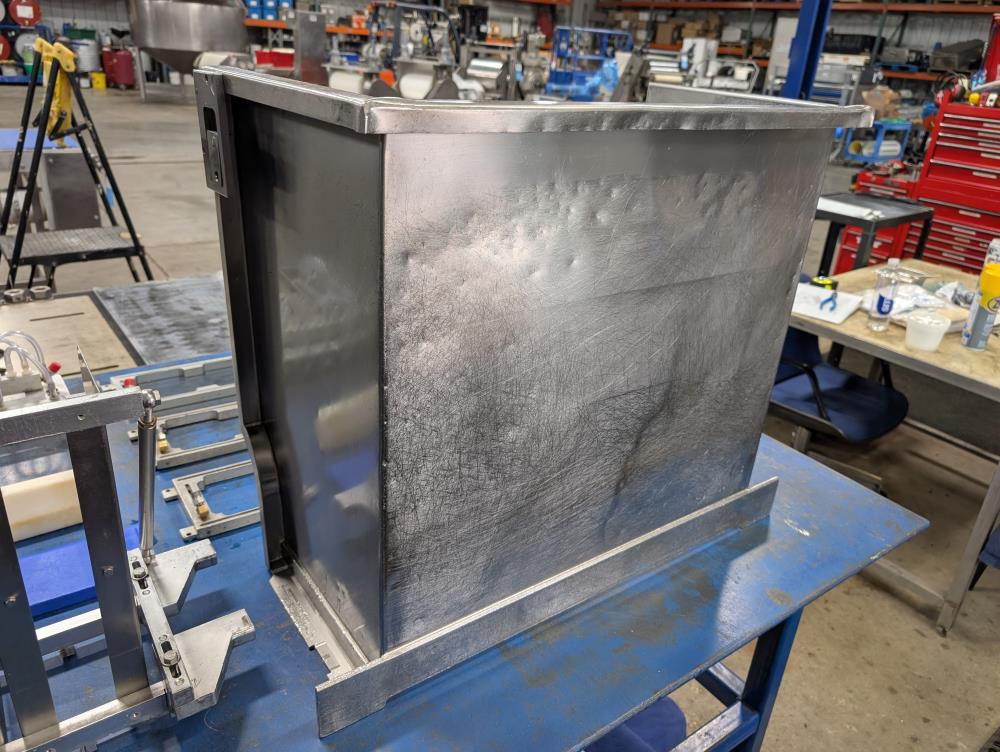

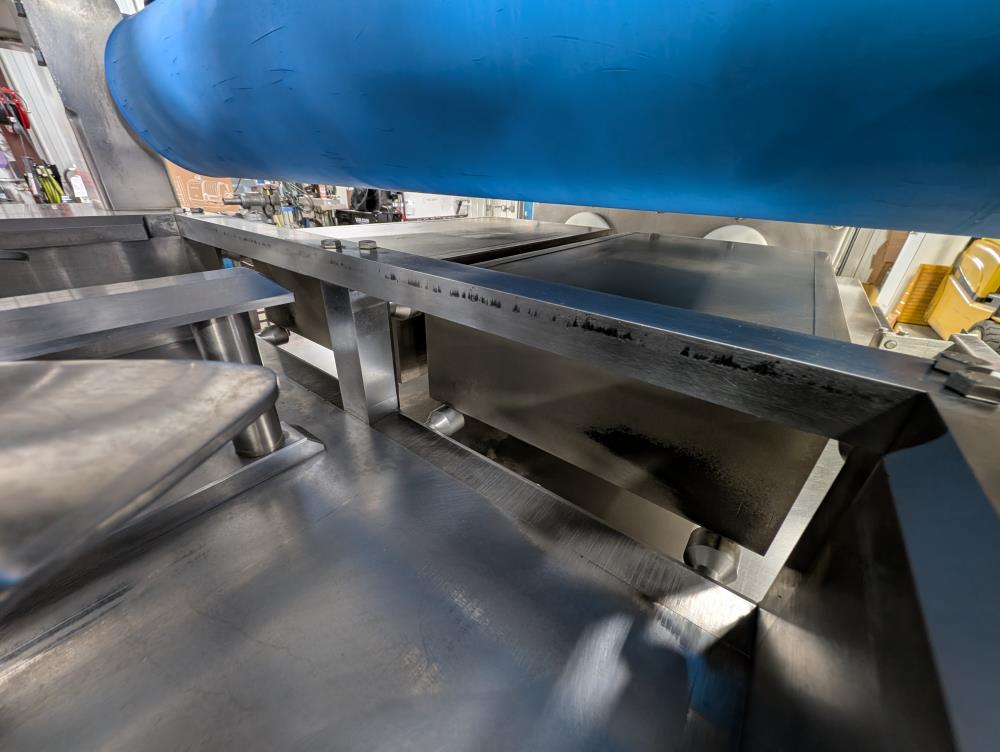

Stainless steel hopper with 1000-lb. capacity
Dimensions: 60 in. (L) x 25.5 in. (W) x 18 in. (D)
Infeed height: 74 inches

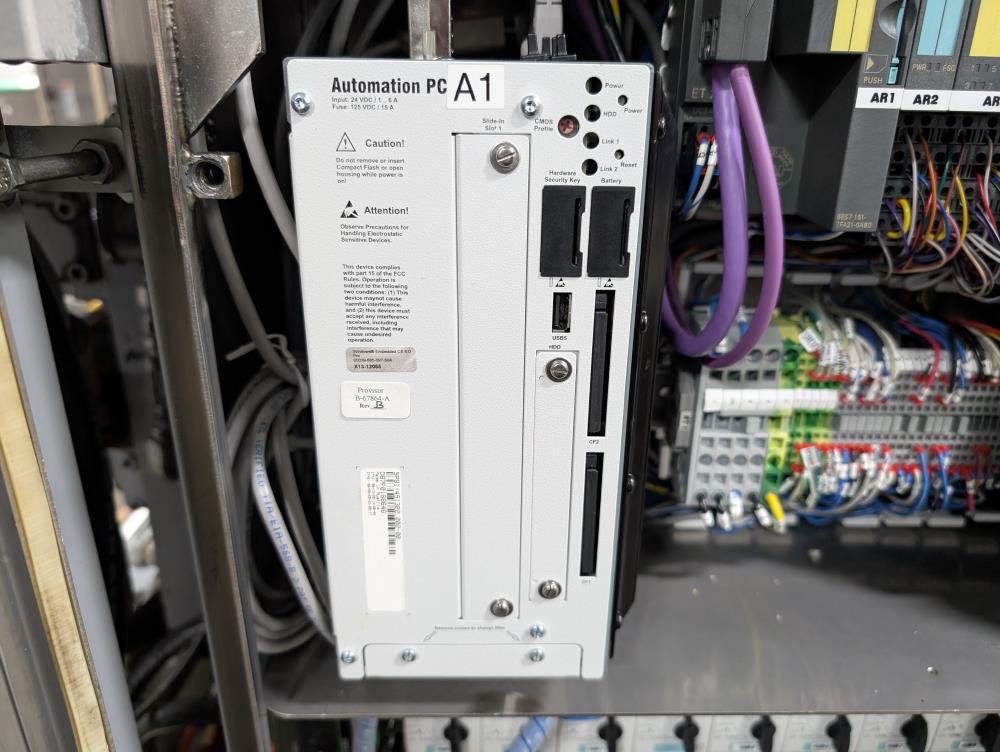

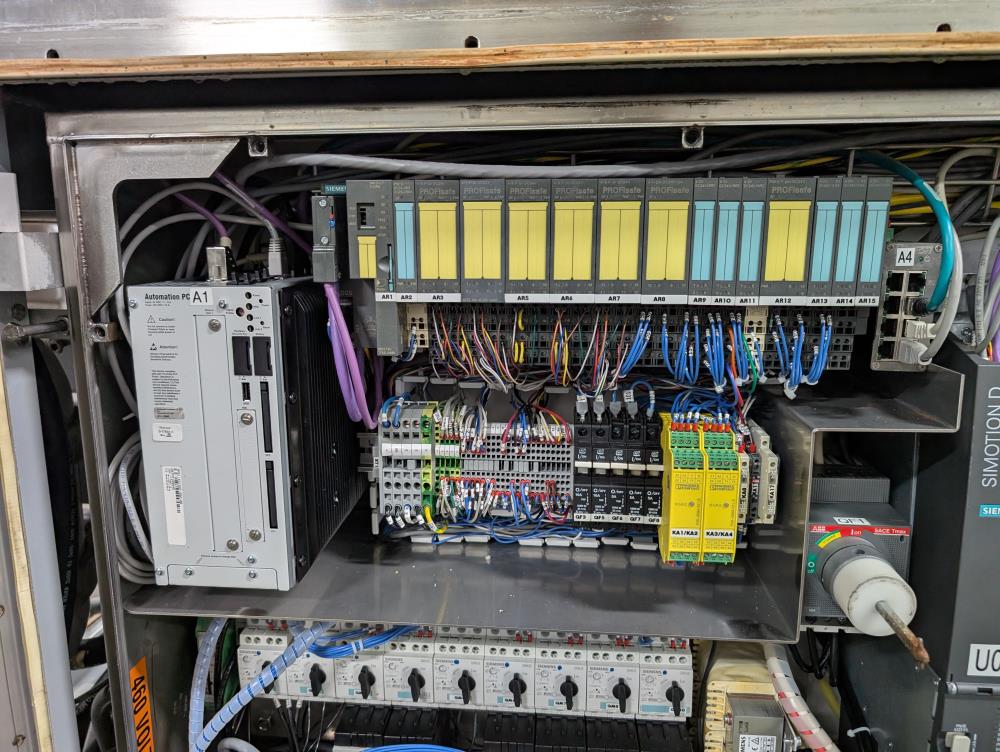

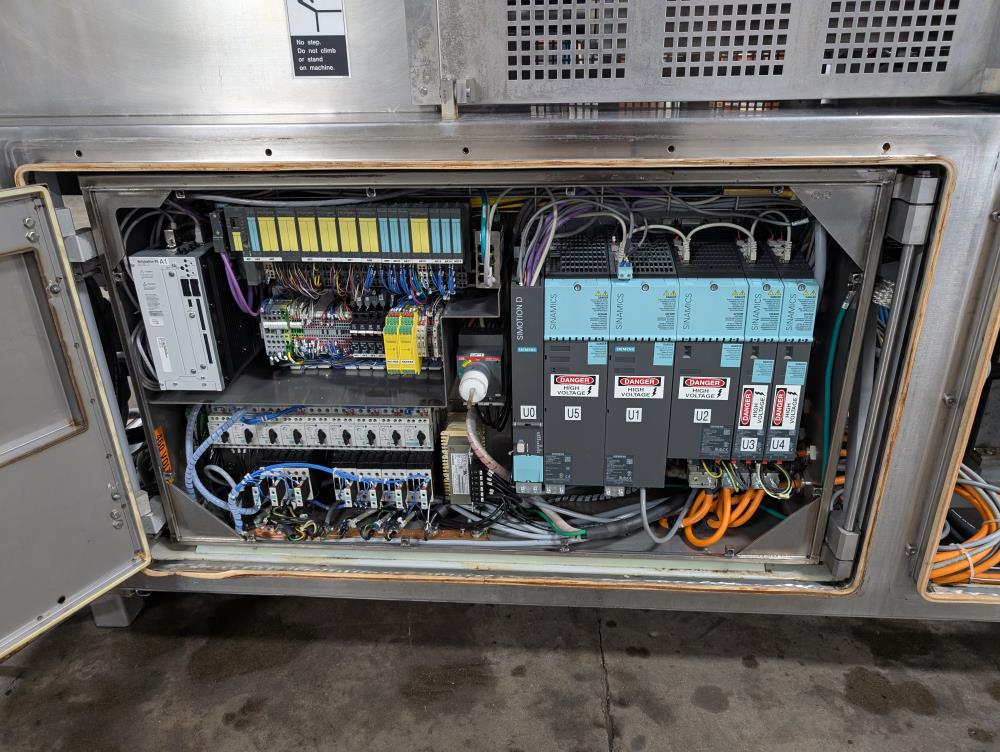

Control System:

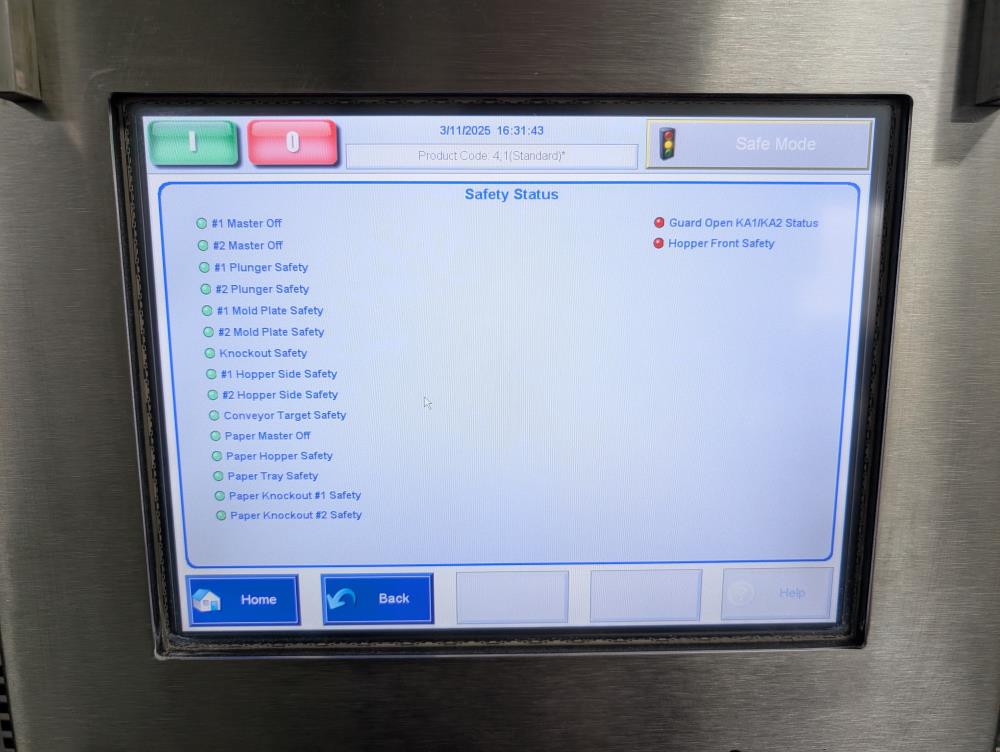

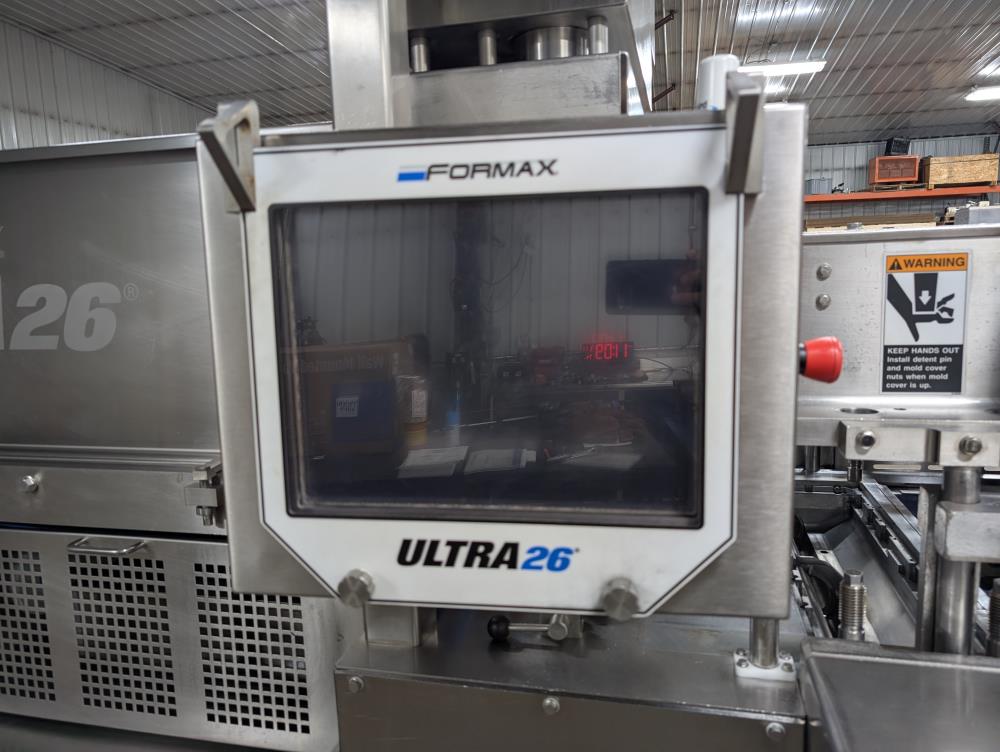

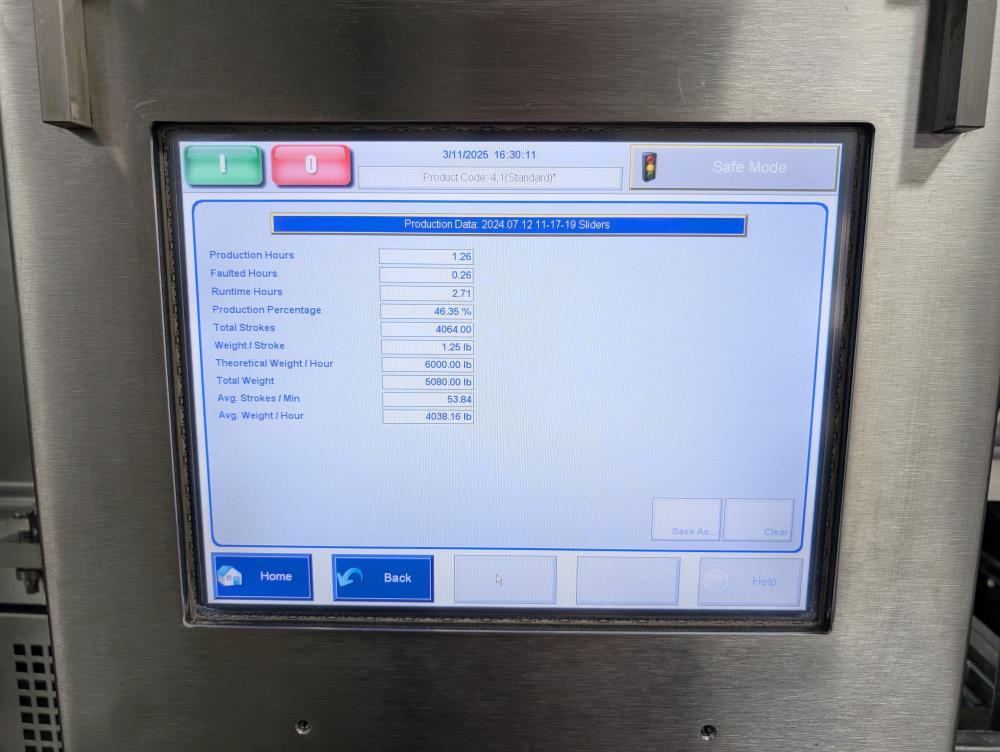

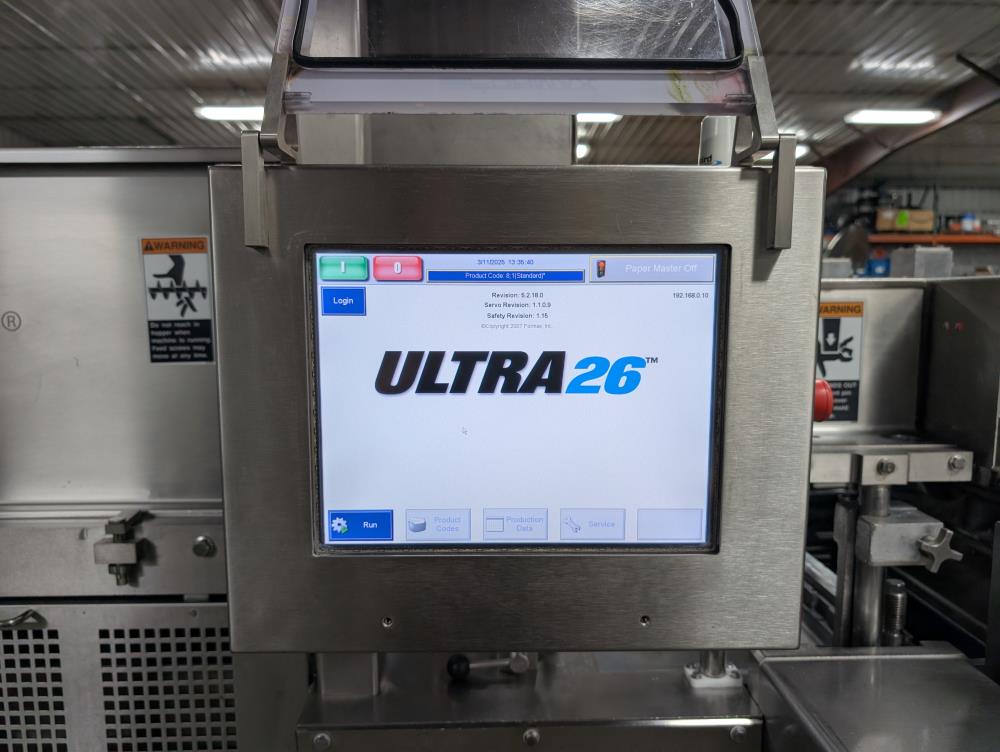

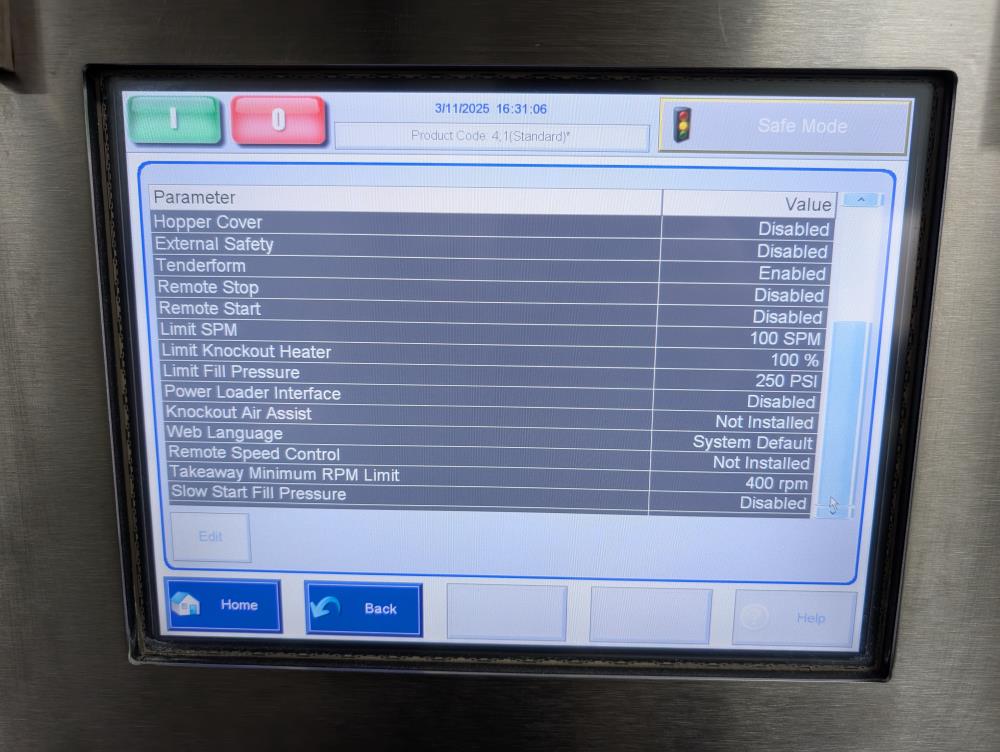

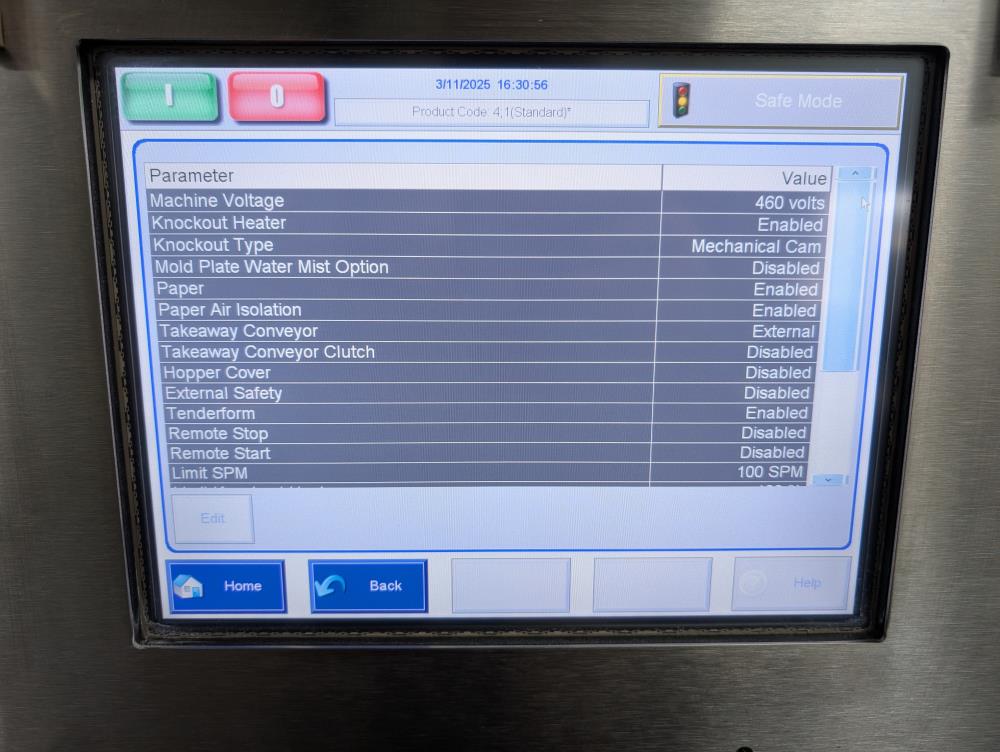

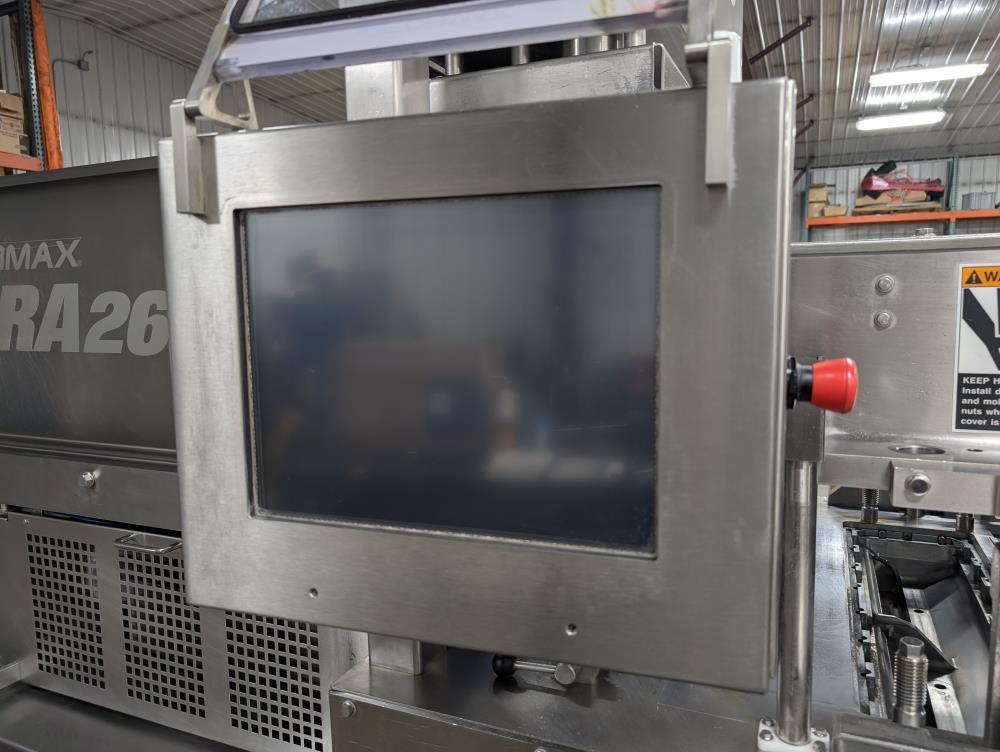

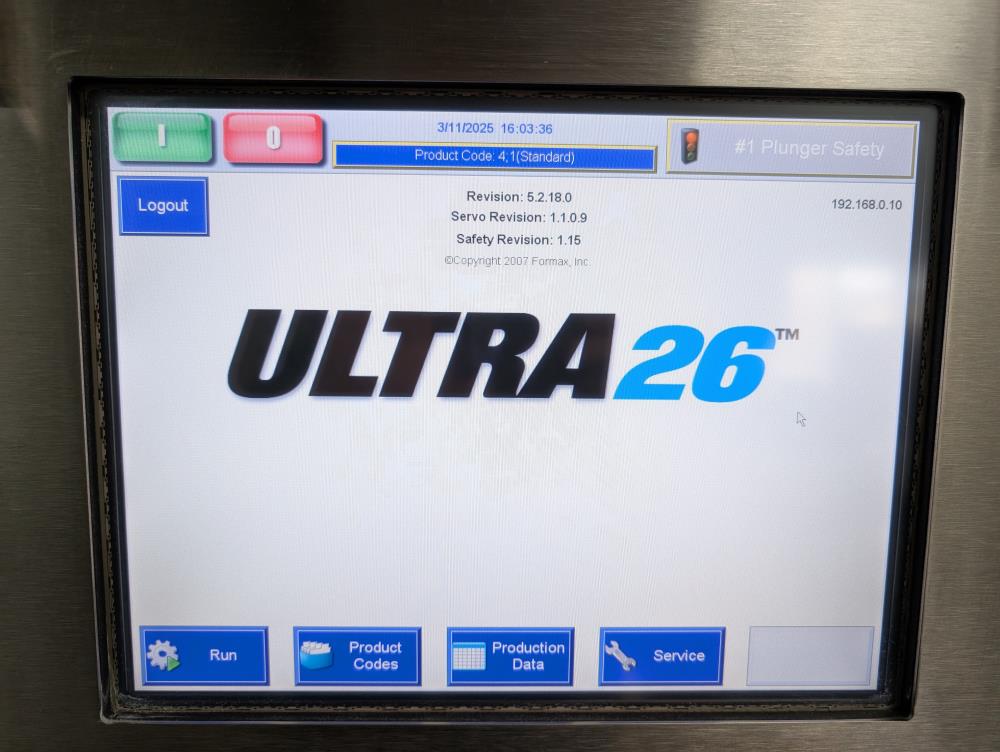

15-inch (380 mm) color touchscreen control

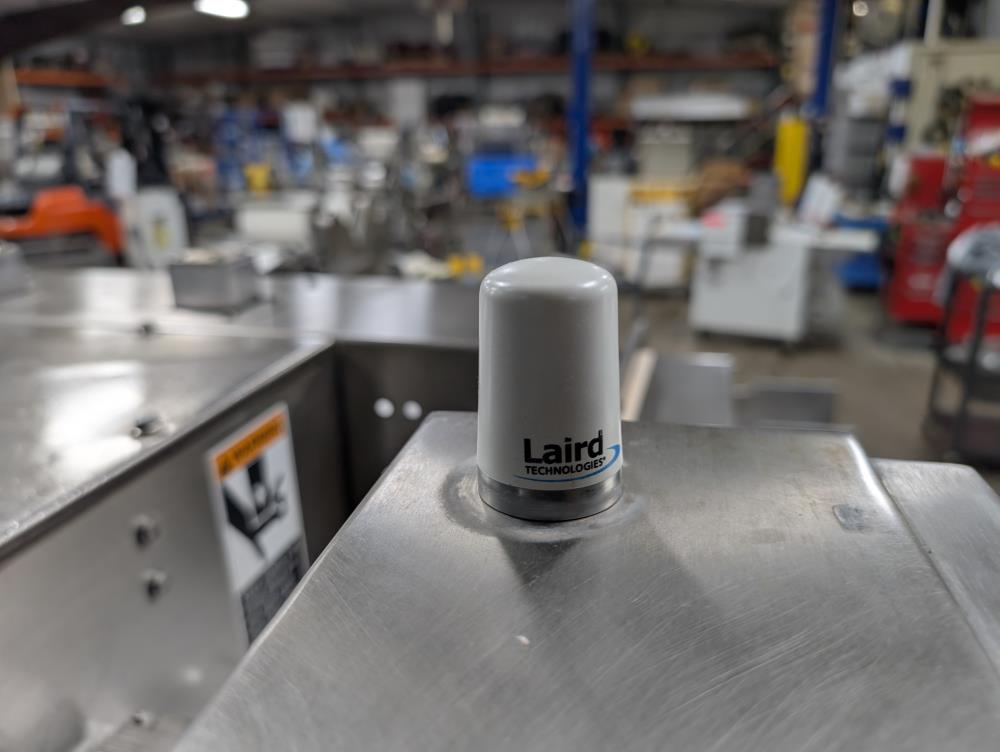

Multi-language display with machine diagnostics, schematics, and remote monitoring capabilities

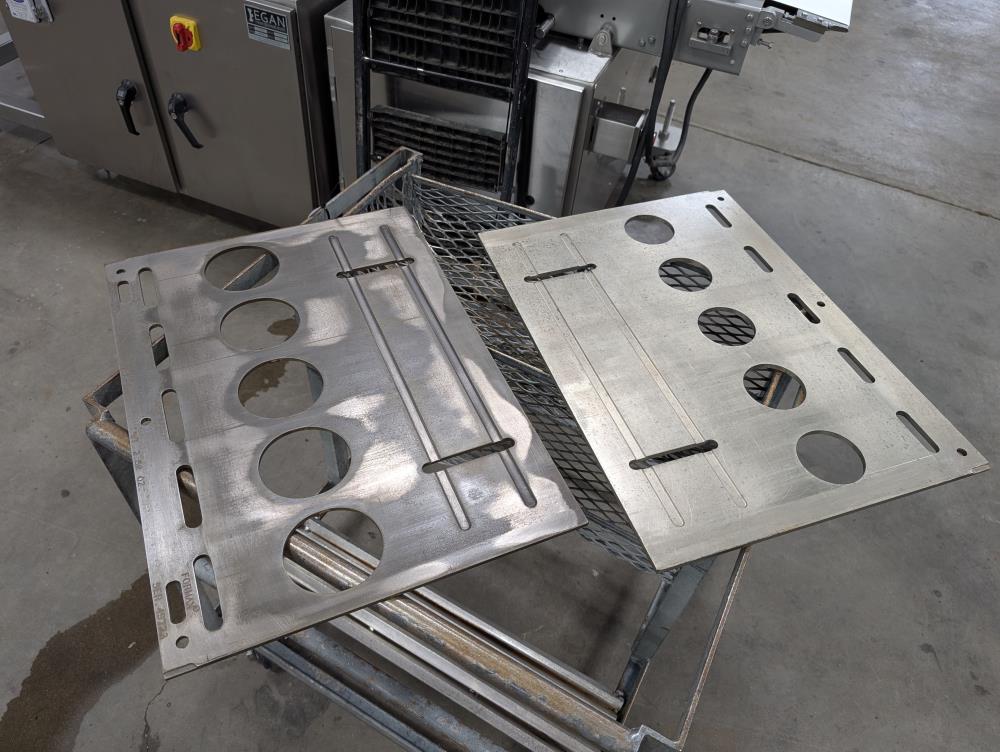

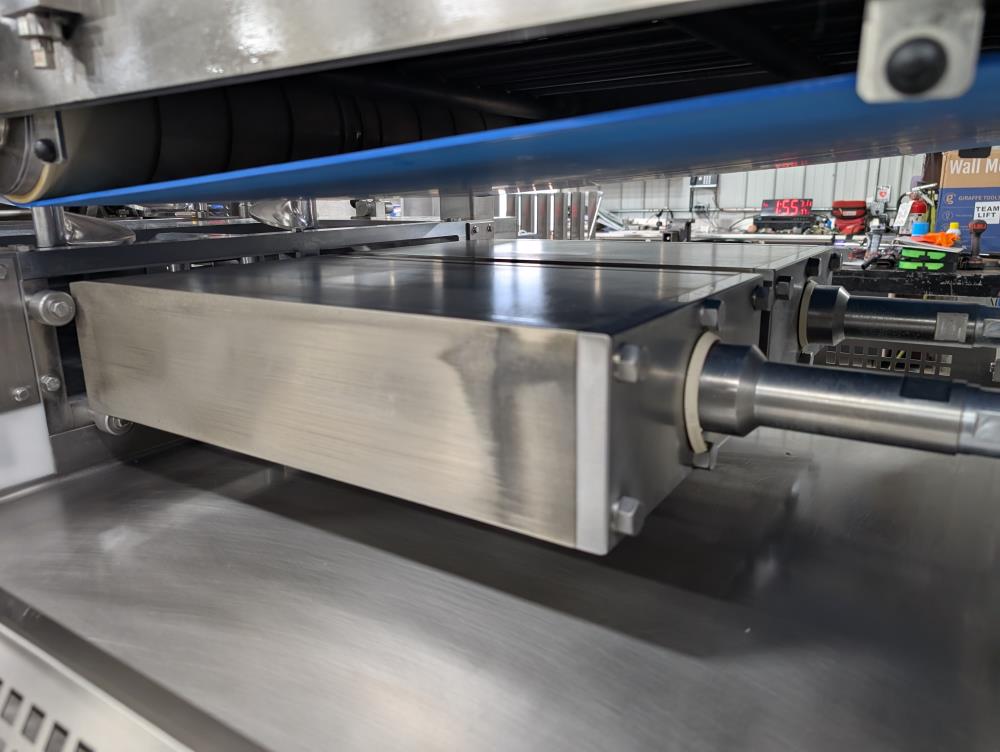

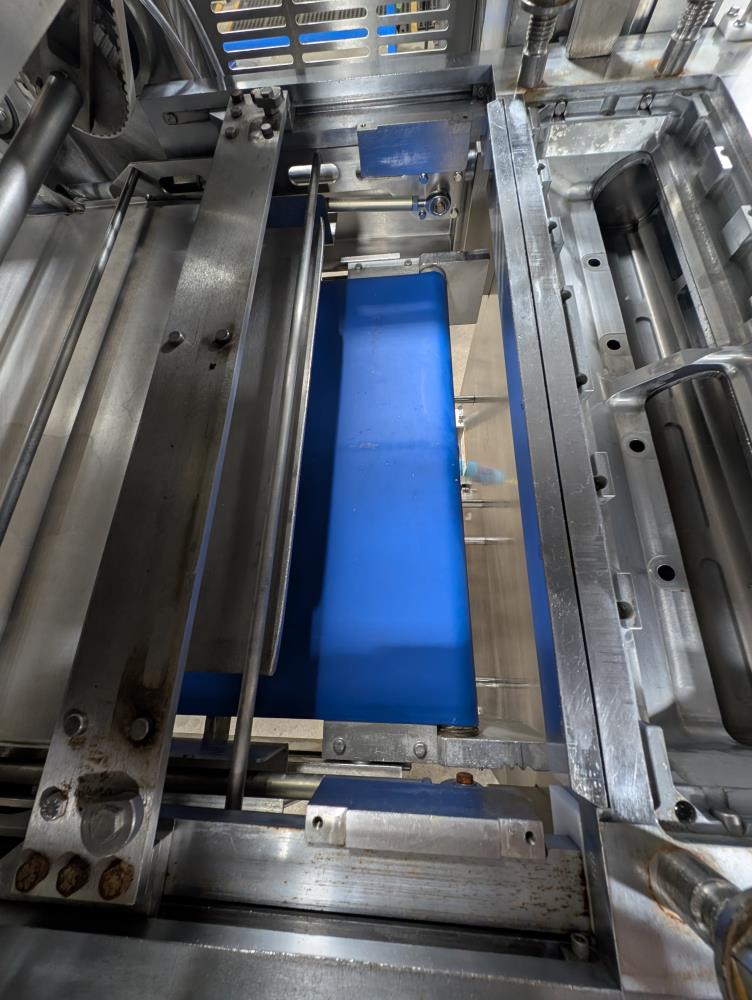

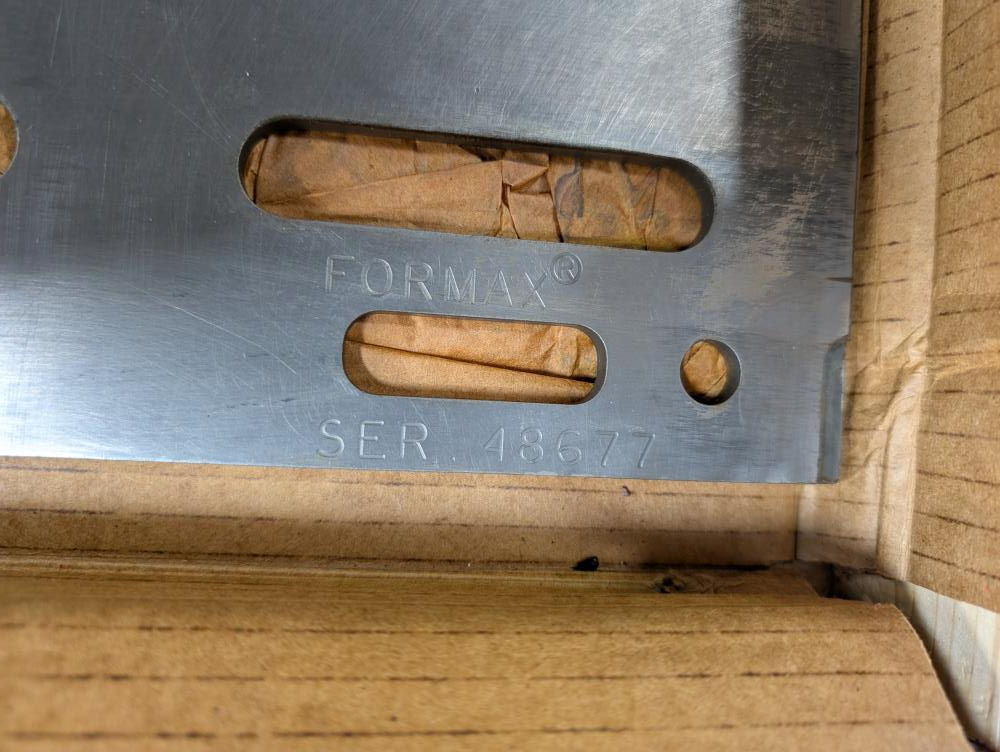

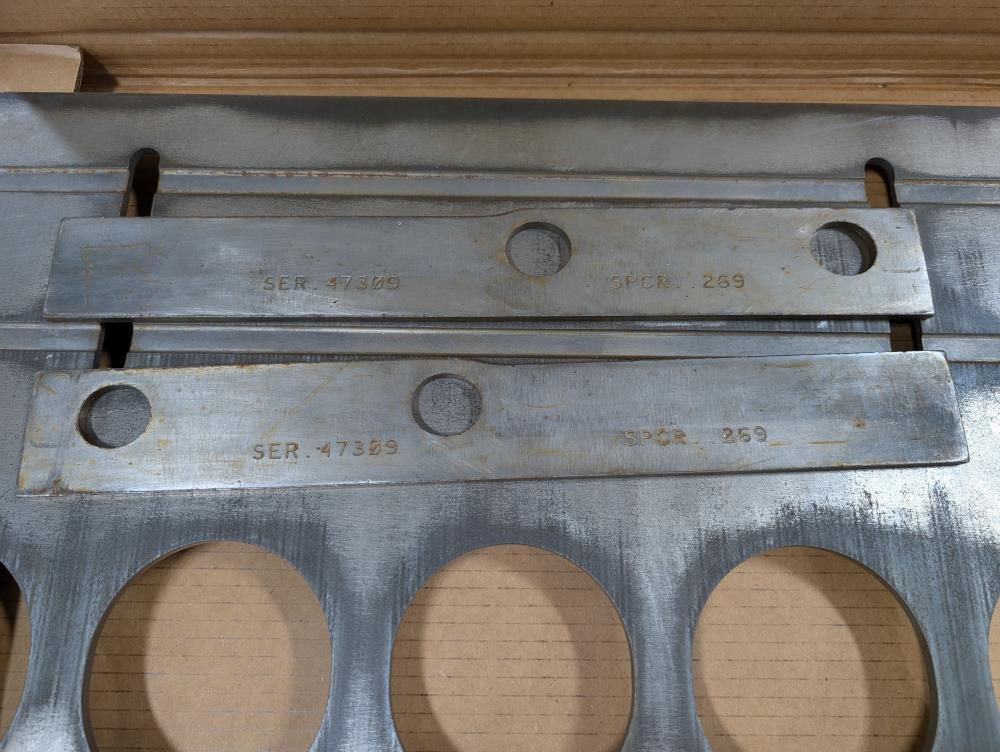

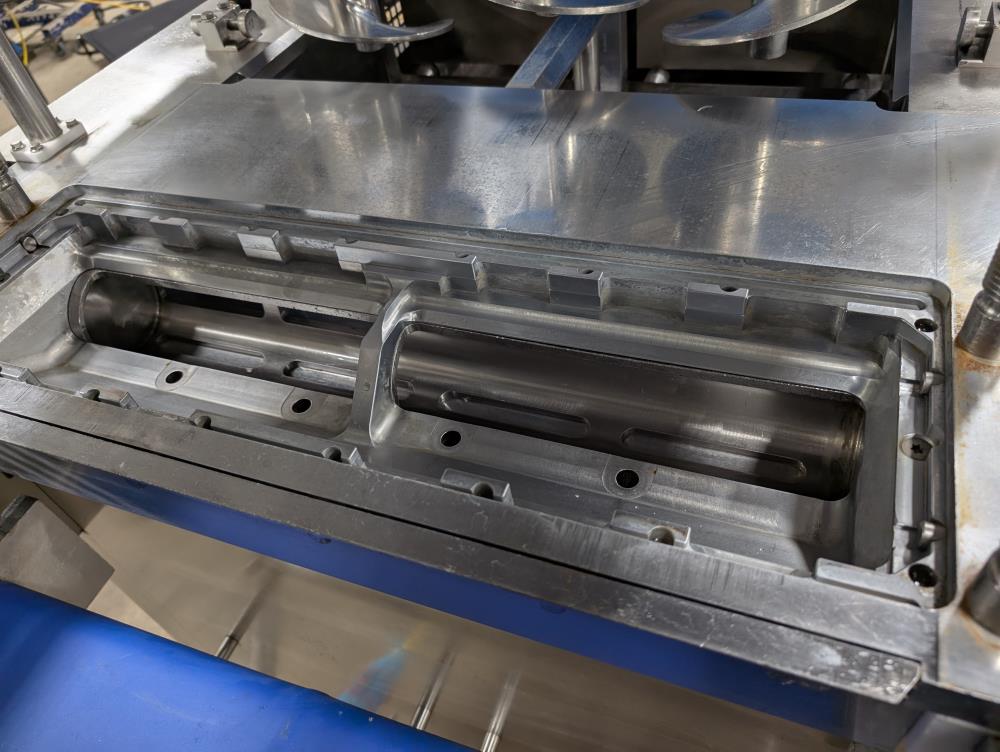

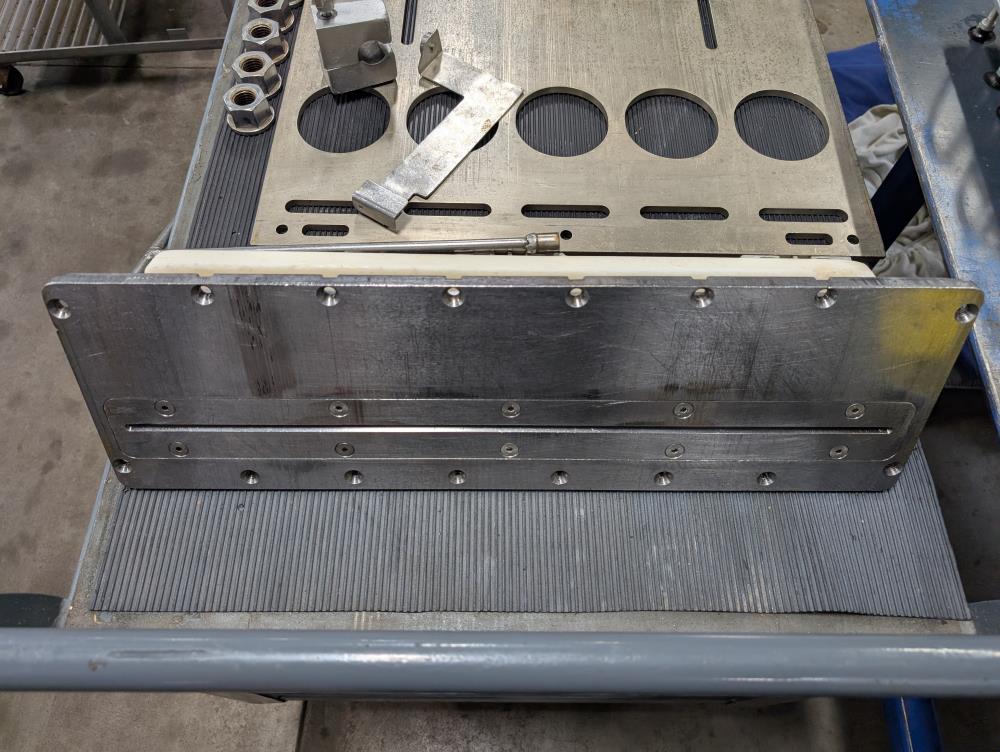

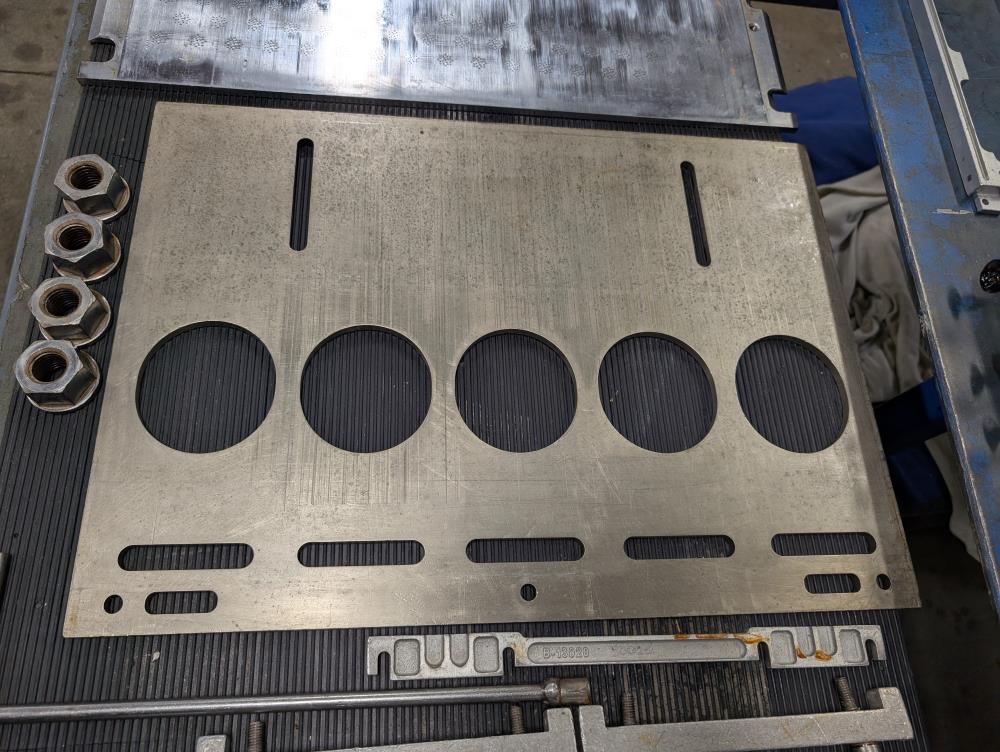

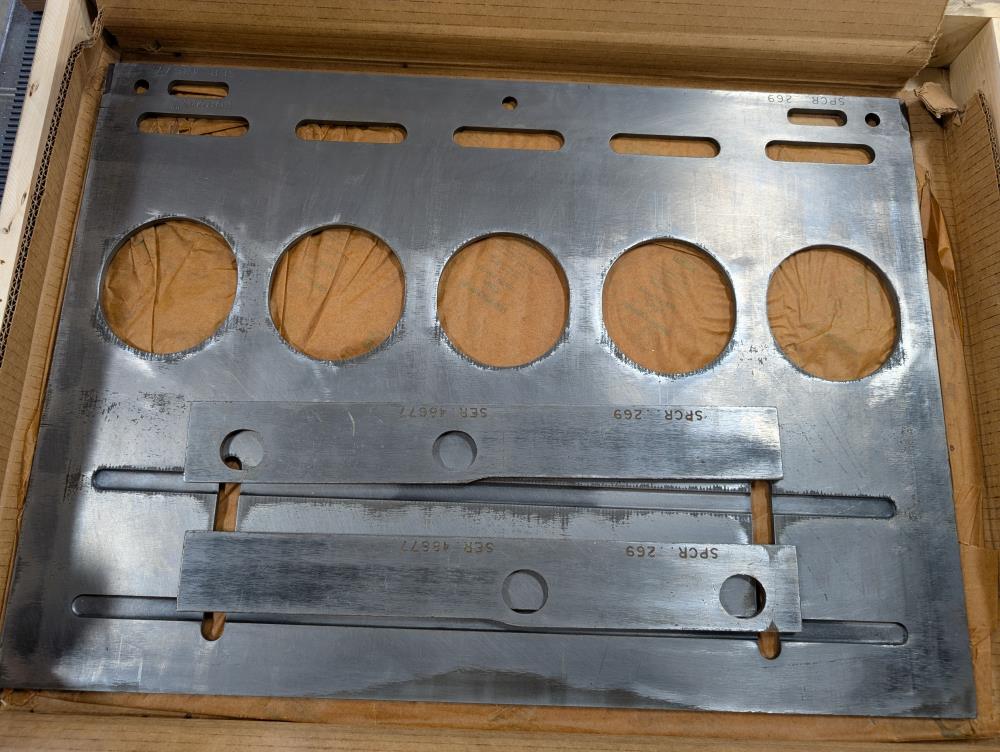

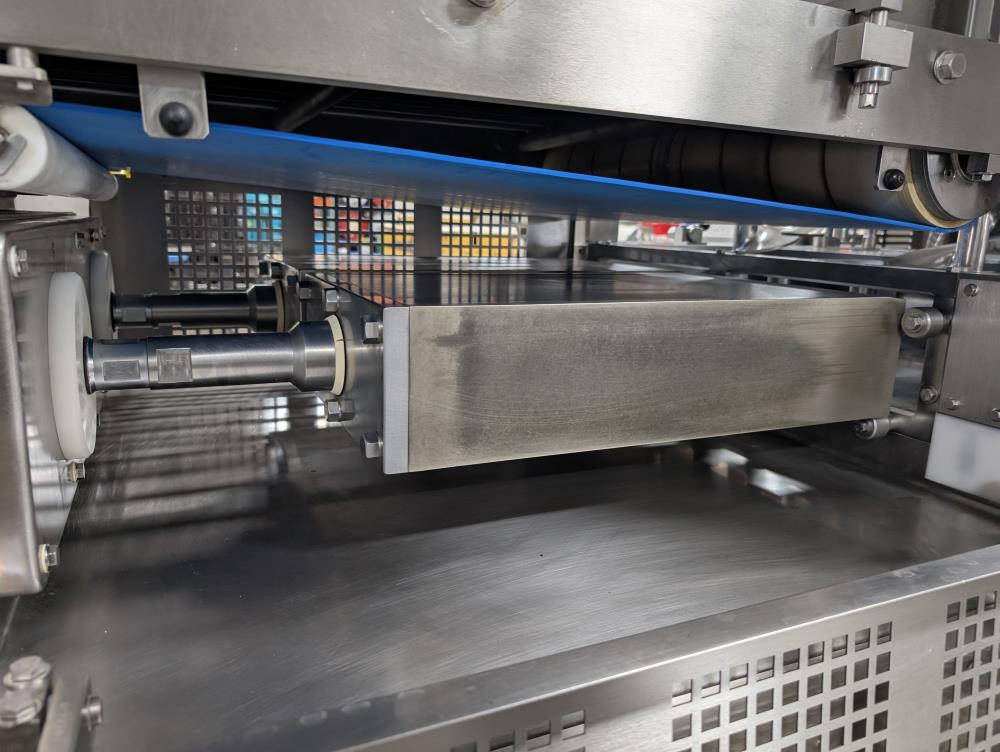

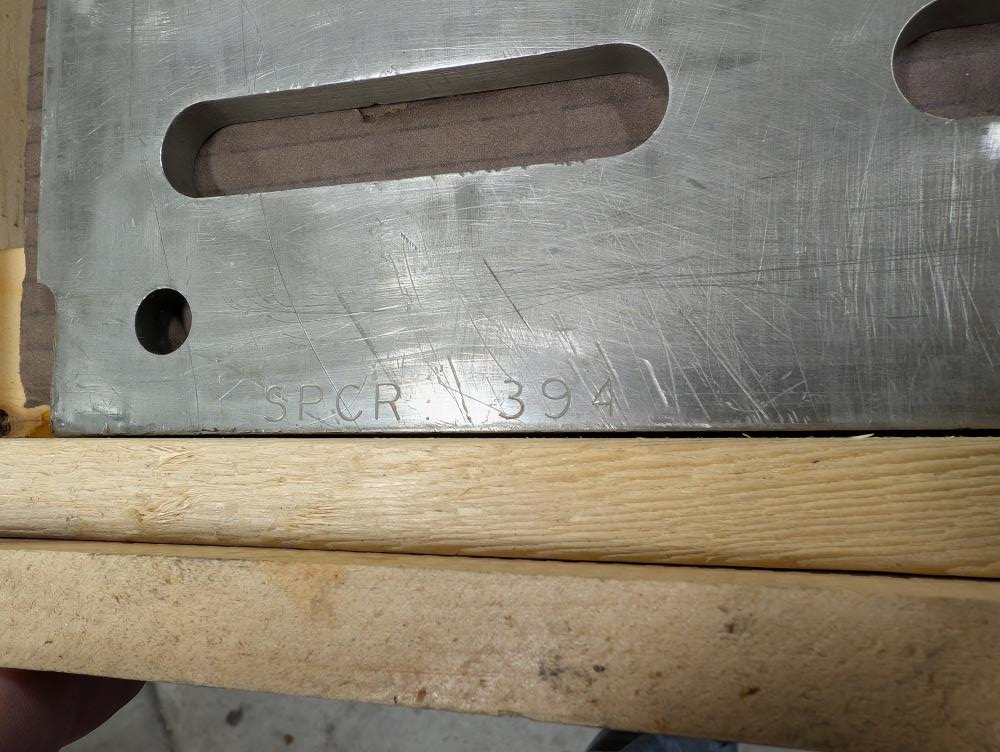

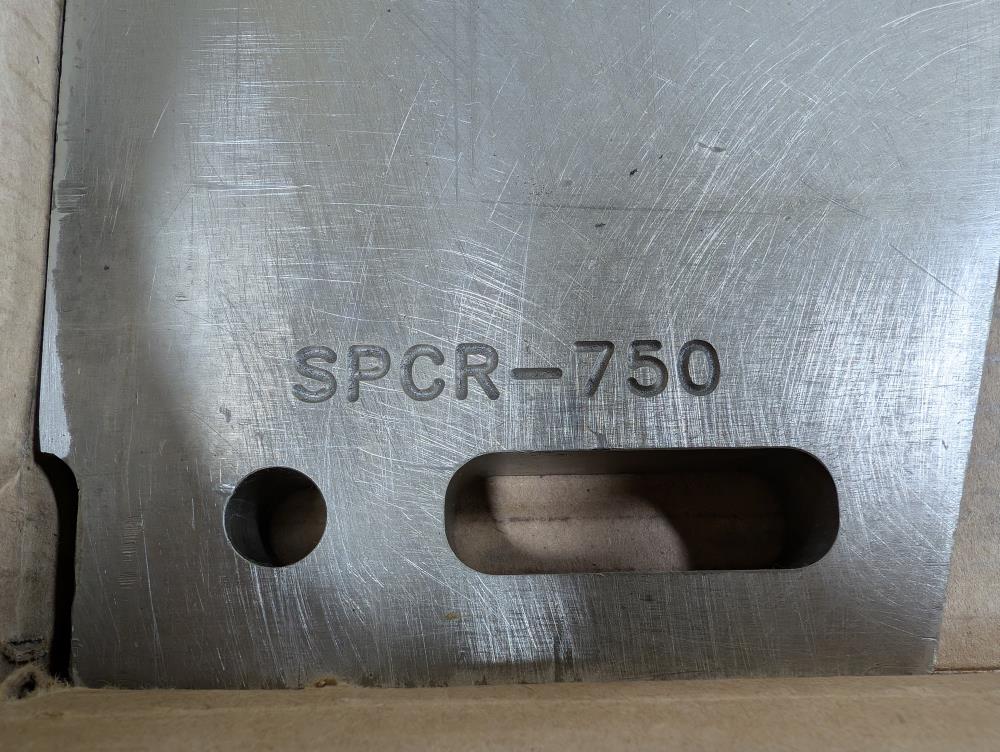

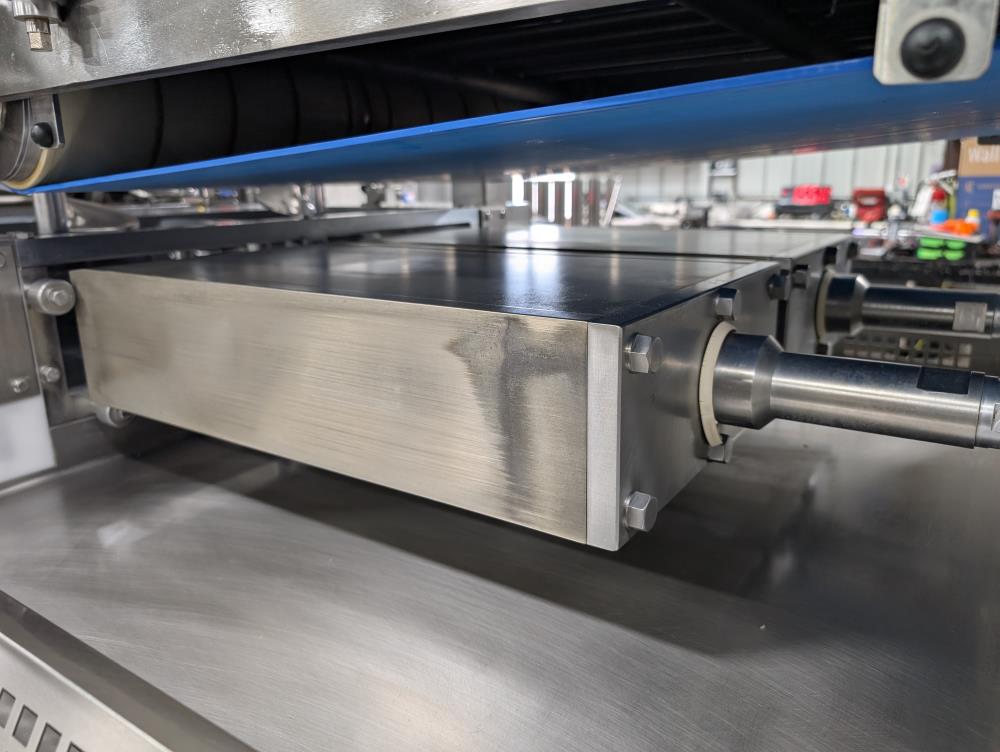

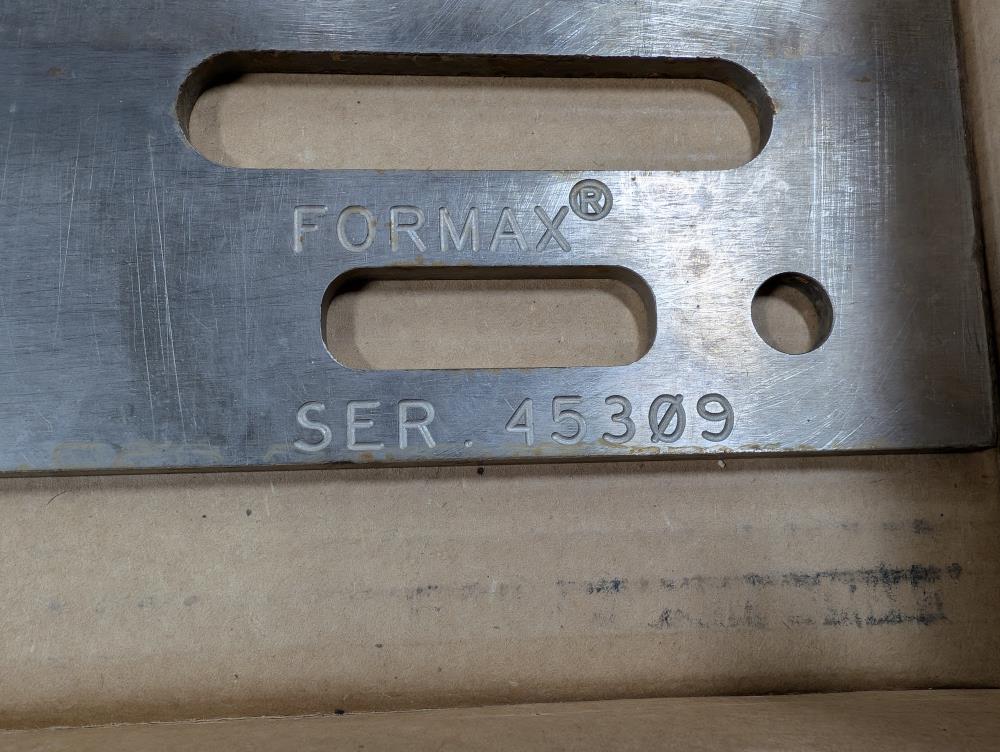

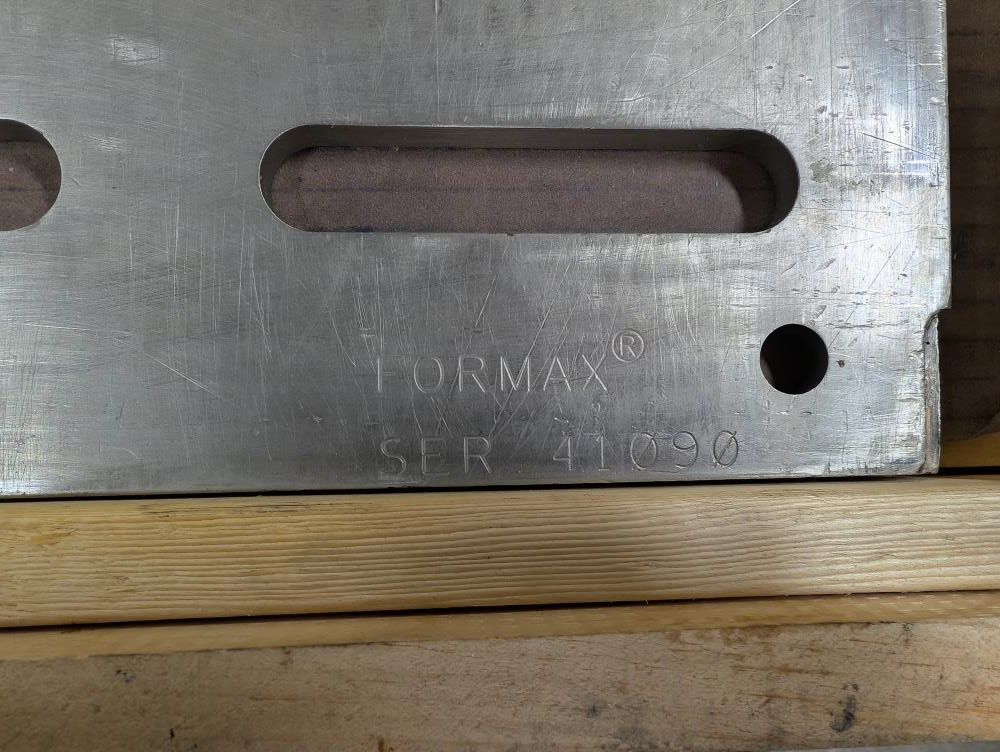

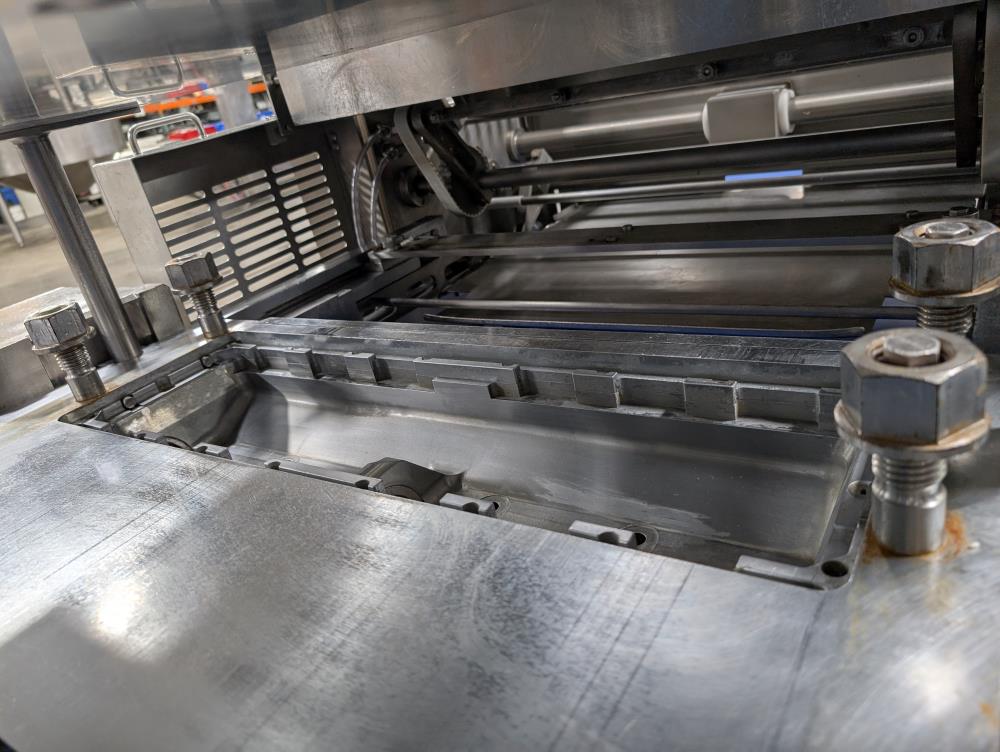

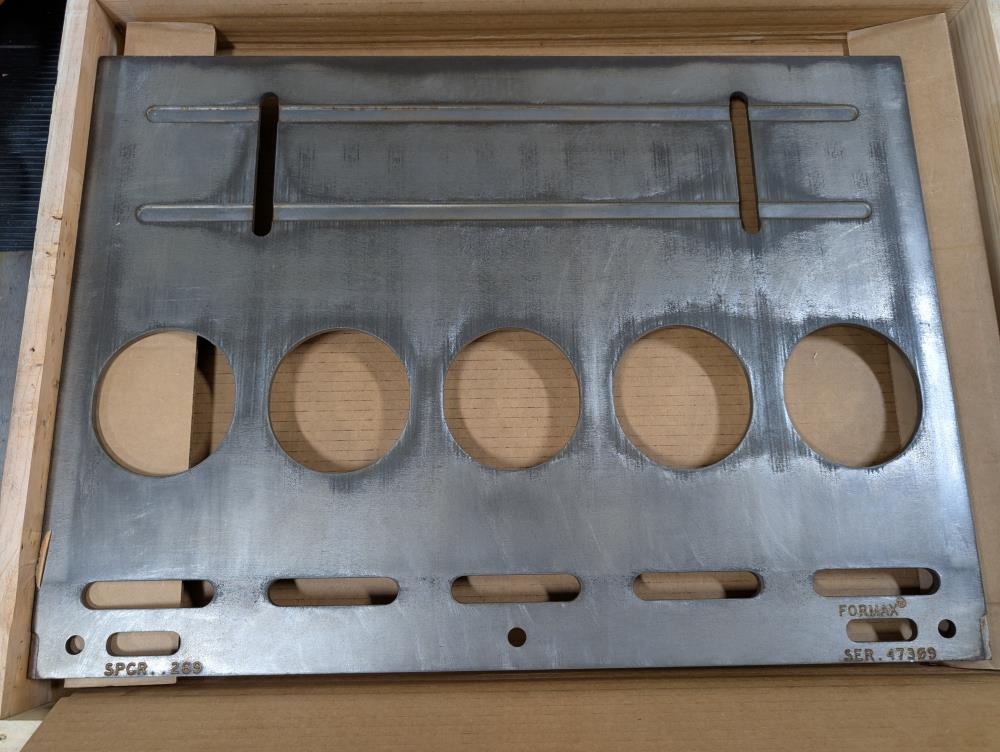

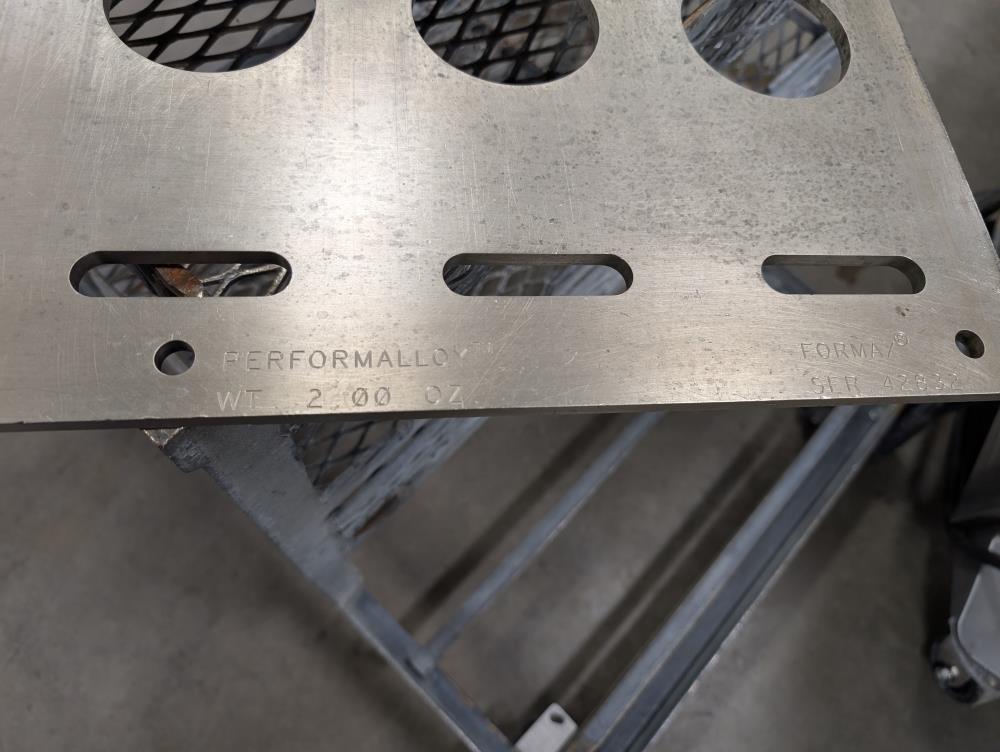

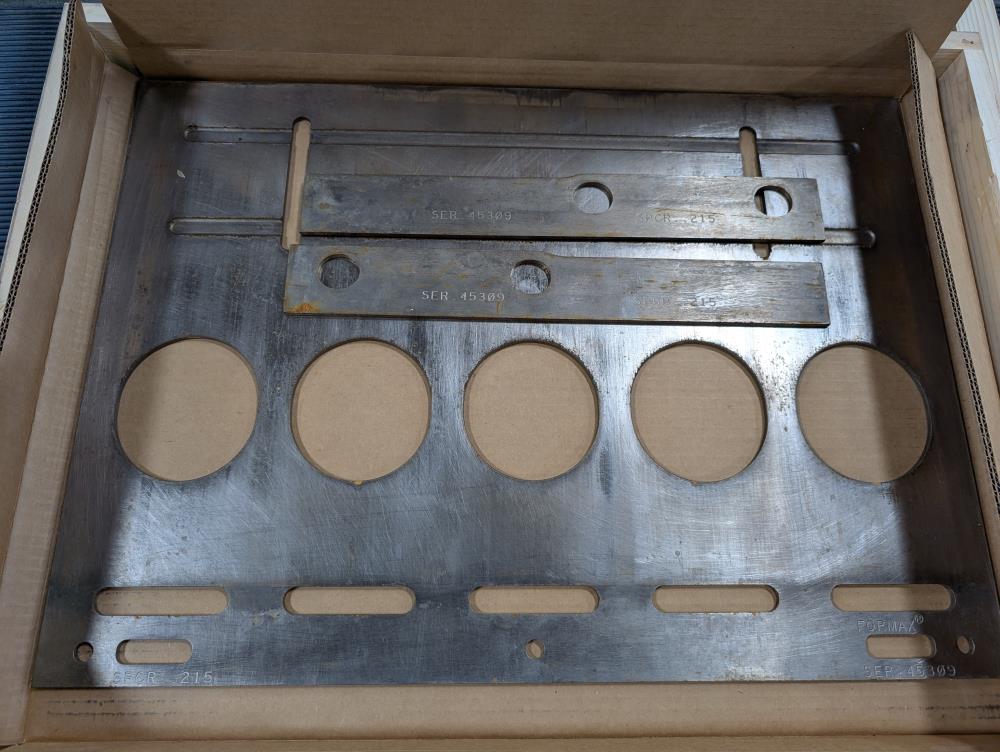

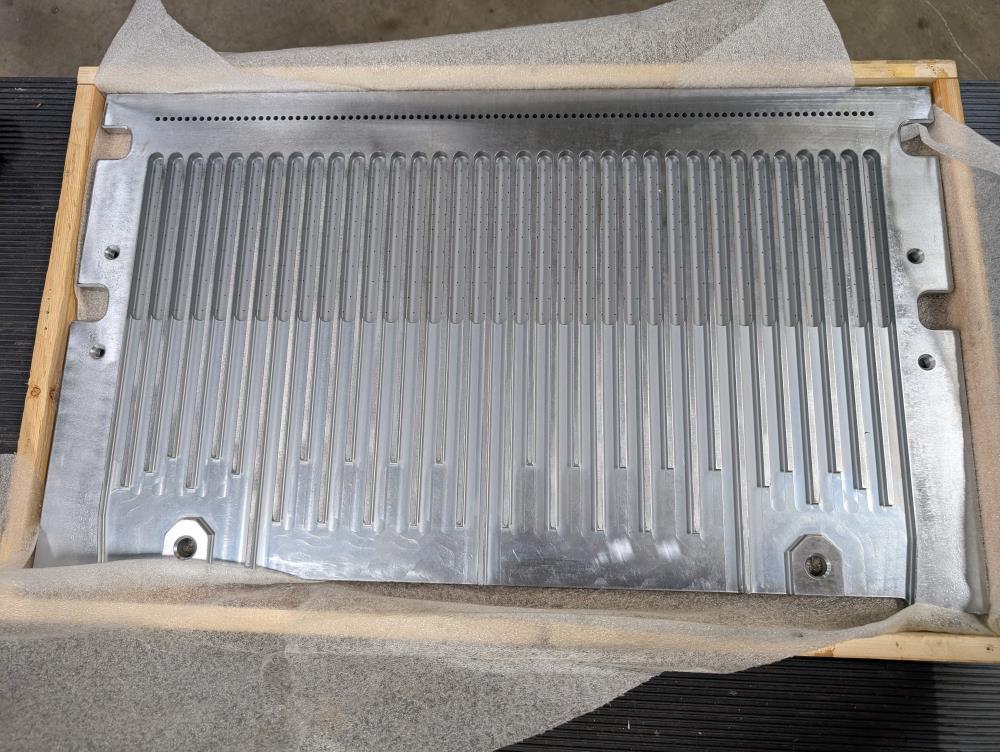

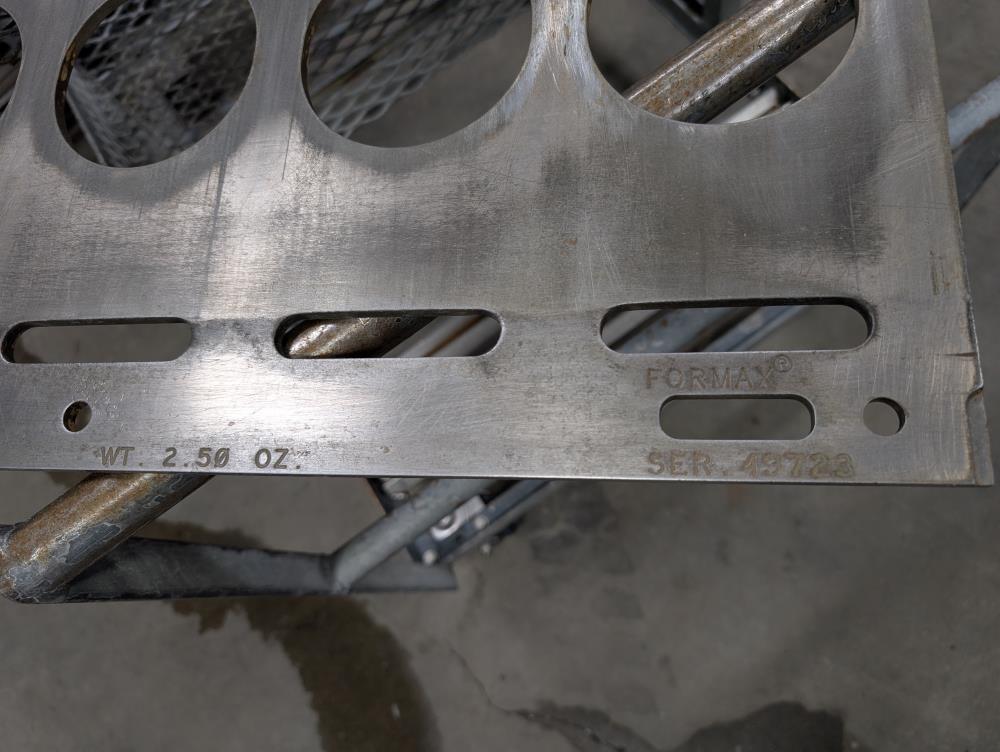

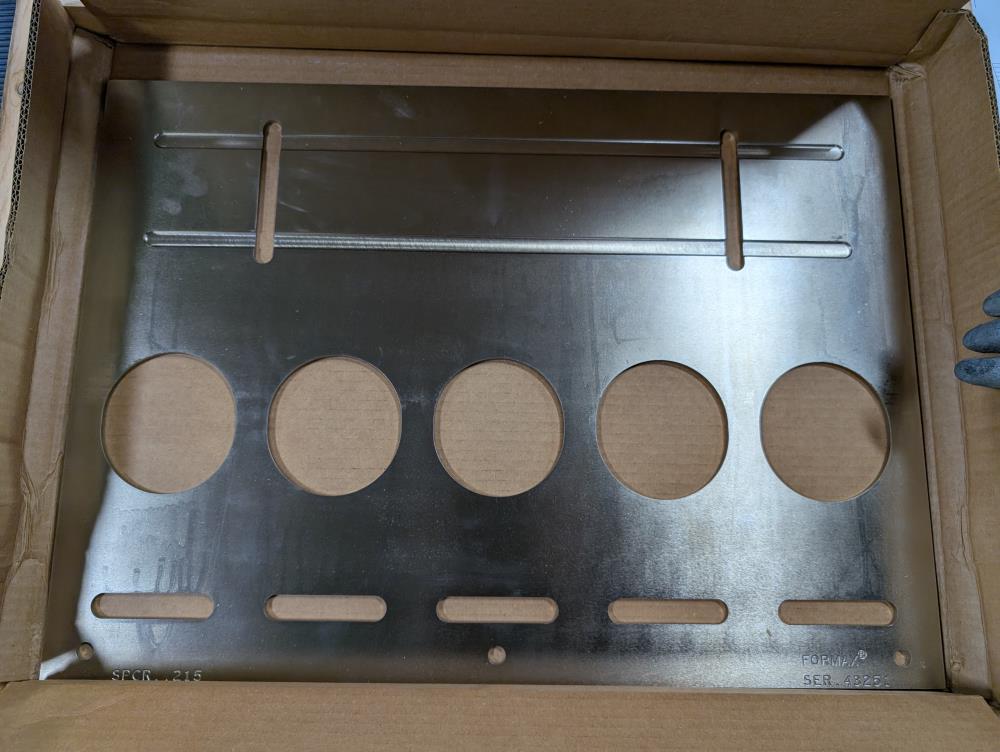

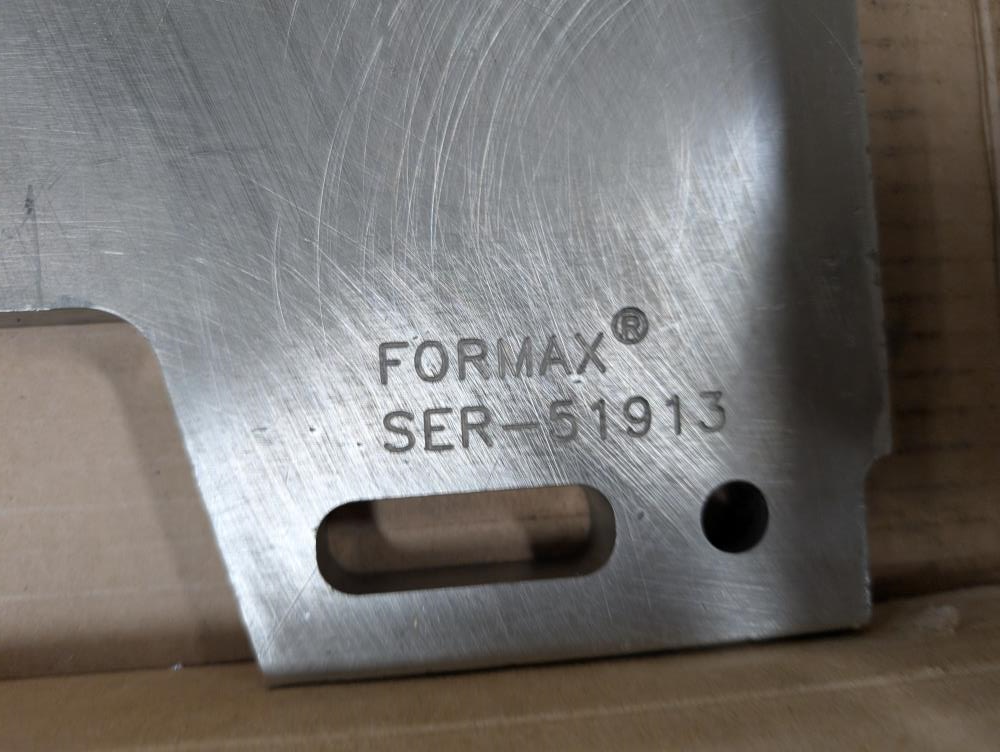

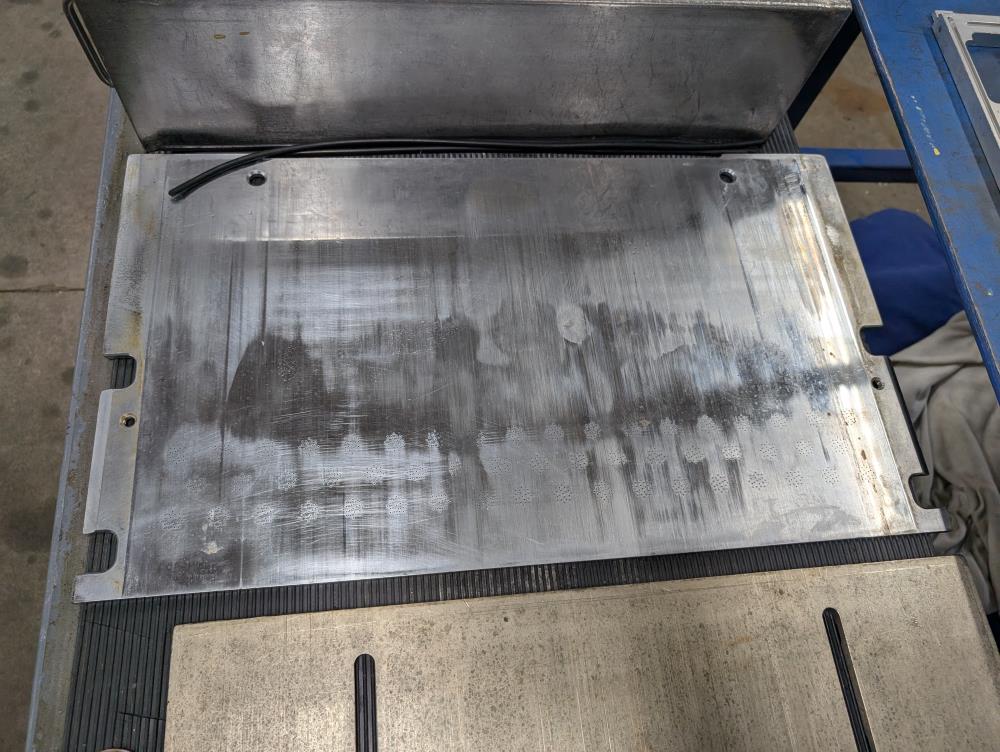

Mold Plate & Forming Capabilities:

Variable mold plate drive strokes per minute: 25-100 at 9-inch (228 mm) stroke length
Available mold plate stroke lengths: 9-inch or 10-inch (228 mm, 254 mm)

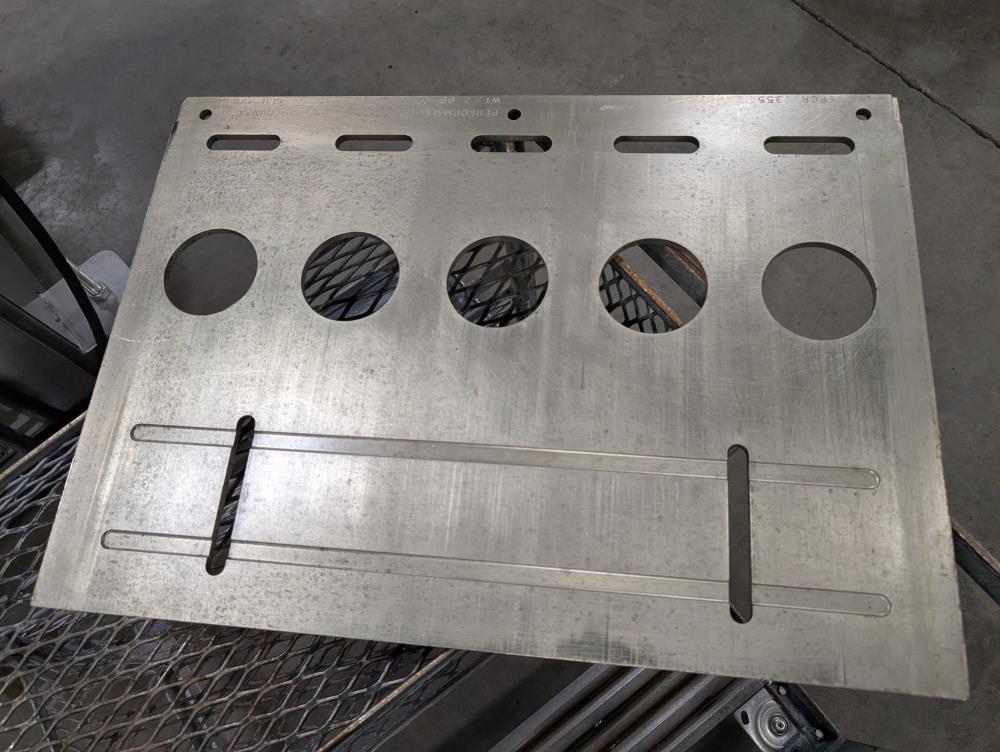

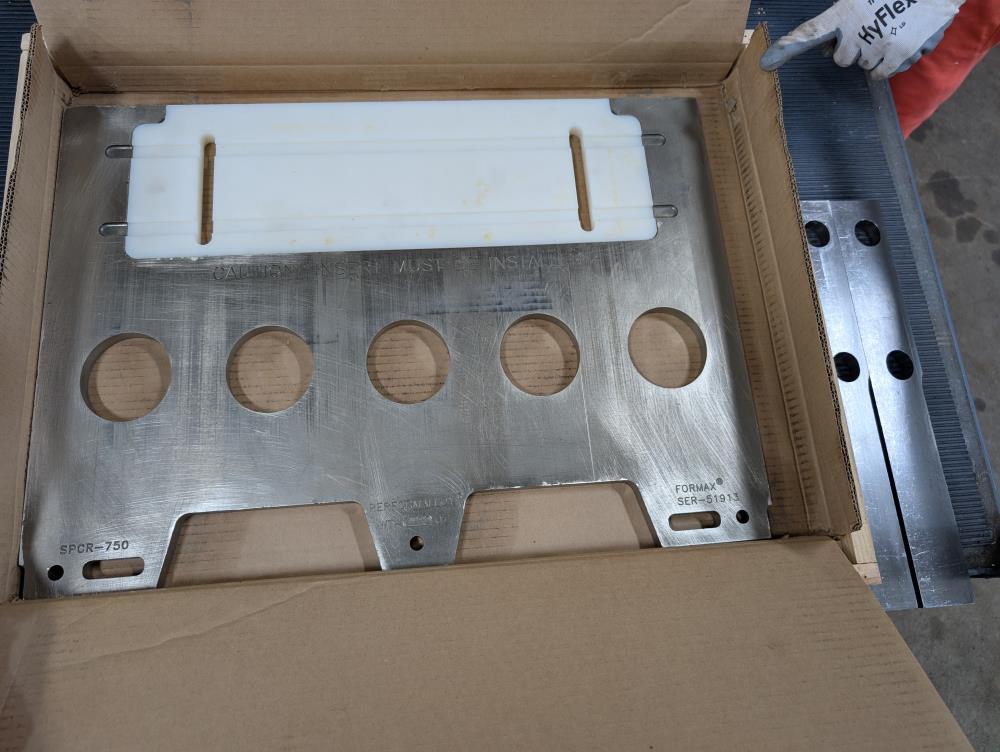

Usable mold plate area: 24 inches wide x 6 inches front to back (600 mm x 152 mm)

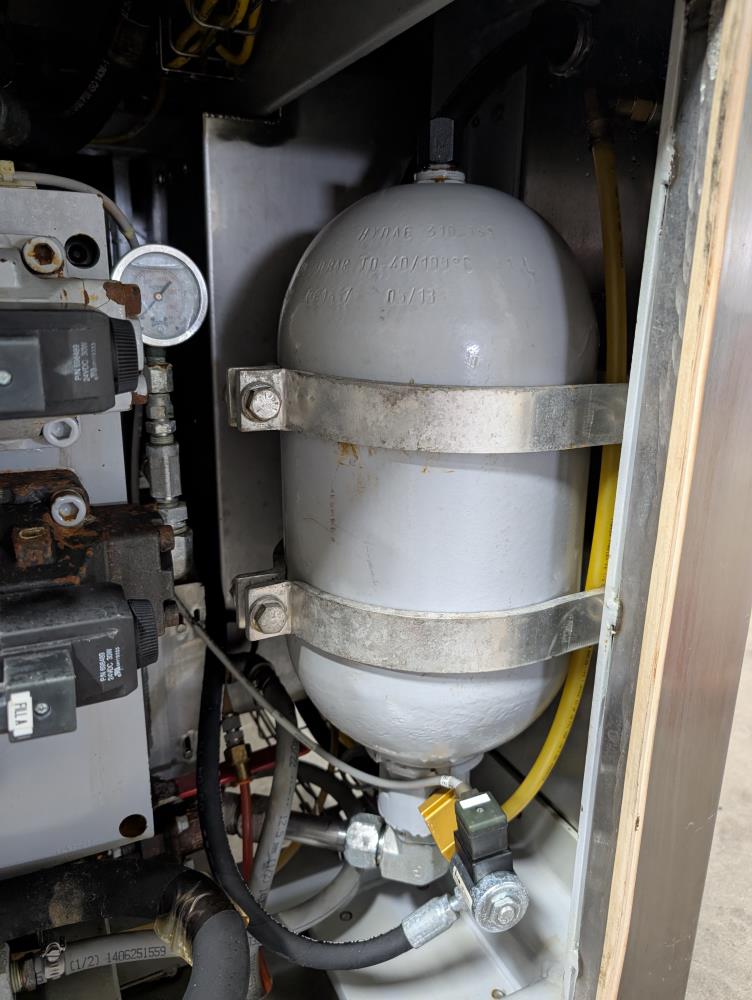

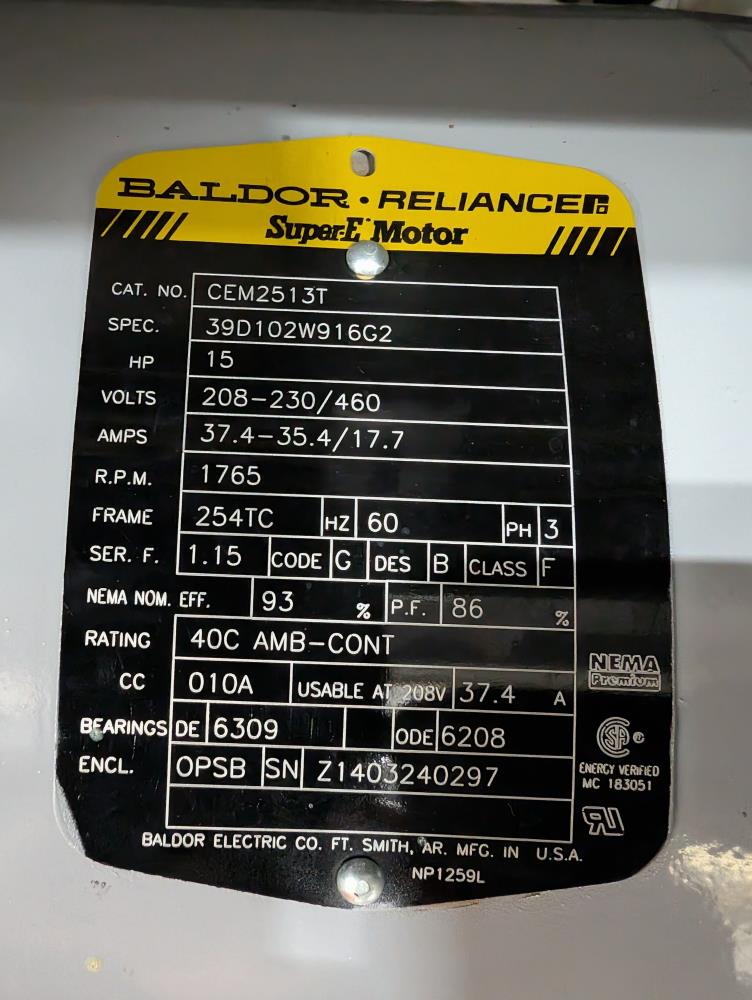

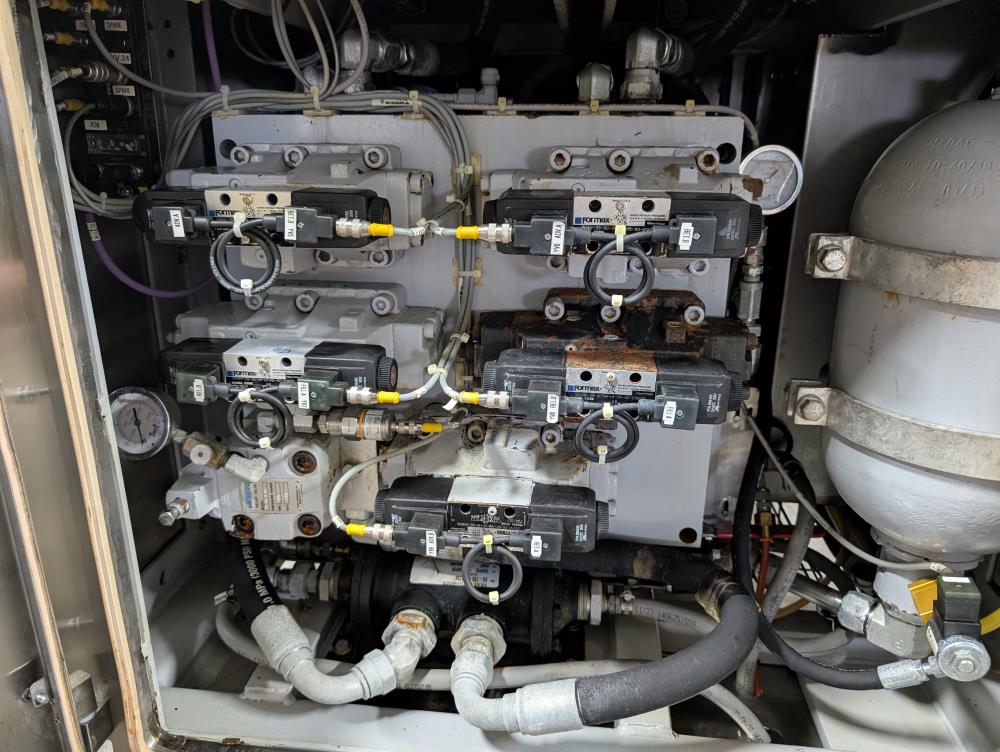

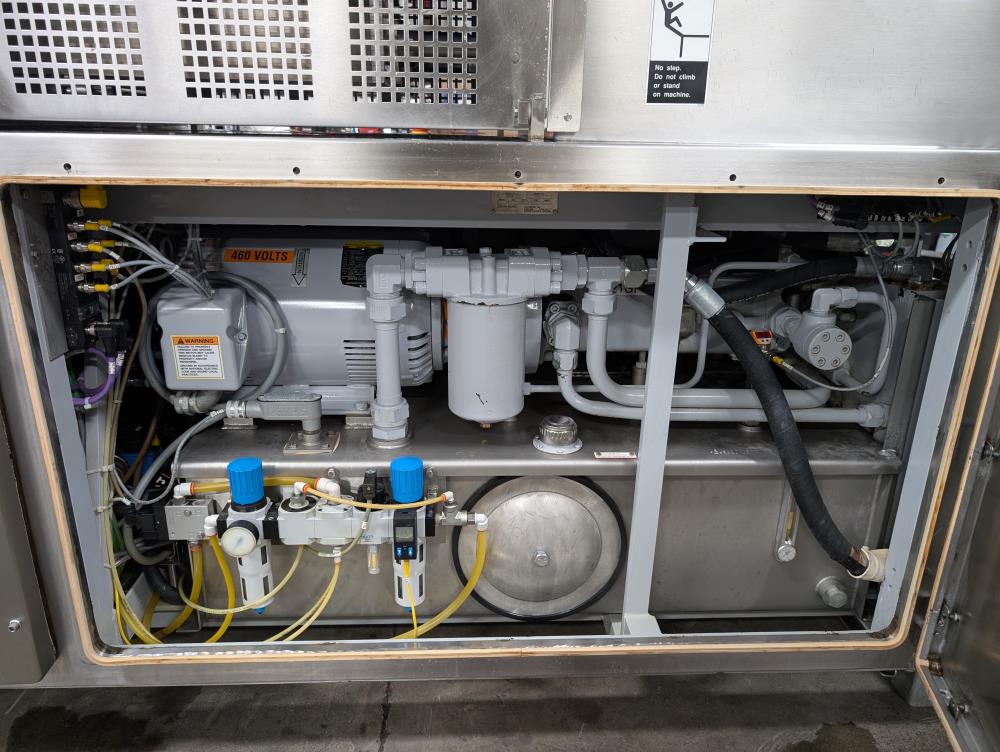

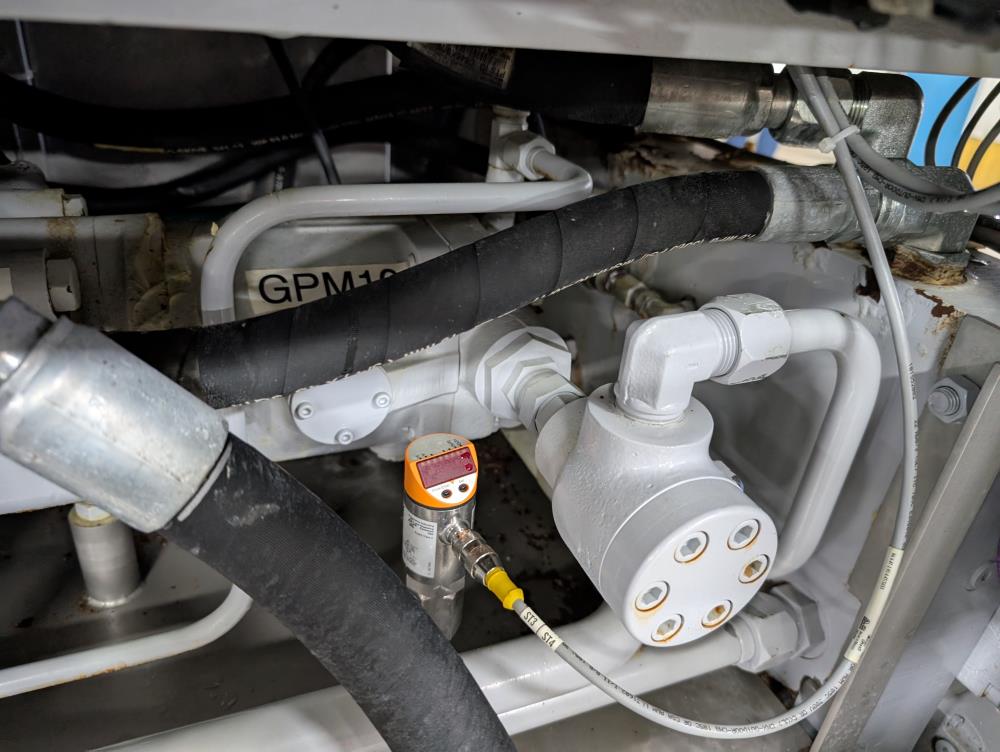

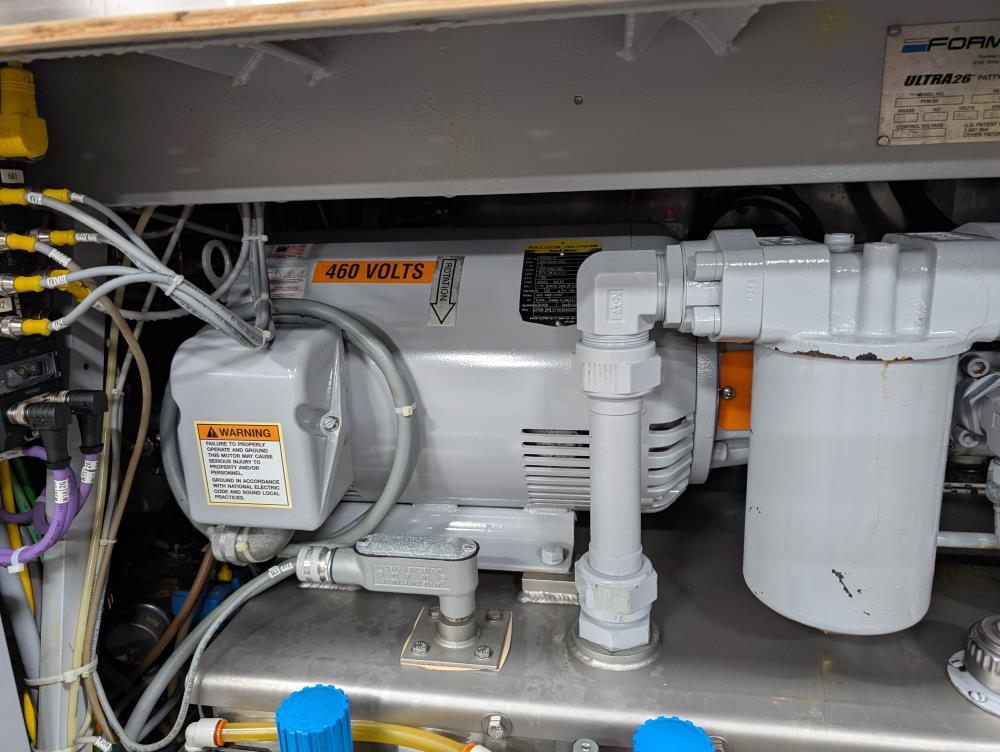

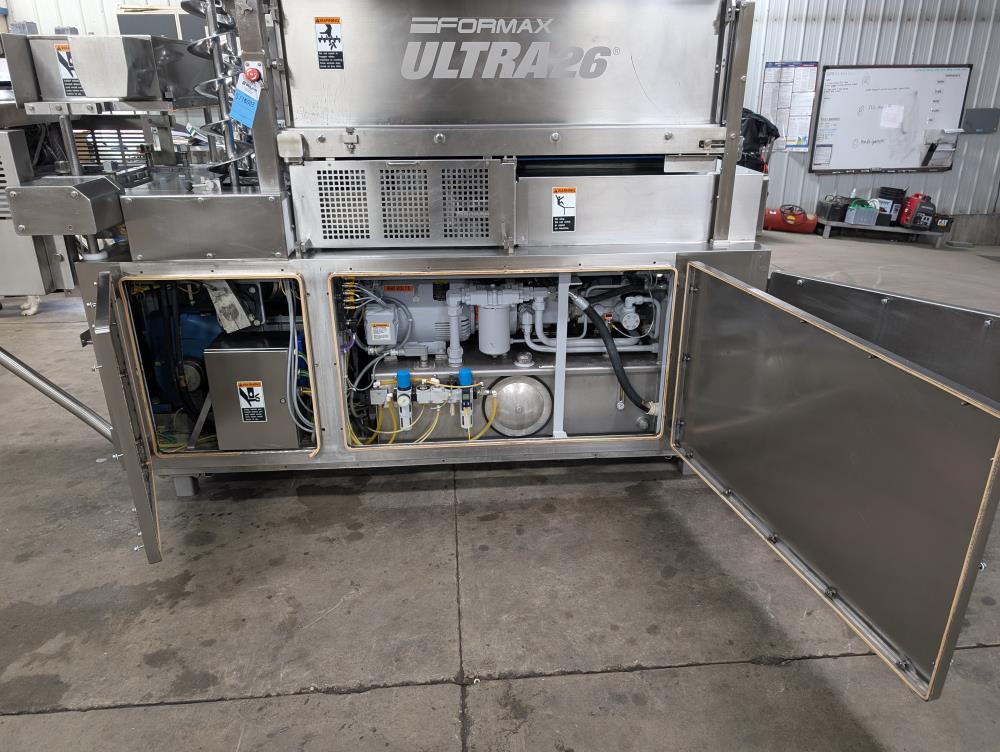

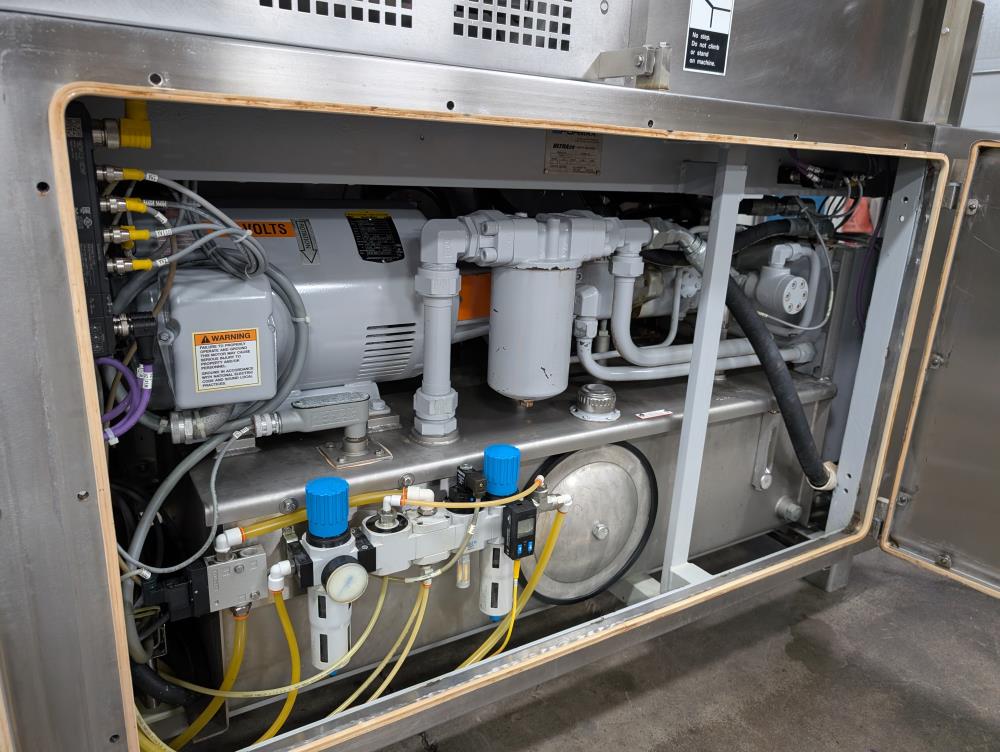

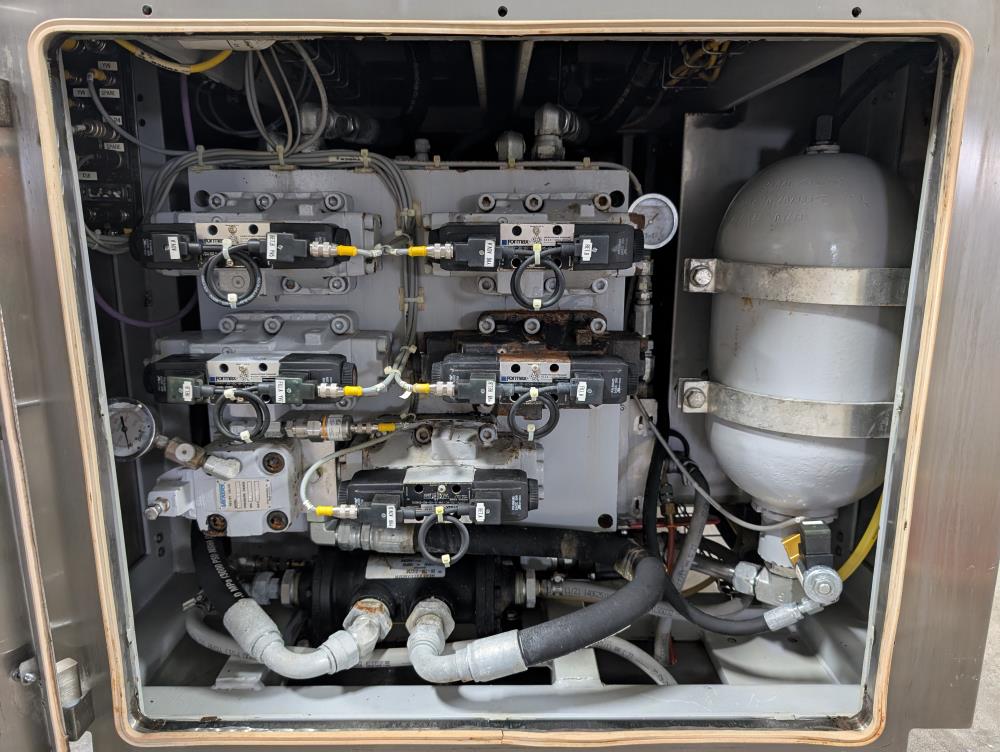

Hydraulic compression system: 15 HP
Product pressure control: 75-250 PSI

Paper Feed System:

Strokes per minute: 25-100 at 9-inch (228 mm) stroke length
Paper interchangeability for flexible operation

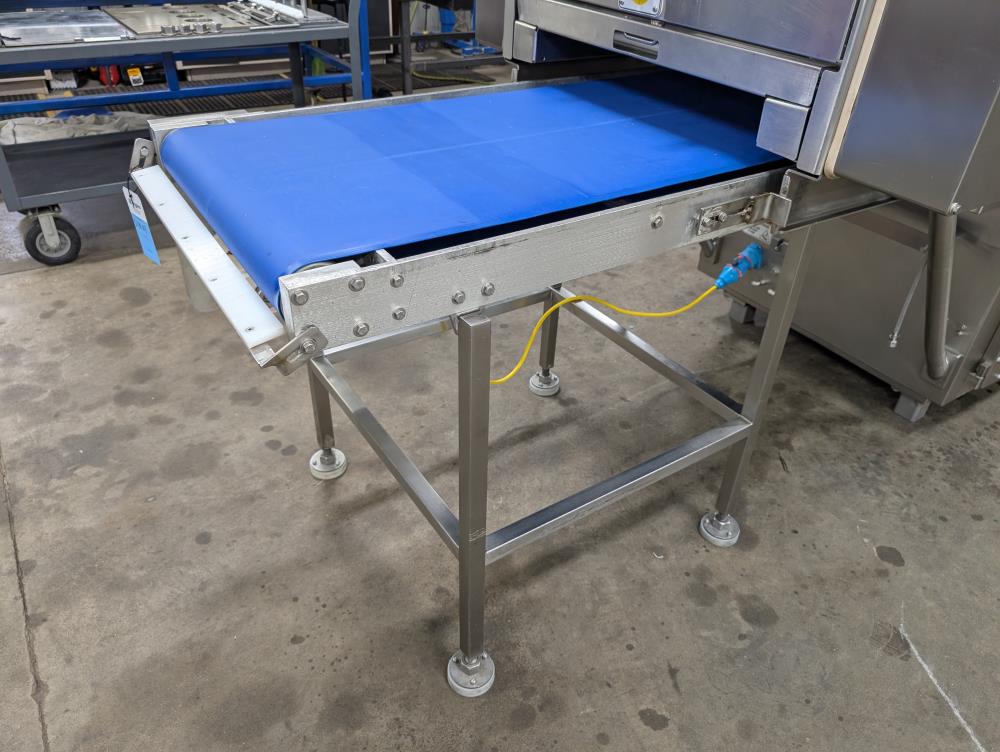

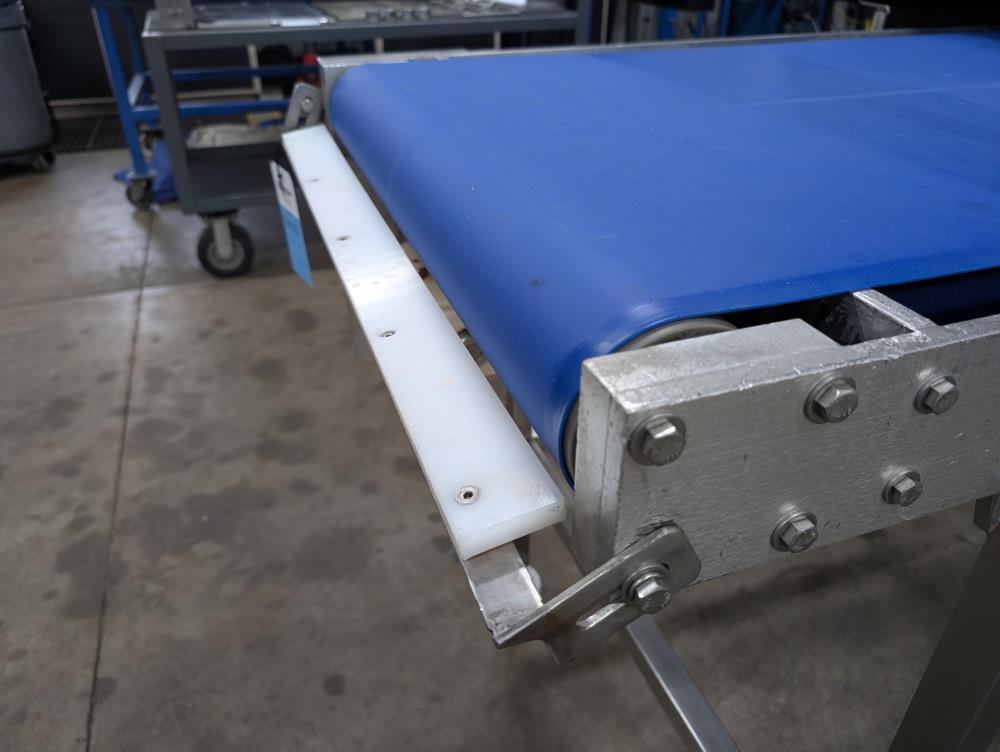

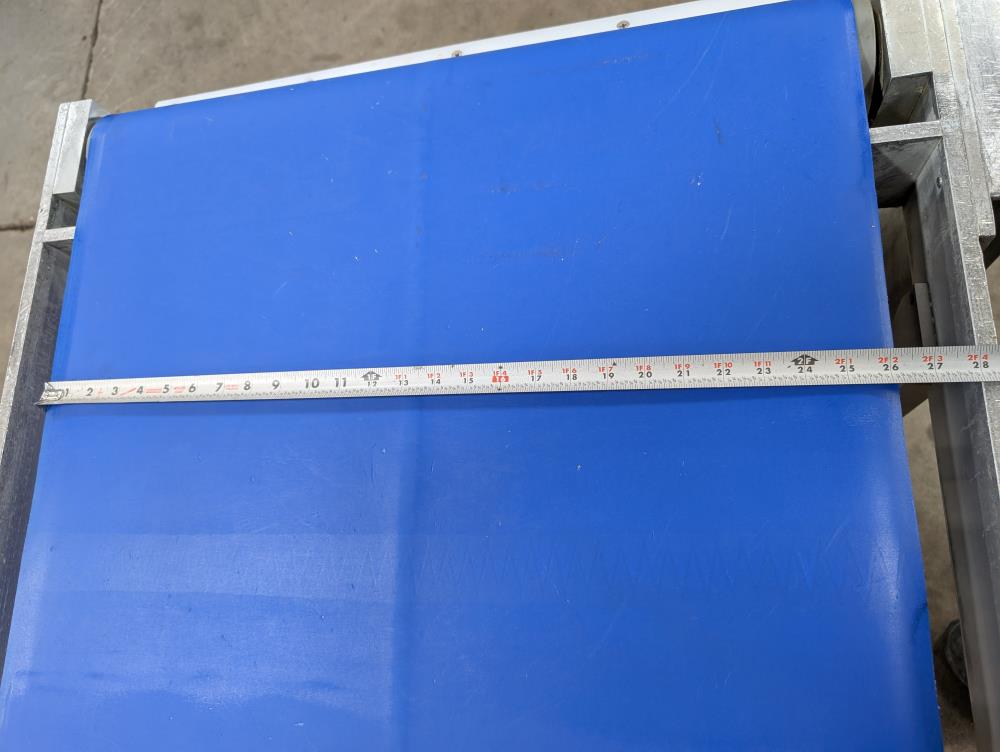

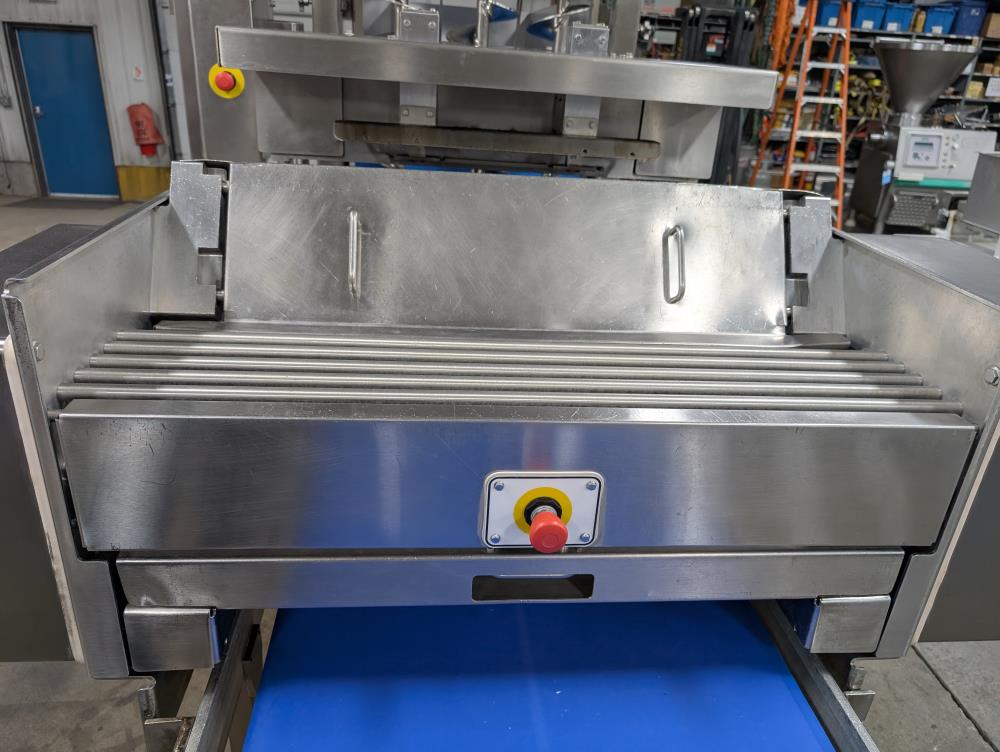

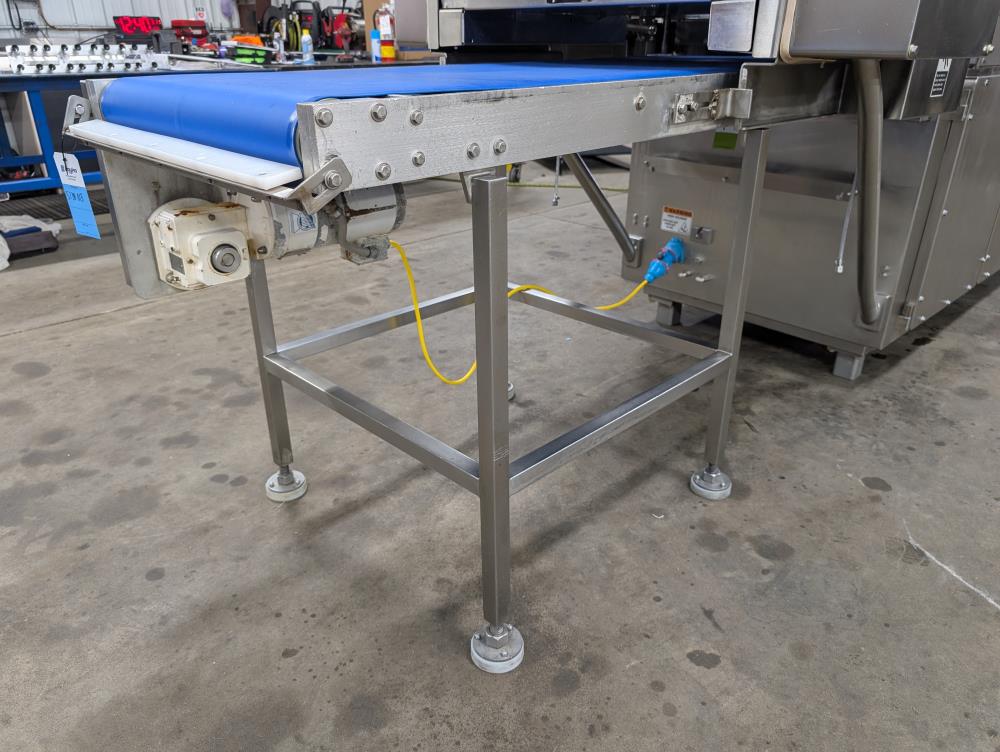

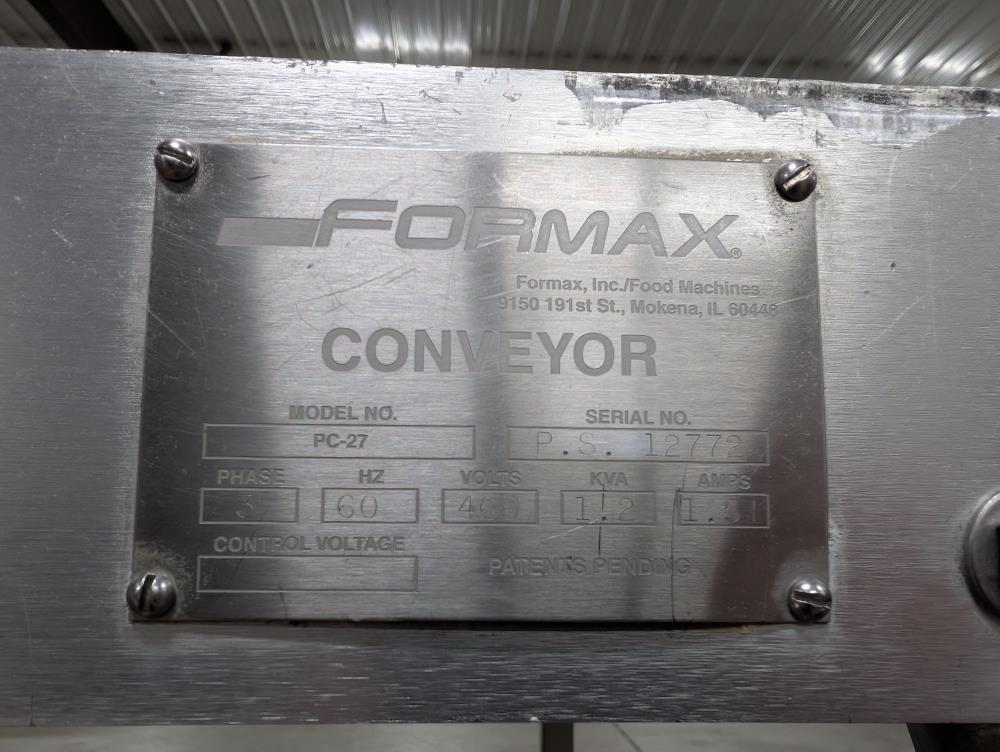

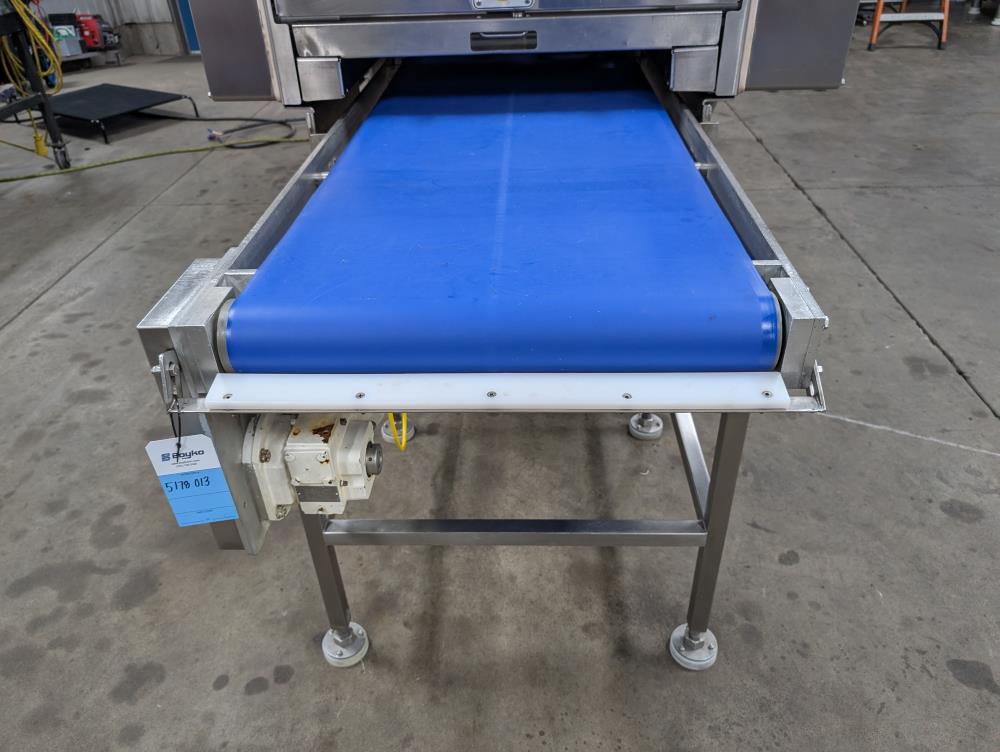

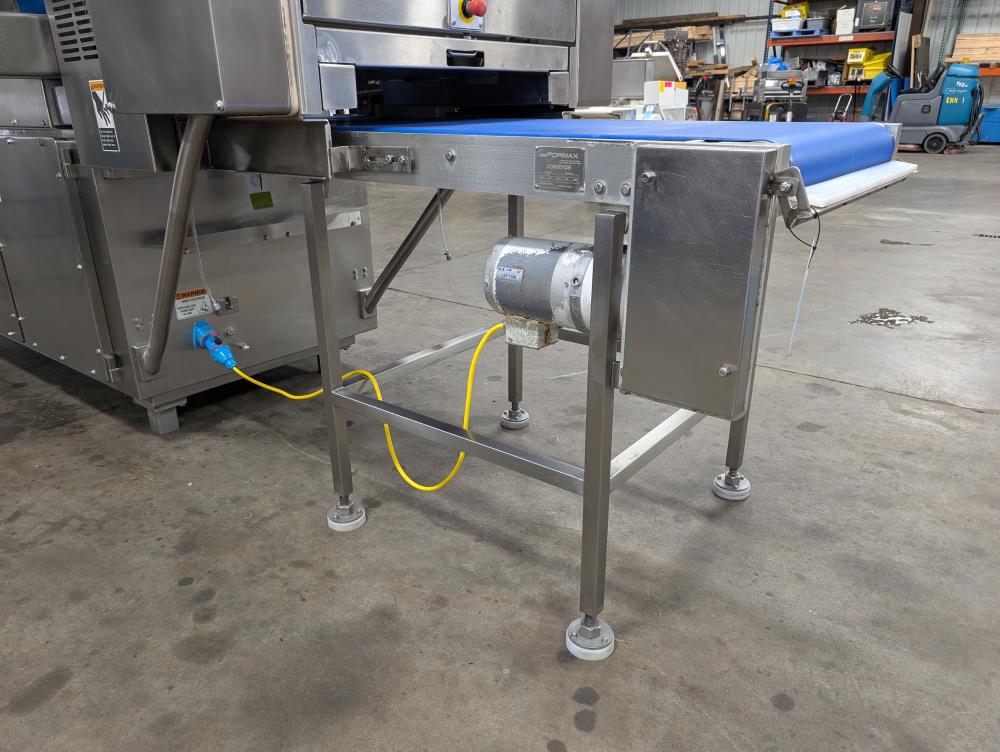

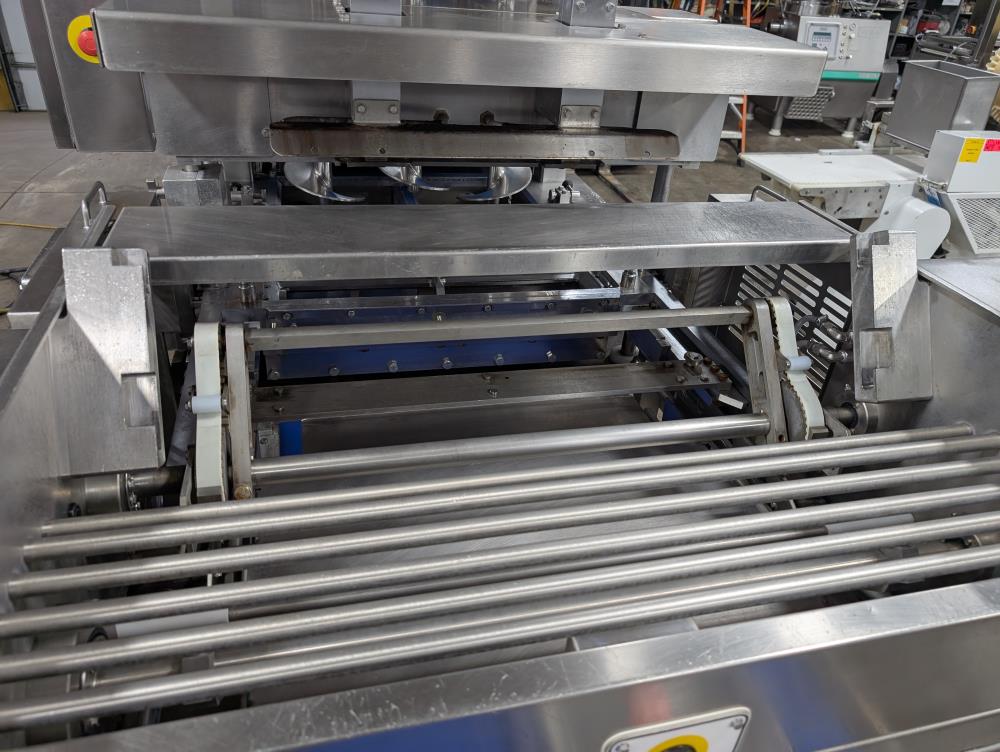

Integrated Discharge Conveyor (Model PC-27):

Conveyor dimensions: 72 in. long x 32 in. wide x 40 in. tall
Plugs directly into the former for seamless operation

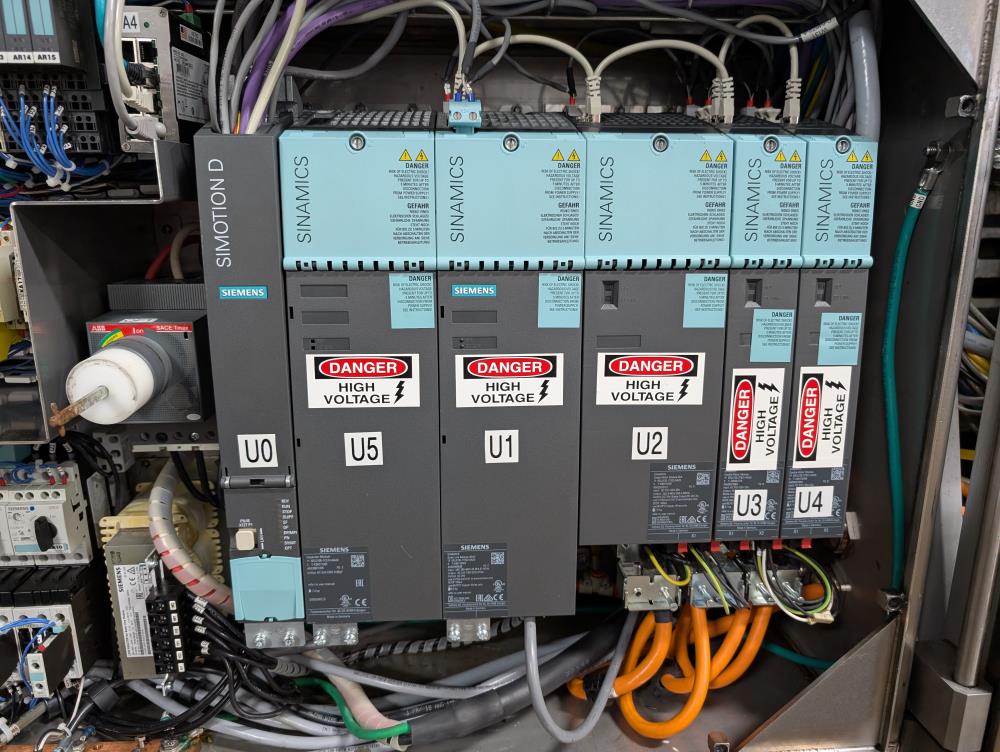

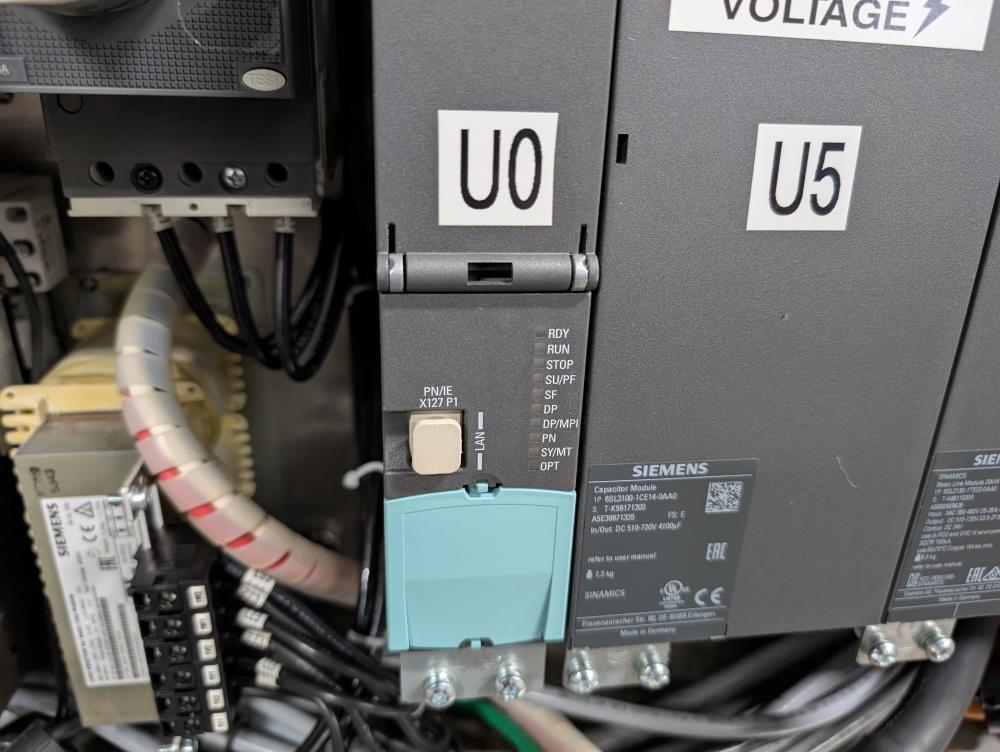

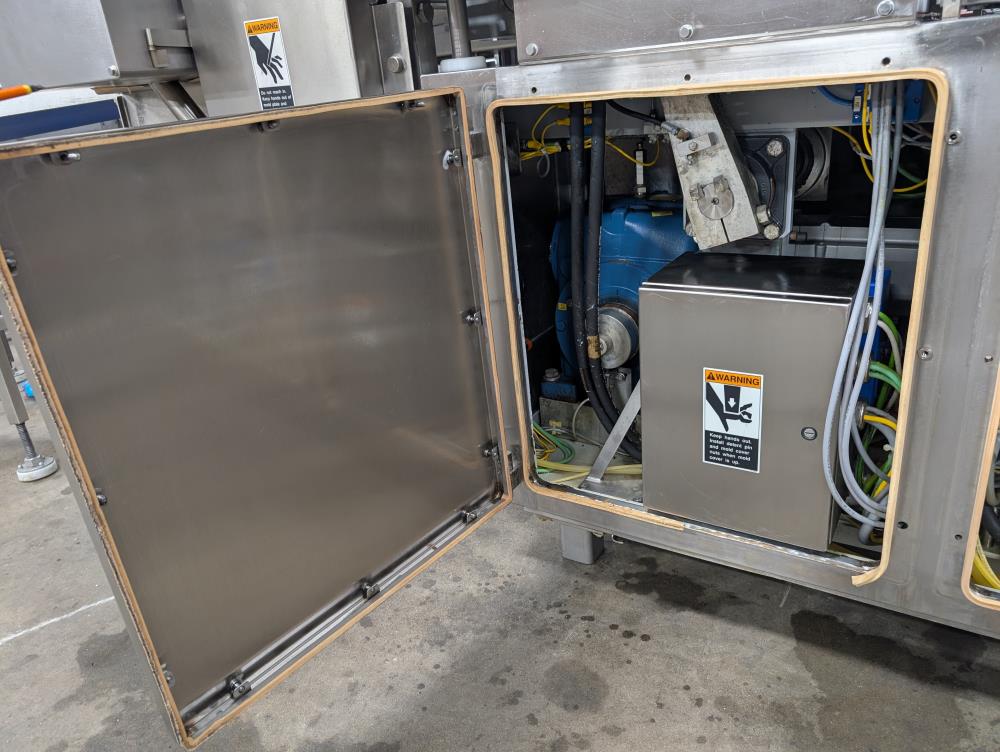

Servo-Driven System:

Servo mold plate drive powered by a direct-coupled servomotor, reducing mechanical components and improving system control

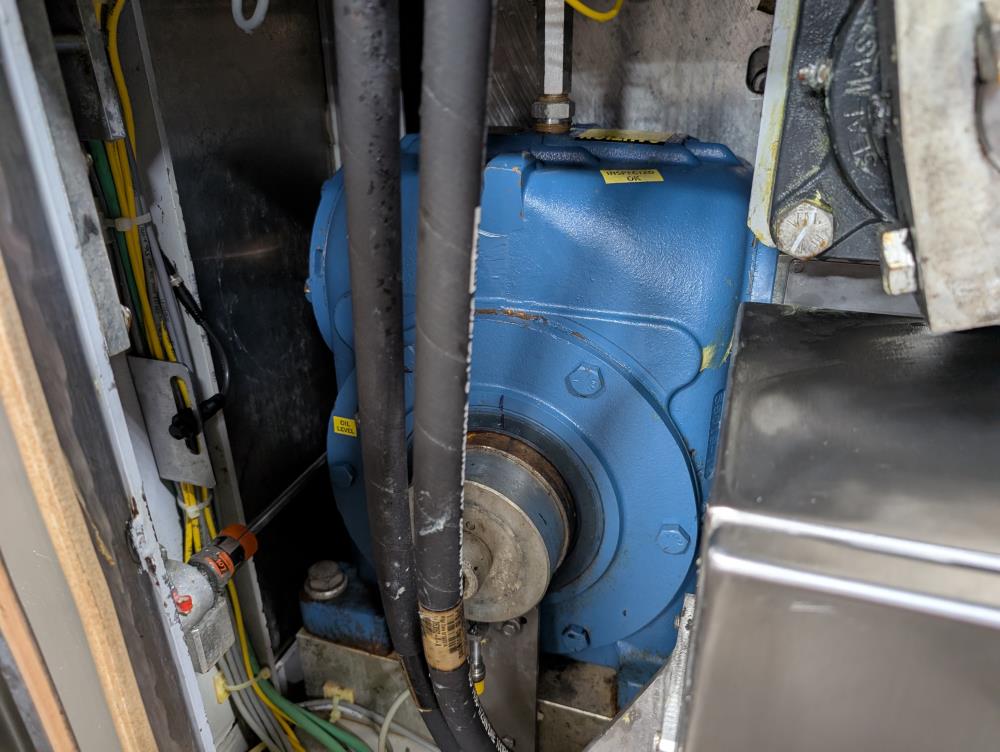

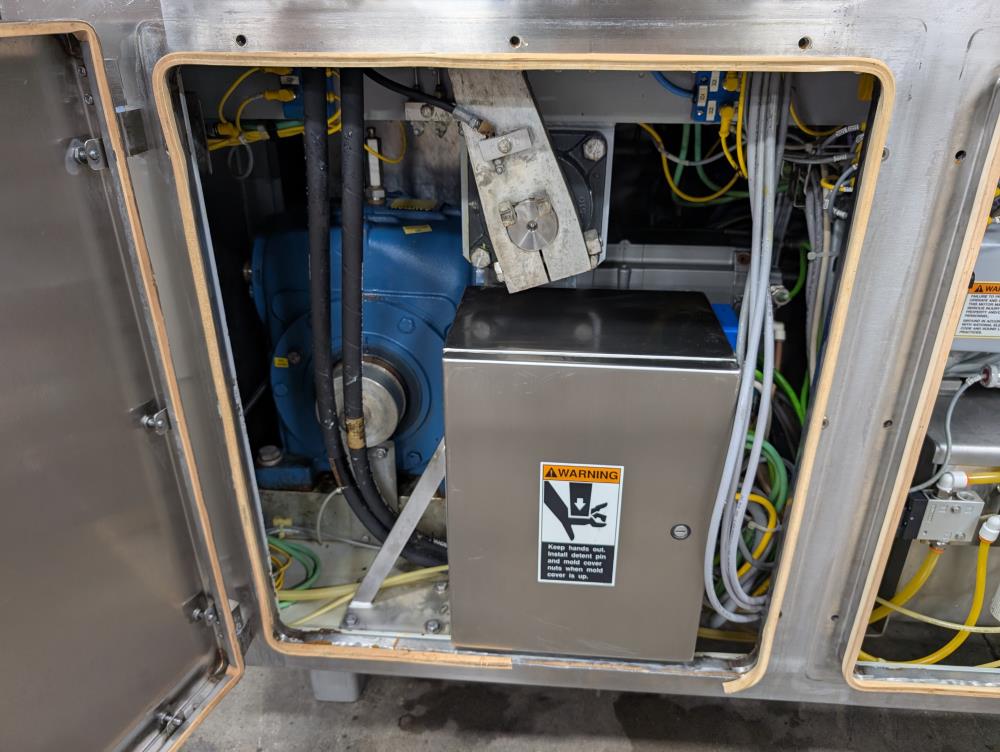

Water-cooled double enveloping main reducer with a temperature sensor for monitoring
Heavy-duty mold plate drive arms and bearings for reliable operation

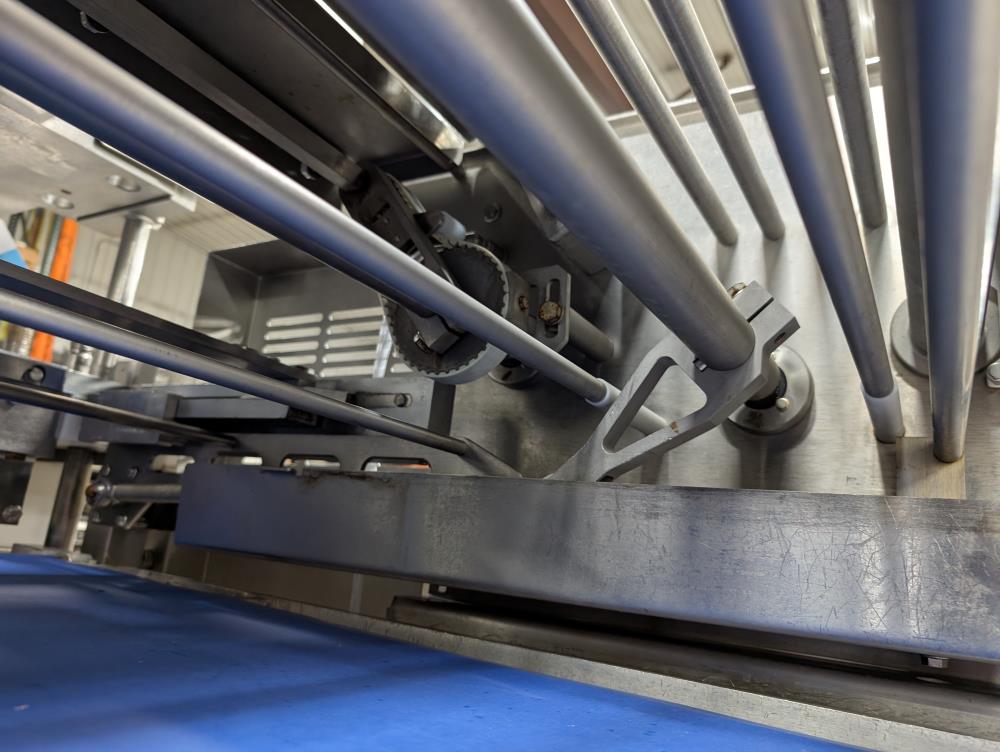

Independent Servo Knock-Out Drive:

Mechanically independent system reduces moving parts for enhanced hygiene and reliability

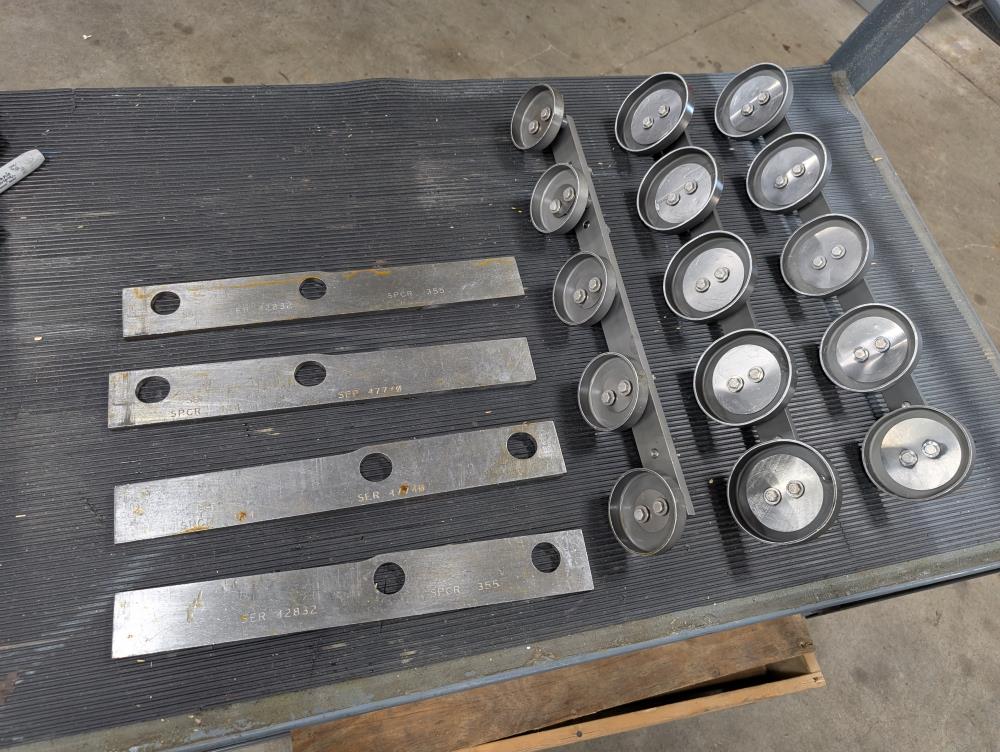

Heavy-duty knock-out cams and arms for consistent performance

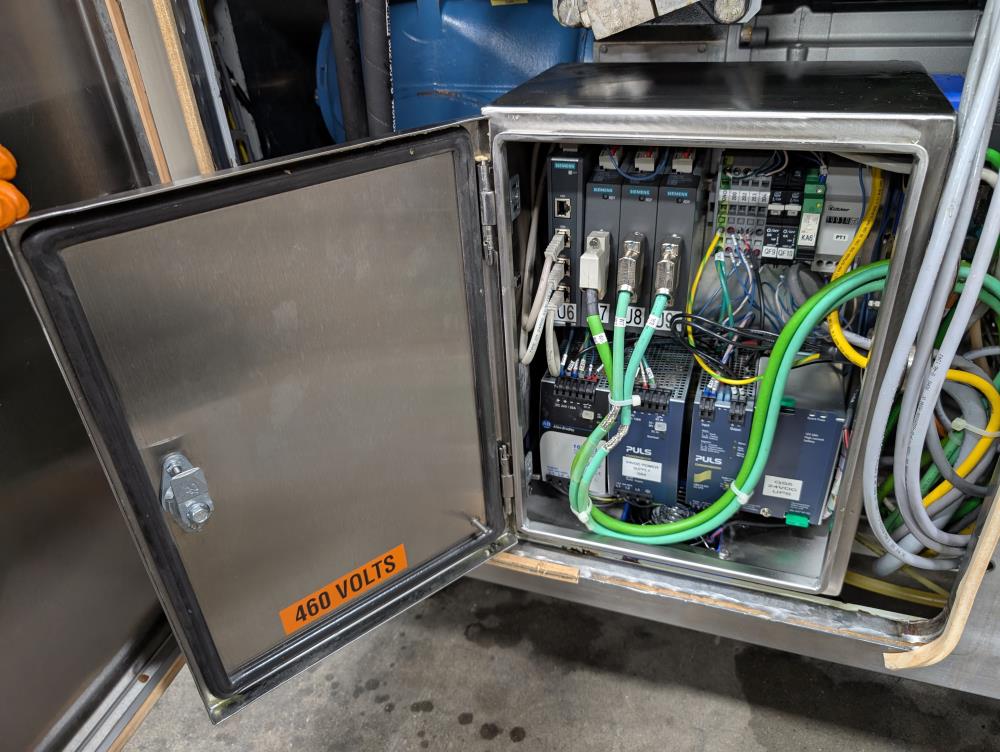

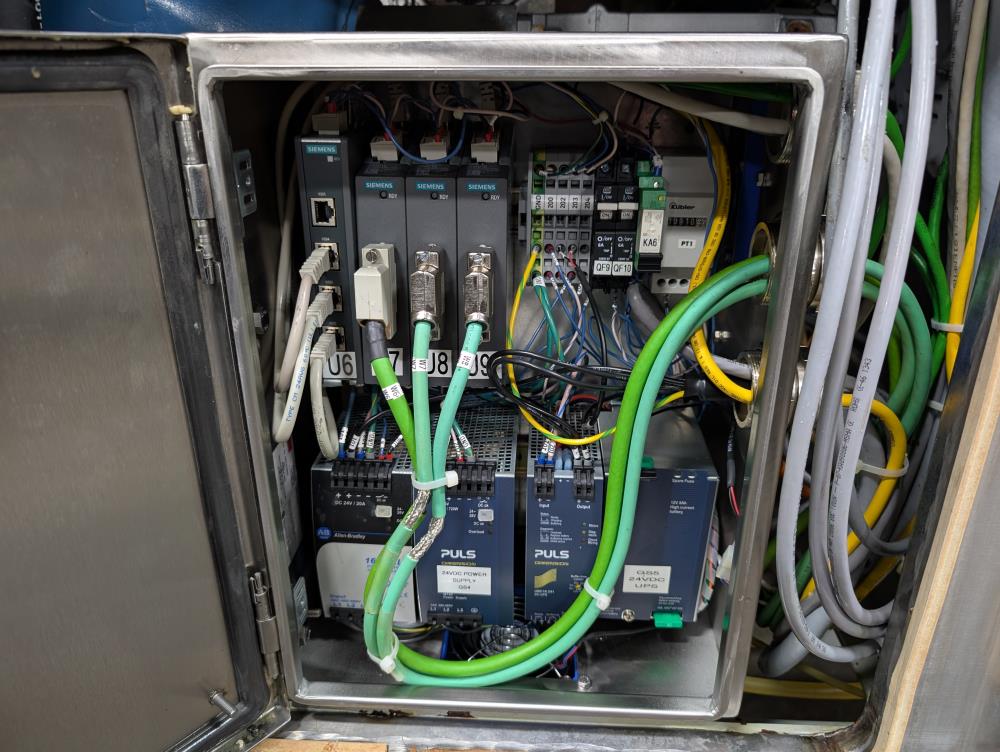

Power & Utility Requirements:

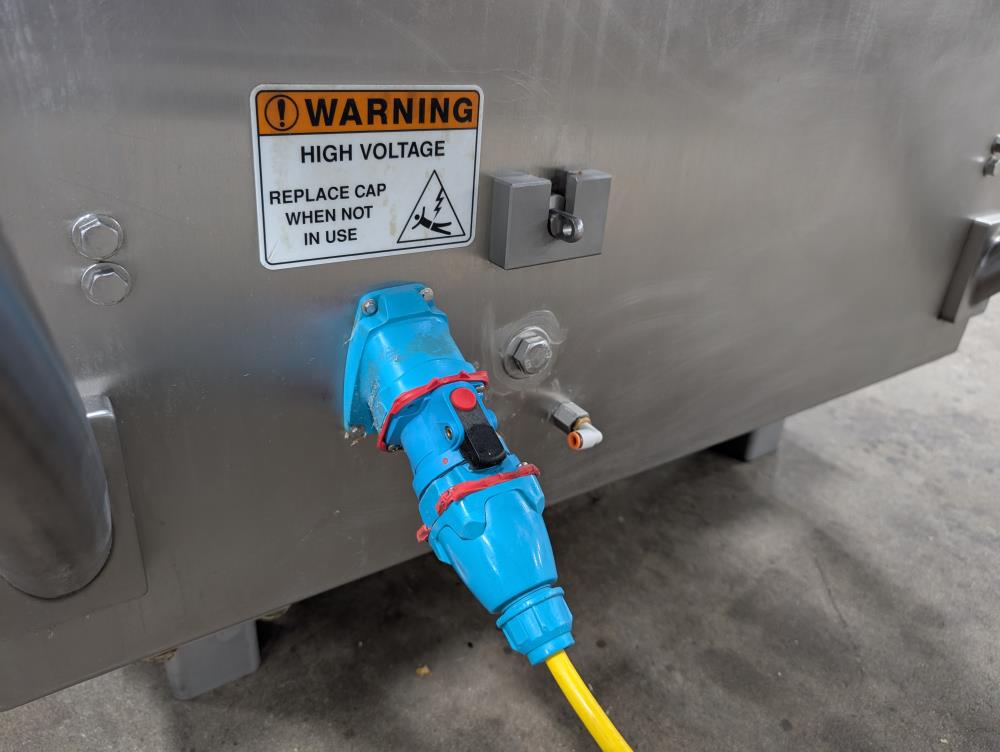

Electrical: 460-volt, 3-phase, 60 Hz, 52 amps
Air requirements:

Non-paper feed: 10 CFM at 80 PSI
Paper feed: 15 CFM at 80 PSI

Shipping Dimensions & Weights:

Former: 140 in. (L) x 58 in. (W) x 102 in. (H), approx. 8000 lbs.
Conveyor: 77 in. (L) x 37 in. (W) x 40 in. (H), approx. 250 lbs.

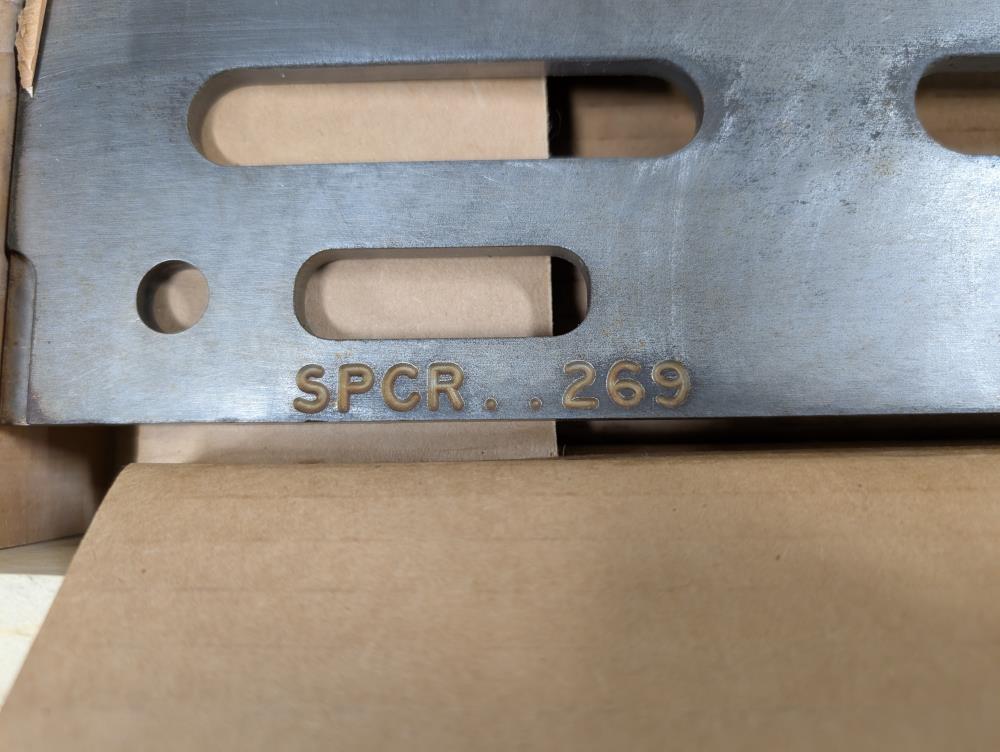

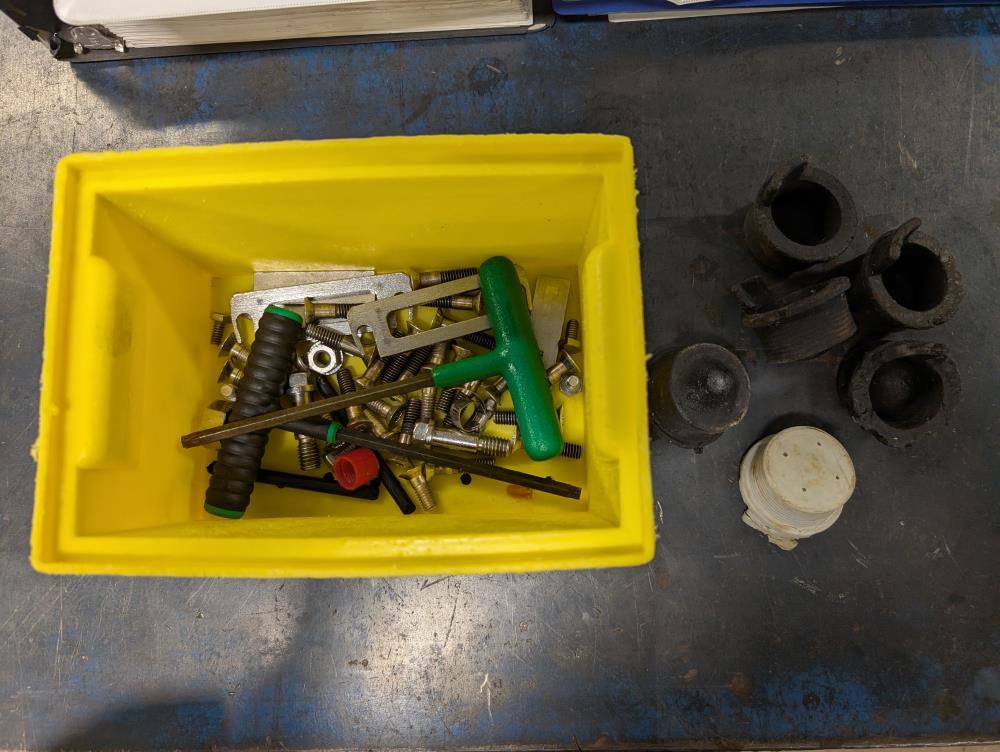

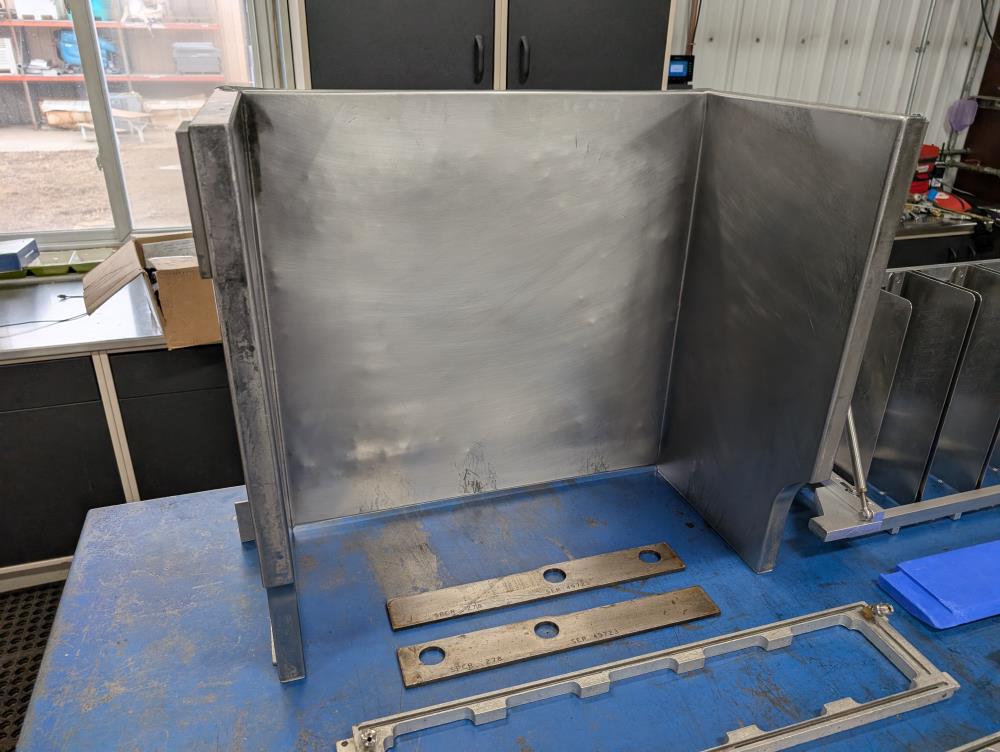

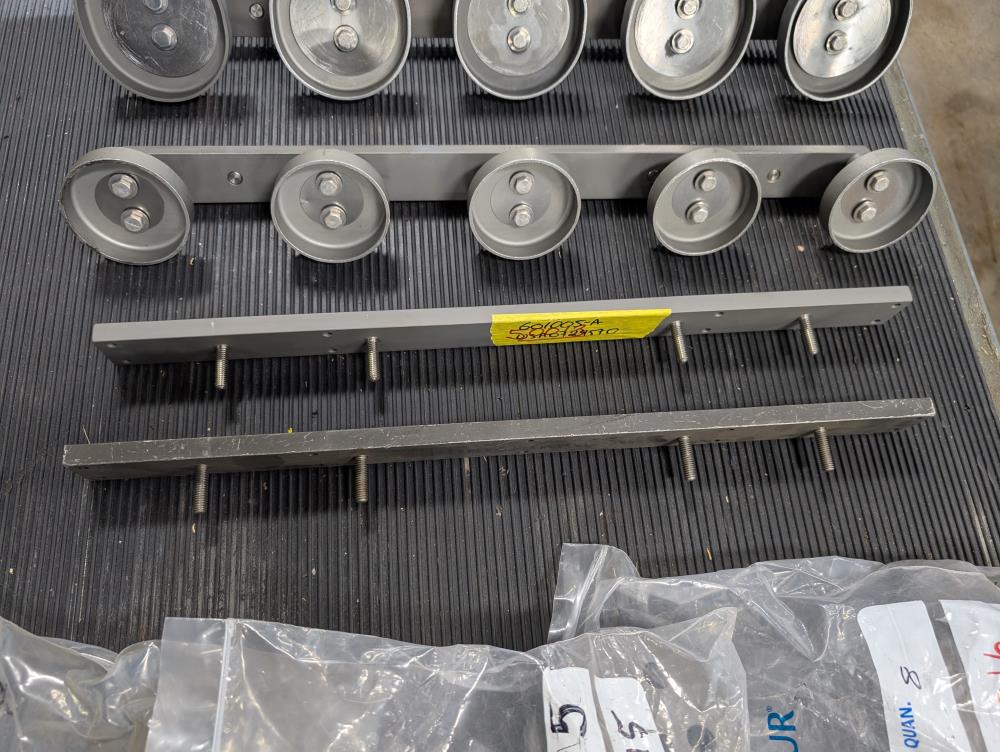

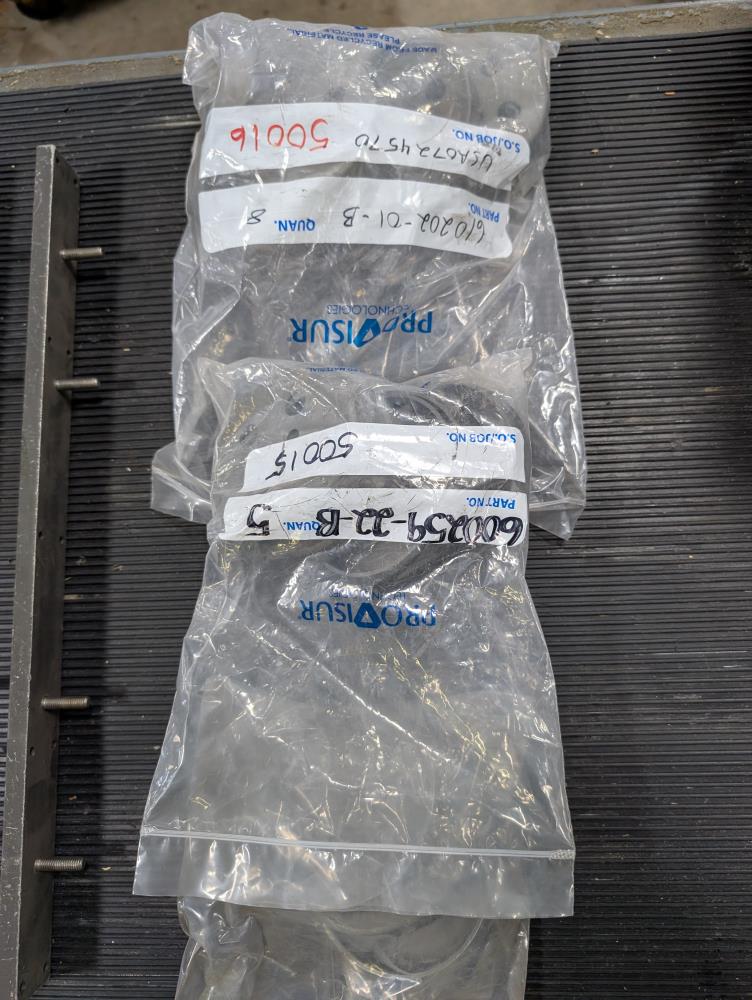

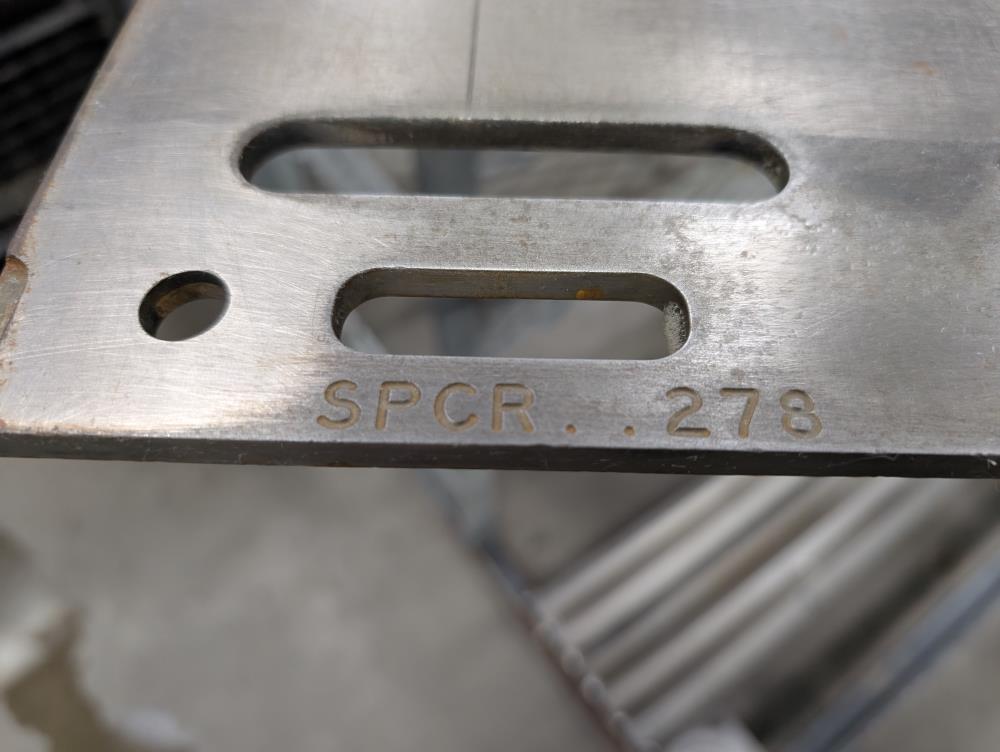

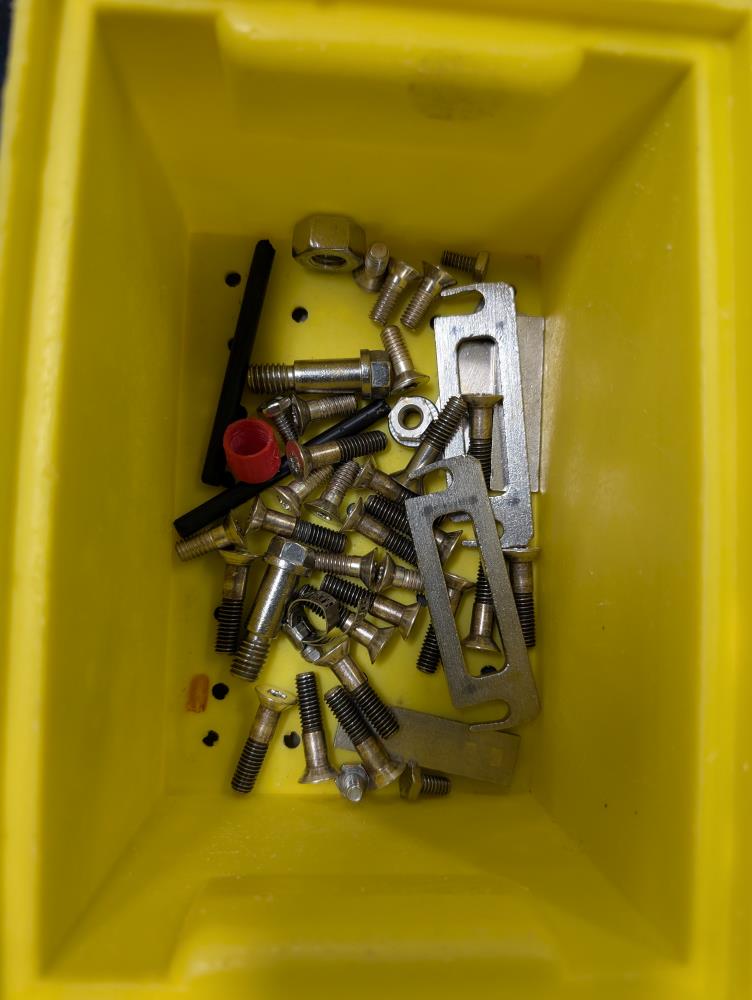

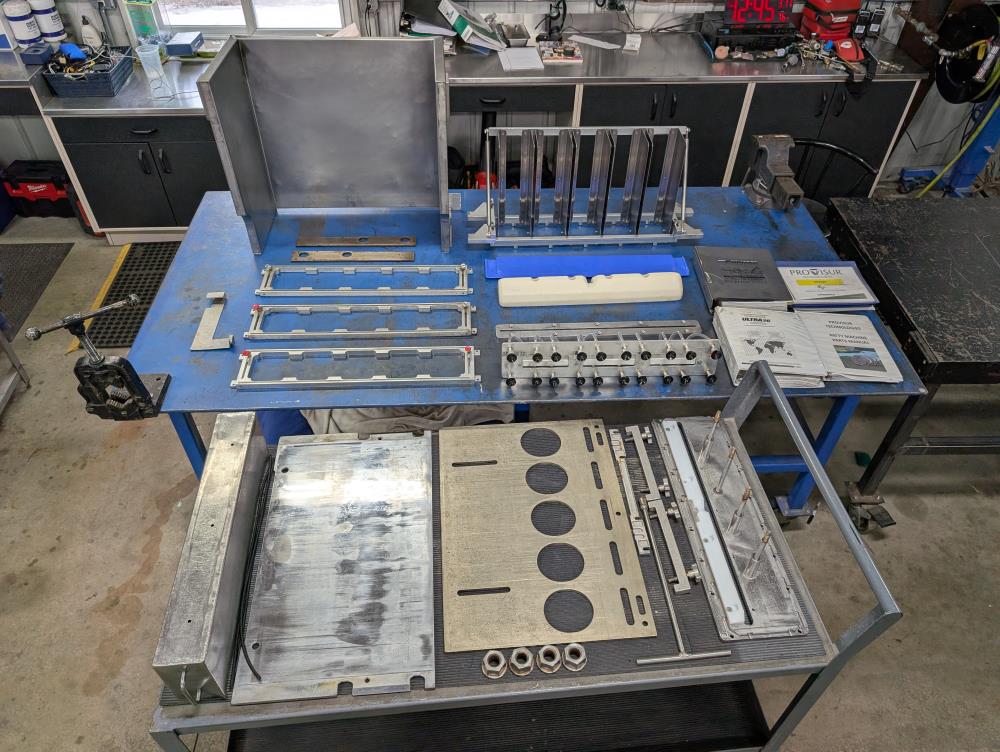

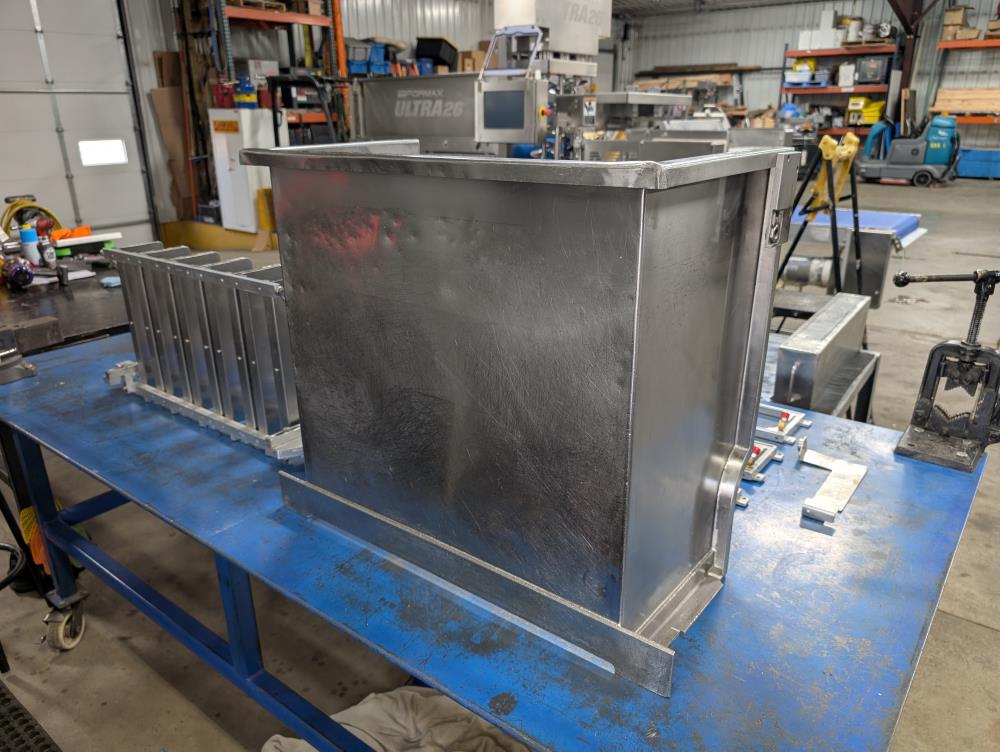

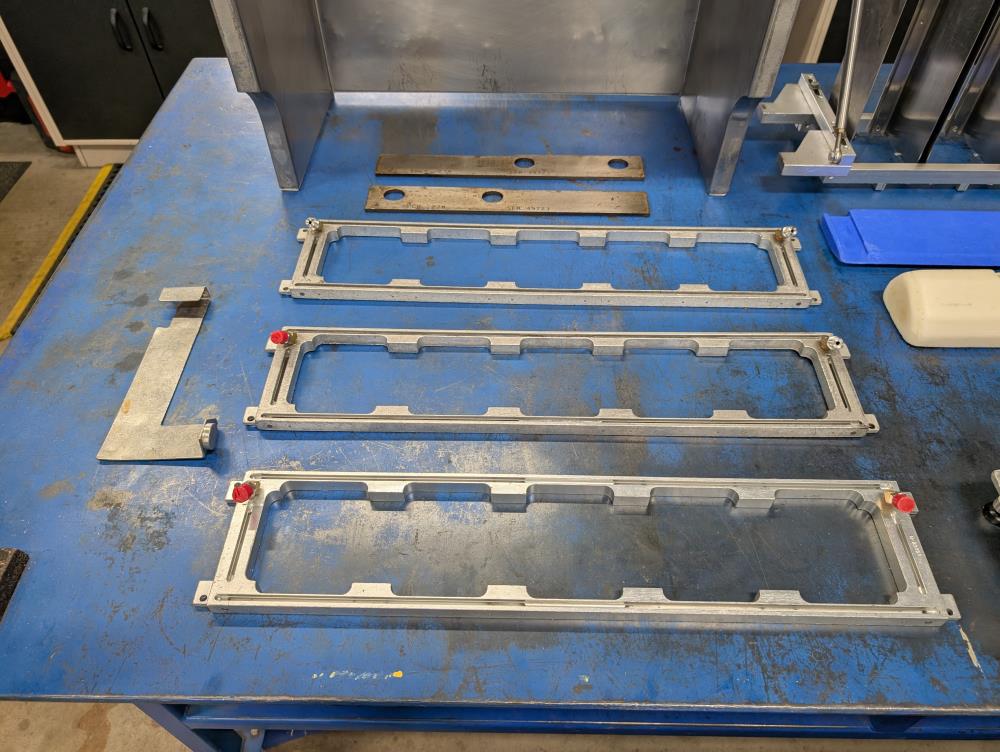

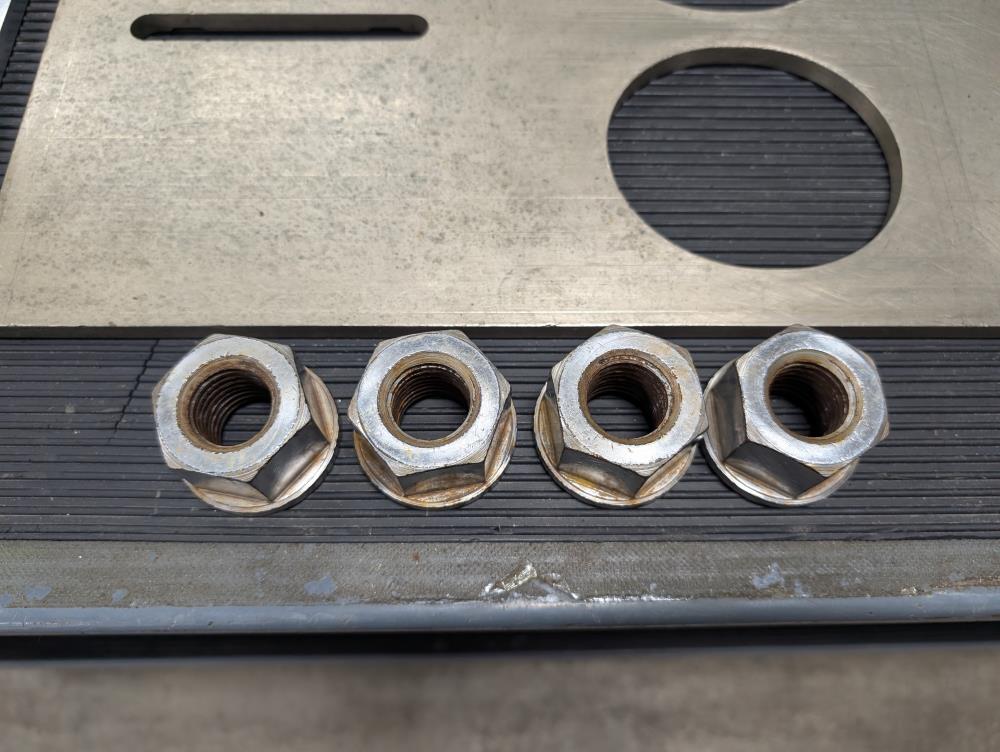

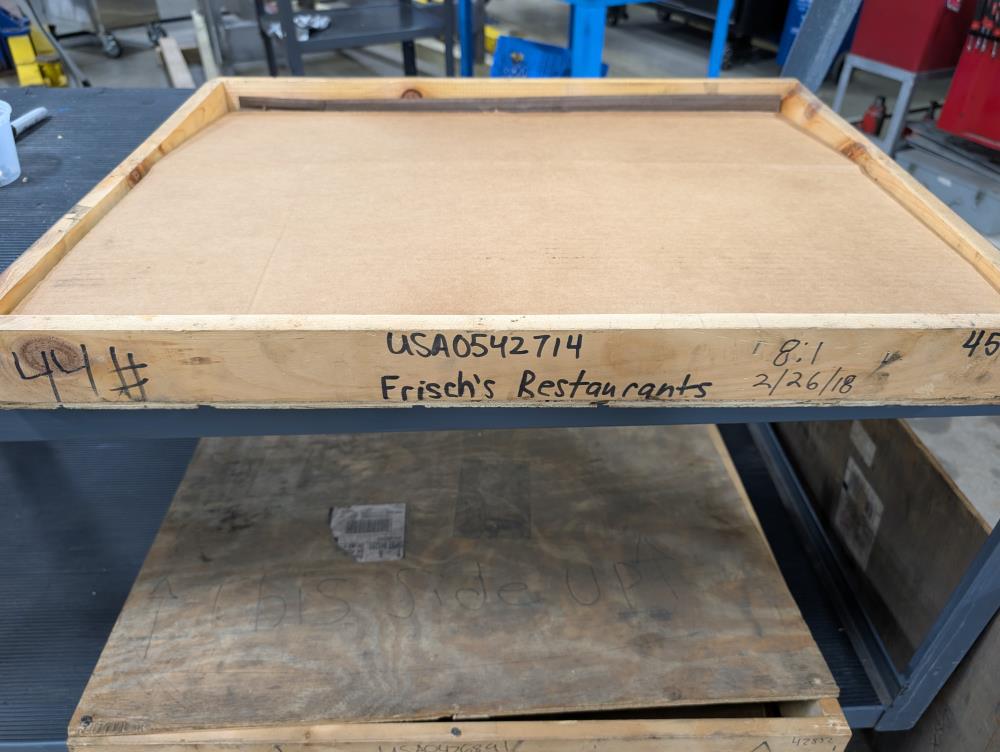

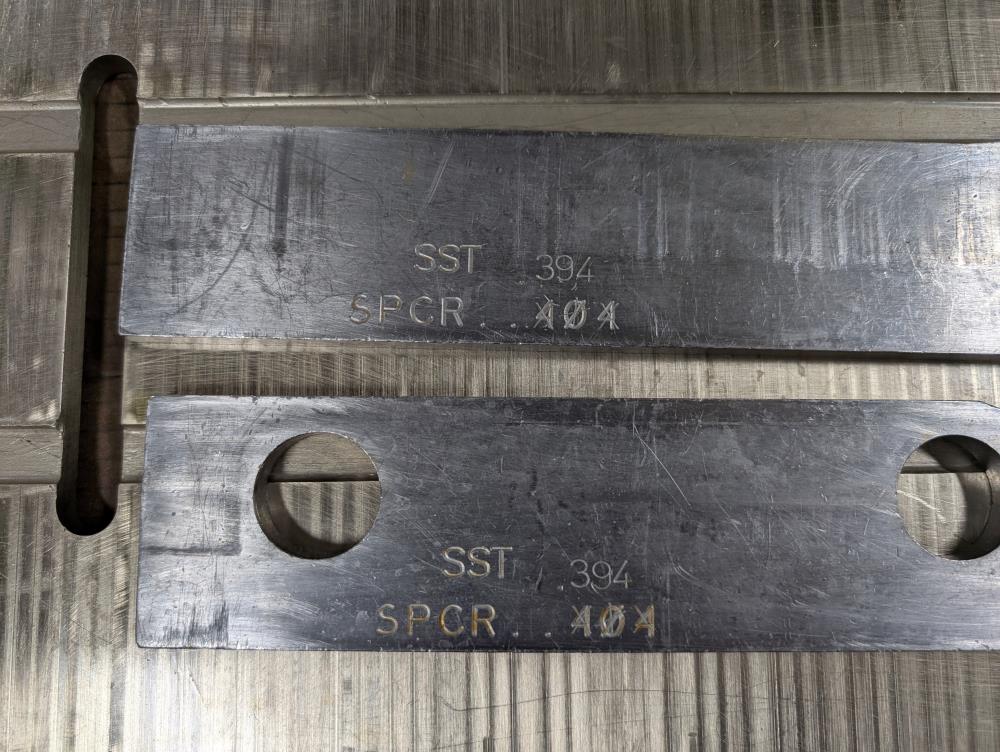

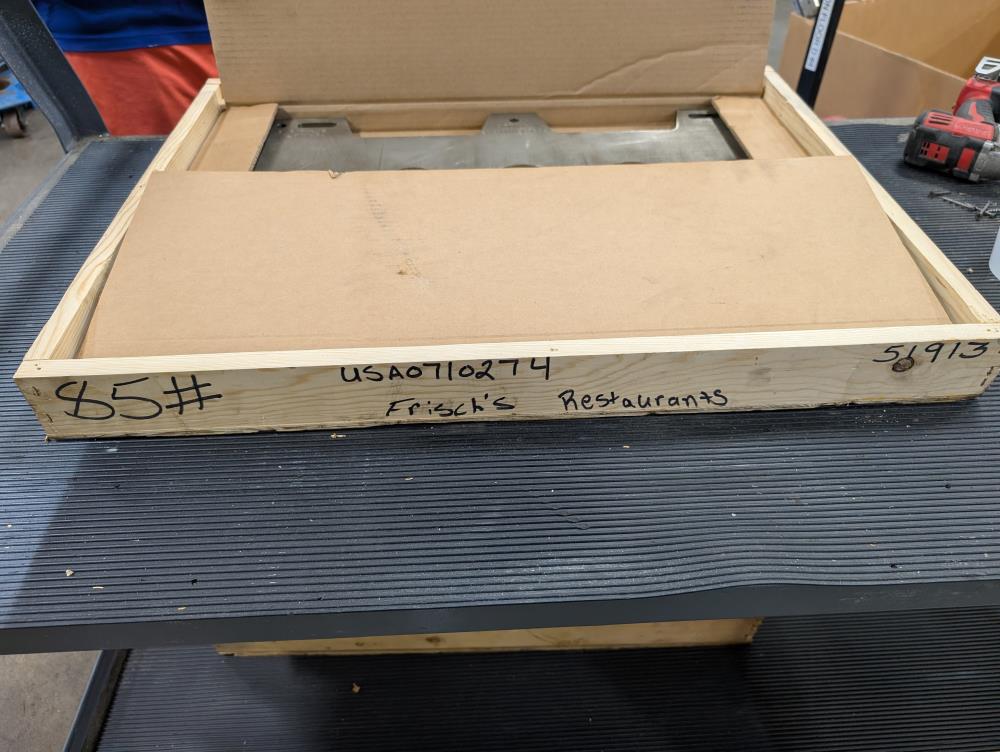

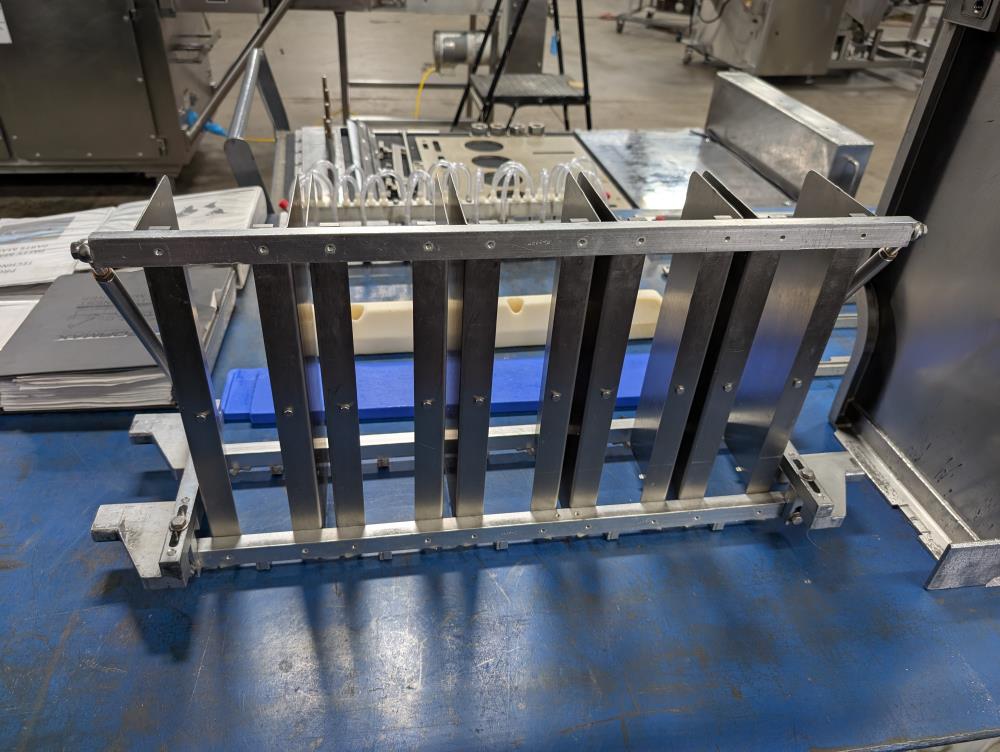

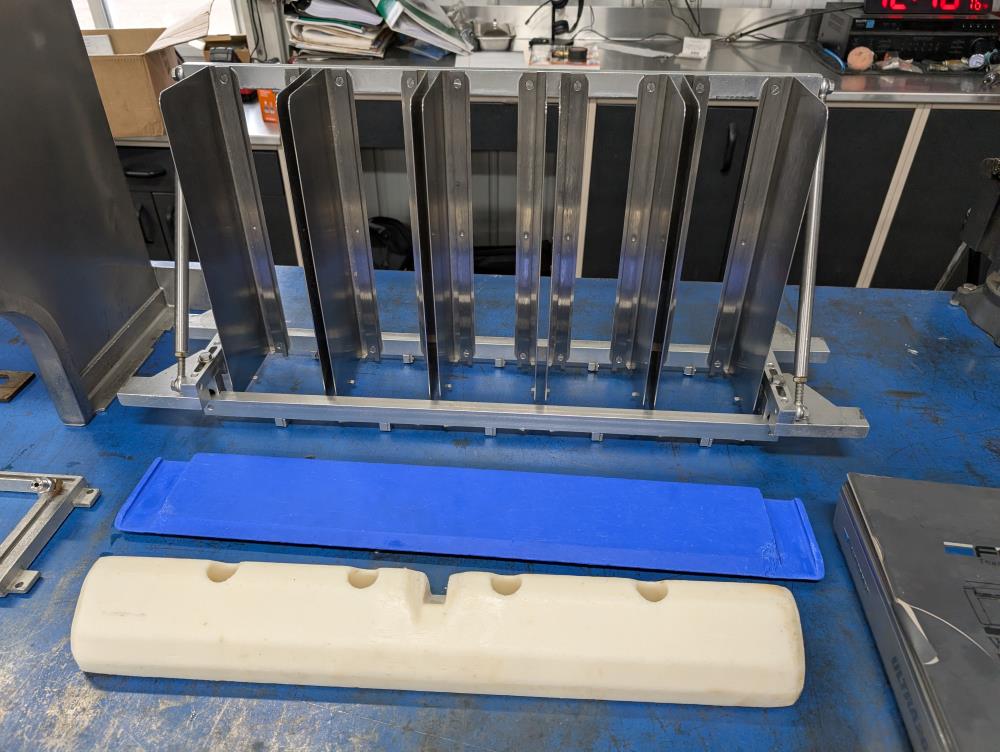

Pallet of spare/change parts: 48 in. (L) x 42 in. (W) x 48 in. (H), approx. 750 lbs.

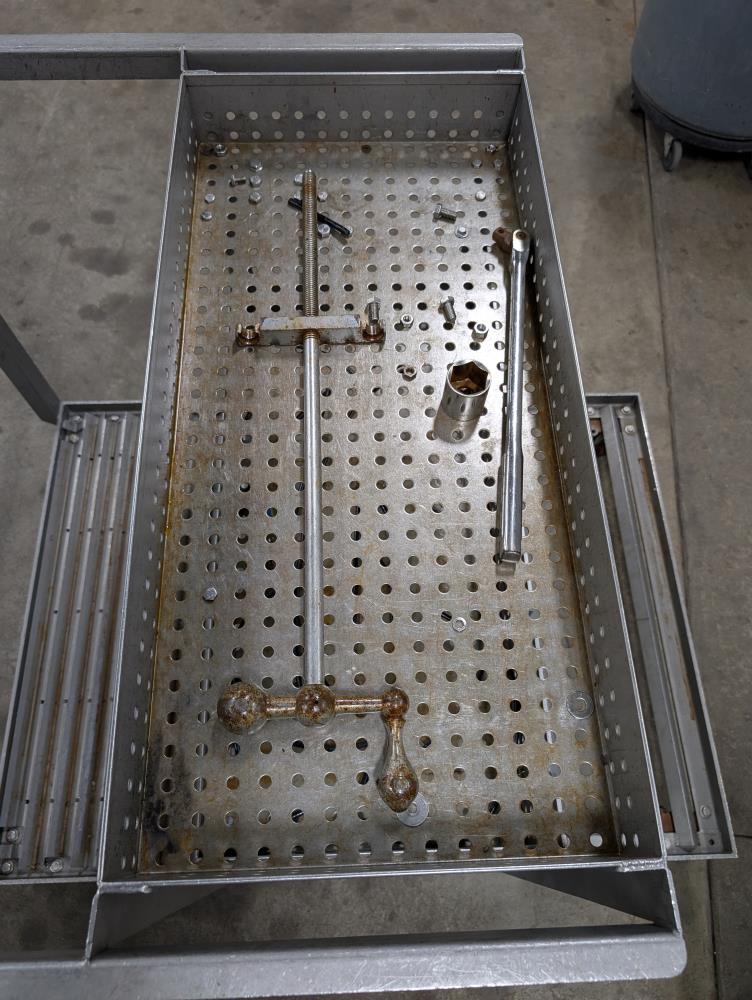

Stainless steel parts cart: 45 in. (L) x 36 in. (W) x 45 in. (H), approx. 2050 lbs.
Steel parts cart: 45 in. (L) x 36 in. (W) x 45 in. (H), approx. 2050 lbs.

This Formax Ultra 26 Former with Transfer Conveyor is built for high-efficiency, precision forming in food production, offering automated control, heavy-duty performance, and sanitary design for commercial processing applications.

Specifications

Category :

Extruders

Sub-Category :

Formers

Manufacturer :

Formax

Model :

U-26

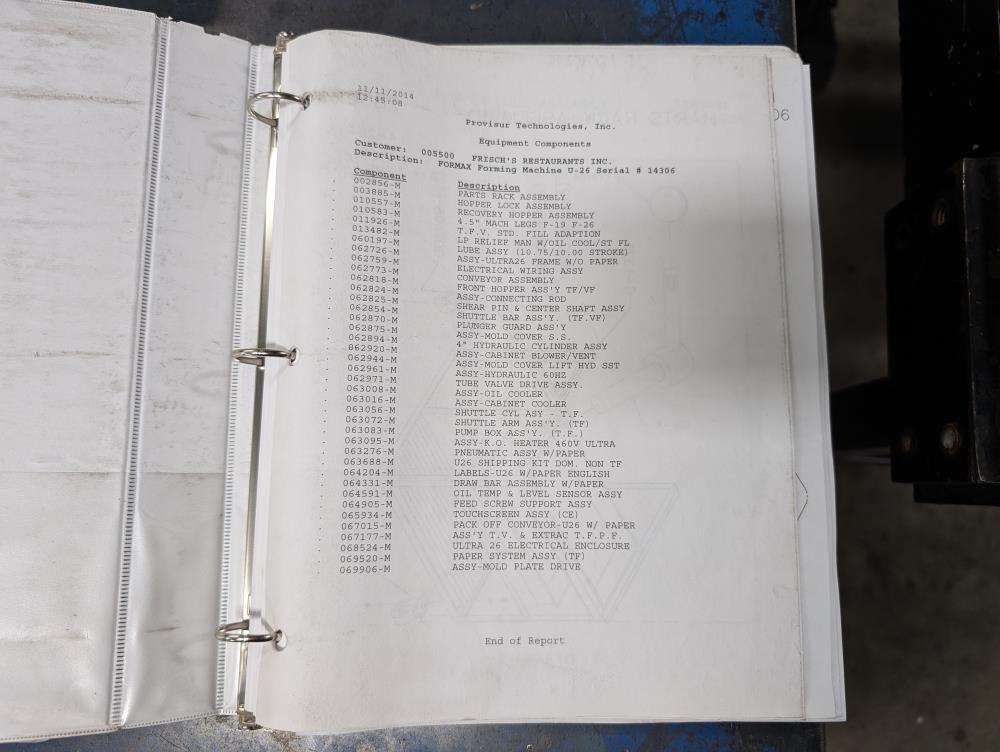

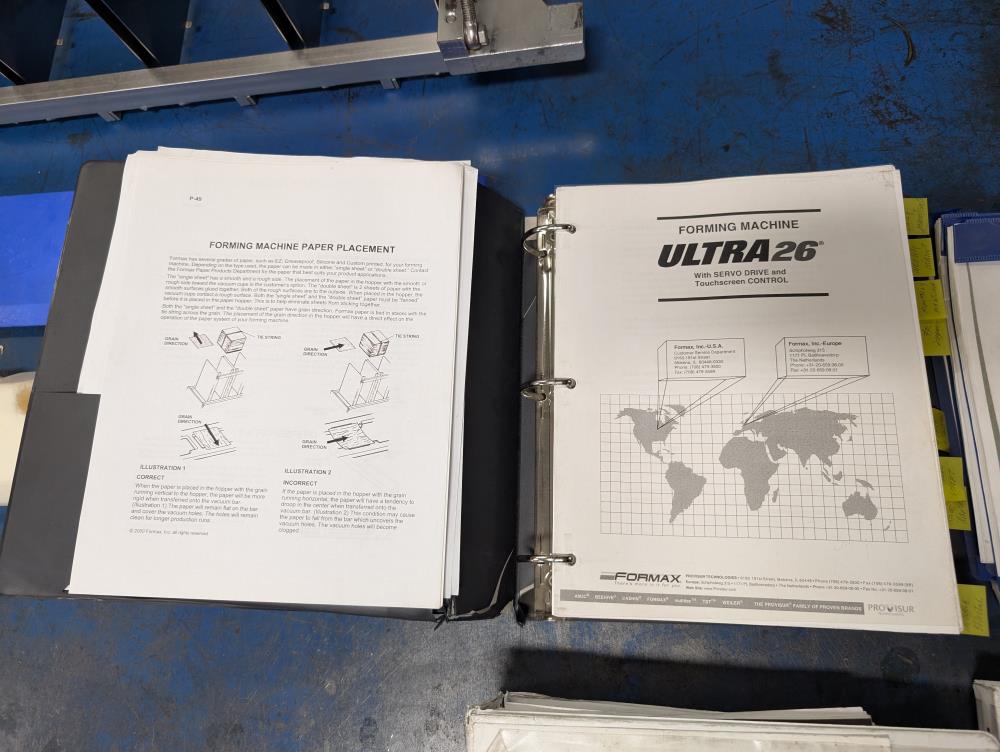

Manual :

Included
