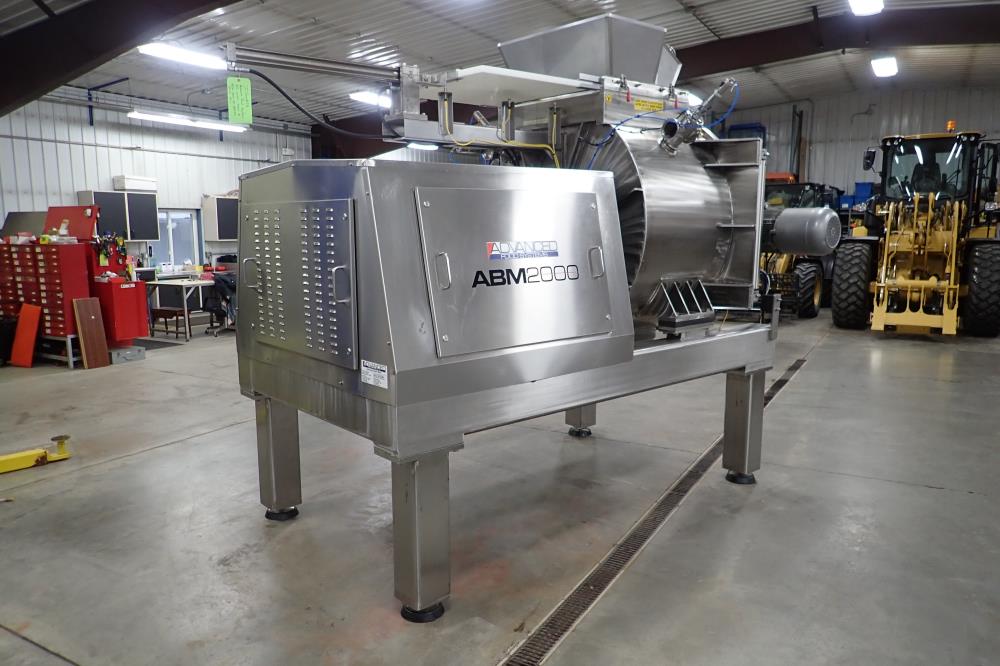

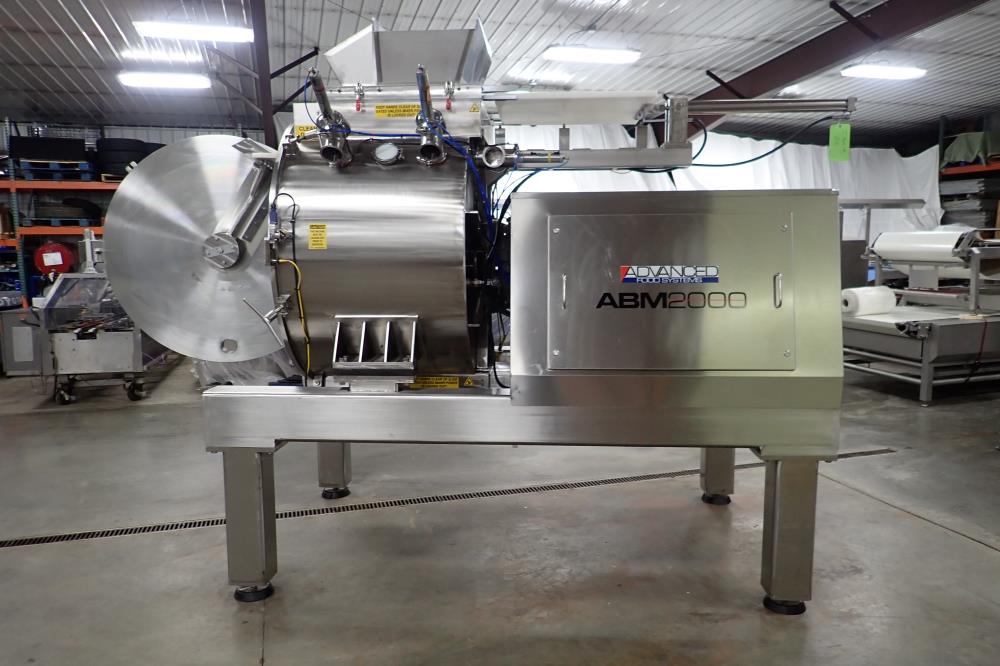

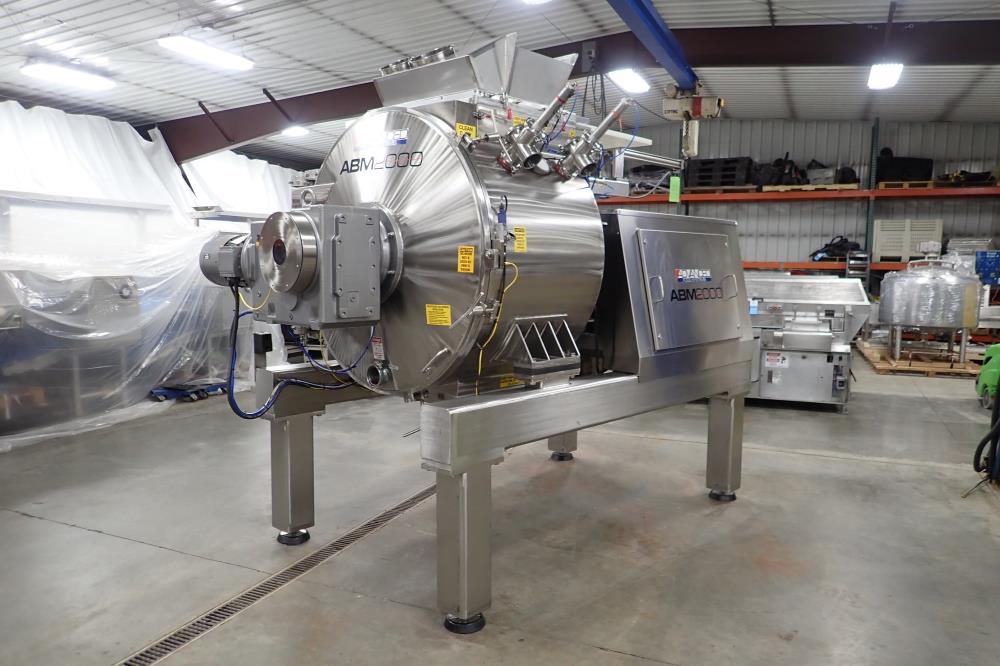

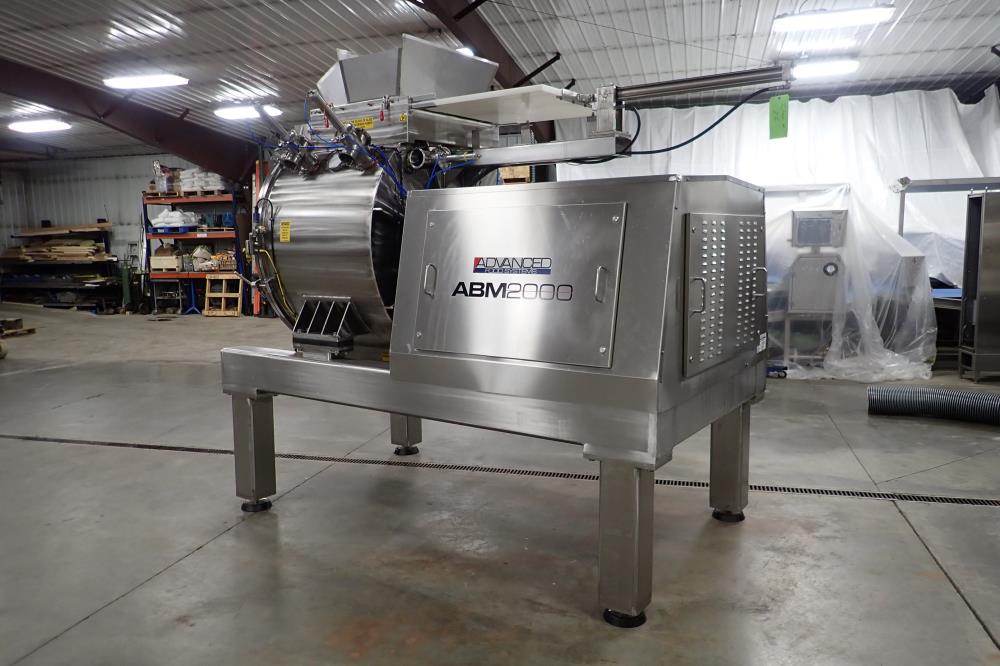

Used Advanced Food Systems 2000 lb. High-Speed Batch Mixer

Item #: 5065002

Sell Us Yours

Description

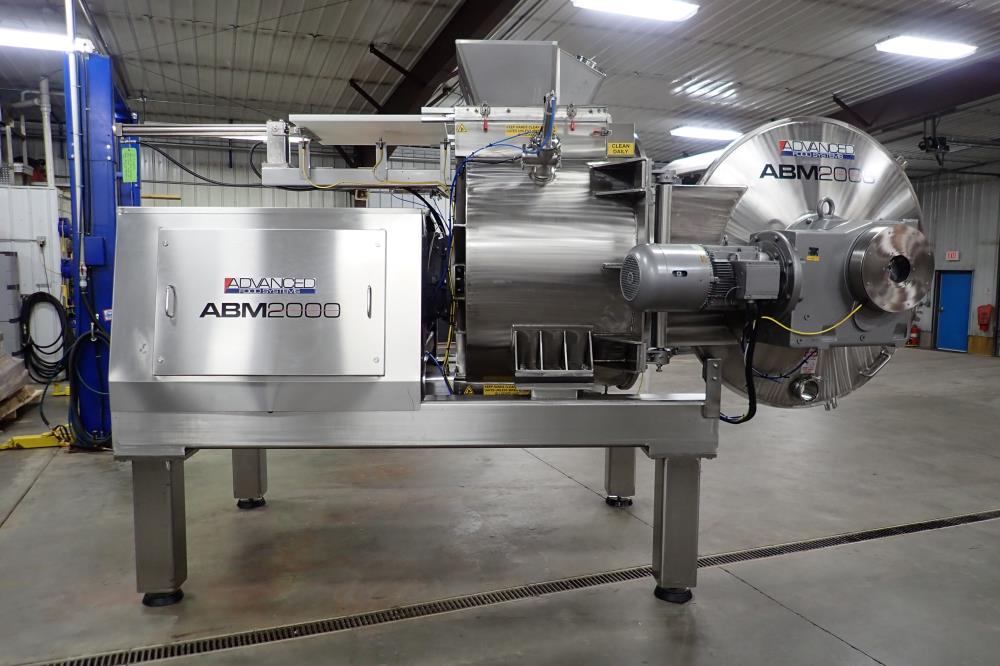

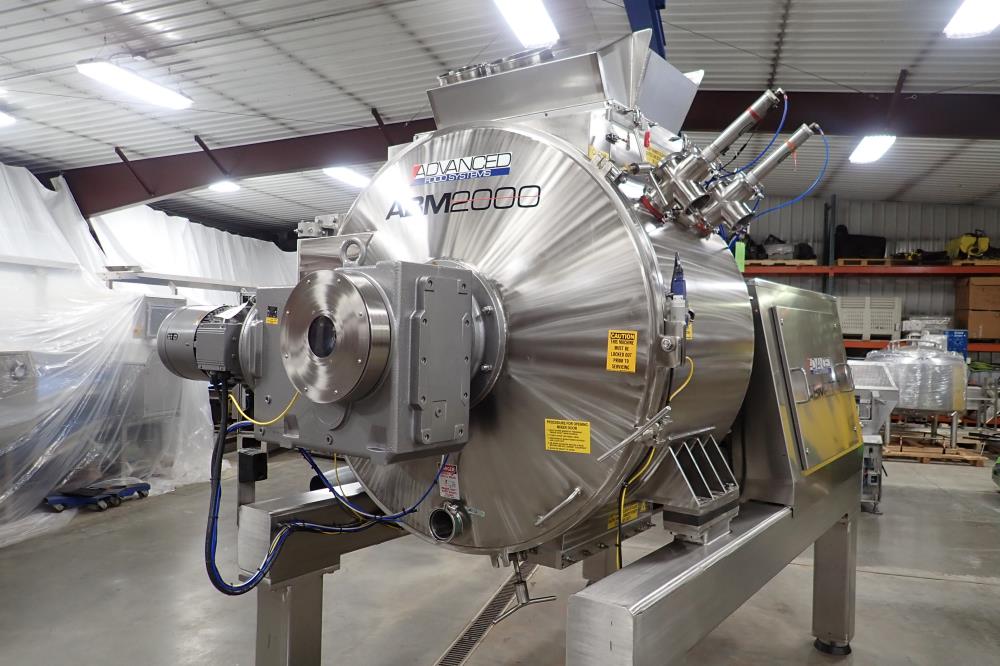

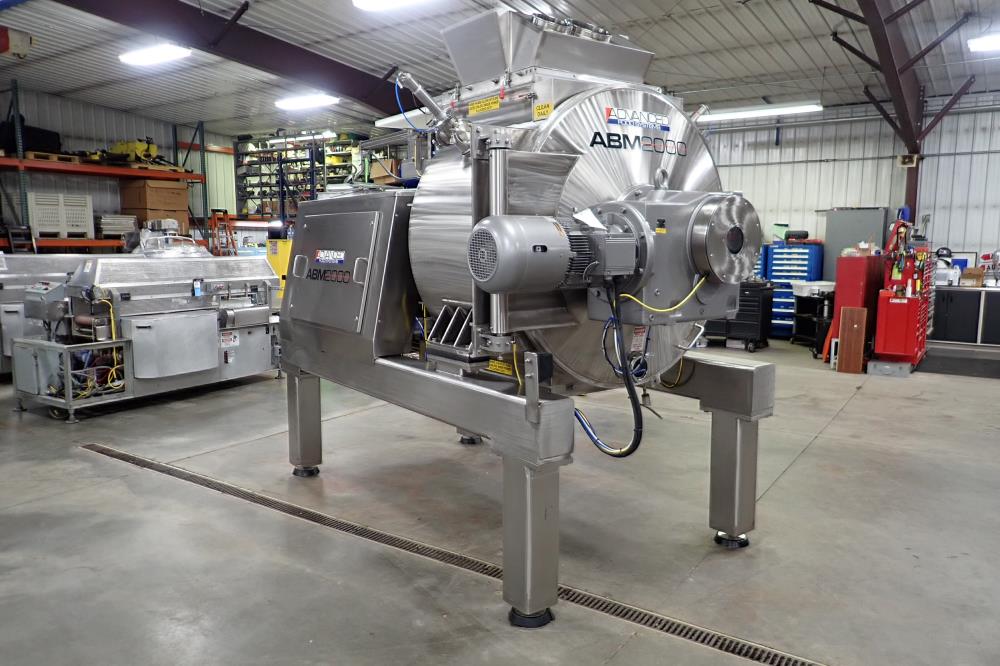

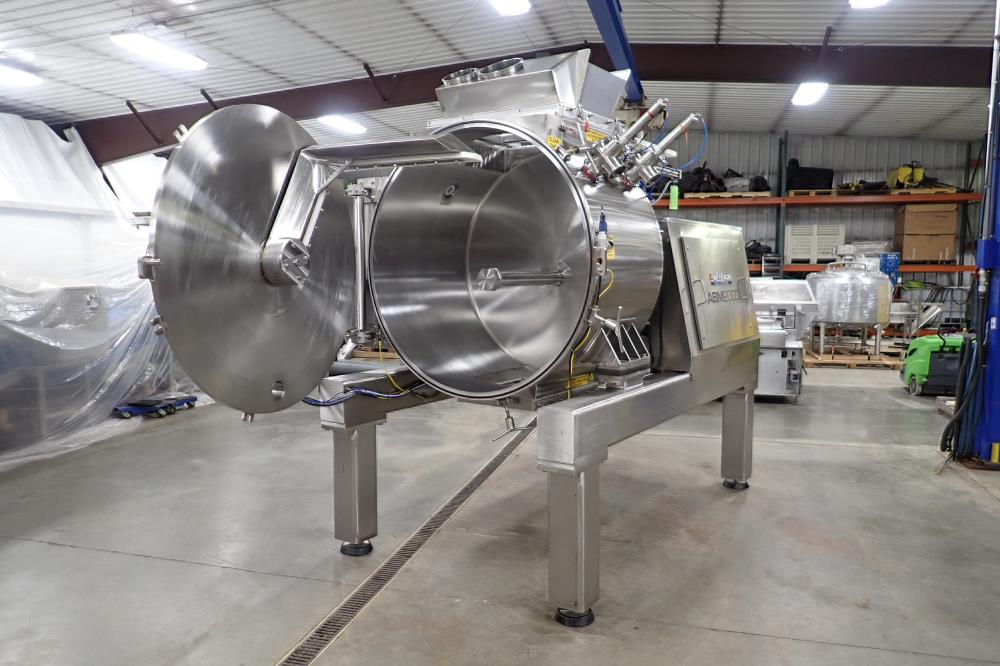

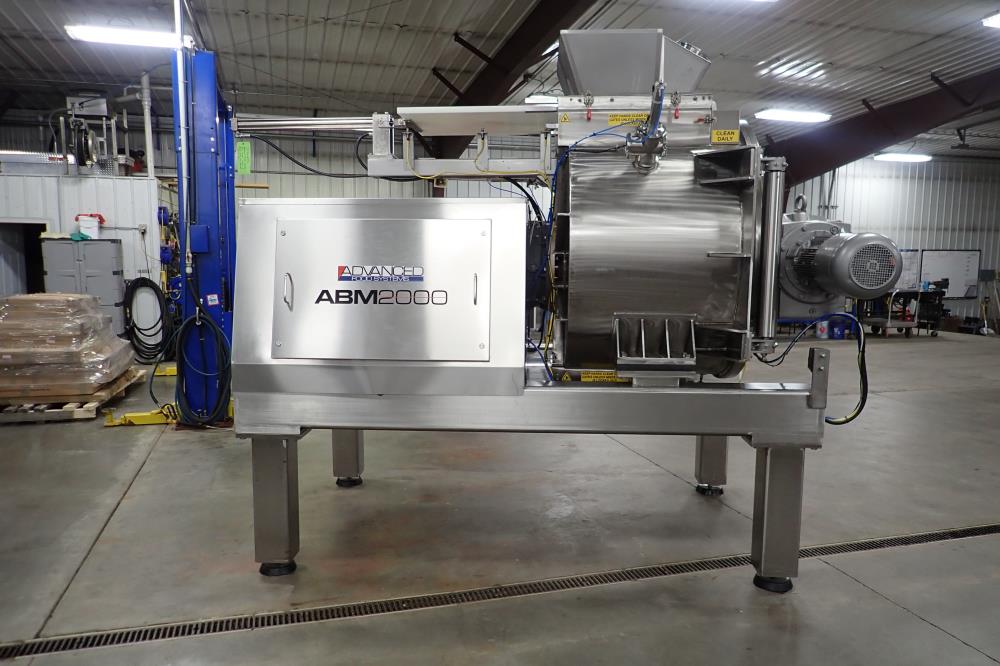

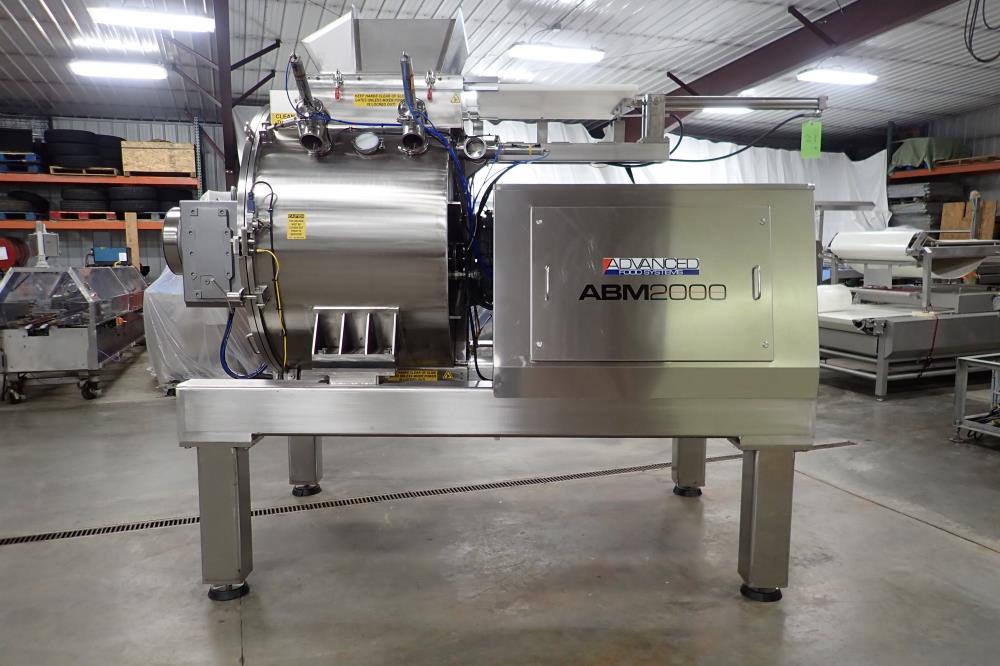

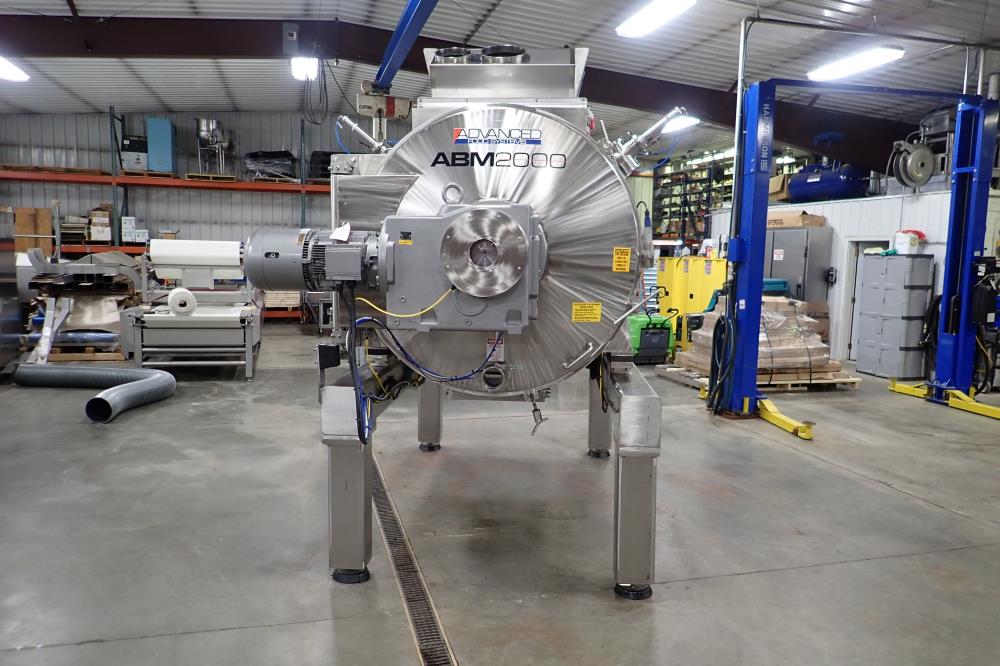

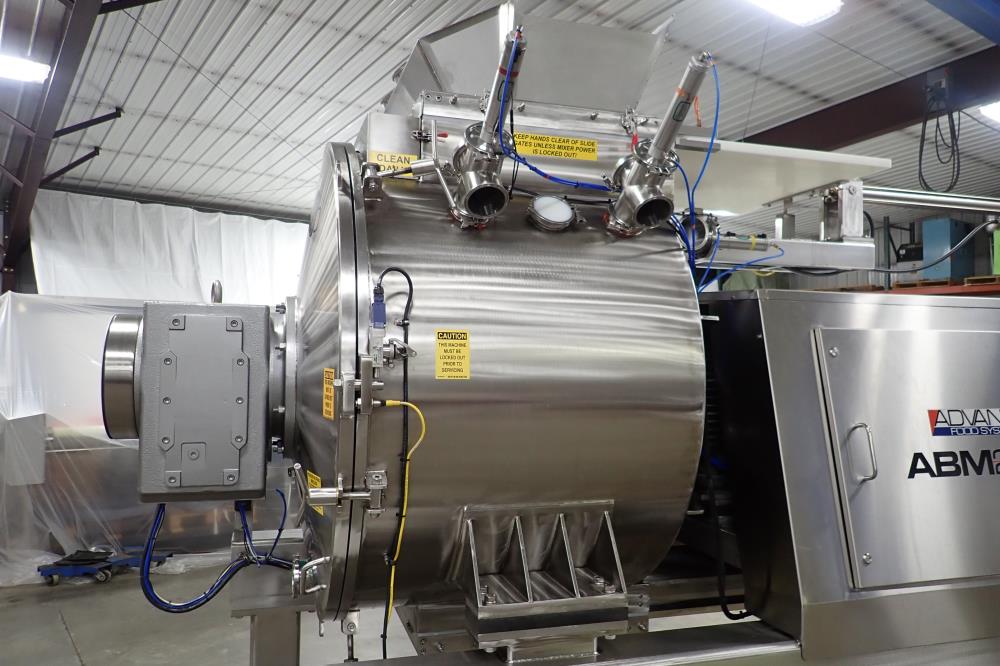

The Advanced Food Systems 2000 lb. High-Speed Batch Mixer is a heavy-duty, industrial-grade mixer designed for large-scale food processing applications. Built with 304 stainless steel construction, a powerful 300 HP VFD-rated motor, hydraulic slide gates, and advanced automation controls, this mixer is ideal for efficiently processing high-capacity dough and ingredient batches. Lightly used, it was only operated for about a week for product testing.

Key Features & Specifications:

Processing Chamber & Mixing System:

Batch size capacity: 1,100 lbs. to 2,000 lbs. (finished dough)

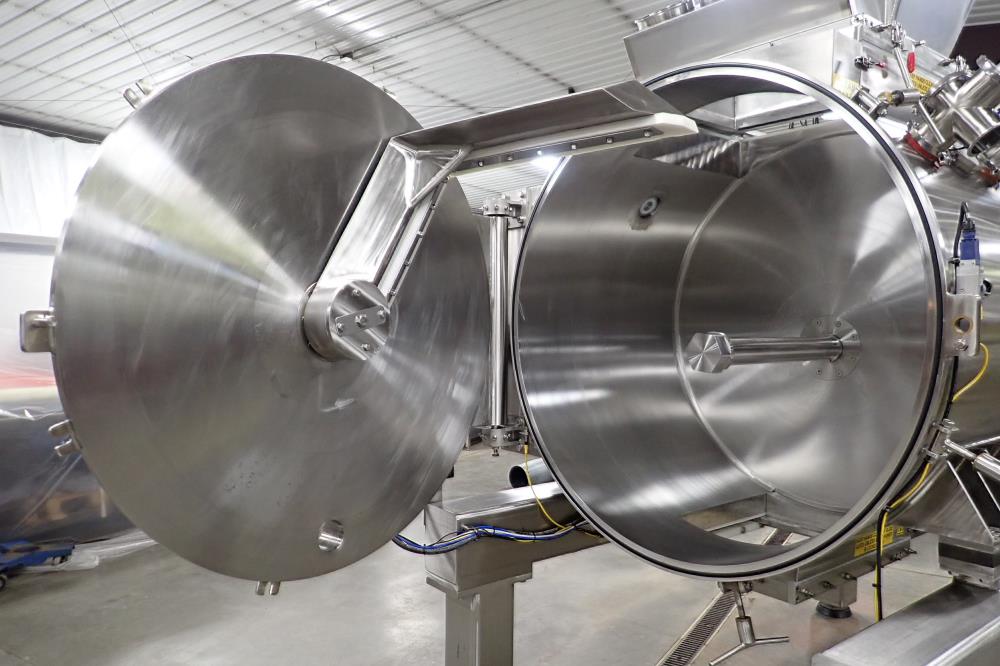

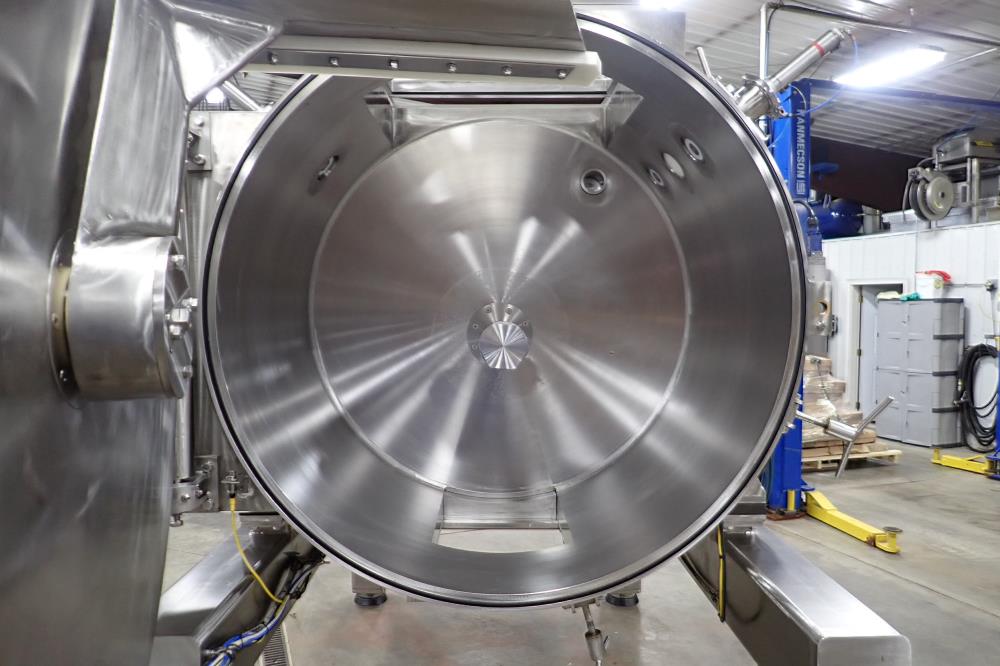

Mixing chamber dimensions: 58 in. diameter x 38 in. deep
304 stainless steel construction
Integrated thermometer to monitor dough temperature

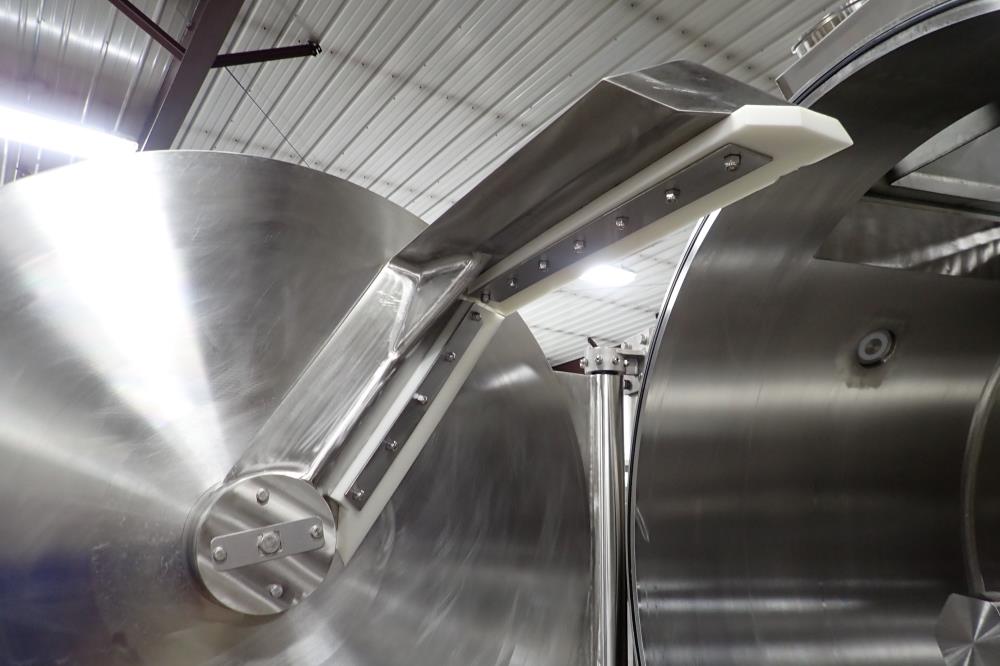

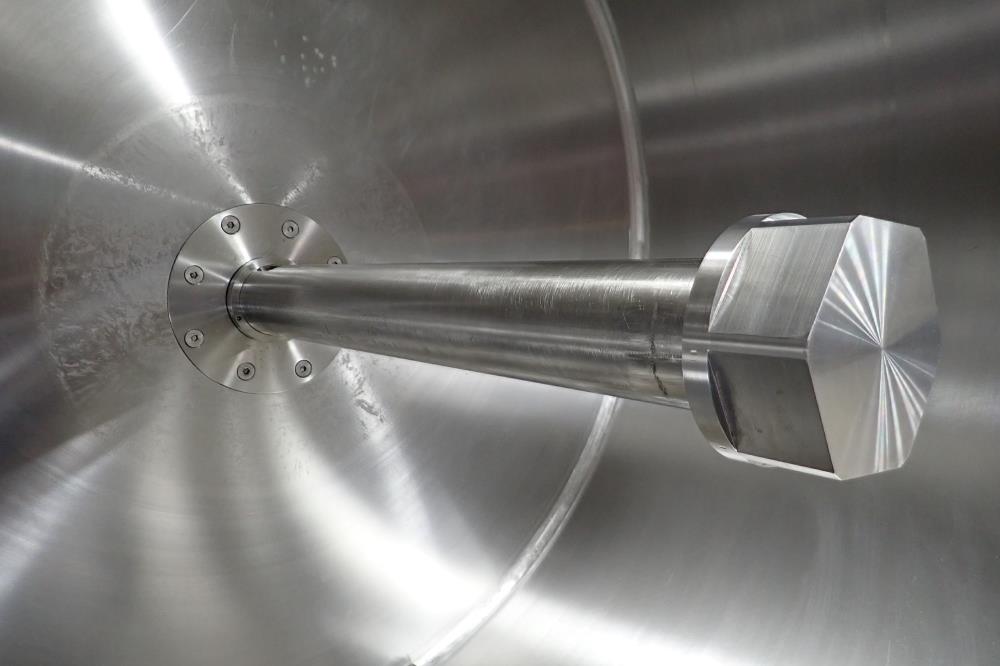

Bi-directional scraper arm for consistent mixing and dough chunk discharge
Overpressure relief valve for safety

Ingredient Loading & Discharge System:

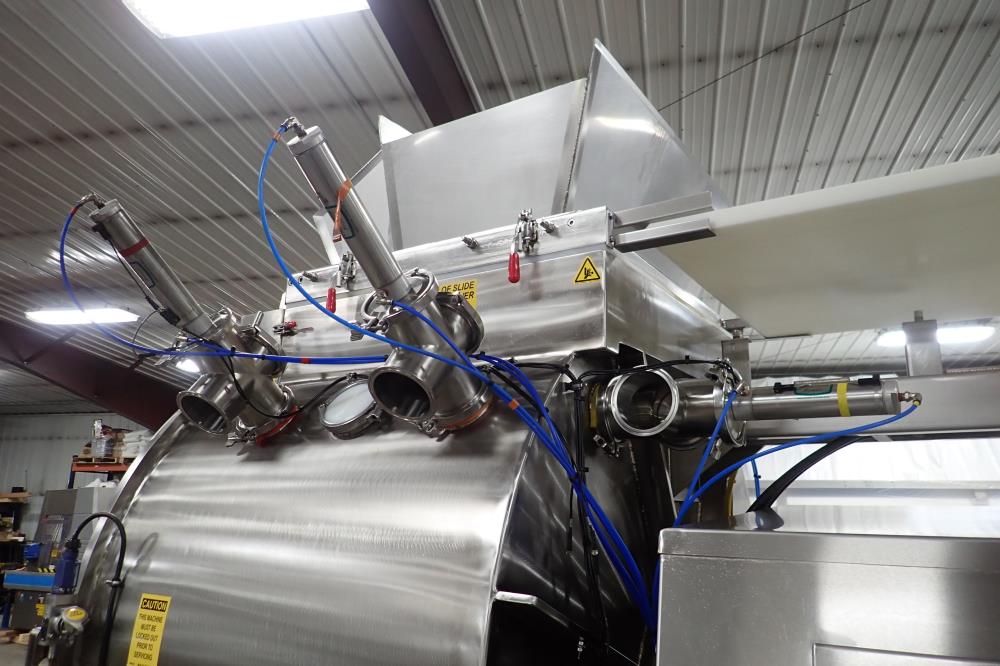

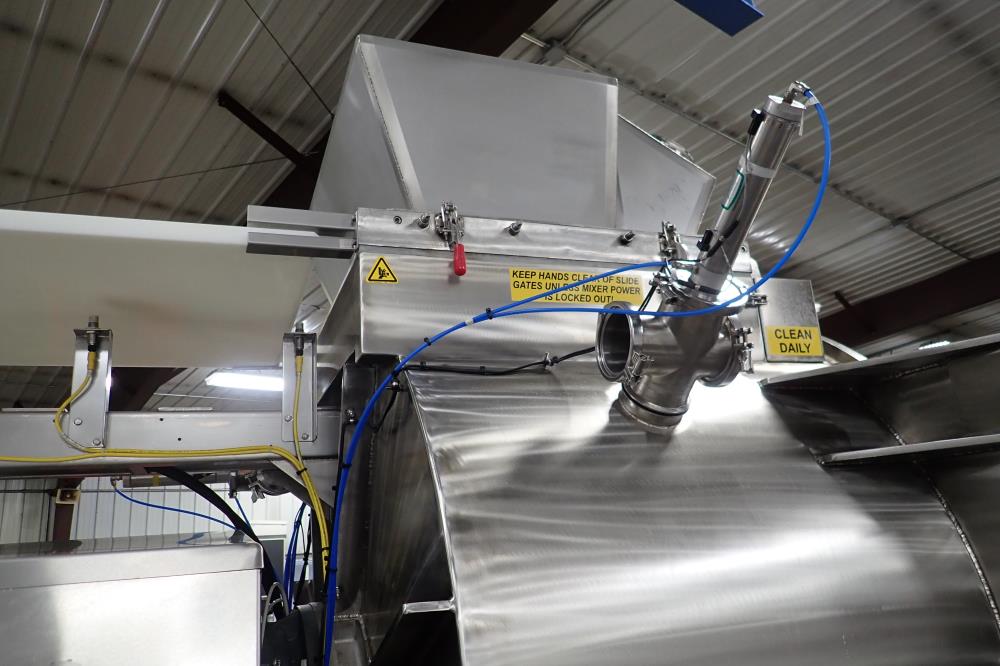

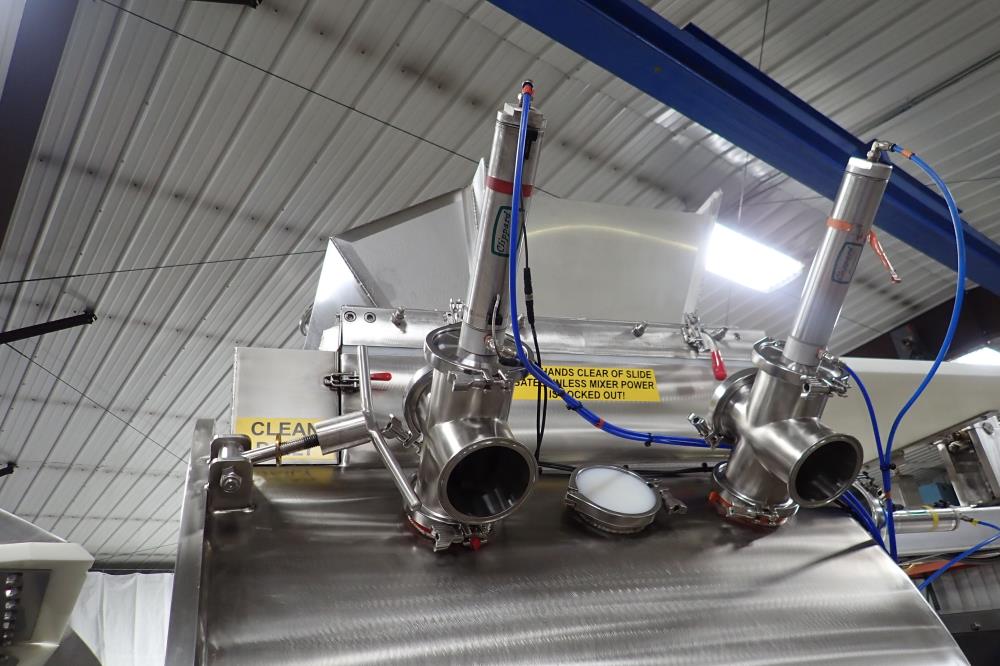

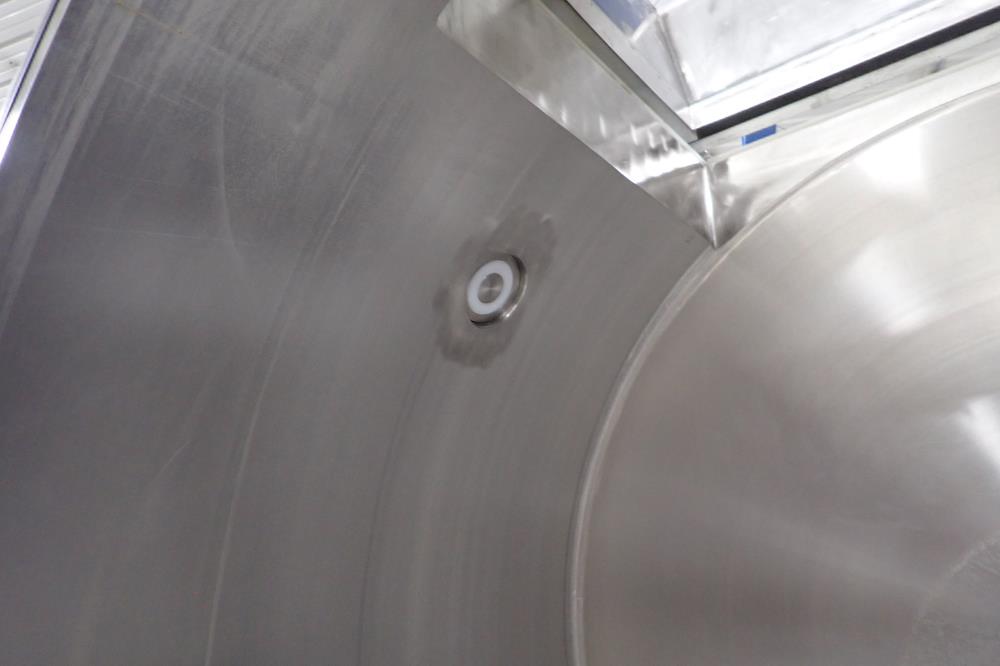

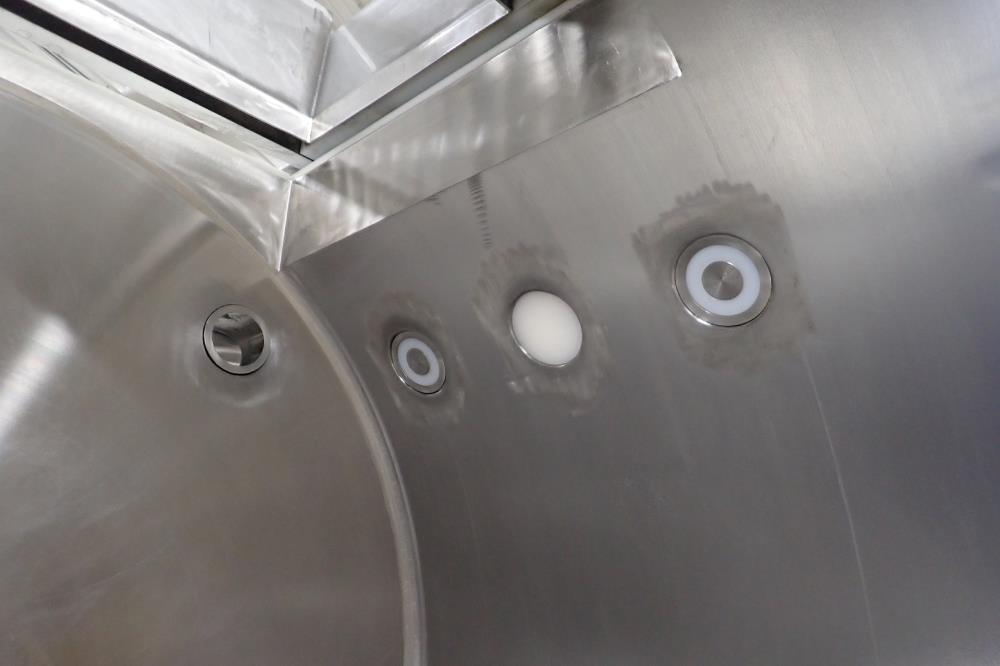

(5) 4-inch diameter flush-seating liquid ingredient valves mounted near the top of the chamber
(1) Additional 4-inch diameter valve on the door

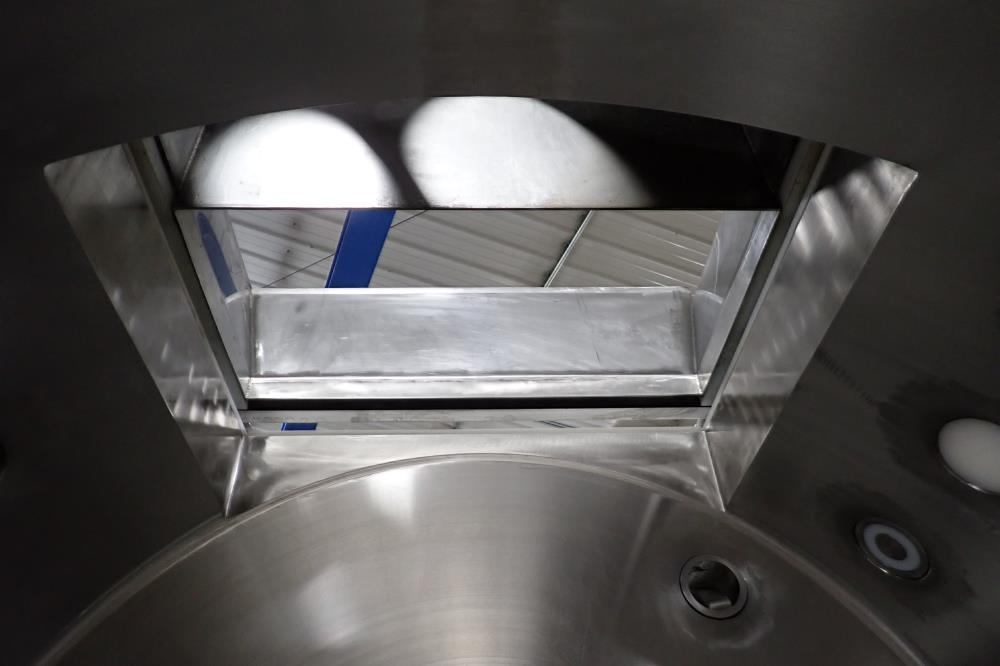

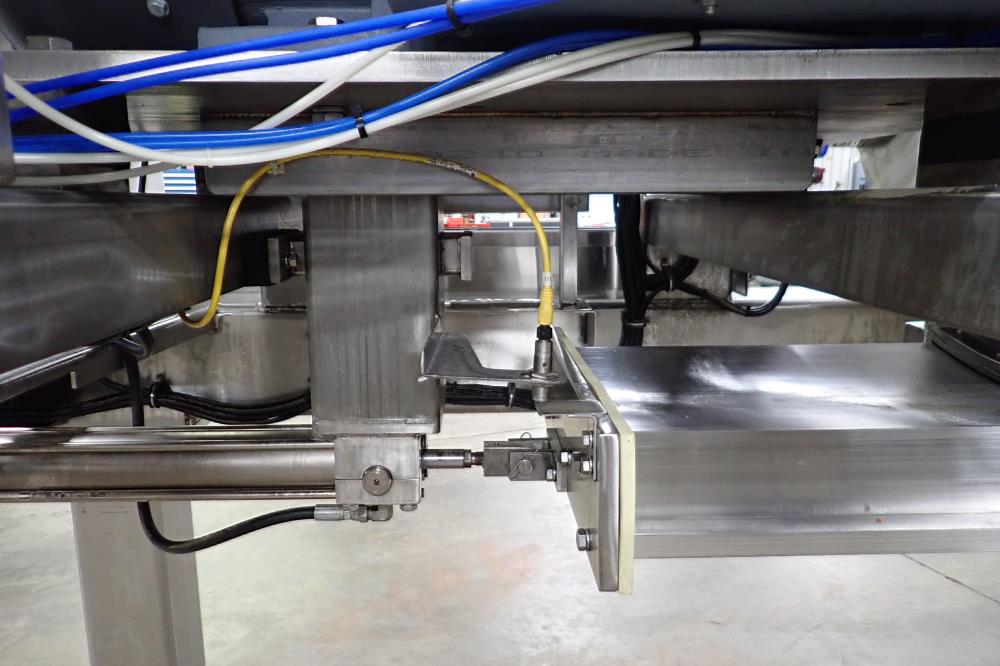

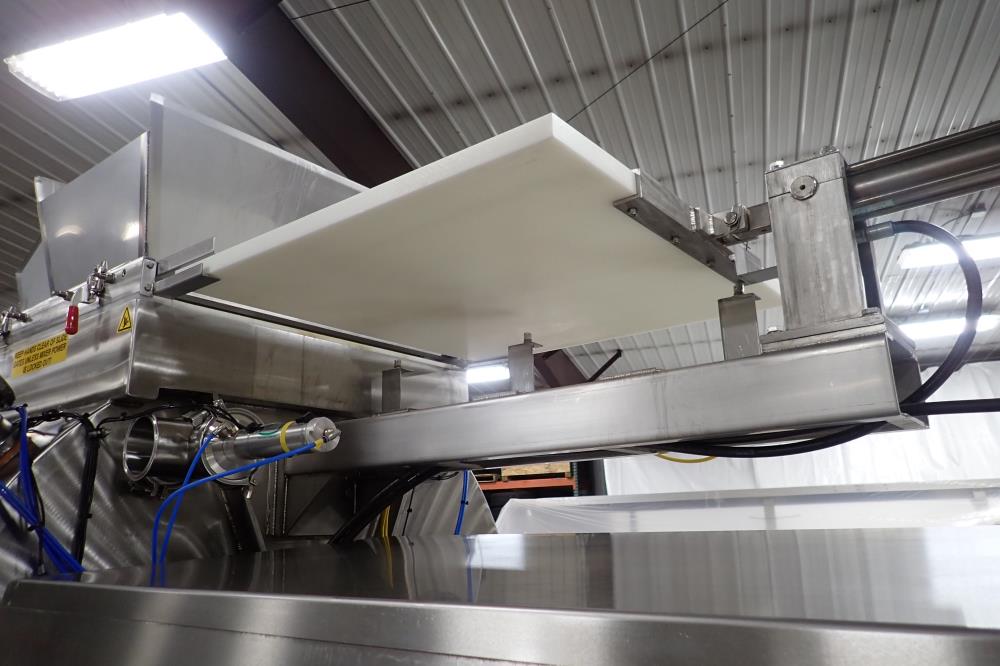

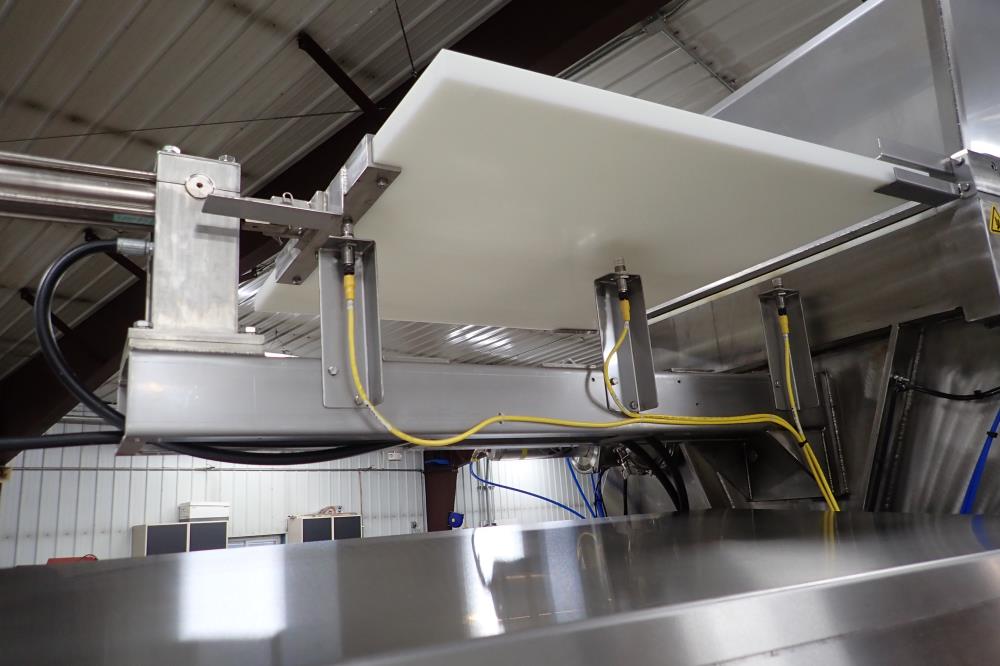

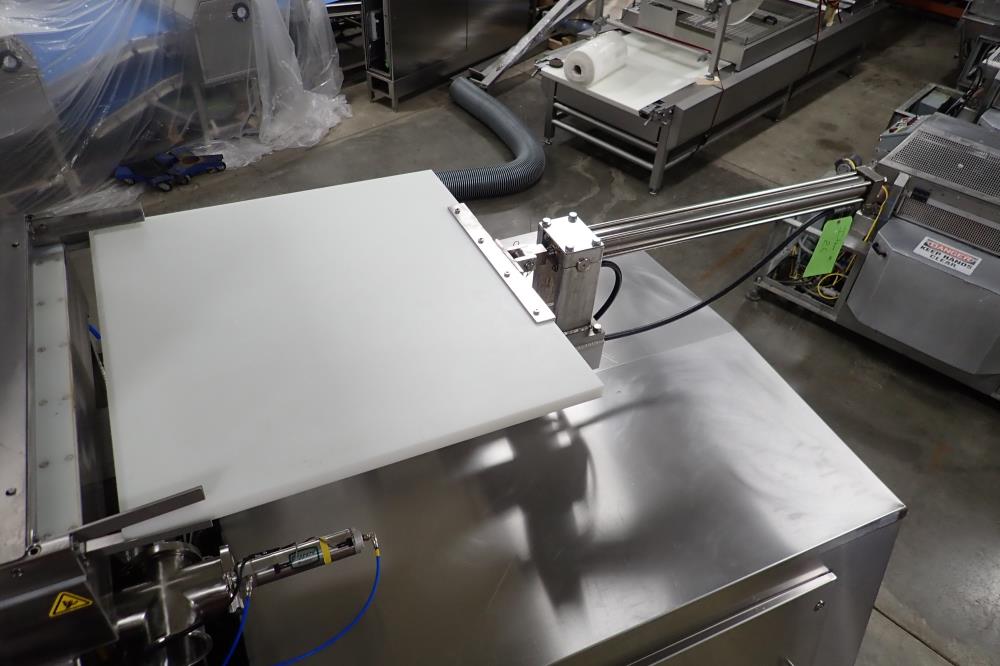

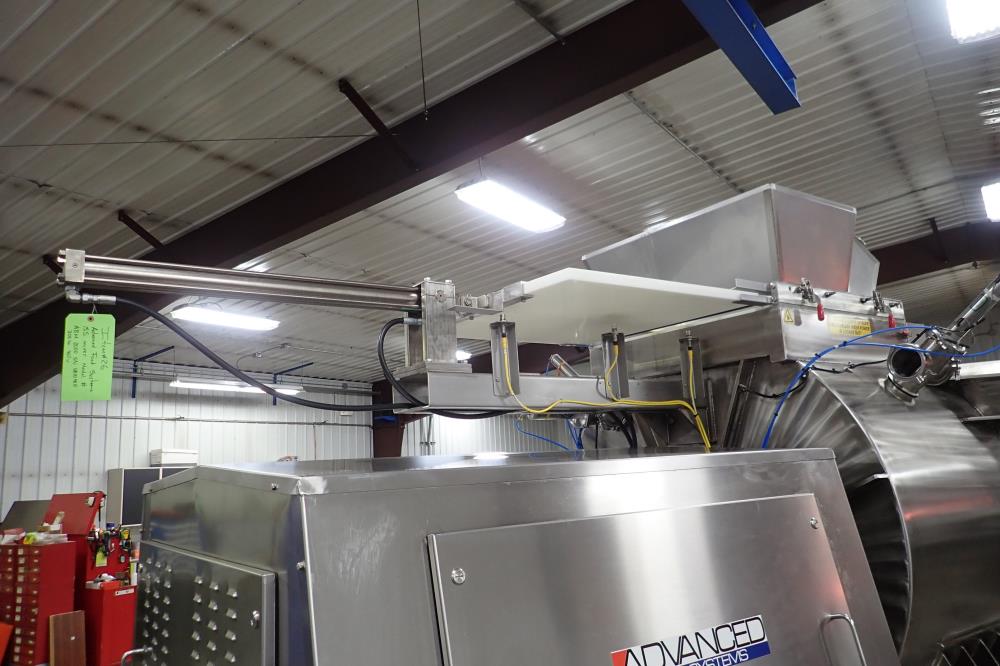

Hydraulically operated UHMW plastic slide gate (33 in. L x 35 in. W) for loading dry ingredients

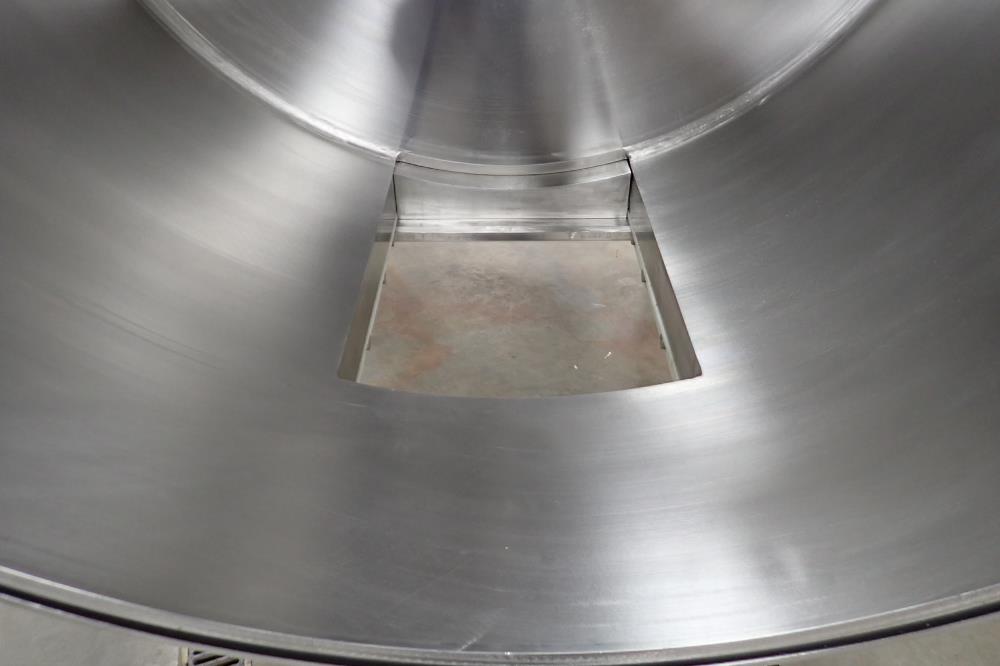

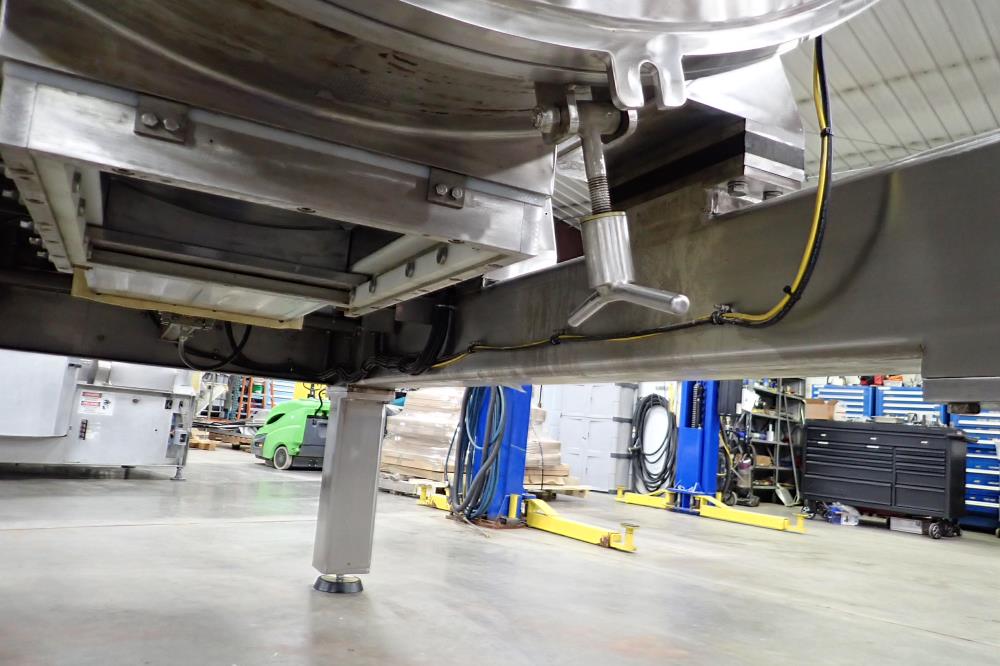

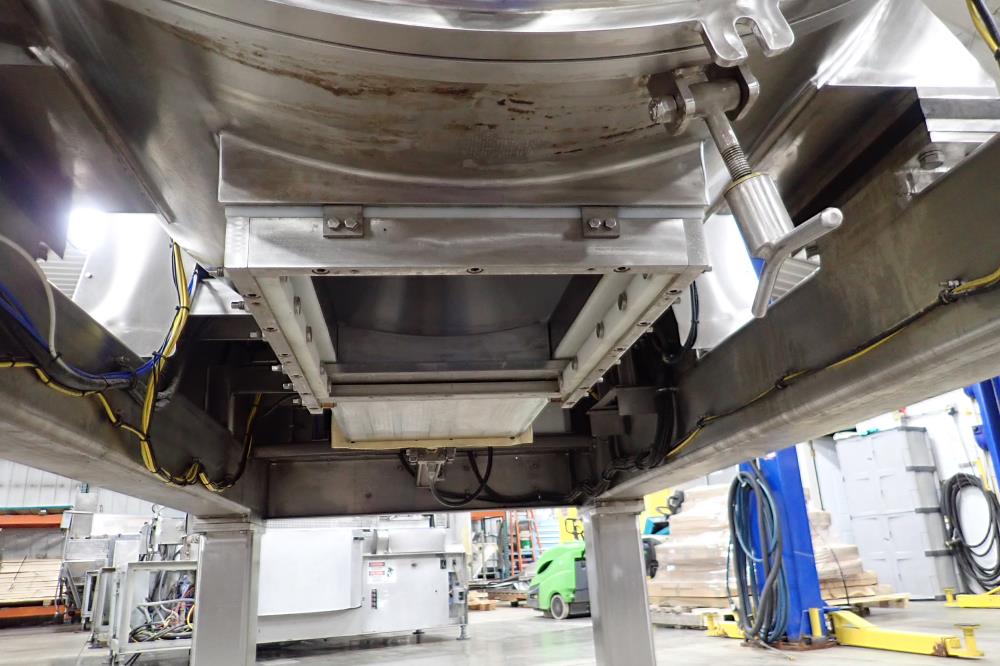

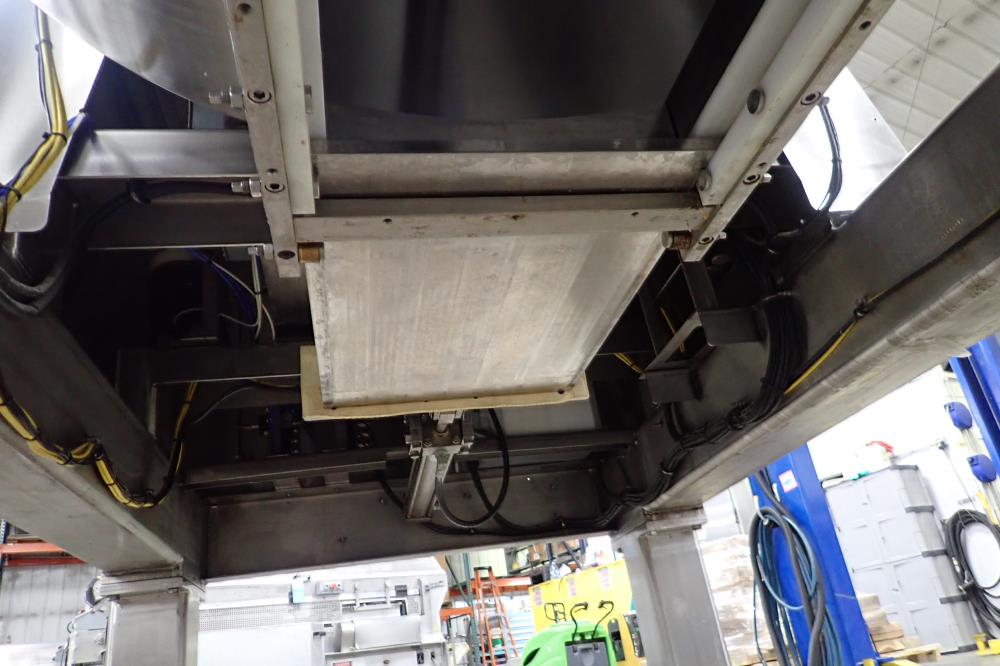

Hydraulically operated stainless steel curved slide gate (25 in. L x 17 in. W) for dough discharge
Slide gate clearance to floor: 36 inches

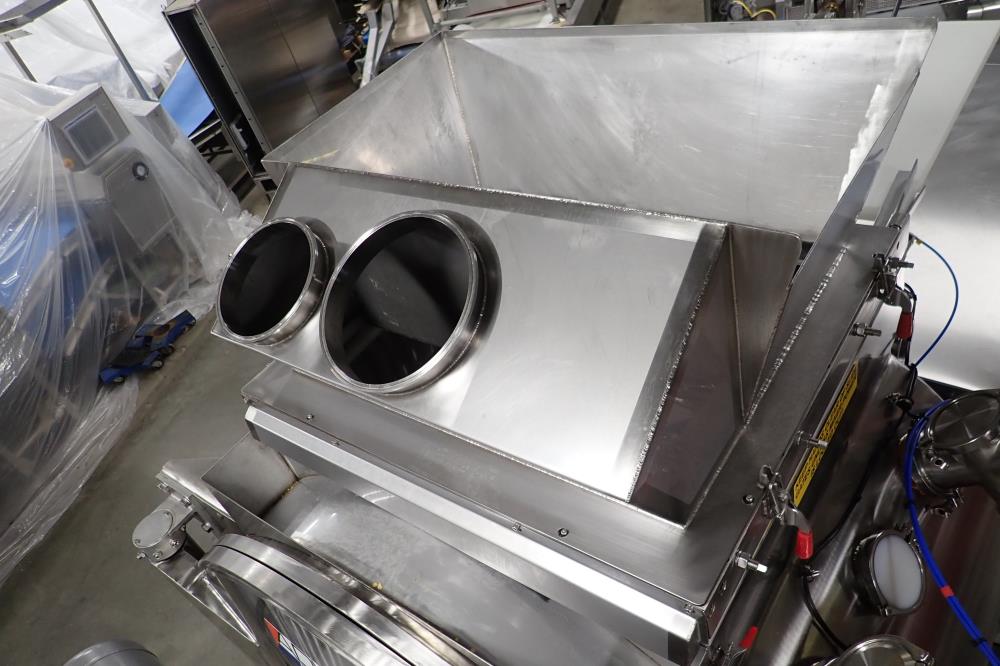

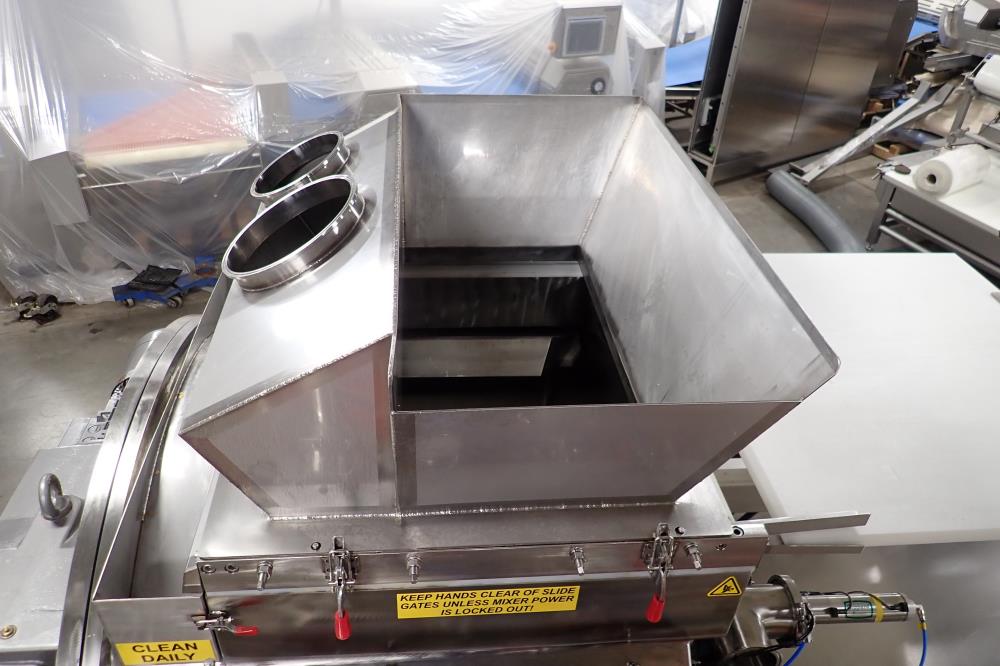

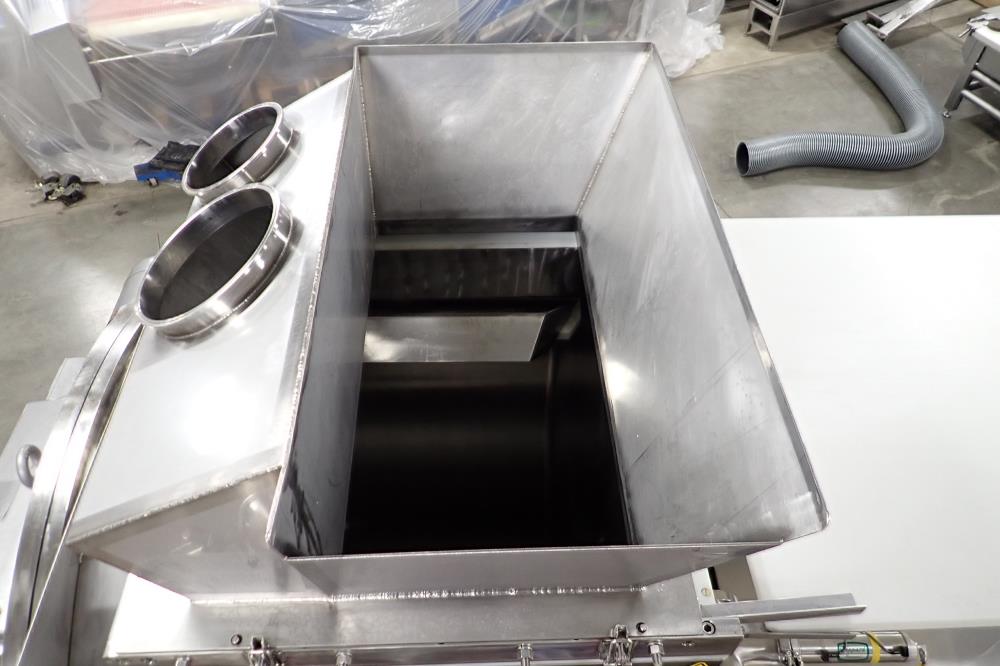

Open-style loading hopper adaptable to installation requirements

Motors & Drives:

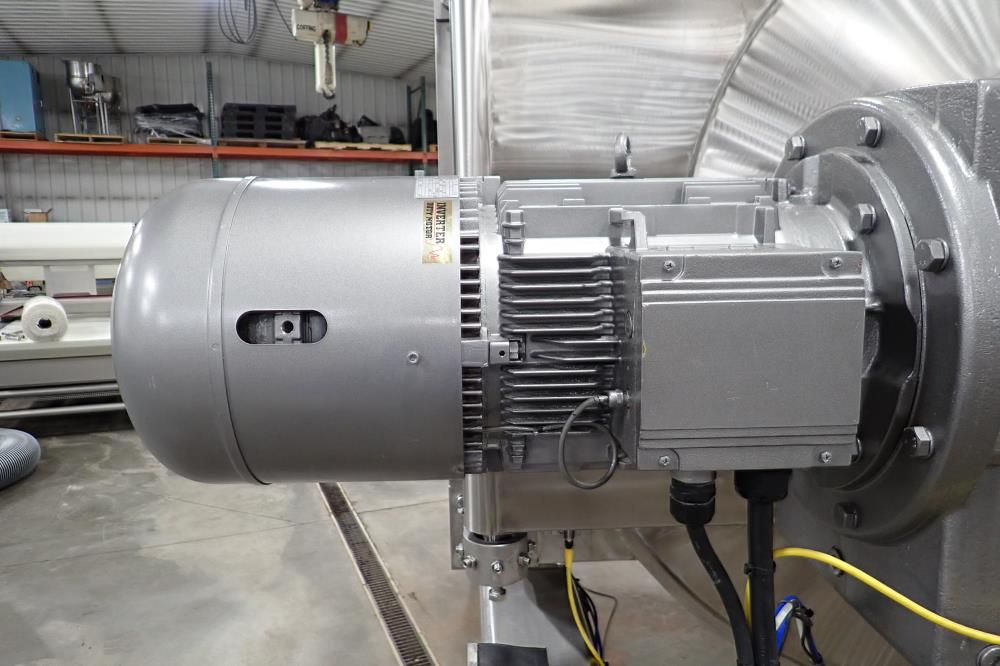

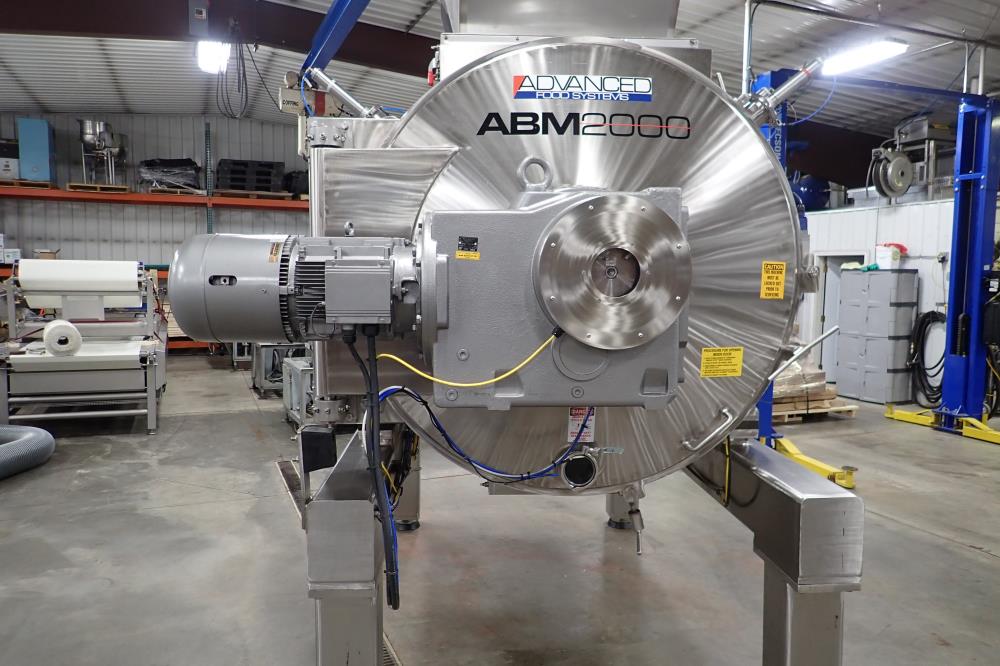

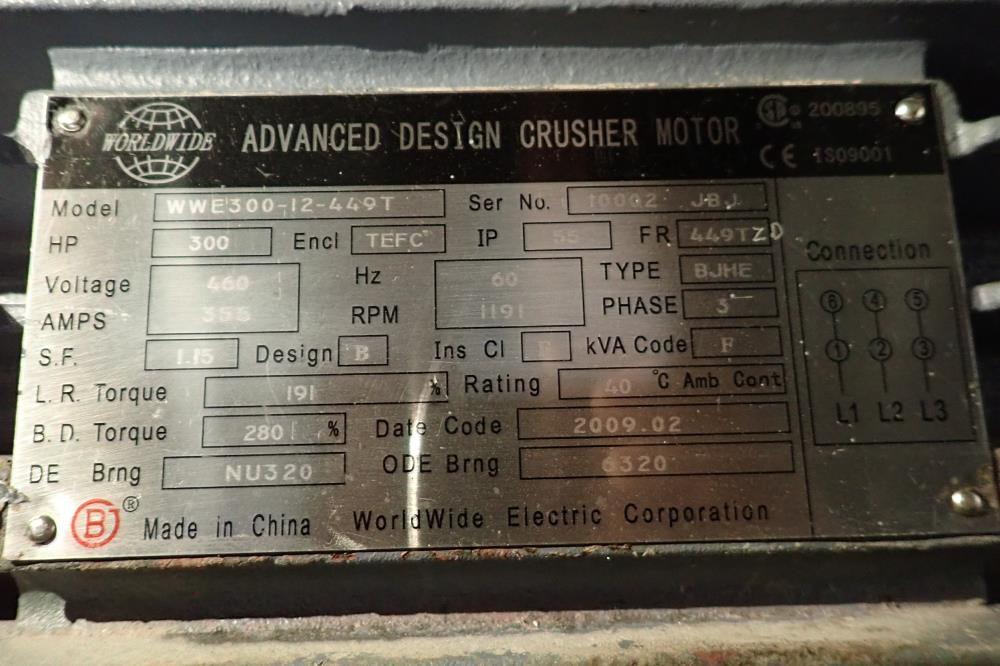

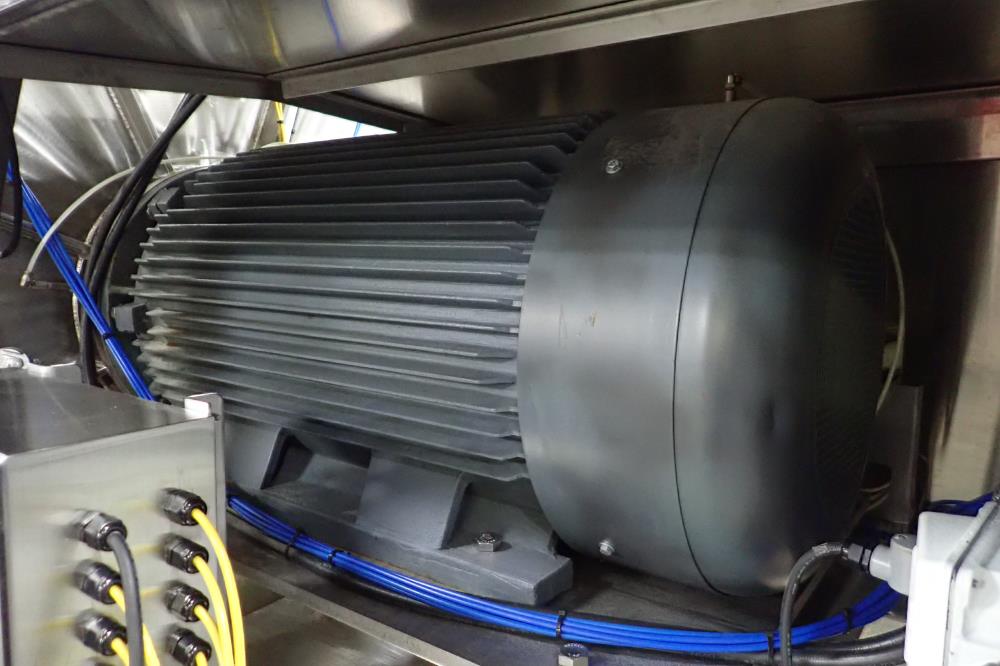

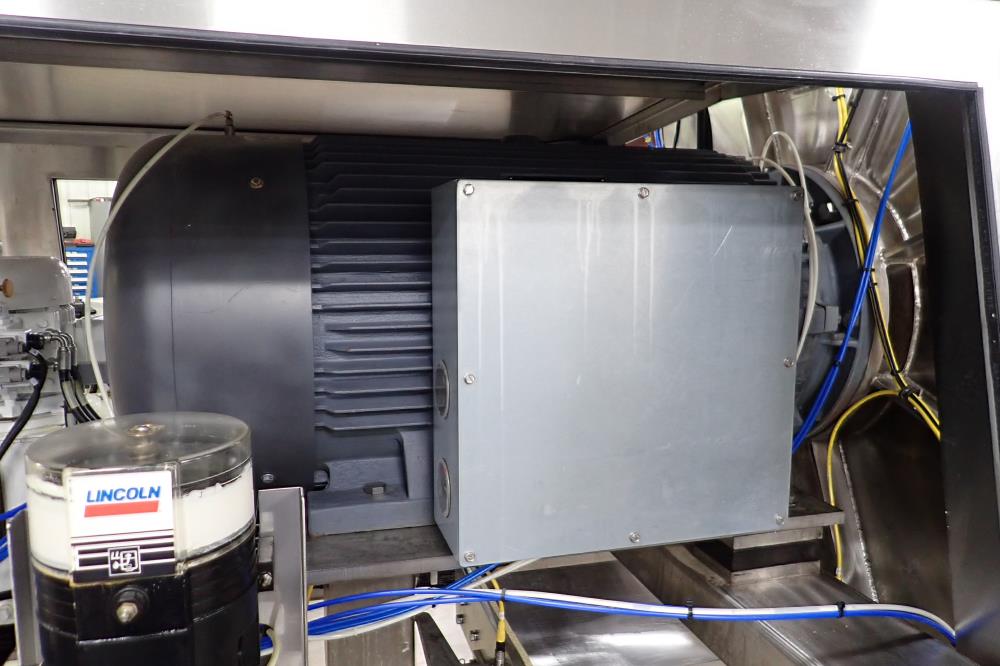

Main motor: 300 HP TEFC, VFD-rated (50-1200 RPM, 460V, 60Hz)

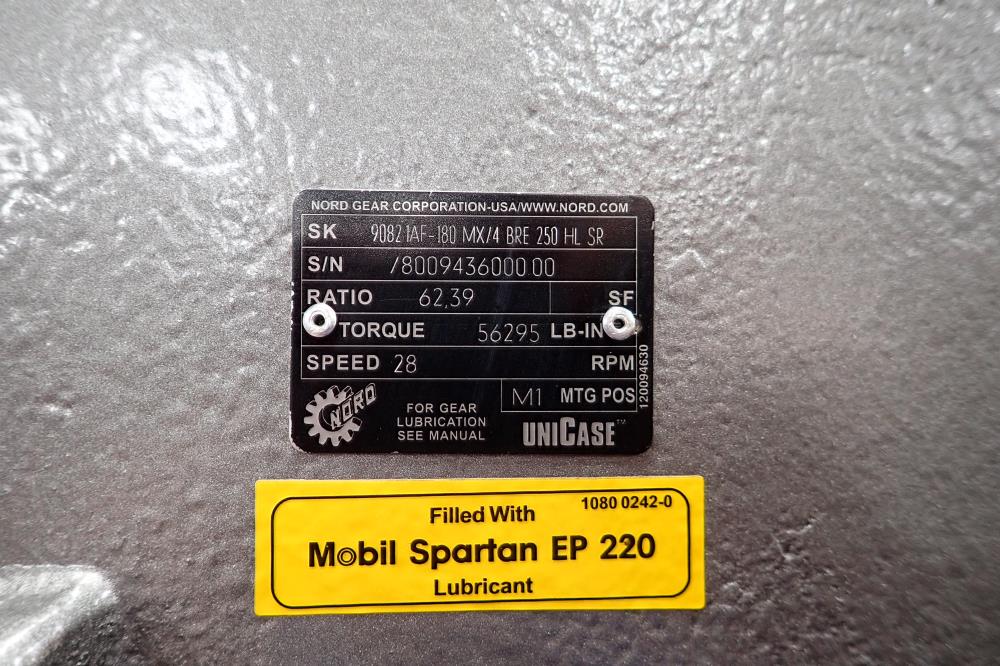

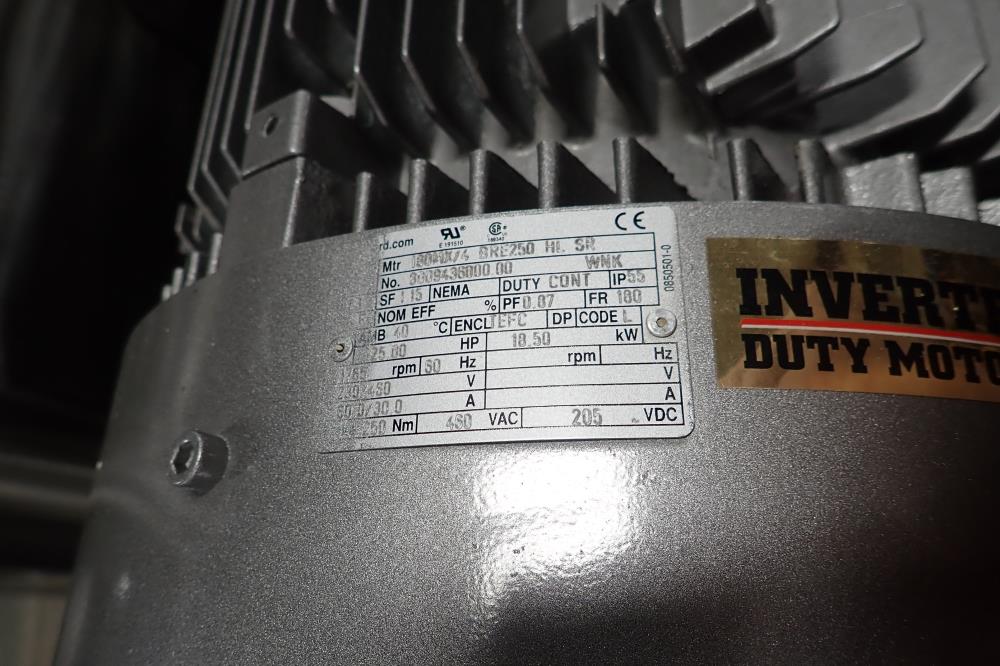

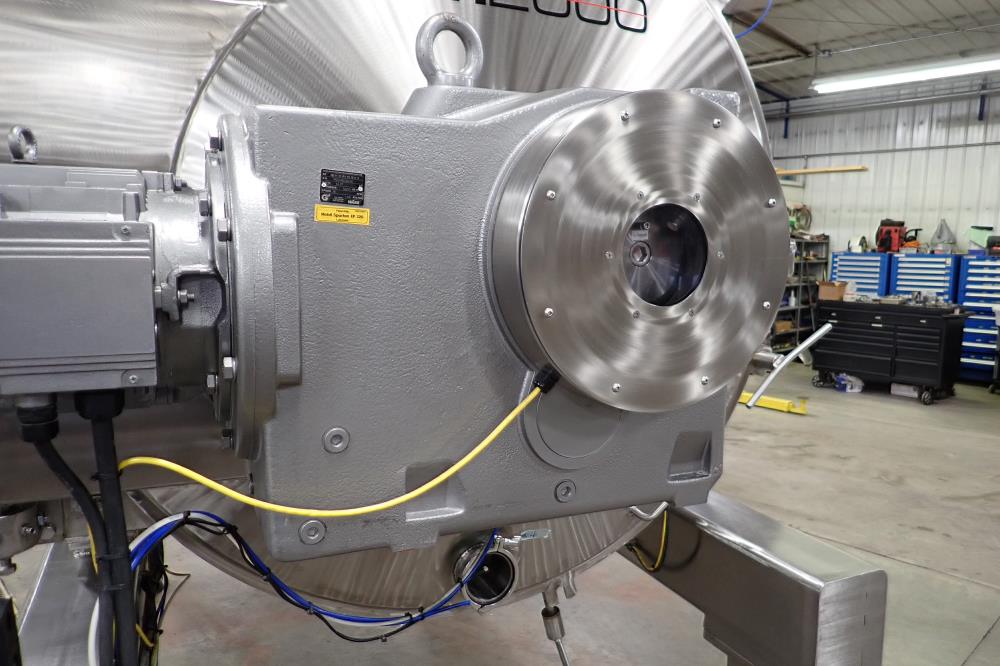

Scraper motor: Helical bevel gearmotor (24 RPM, 25 HP, 460V, 60Hz)

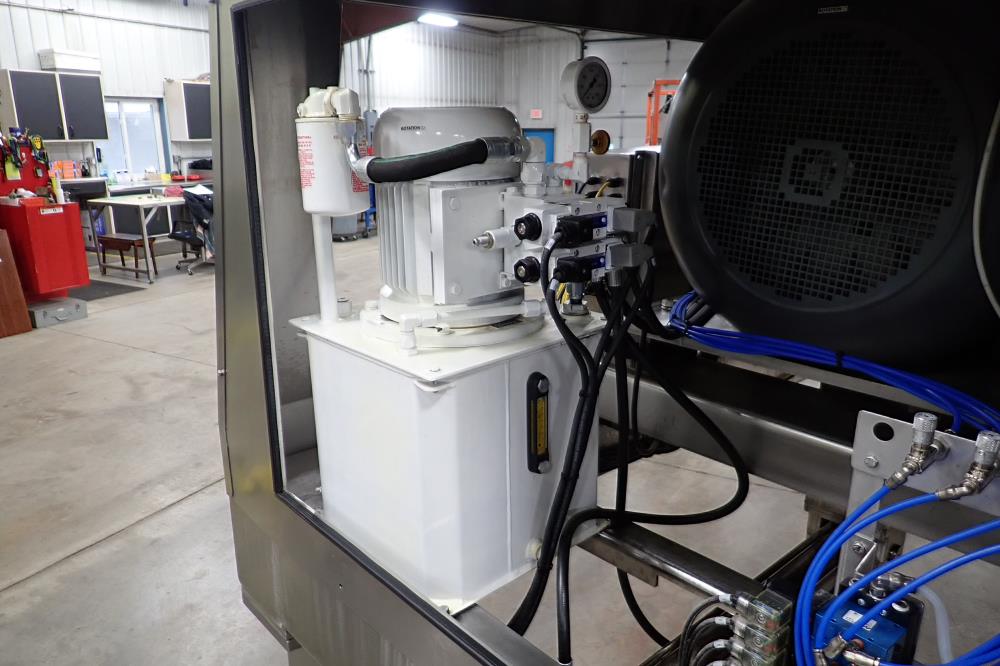

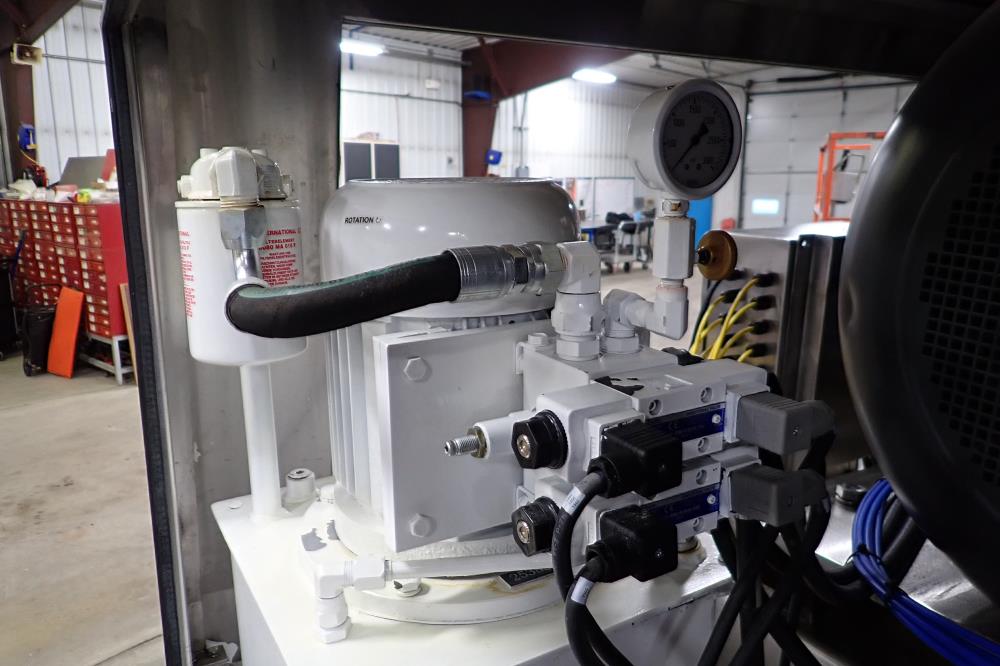

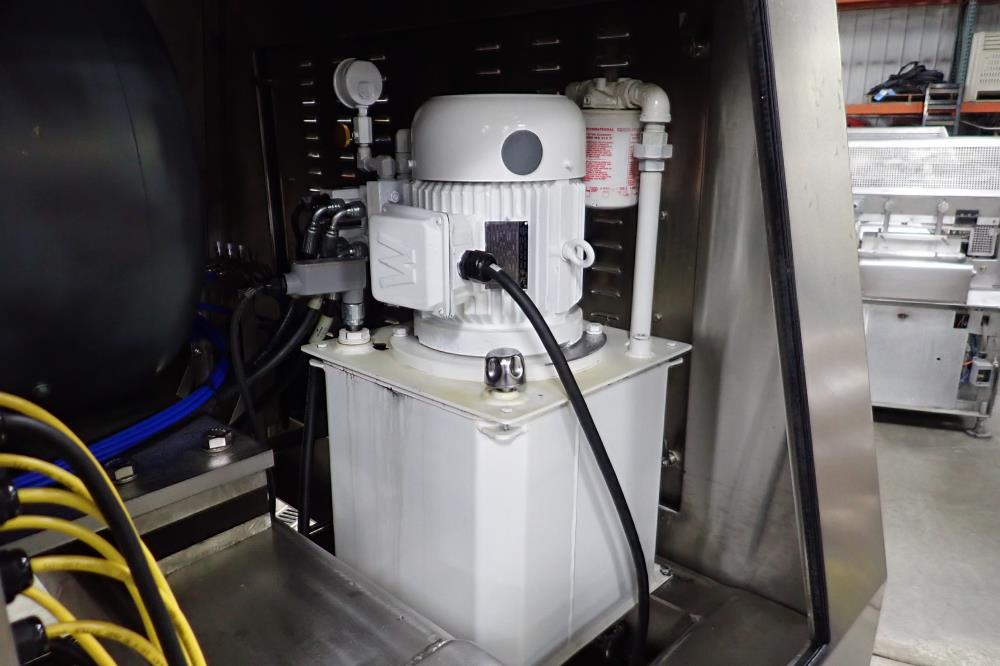

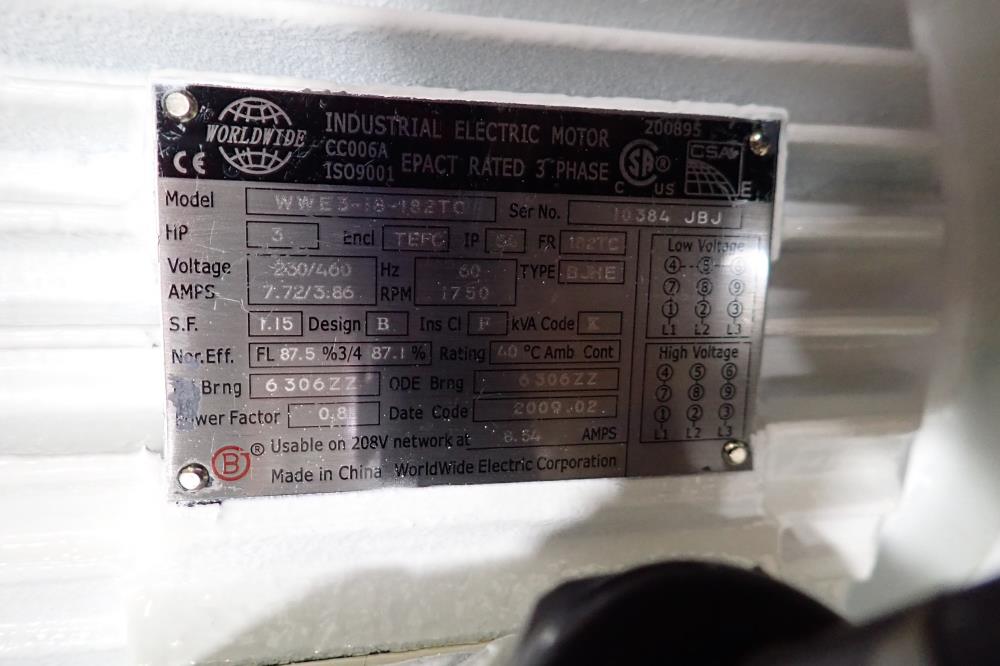

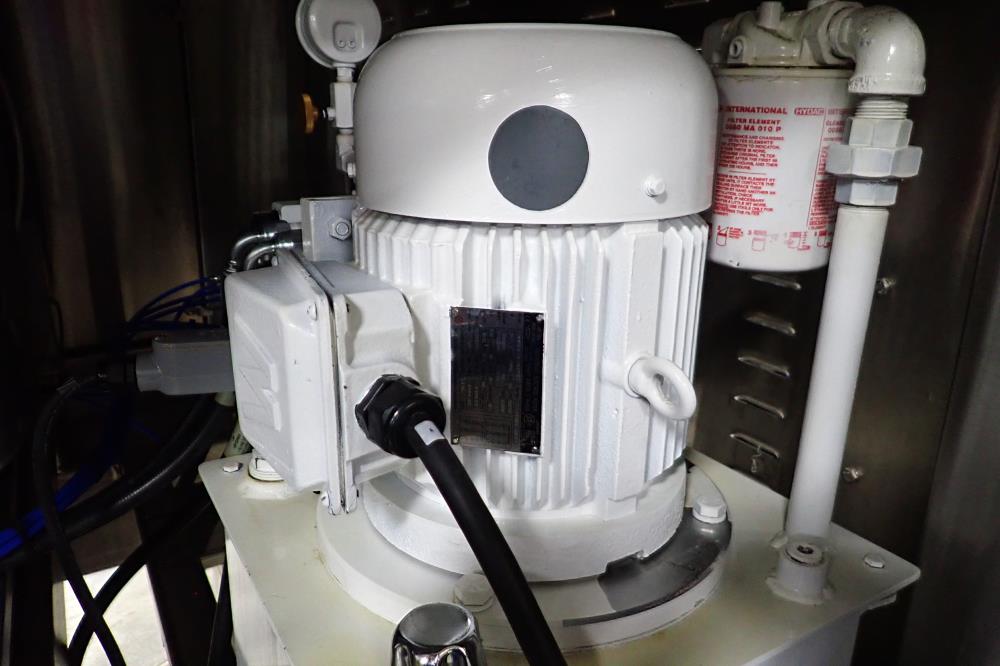

Central hydraulic unit motor: 3 HP, 460V, 60Hz

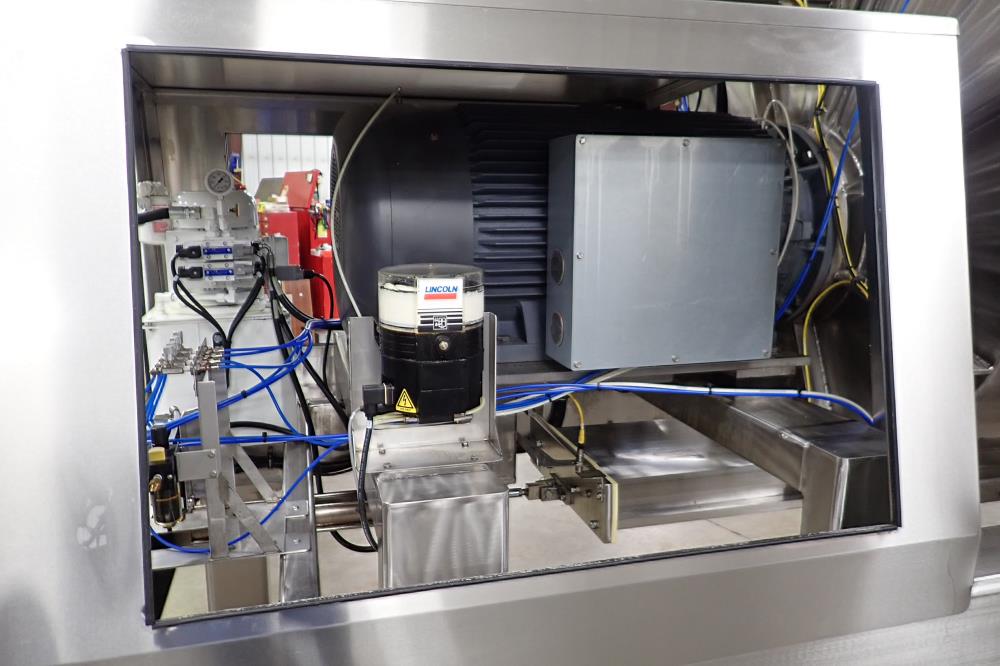

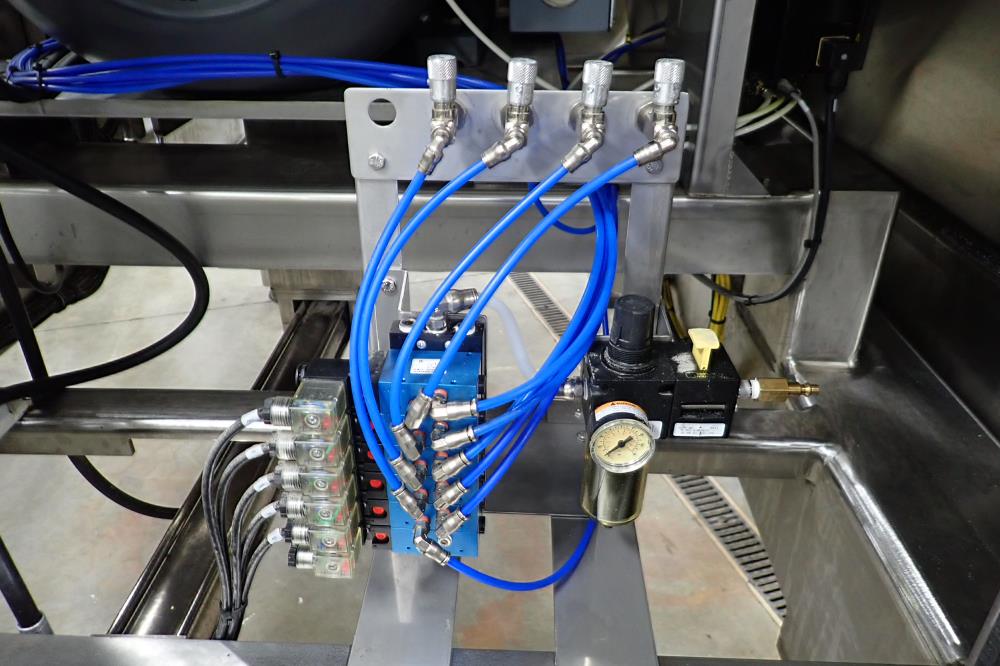

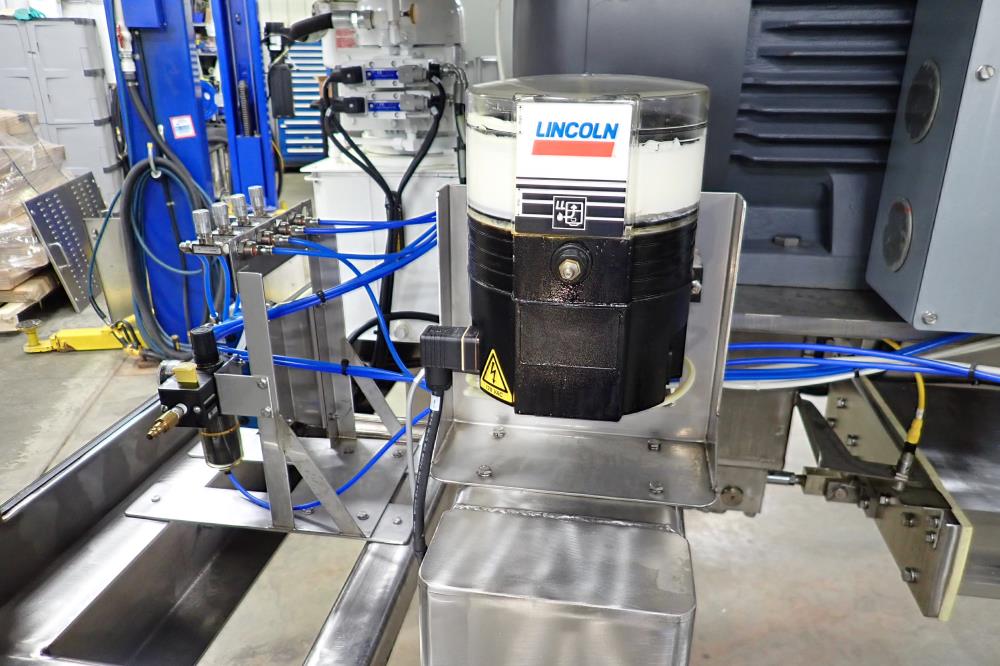

Automatic programmable greasing system for motor seals

Frame & Chassis:

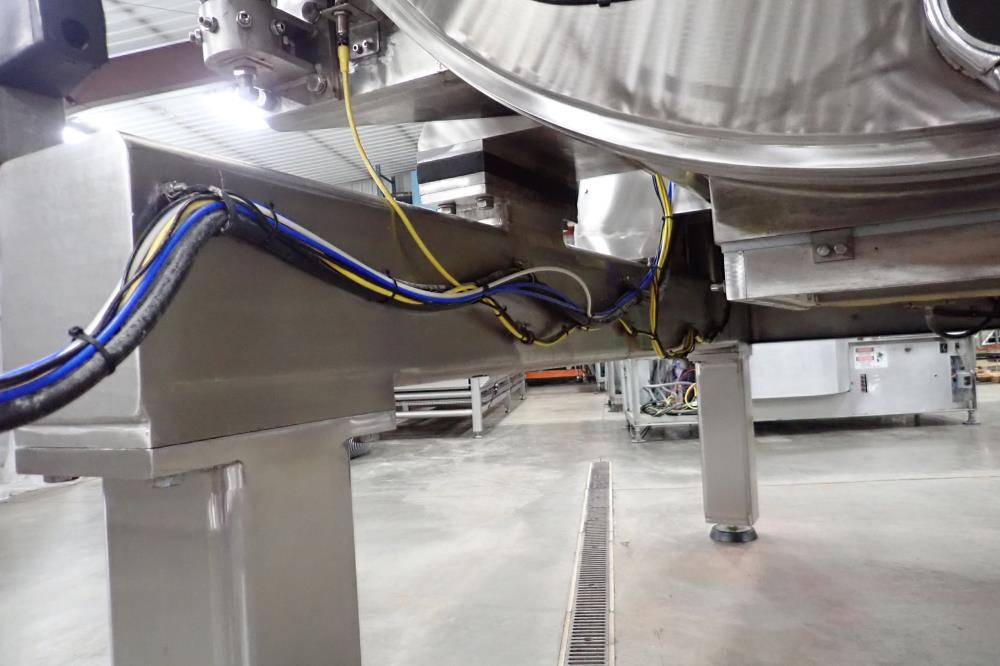

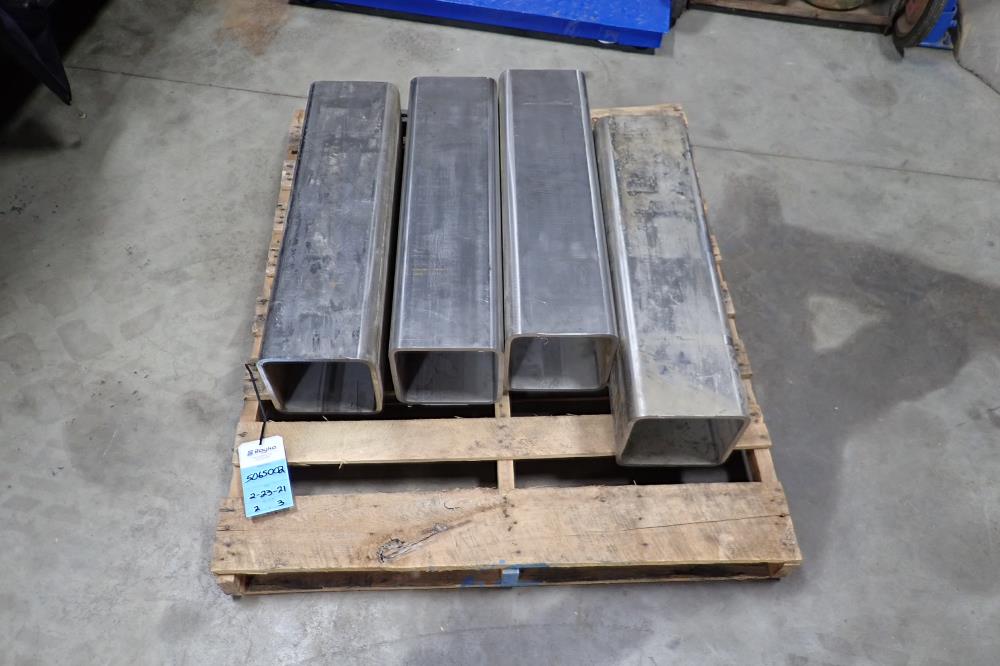

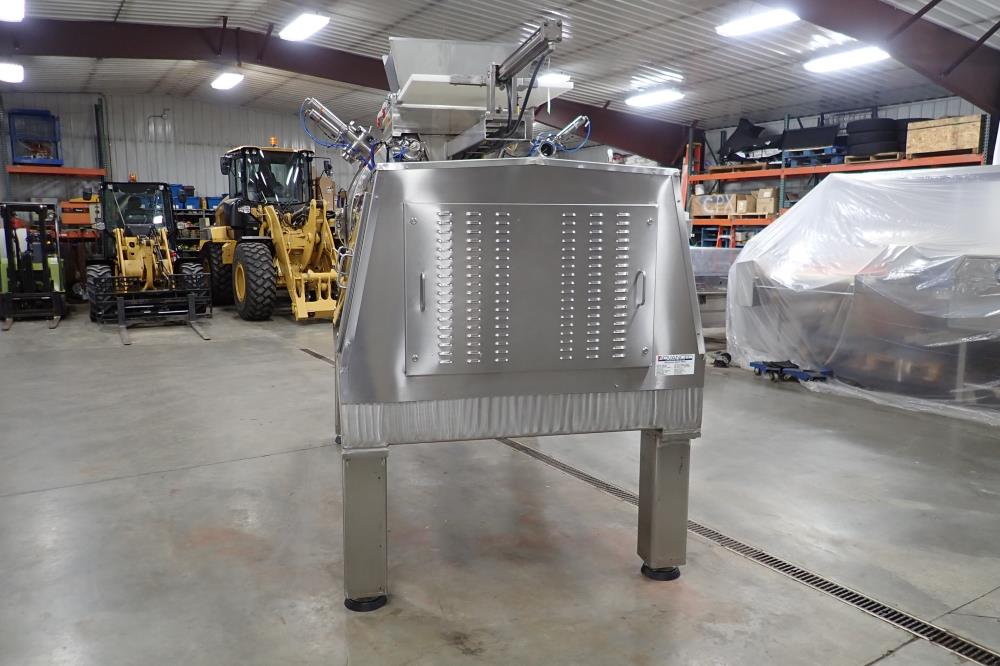

304 stainless steel frame and legs made of 8-inch square tubing

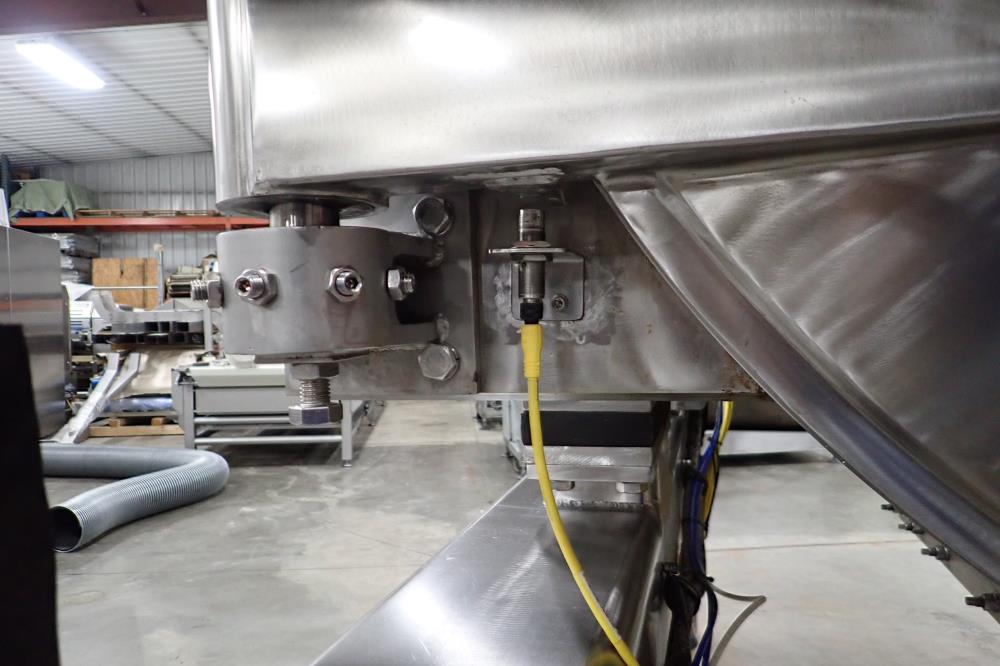

Rubber vibration-reducing pads isolate the mixing chamber and motor from the frame

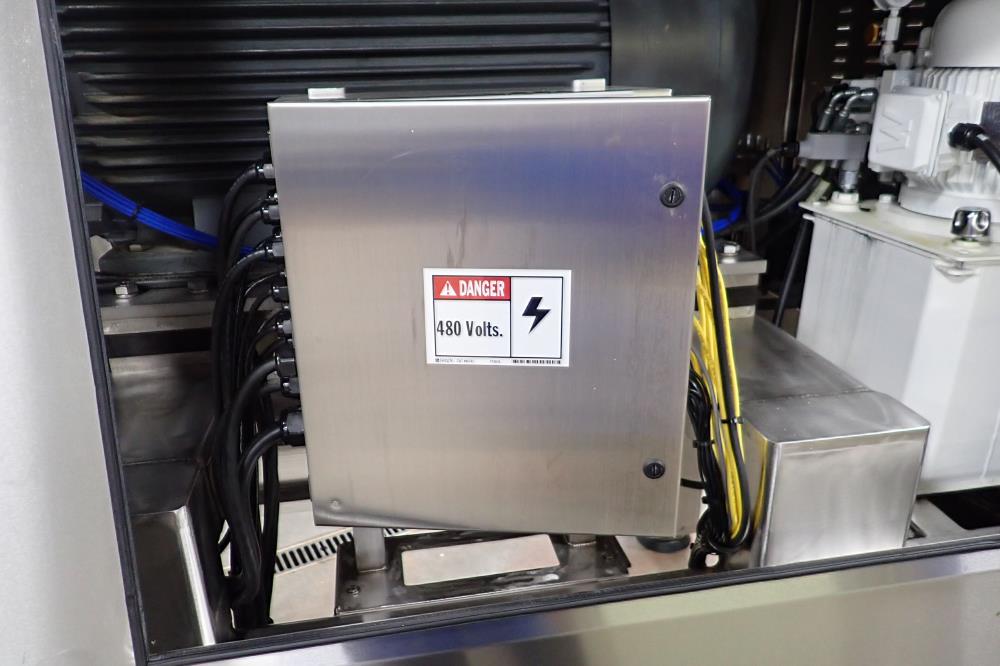

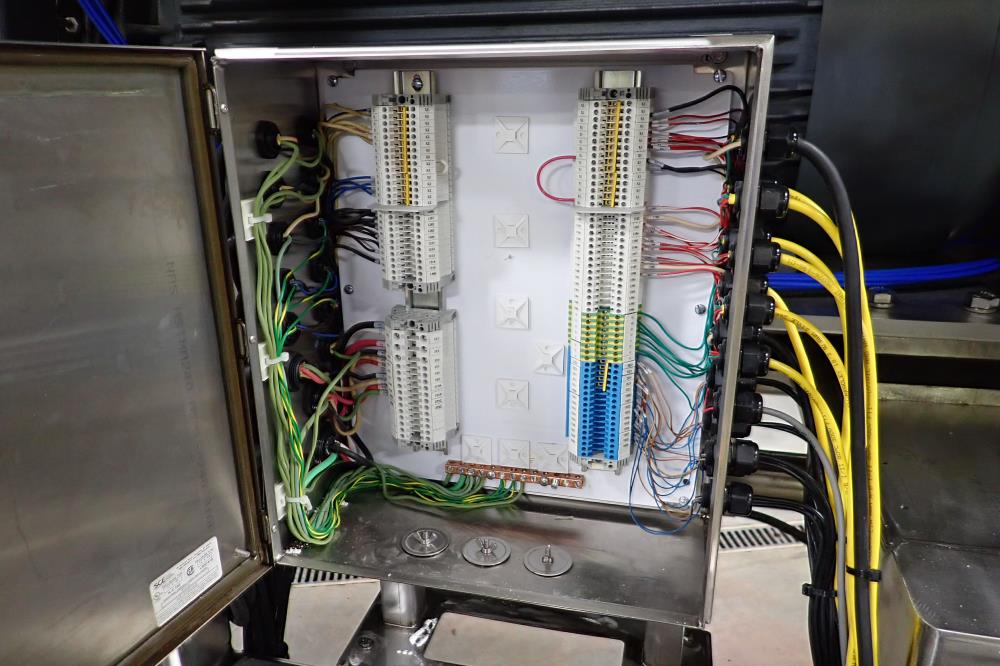

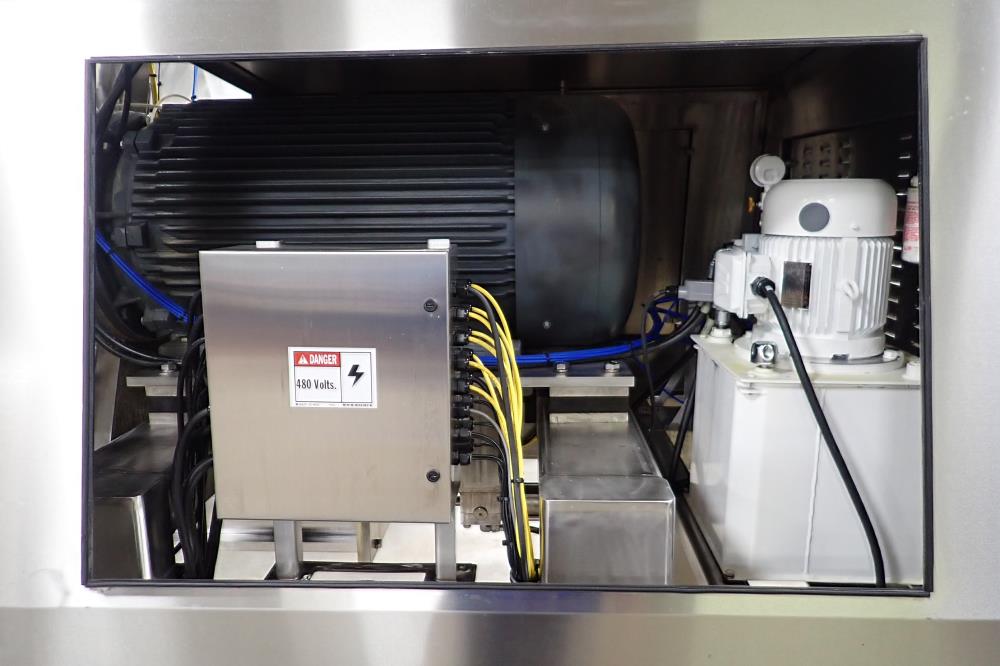

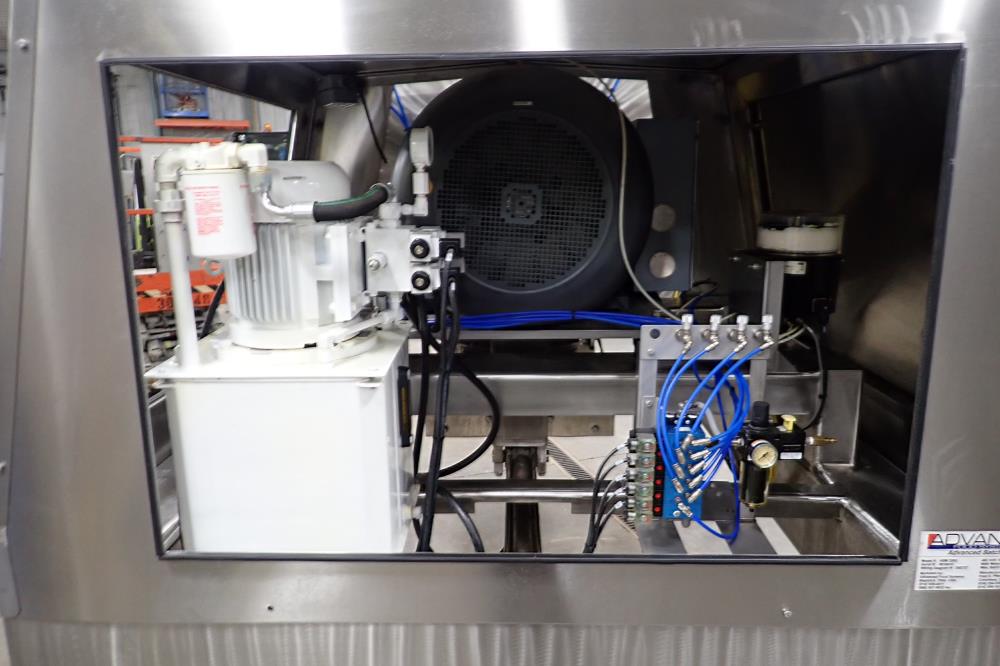

Critical components (motor, hydraulic unit, greasing system, and electrical J-boxes) are located behind the processing chamber

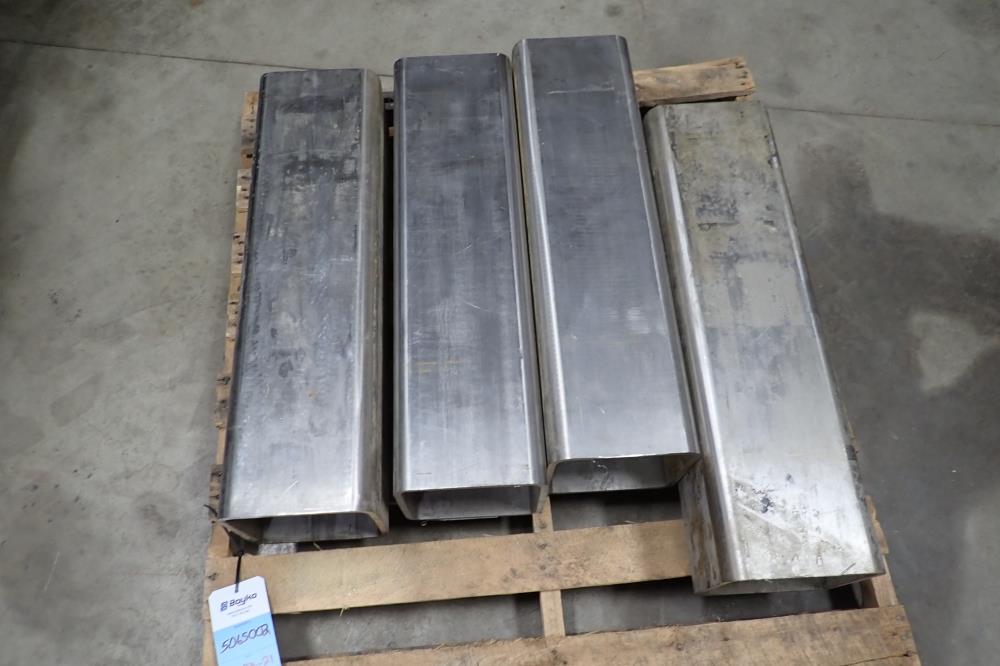

Stainless steel protective covers with removable access panels

Electrical & Controls:

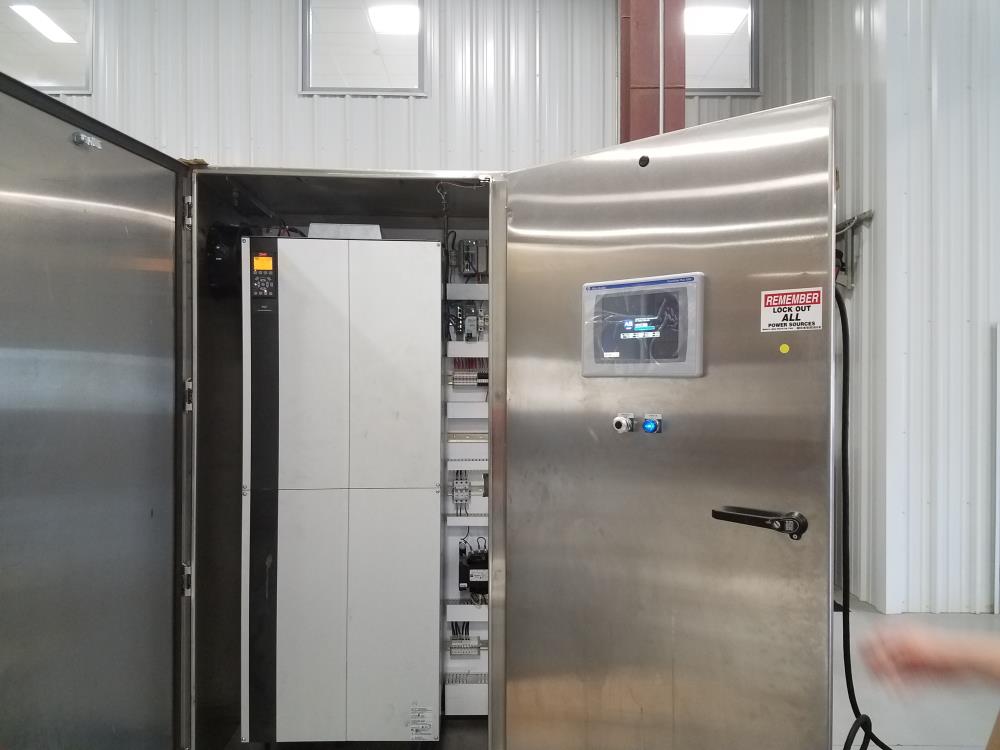

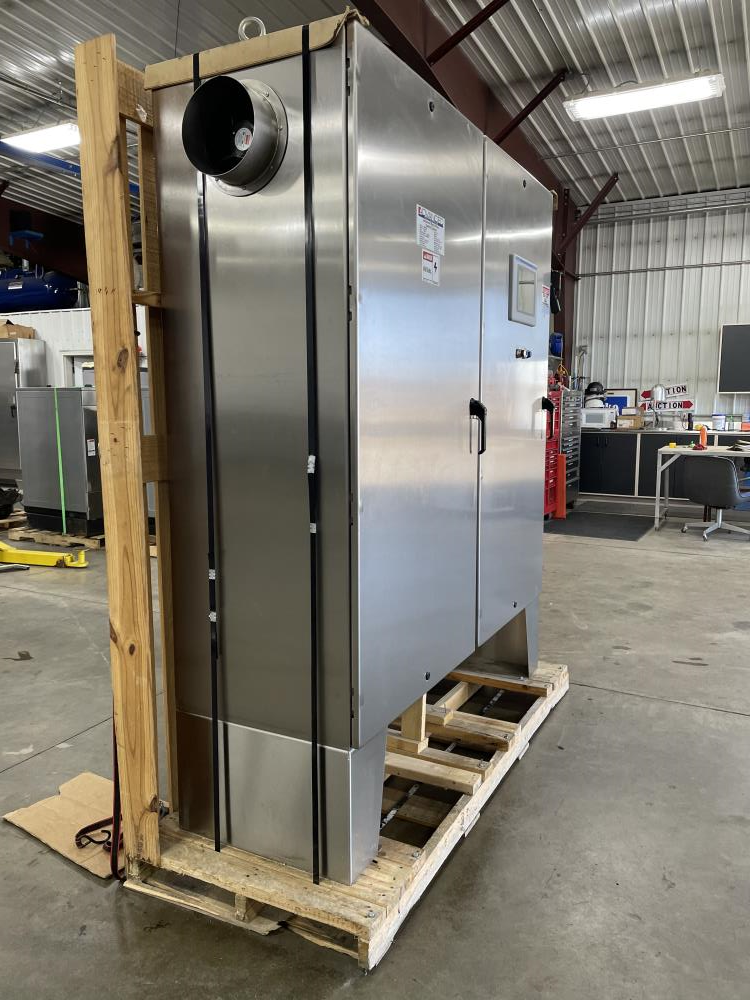

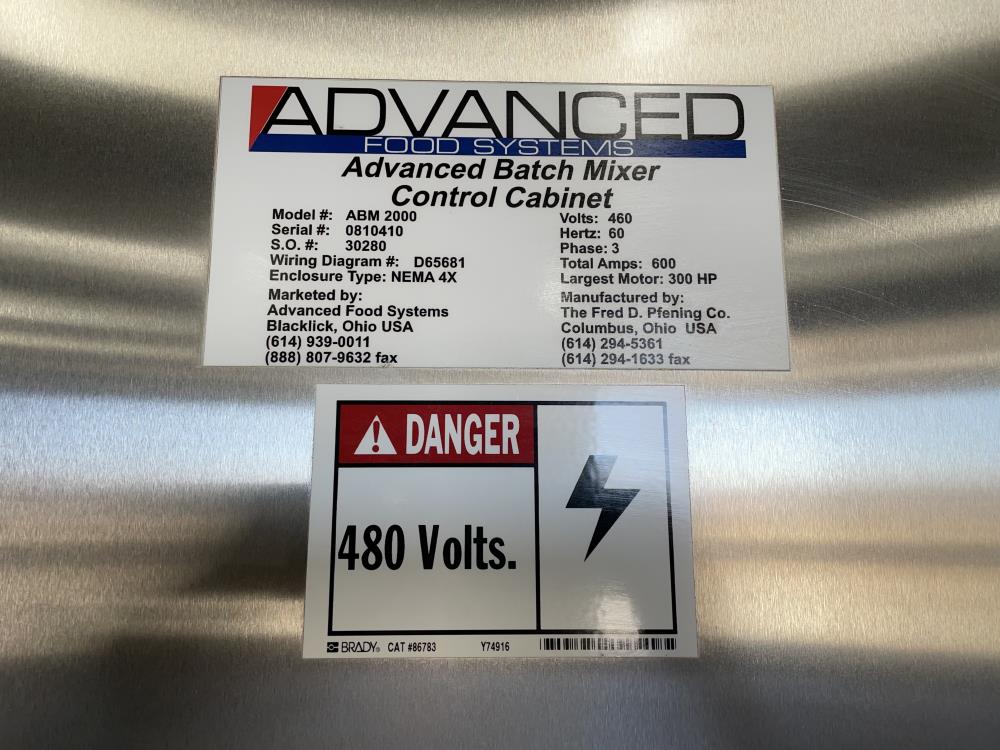

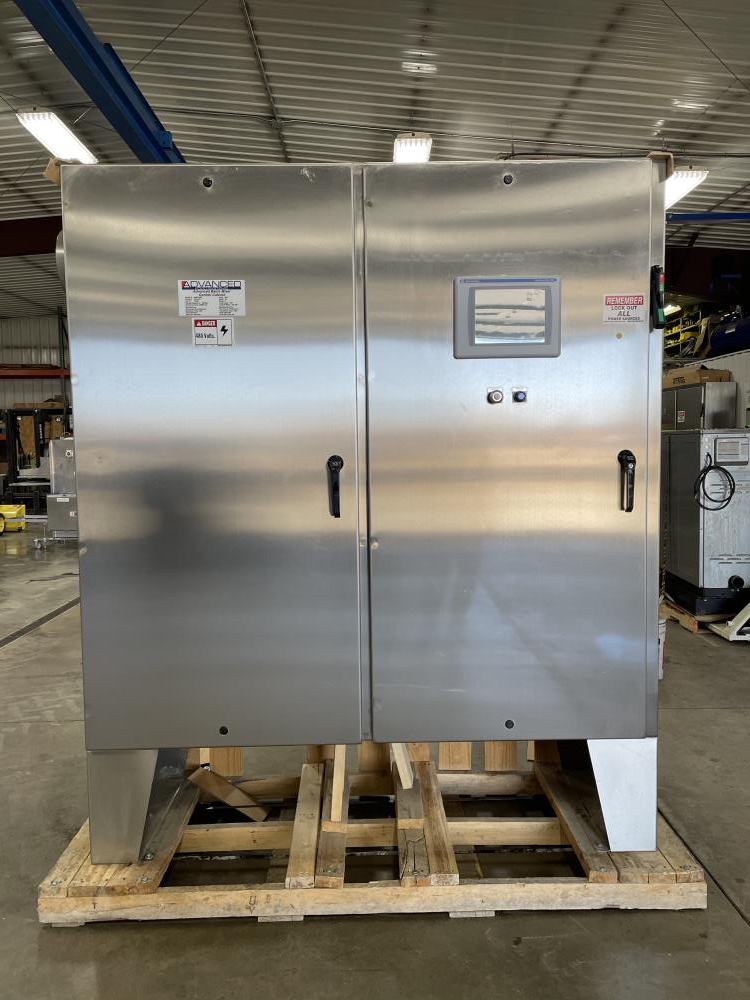

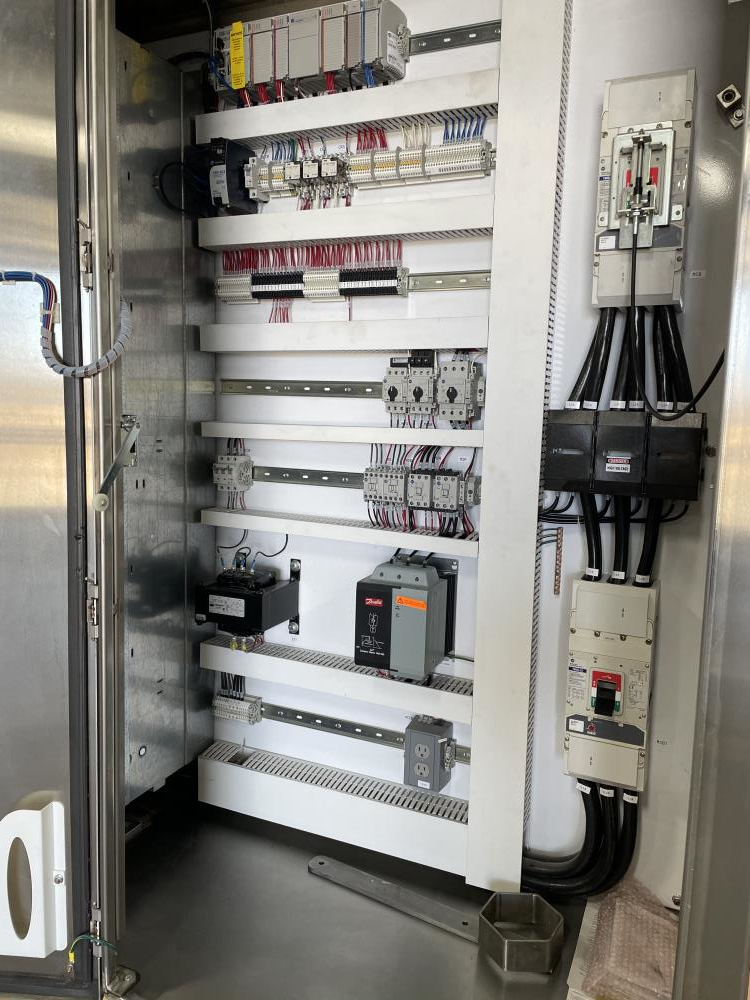

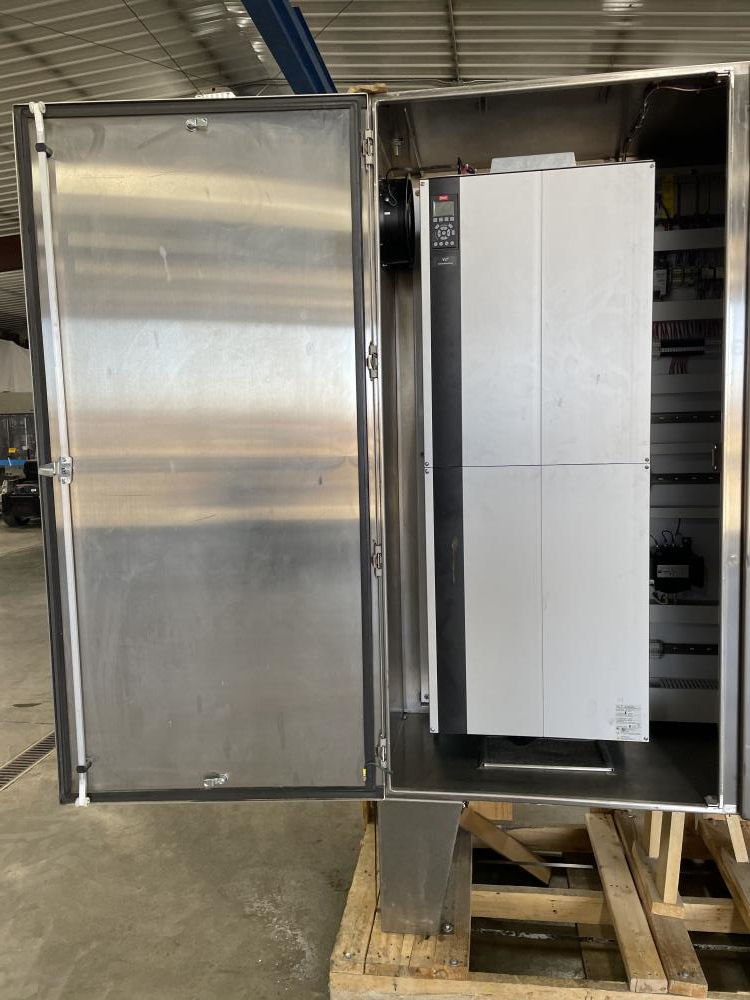

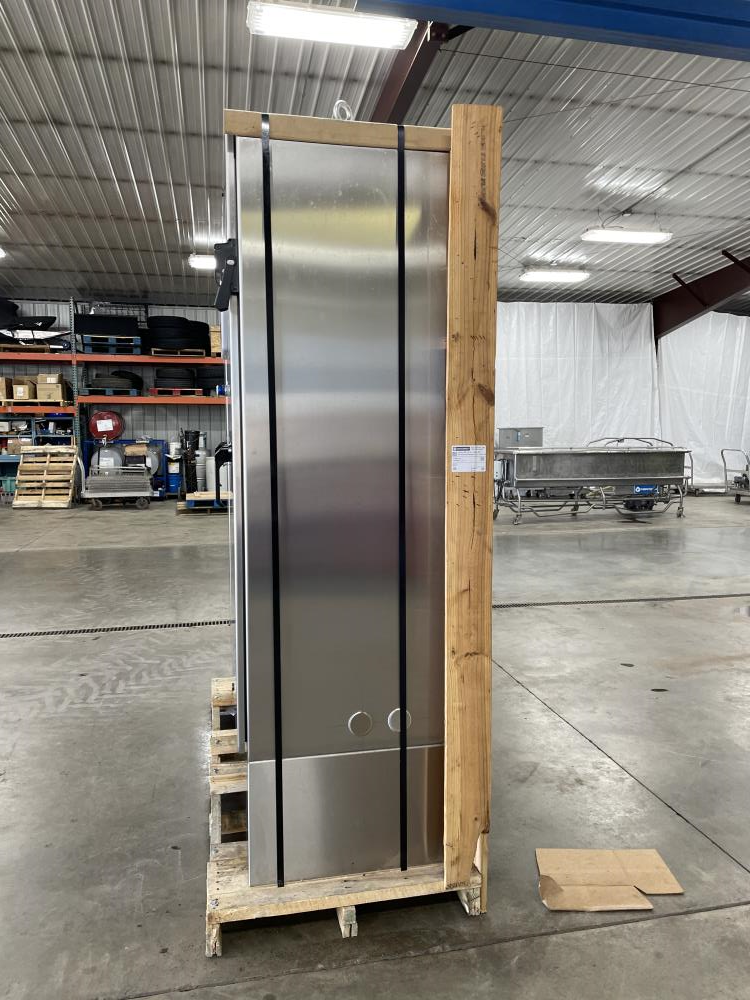

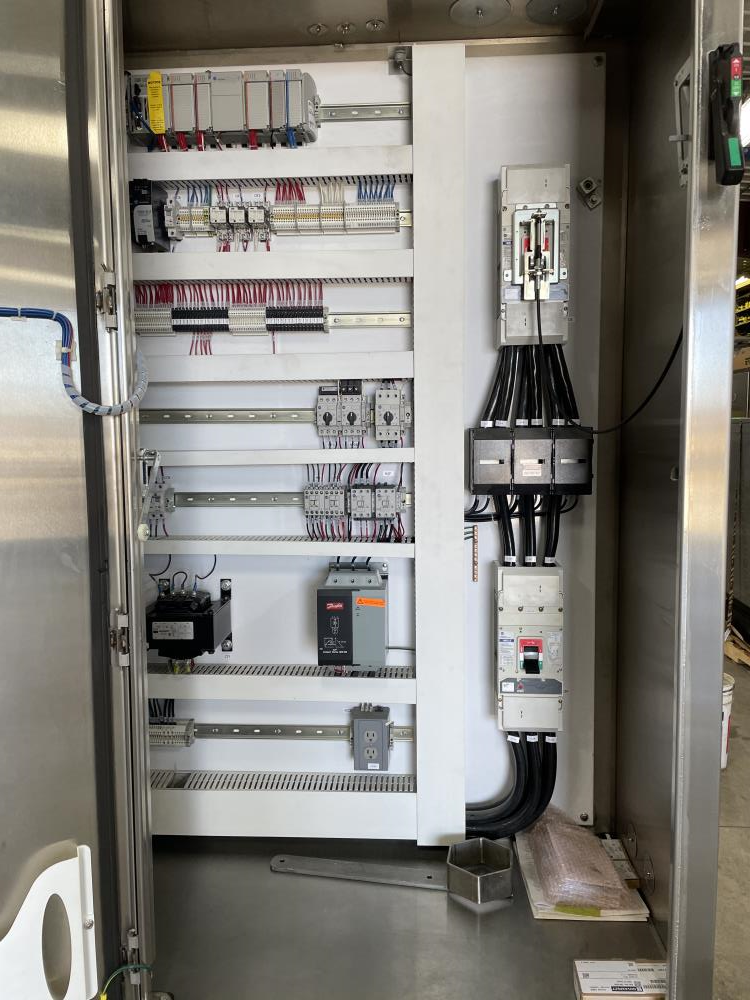

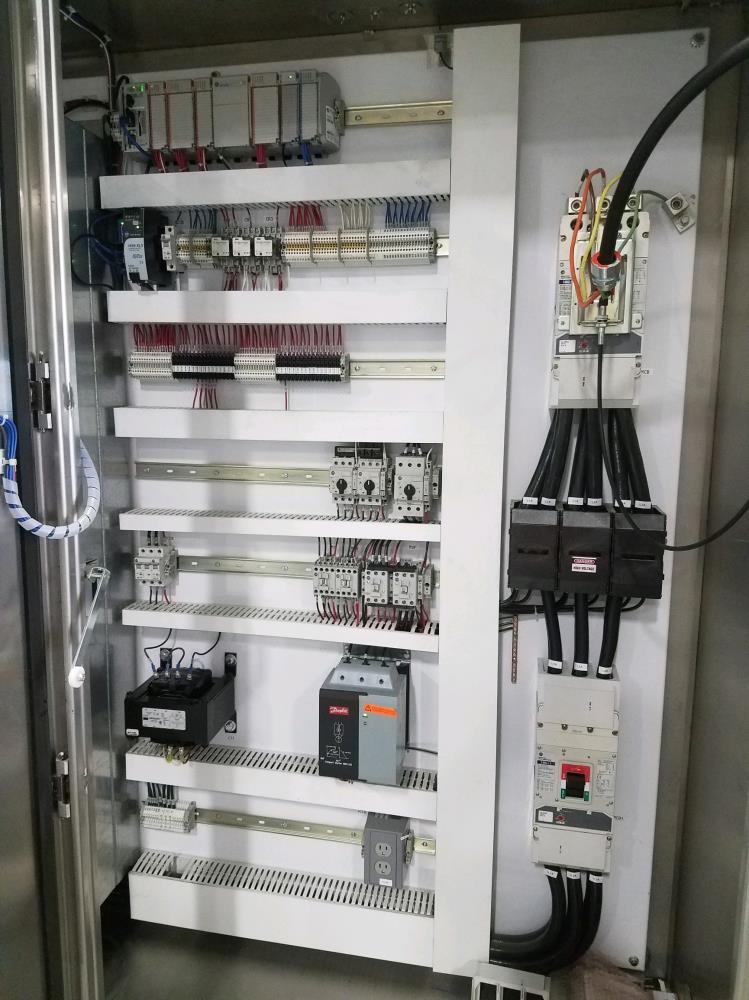

NEMA 4X stainless steel, wash-down rated control cabinet

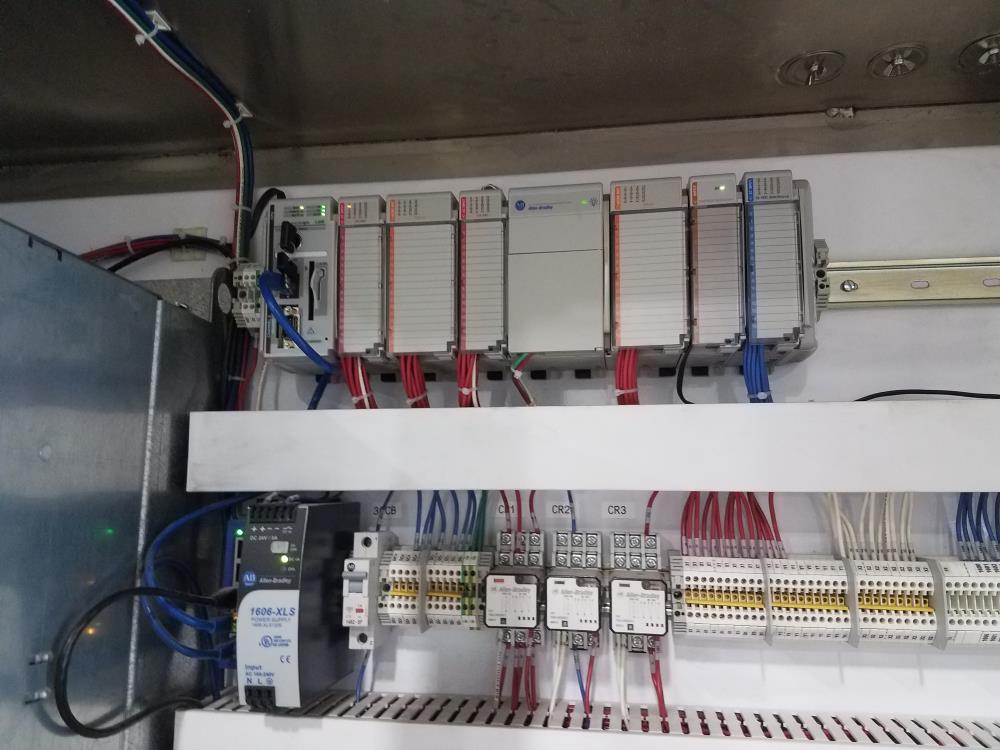

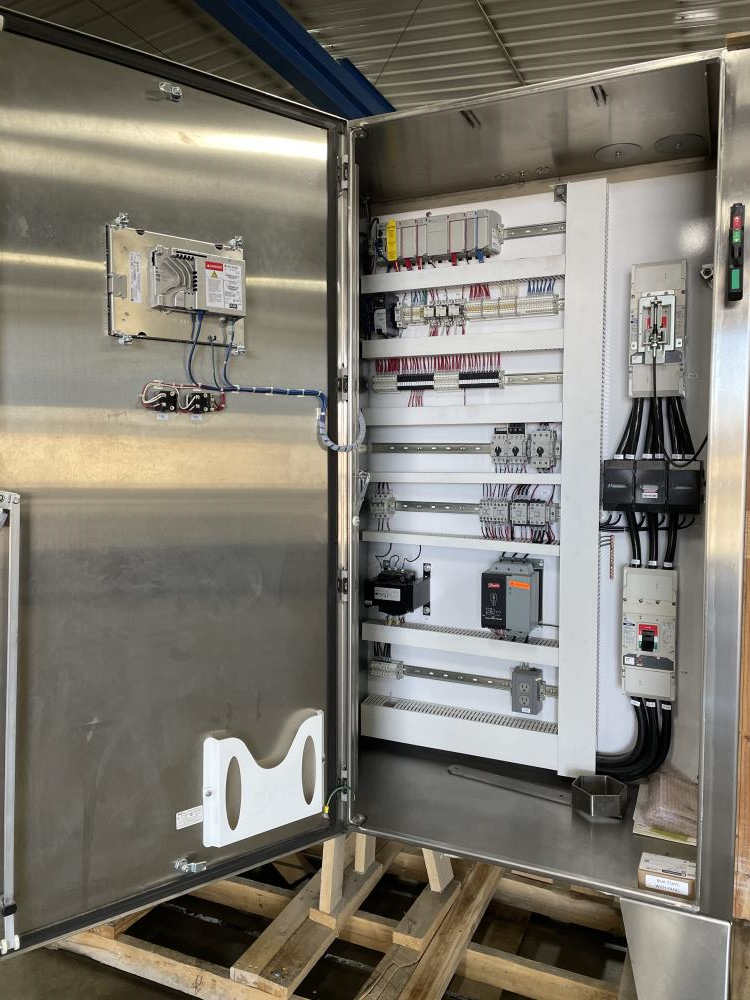

Allen Bradley CompactLogix PLC with I/O racks

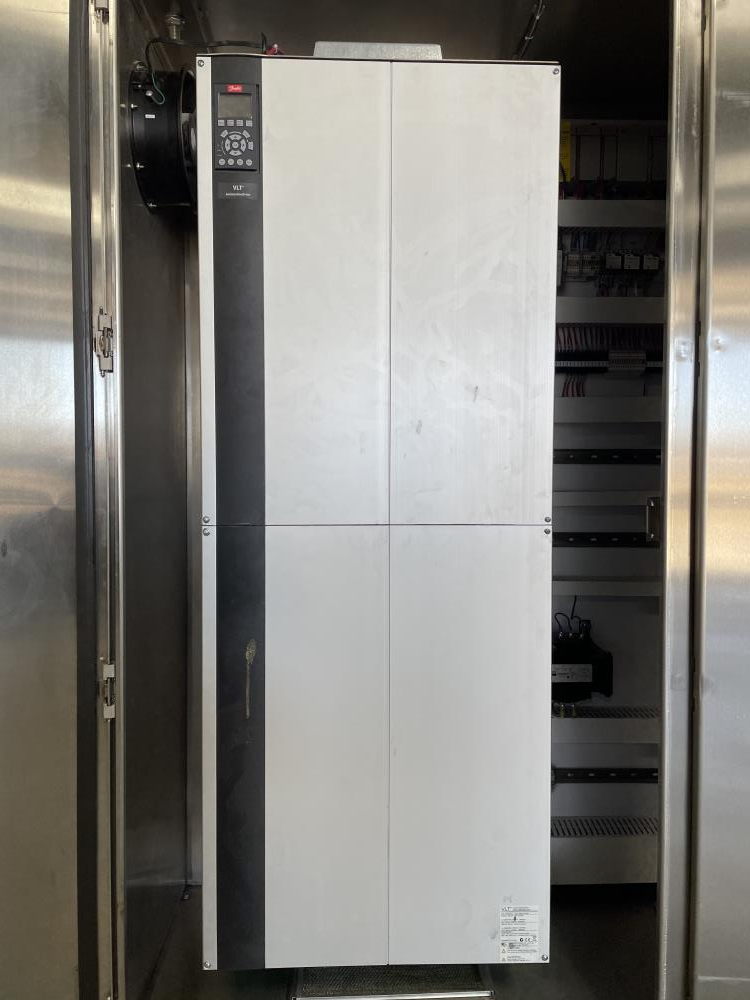

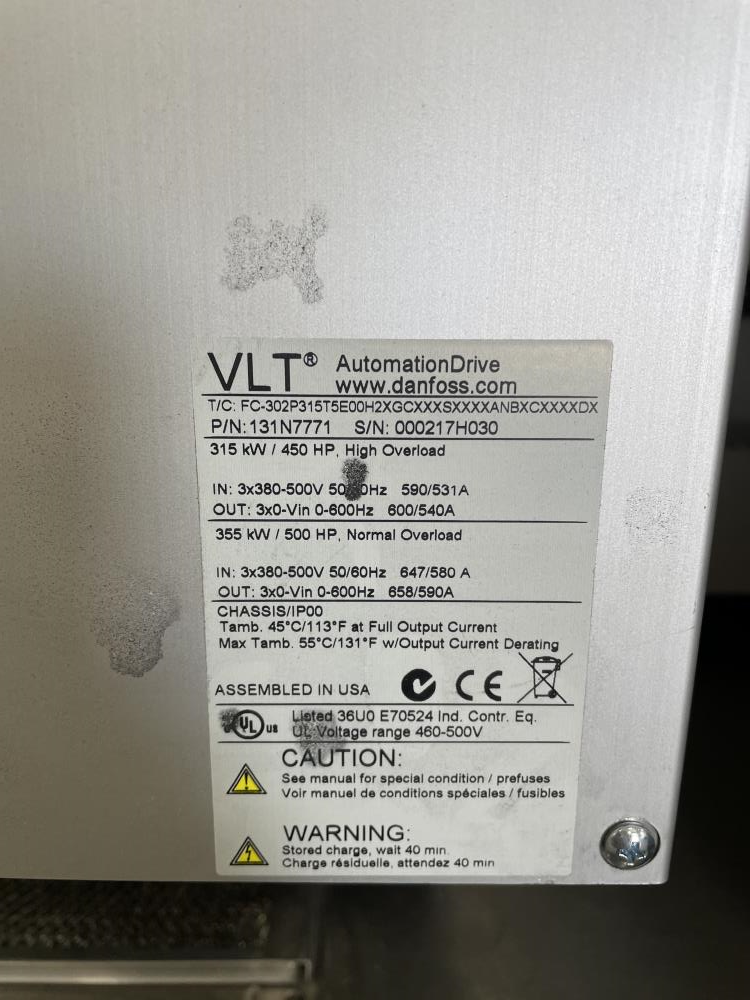

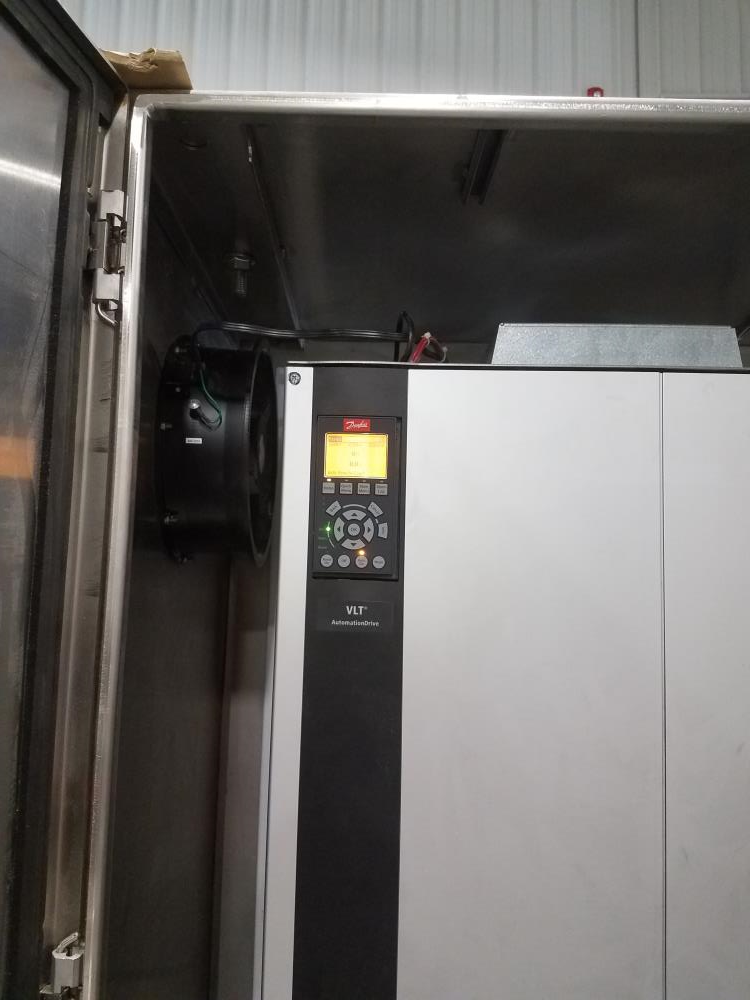

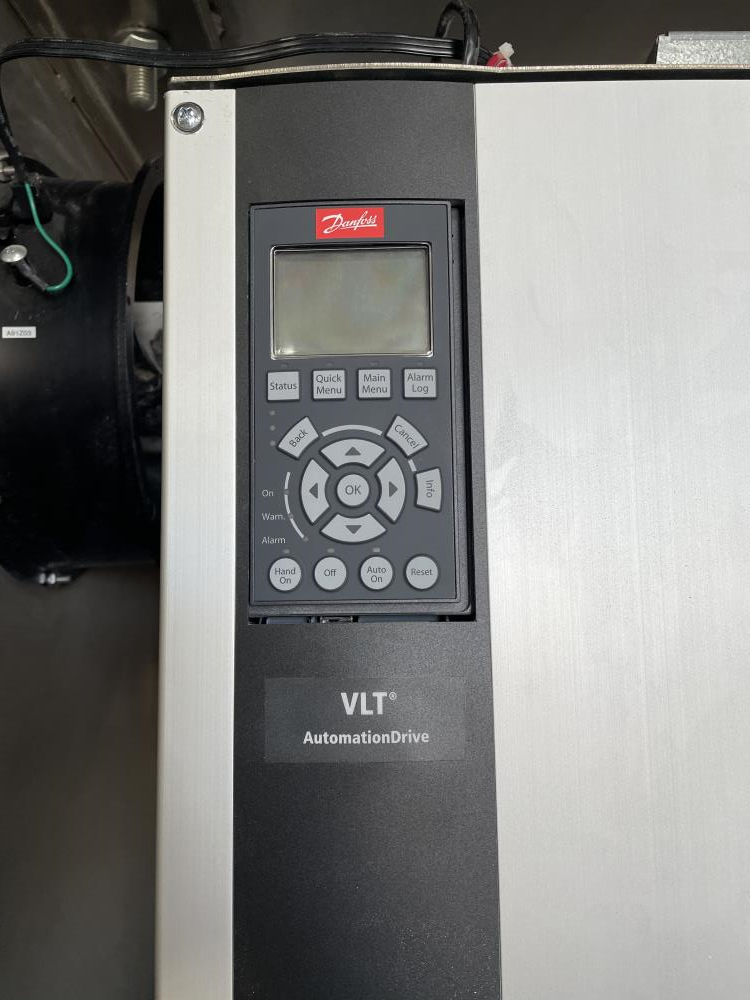

VFD speed control for main and auxiliary motors

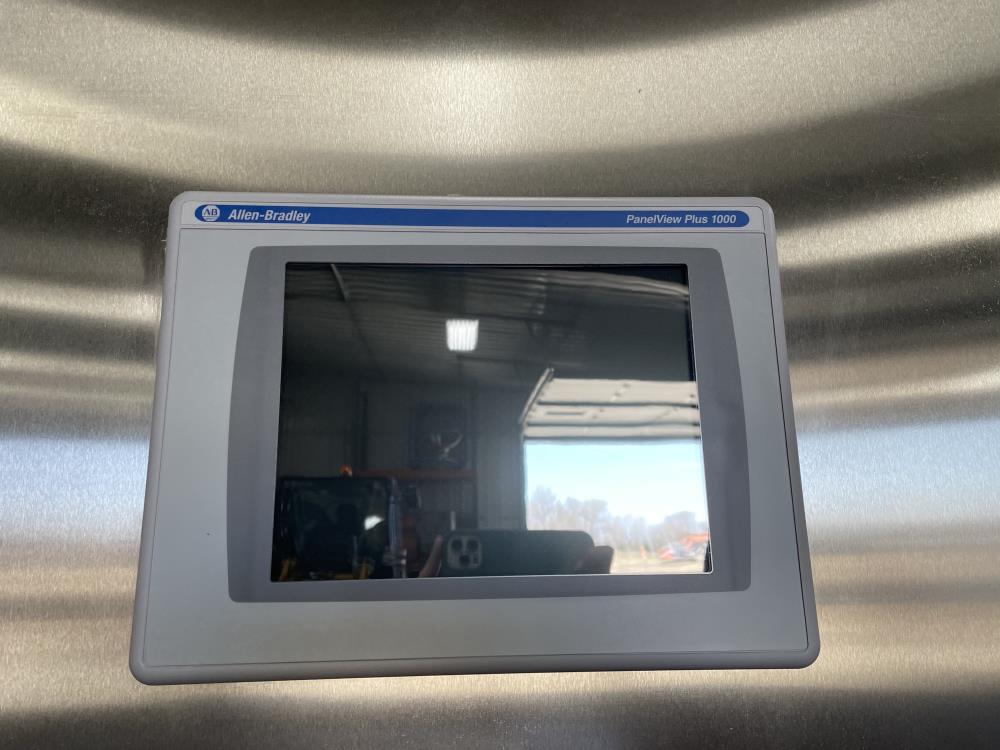

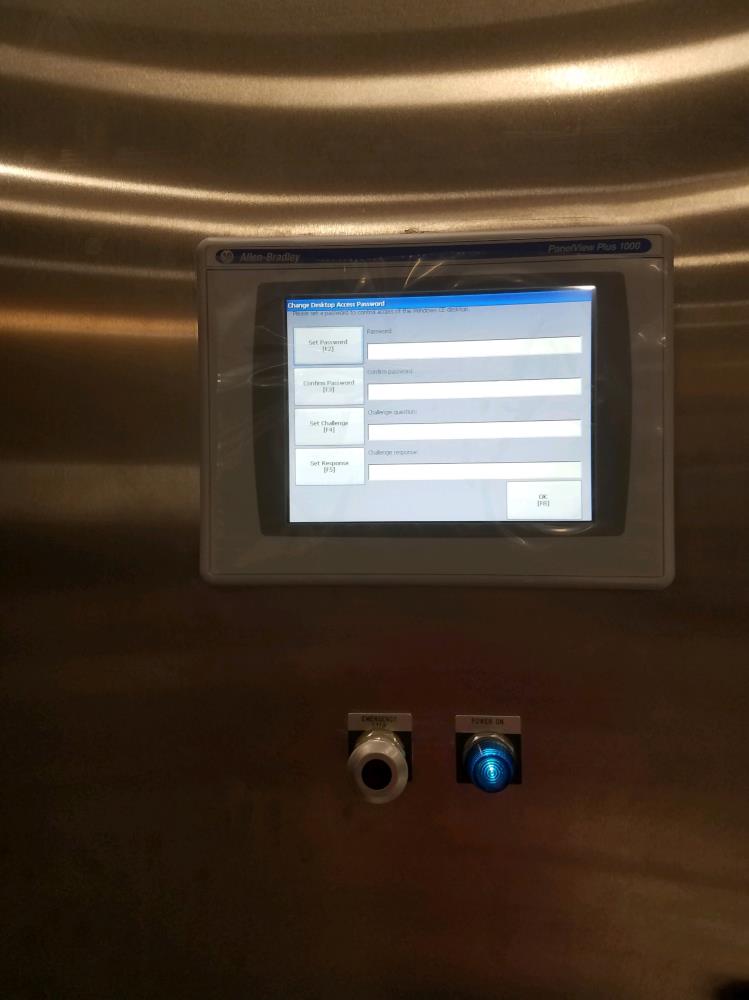

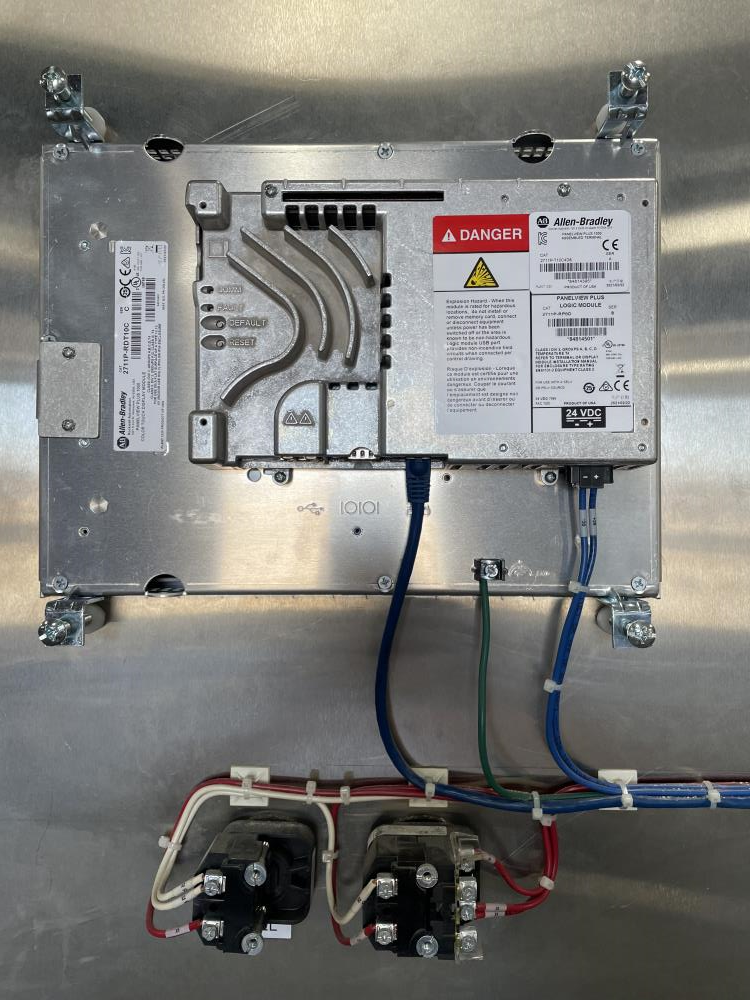

PanelView Plus 1000 graphics-based color touchscreen for real-time monitoring and control
Programmable safety interlocks on the main motor, scraper motor, slide gates, and front door
Built-in troubleshooting & diagnostics package
Control programming for automatic and manual operation

Utility Requirements:

Electrical: 600 Amps, 460V, 60Hz
Air: 40 PSI @ 10 CFM

This Advanced Food Systems 2000 lb. High-Speed Batch Mixer offers precision, durability, and automation for high-volume food processing applications, ensuring efficient ingredient blending, controlled mixing, and streamlined batch production.

Specifications

Category :

Mixers / Blenders

Sub-Category :

High Speed Mixer

Manufacturer :

Advanced Food Systems

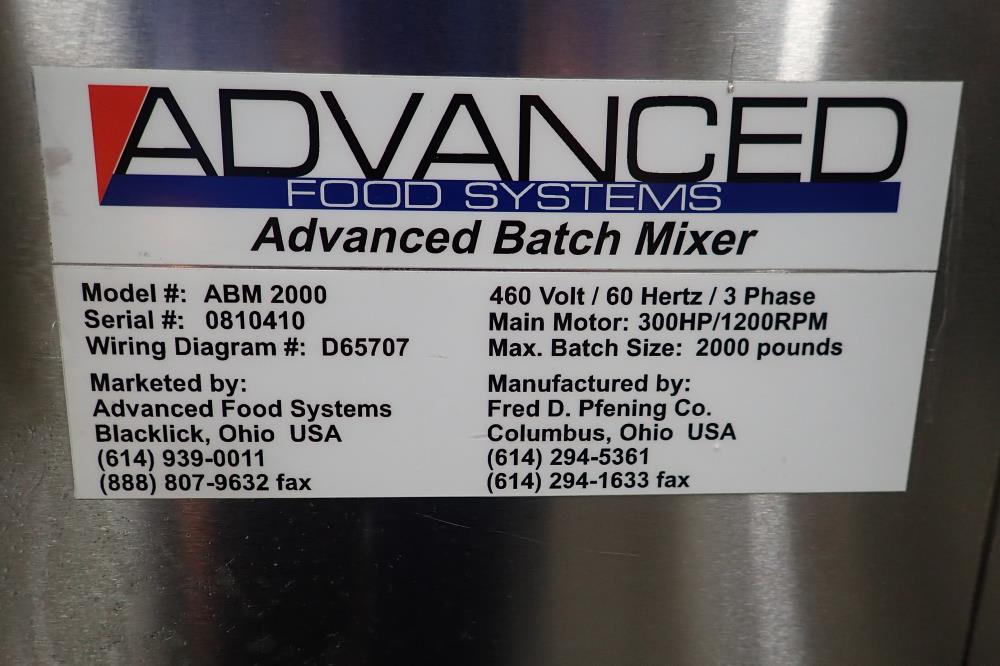

Model :

ABM 2000

Serial Number :

0810410

Year Built :

2011

Material of Construction :

Stainless Steel

Motor :

300 hp

Condition :

Used

Overall Dimensions :

With legs 144 in. long x 84 in. wide x 120 in. tall

Approximate Weight :

12,000 lbs

Attachments

5065002-ABM 2000 Specifications.pdf
5065002-TYPICAL HIGH SPEED MIXING INSTALLATIONS.pdf
