Used 2018 VMI SPI 400 Spiral Mixing System

Item #: 5124001

Sell Us Yours

Description

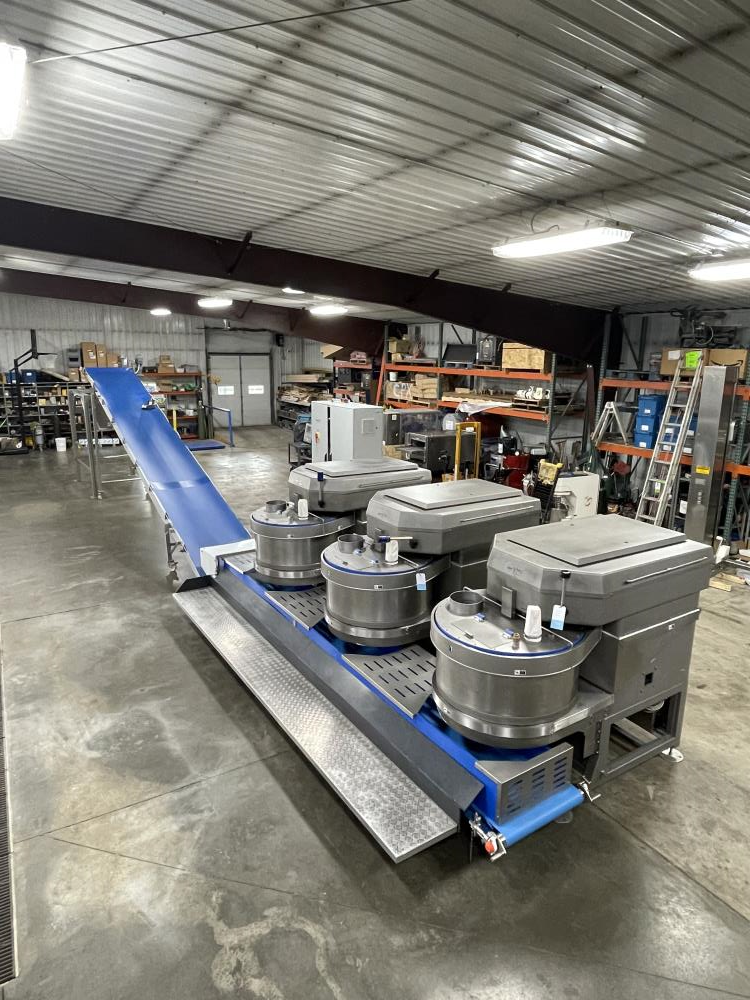

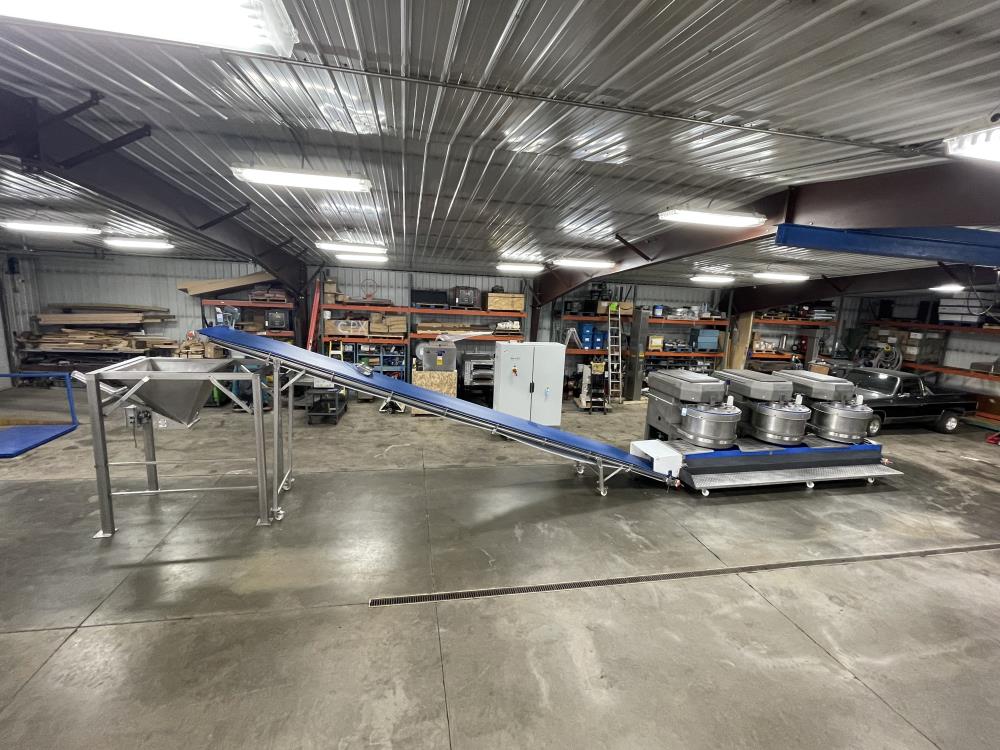

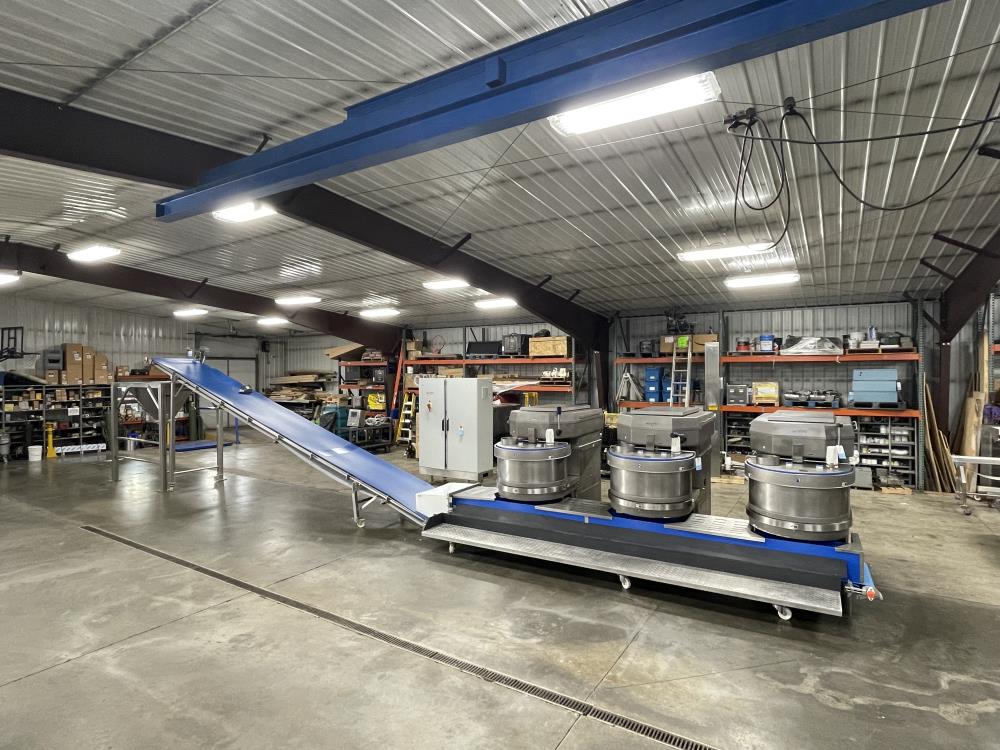

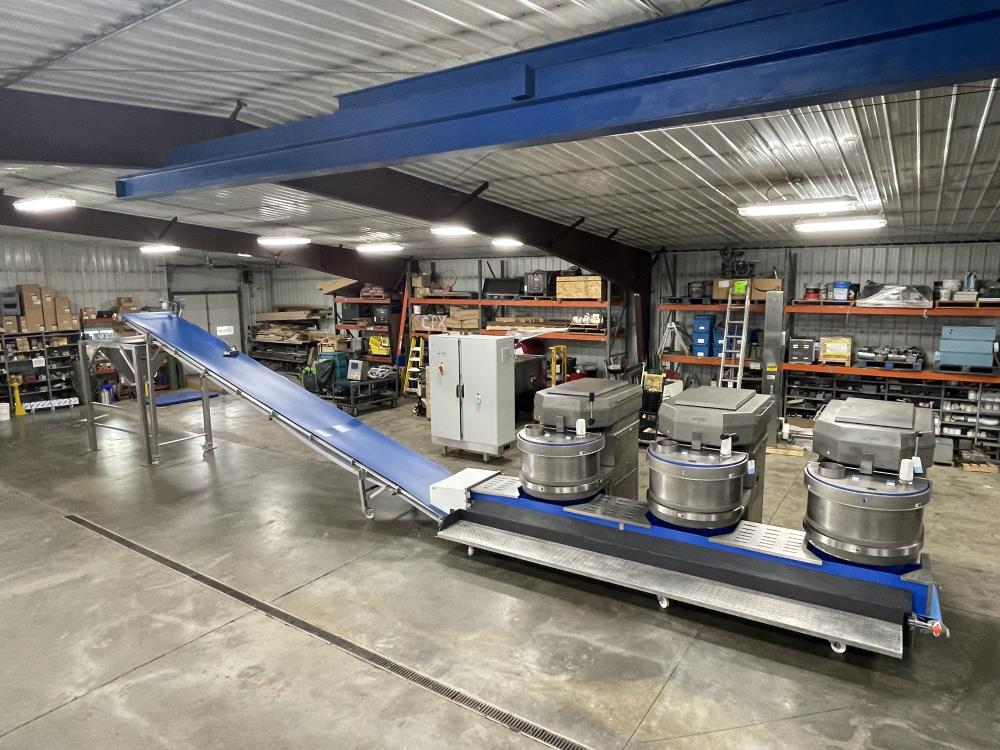

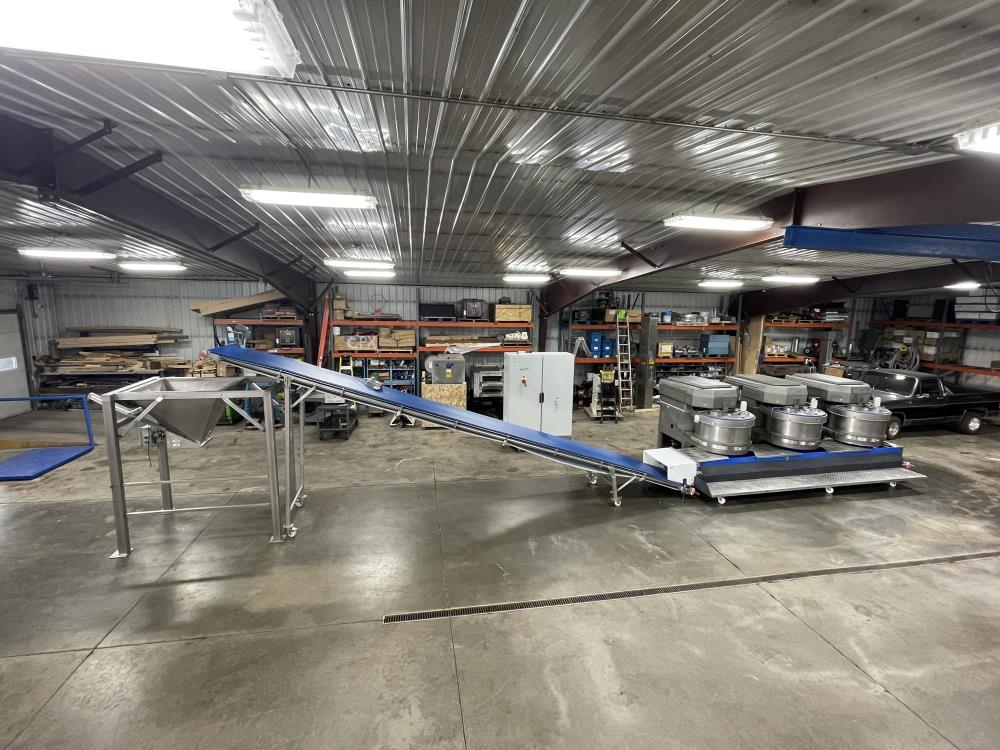

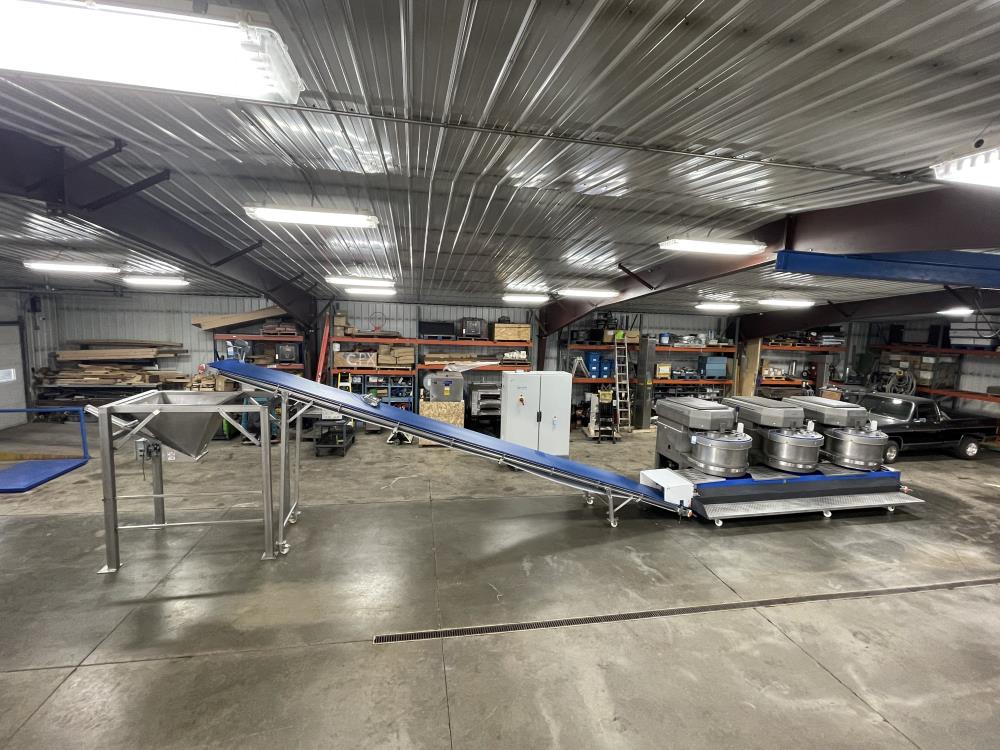

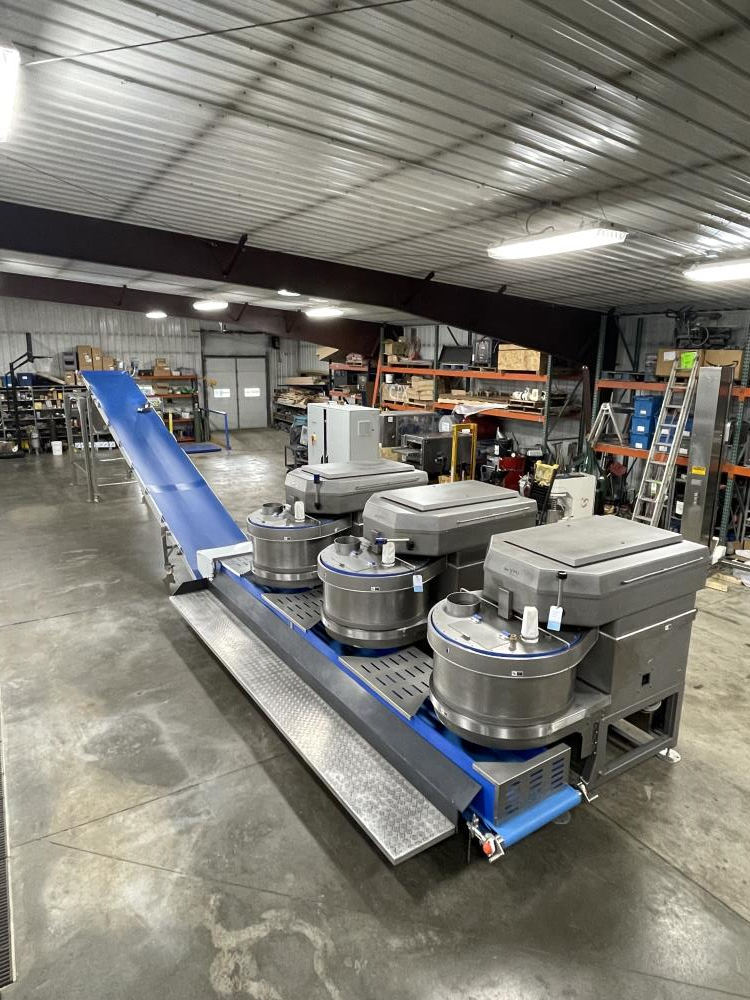

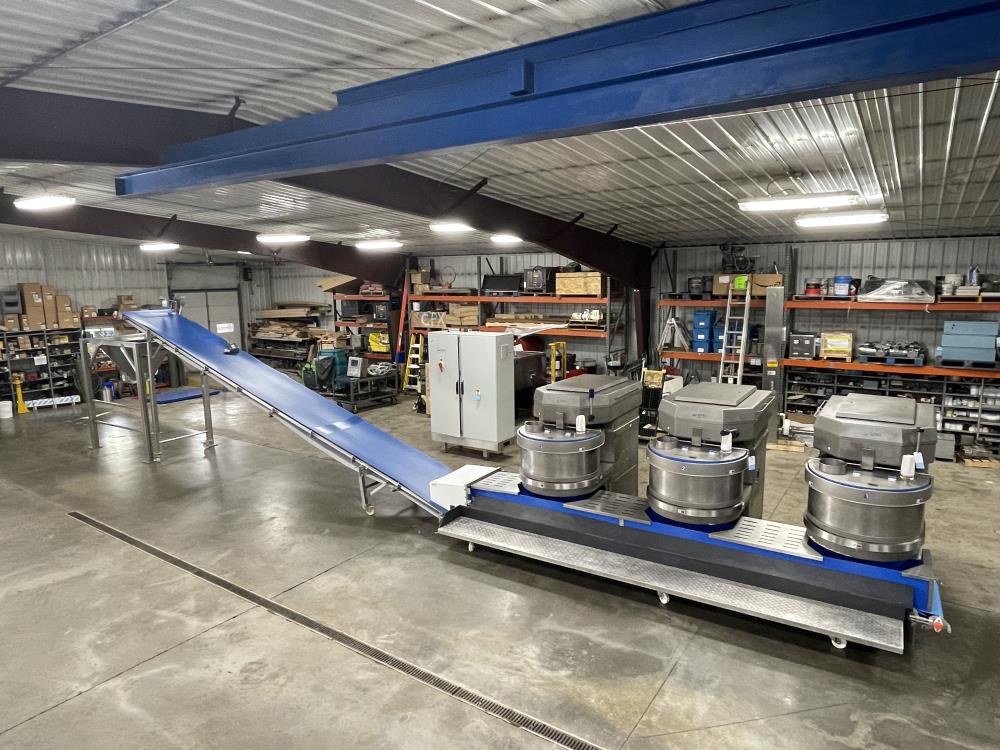

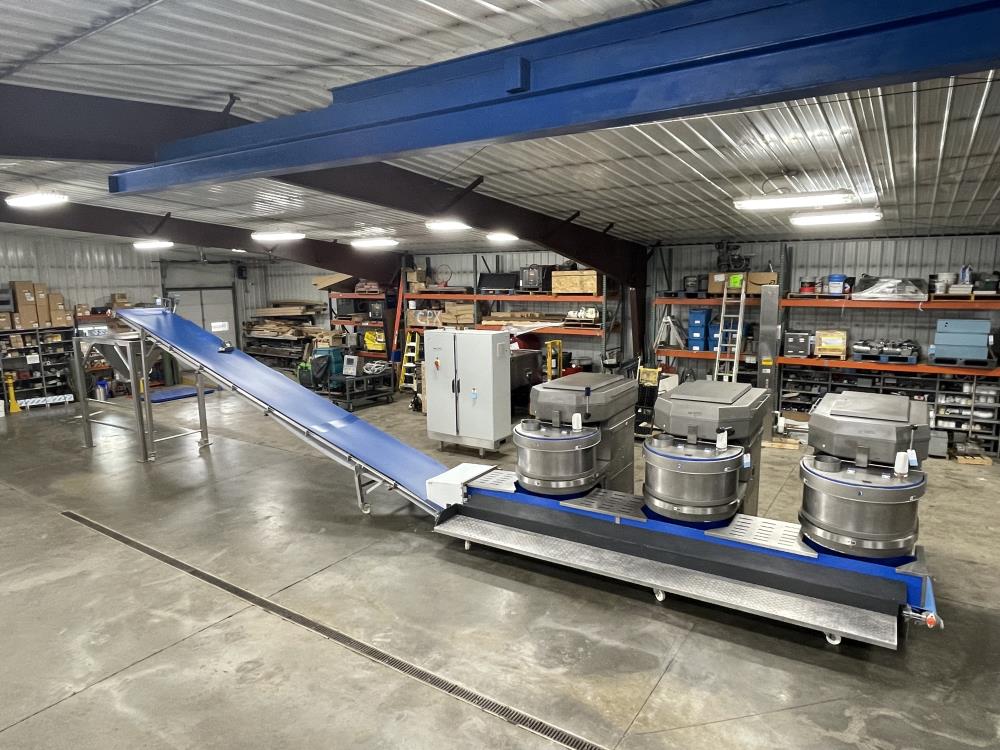

This 2018 VMI SPI 400 spiral mixing system is a complete, integrated dough mixing and handling line, featuring three VMI spiral mixers, bottom-drop to conveyors, incline trough conveyor, stainless steel chunker, and three Smoot scaling hoppers. Designed for high-capacity, sanitary dough processing, this system is equipped with Allen Bradley and Mettler Toledo controls, and is fully constructed from stainless steel for food-grade operations.

System Components & Specifications

Spiral Mixing System

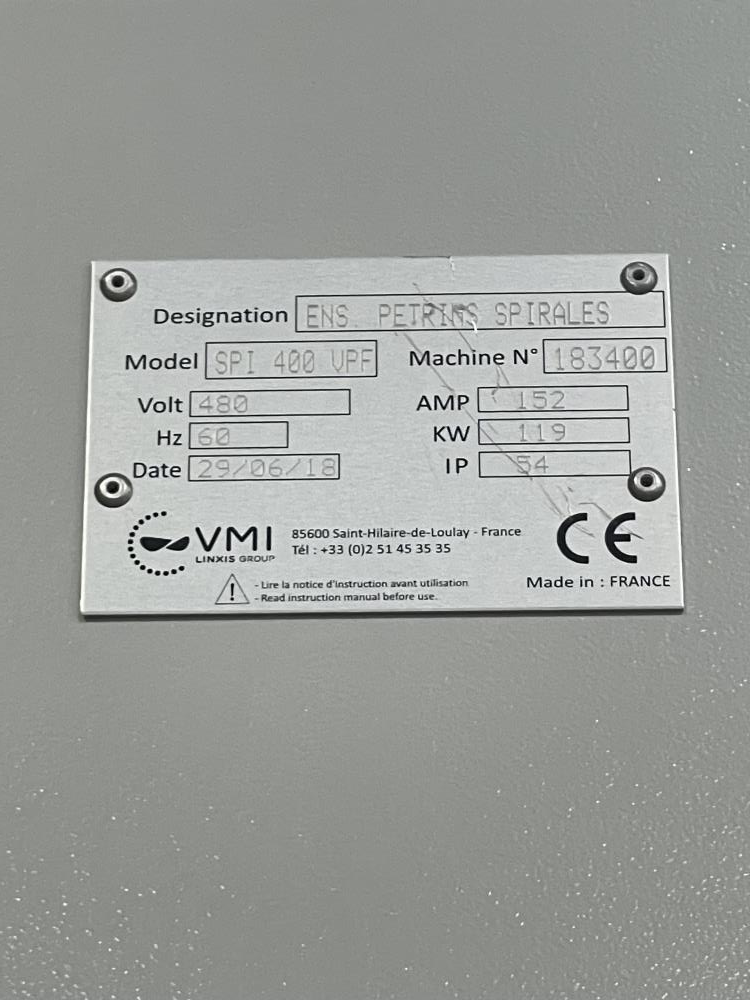

Designation: ENS PETRINS SPIRALES
Model: SPI 400 VPF
Voltage: 480V, 3 Phase

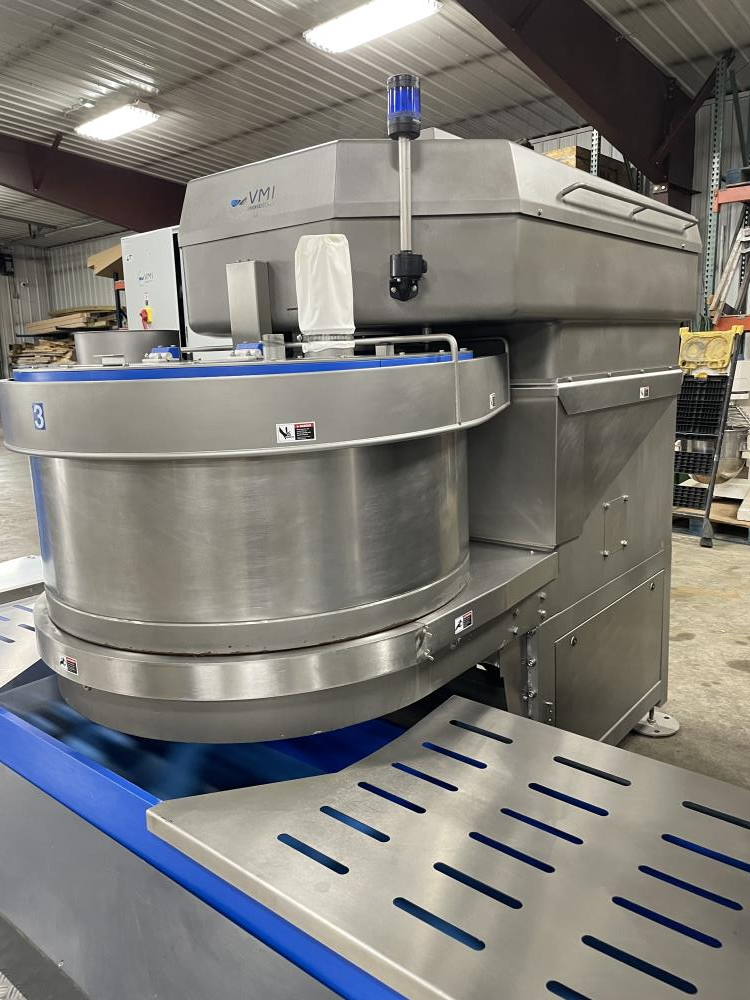

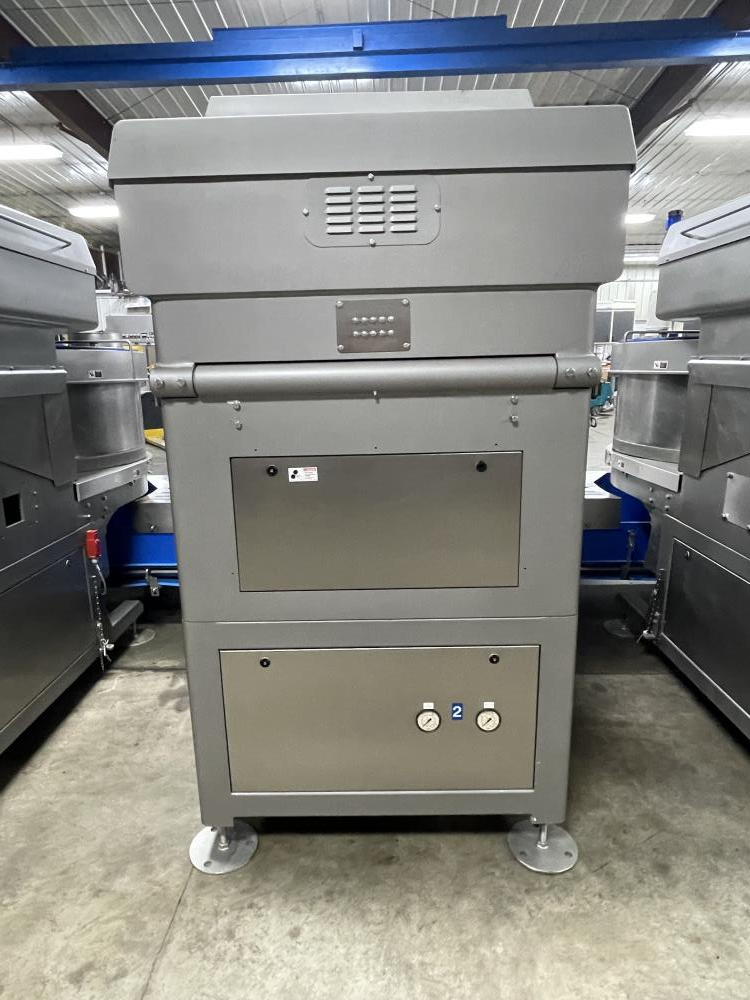

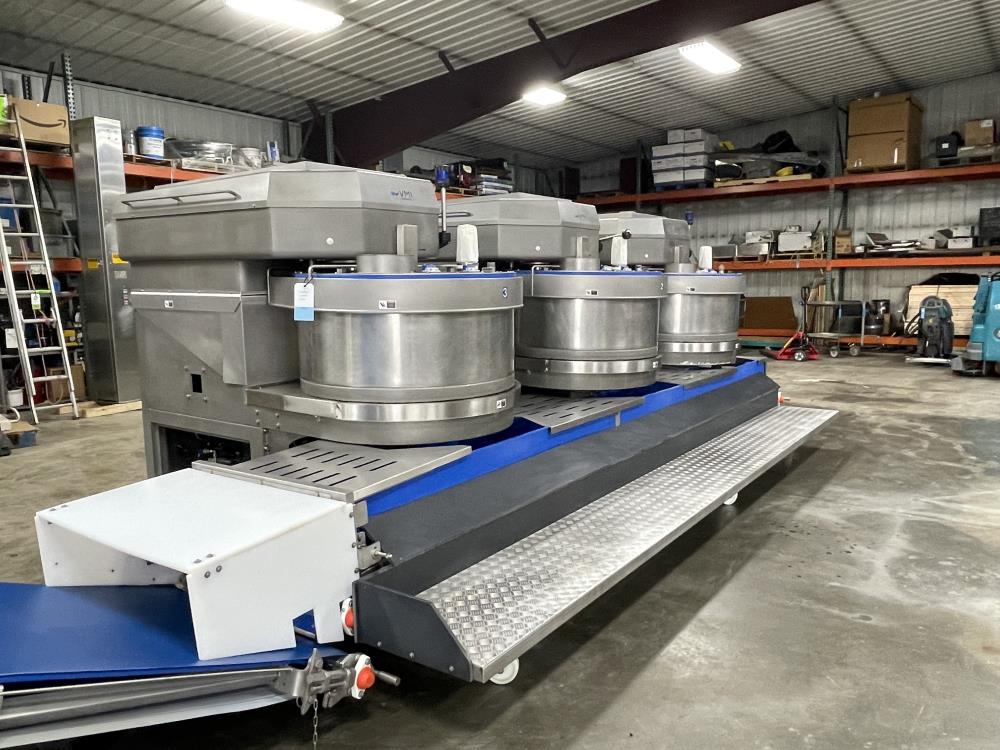

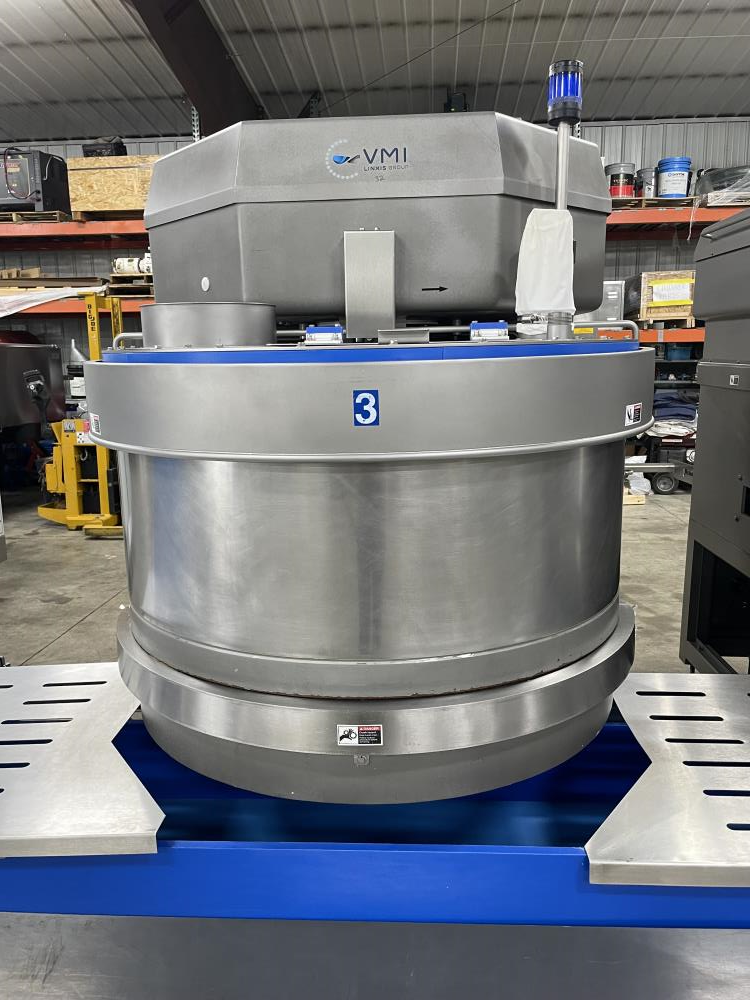

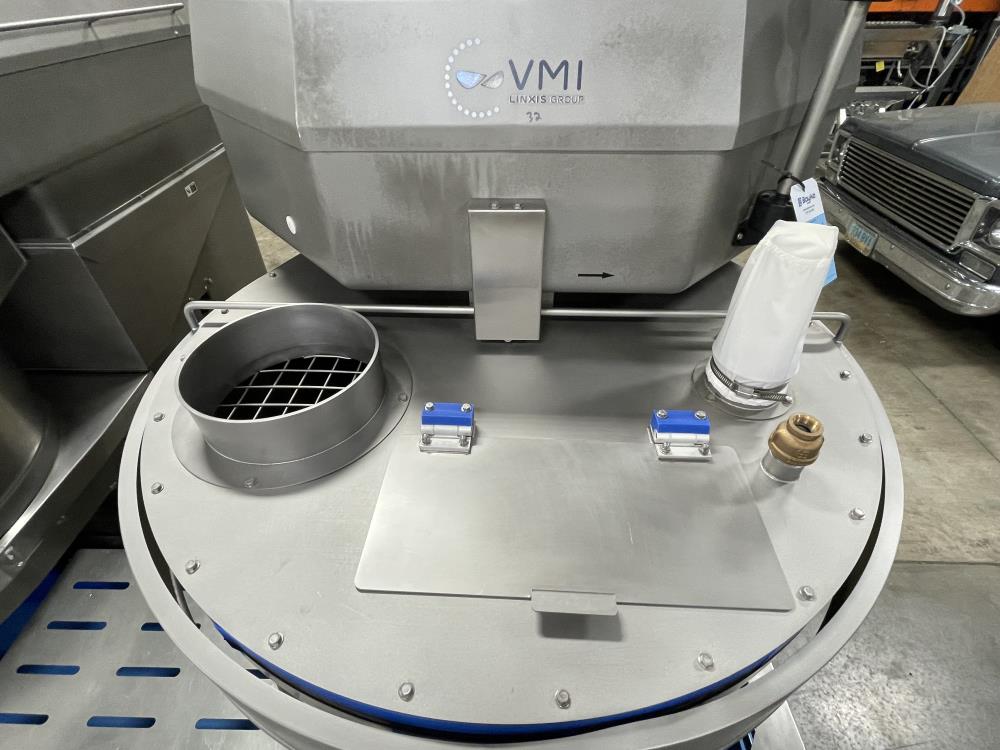

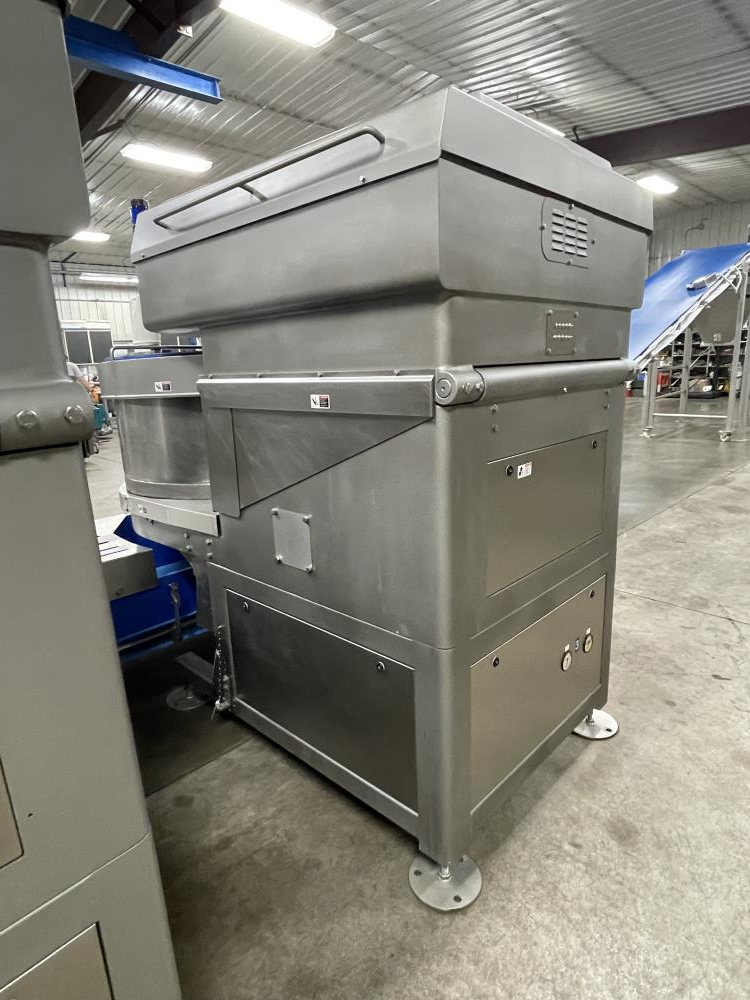

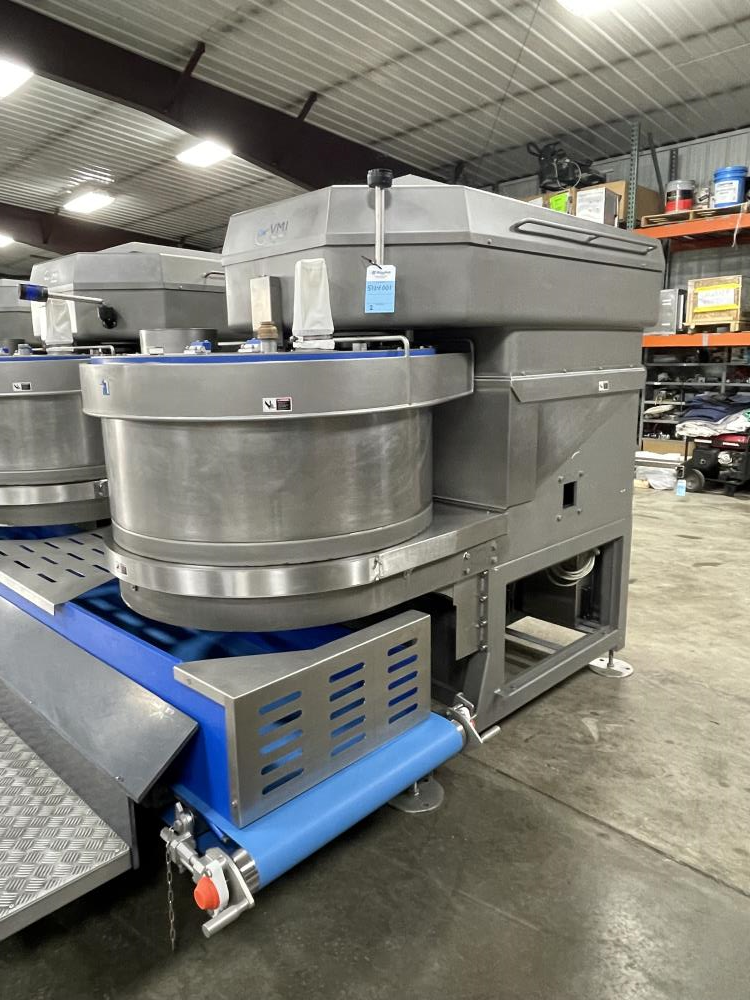

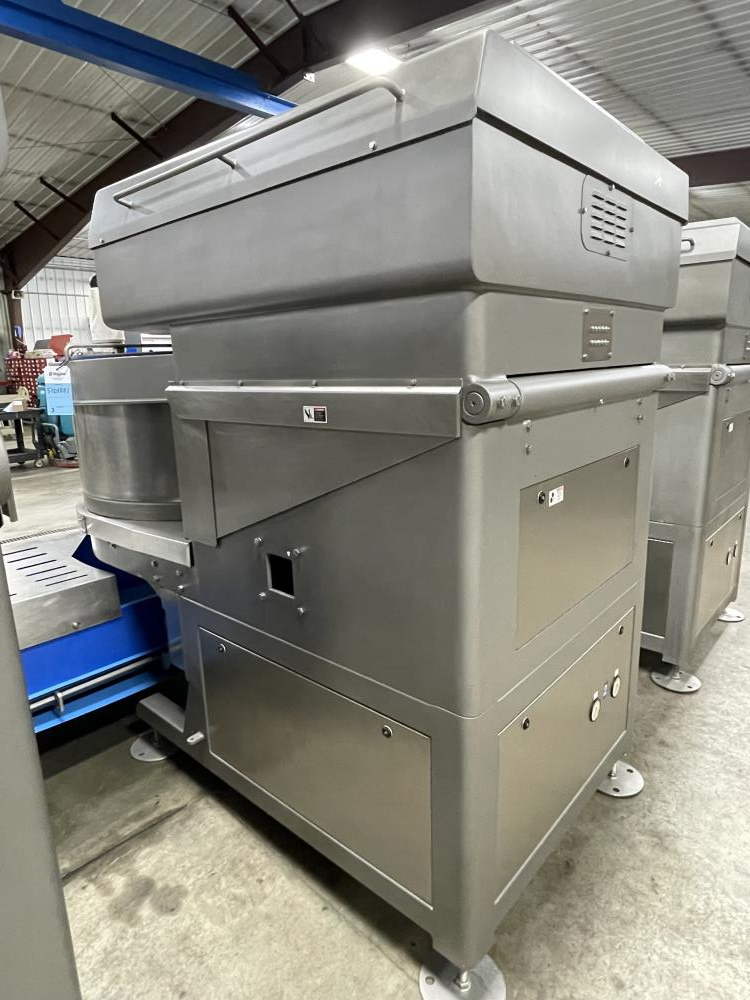

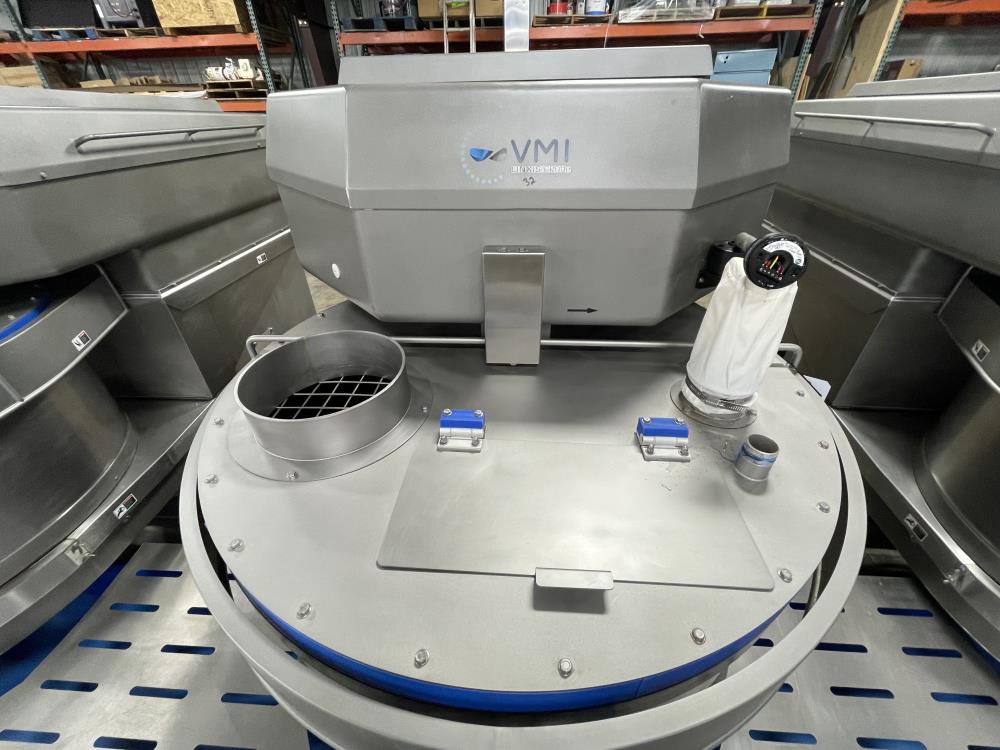

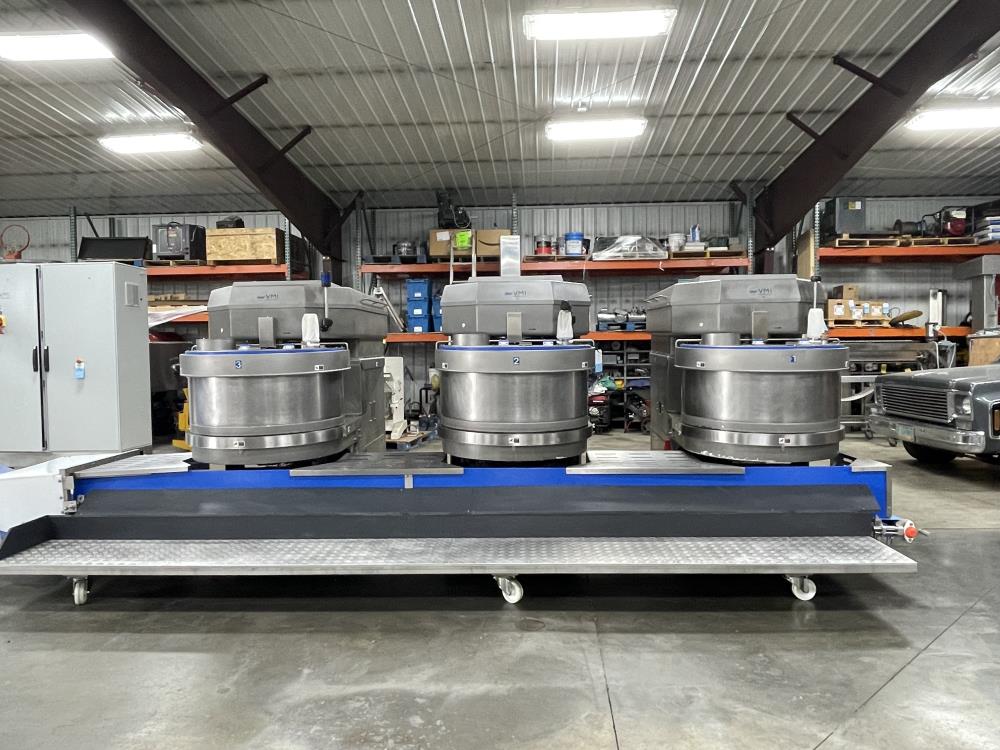

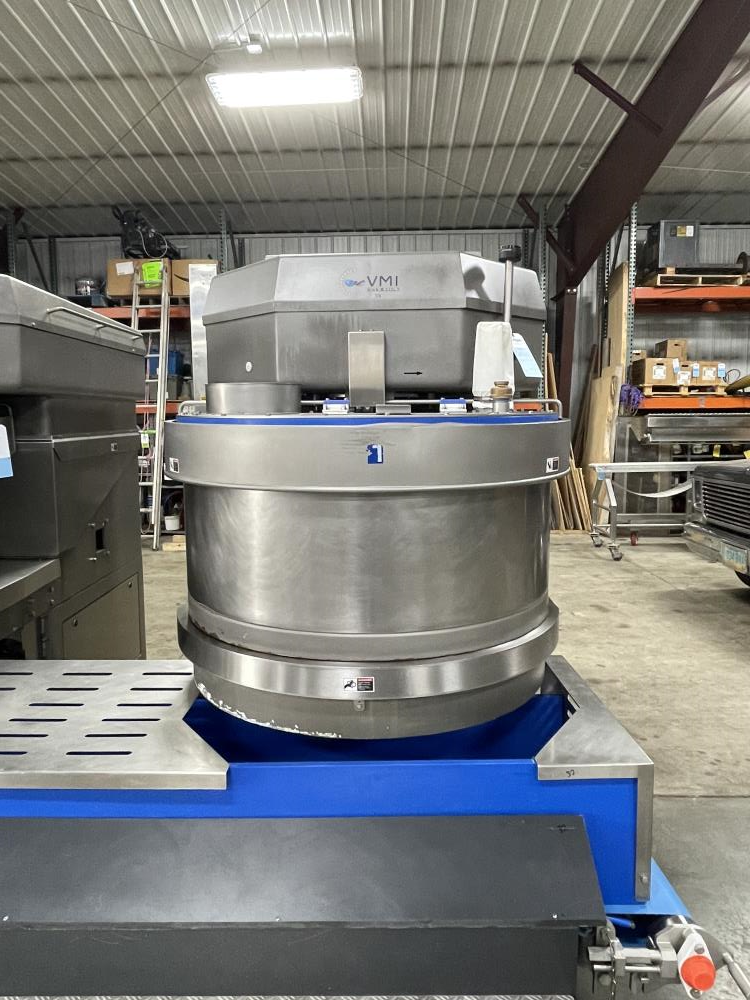

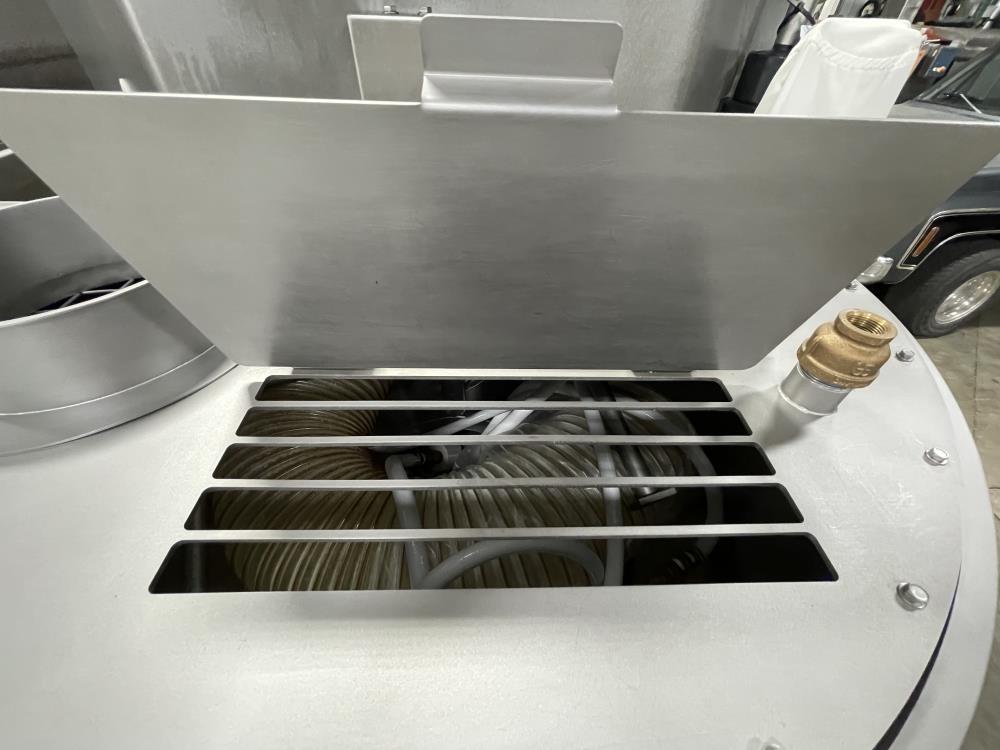

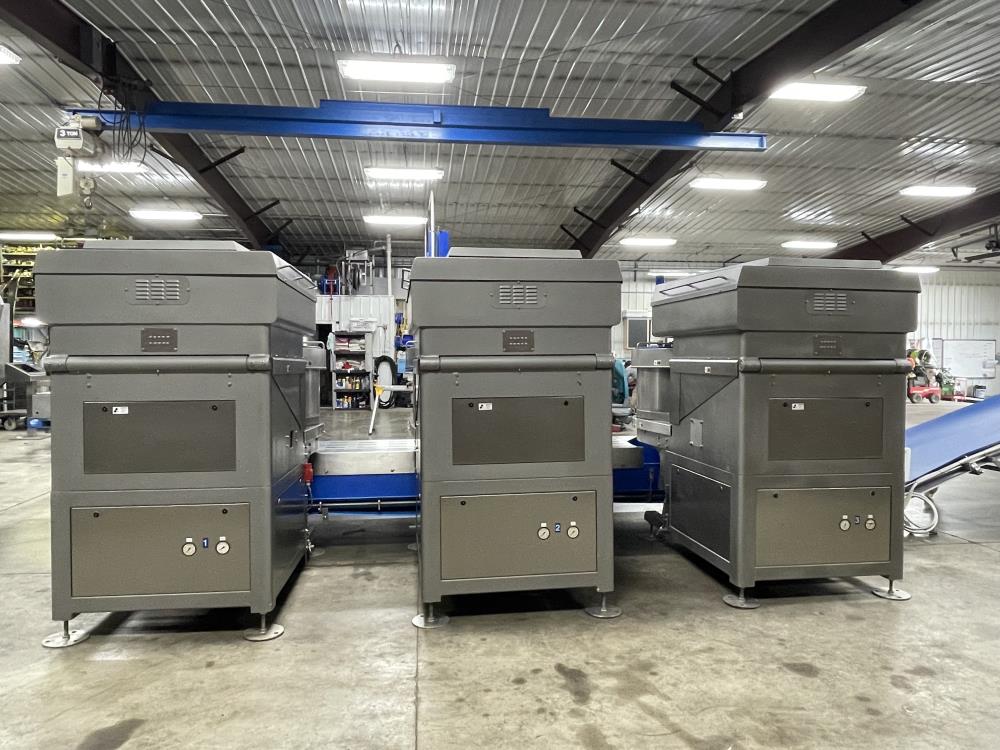

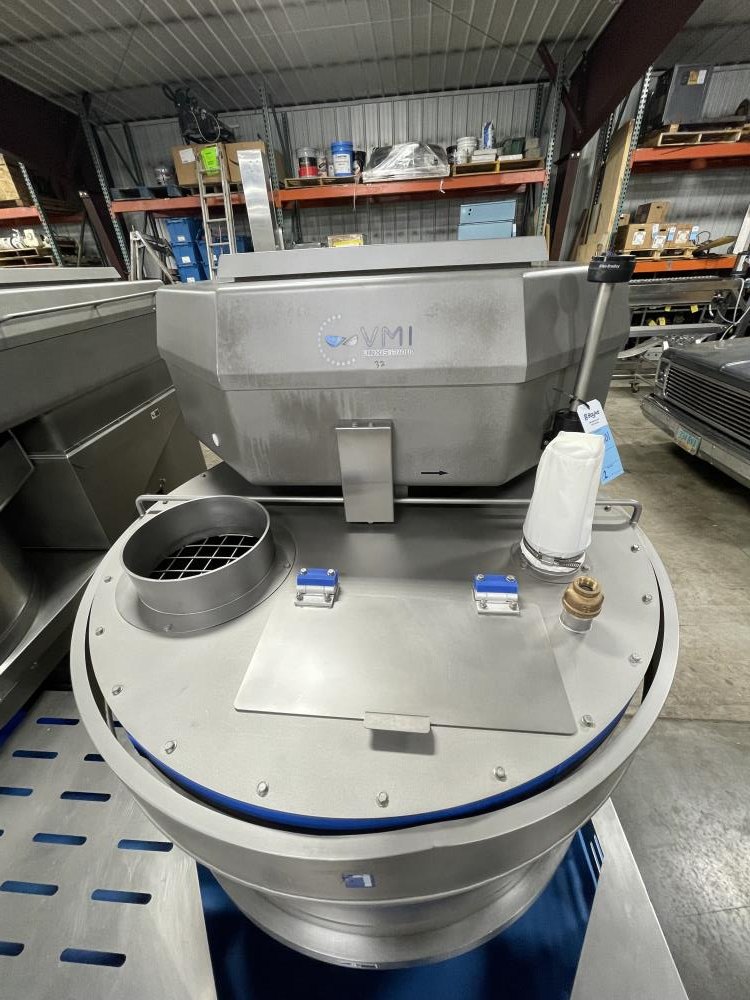

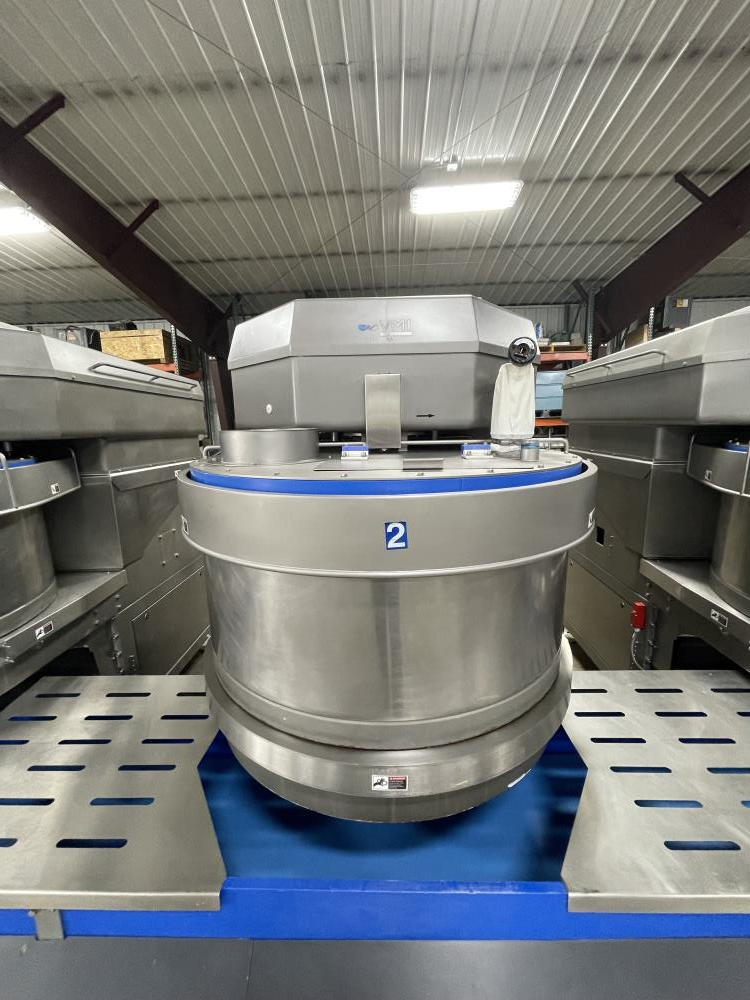

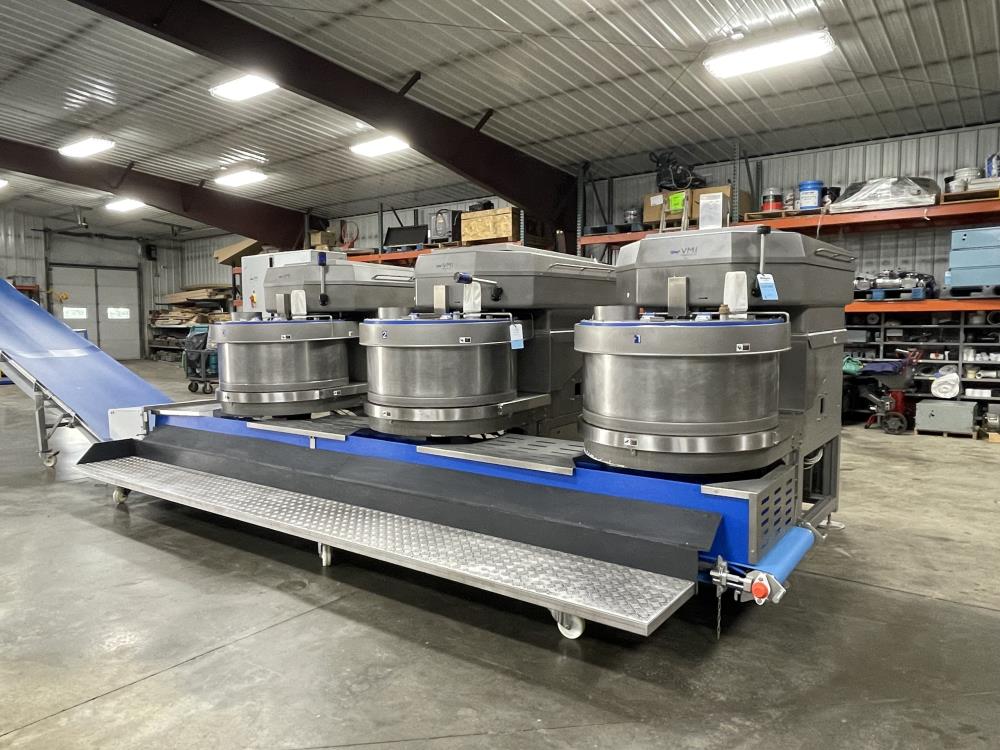

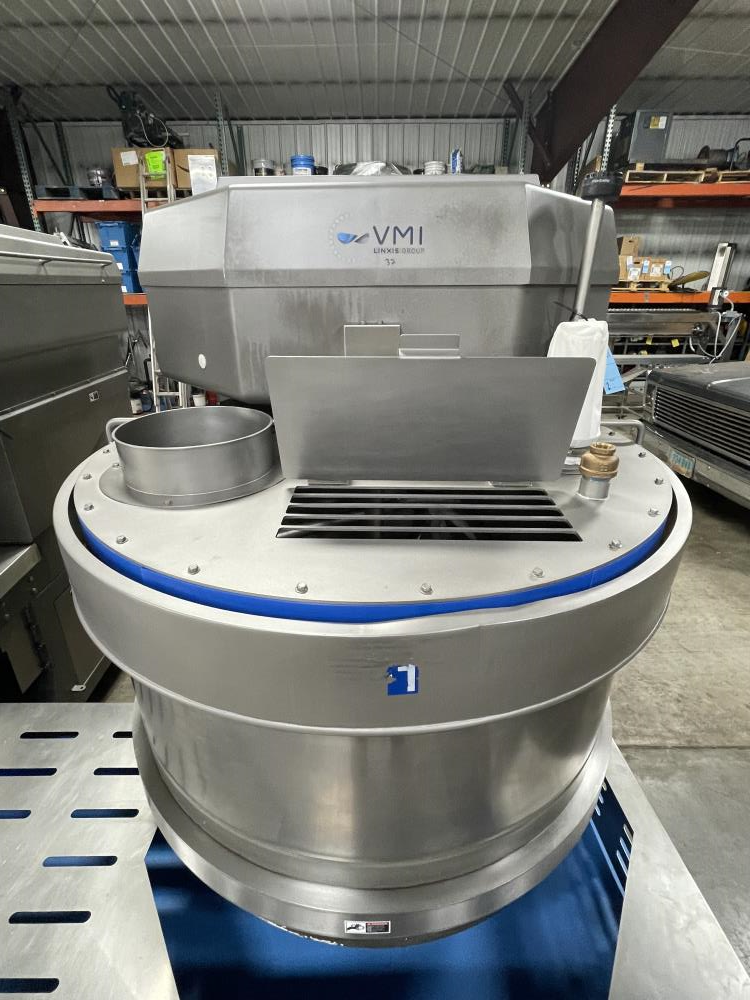

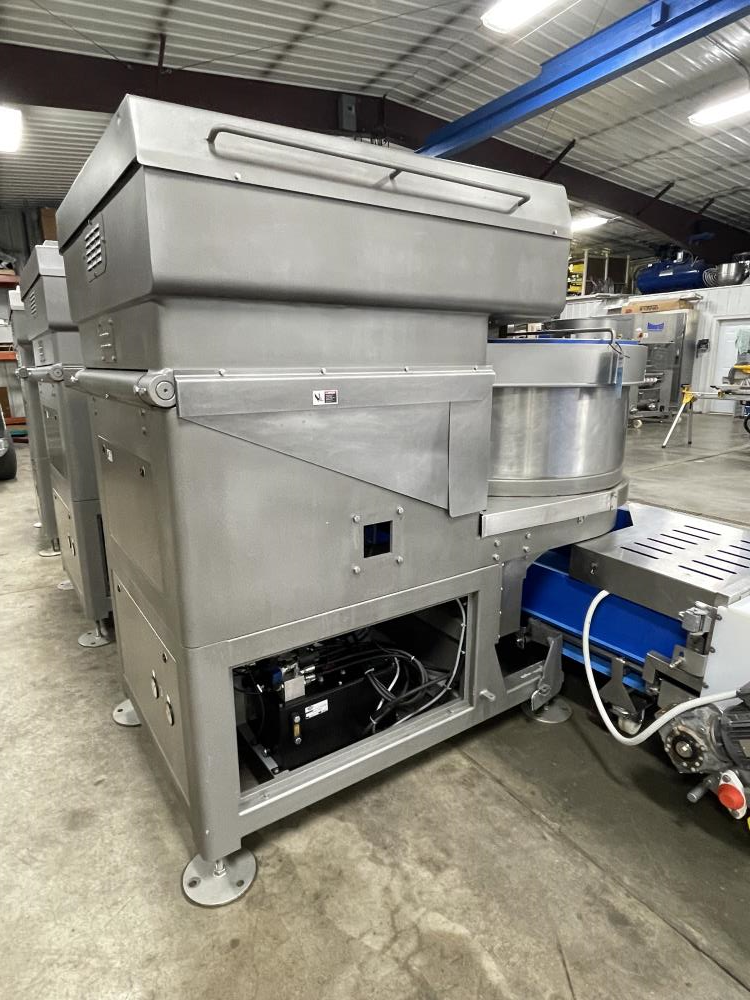

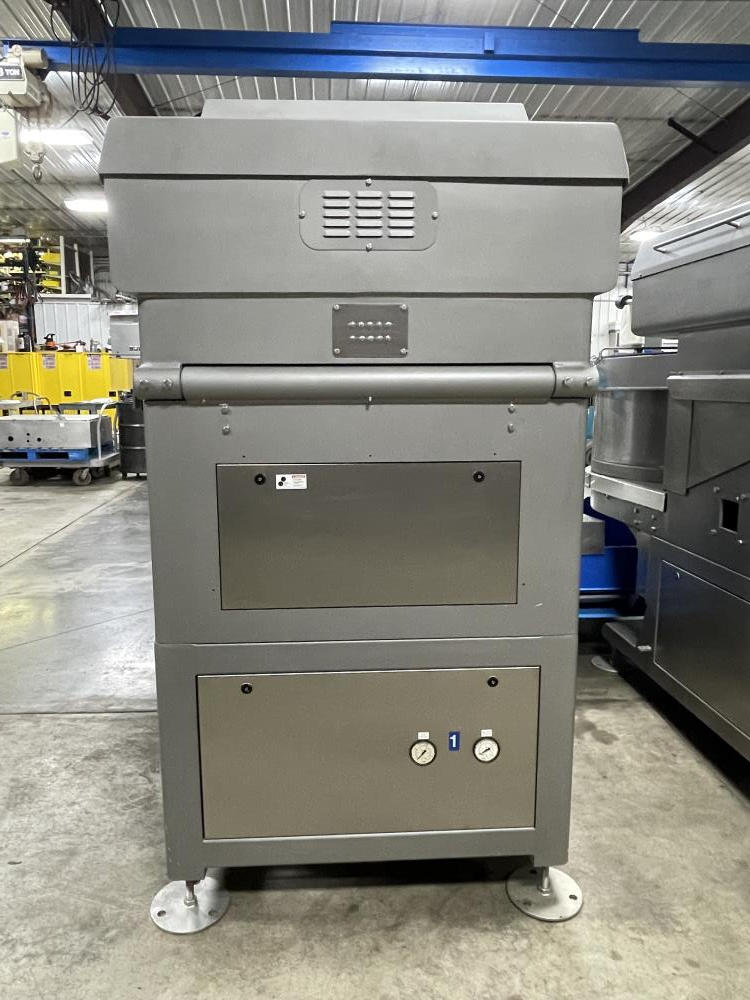

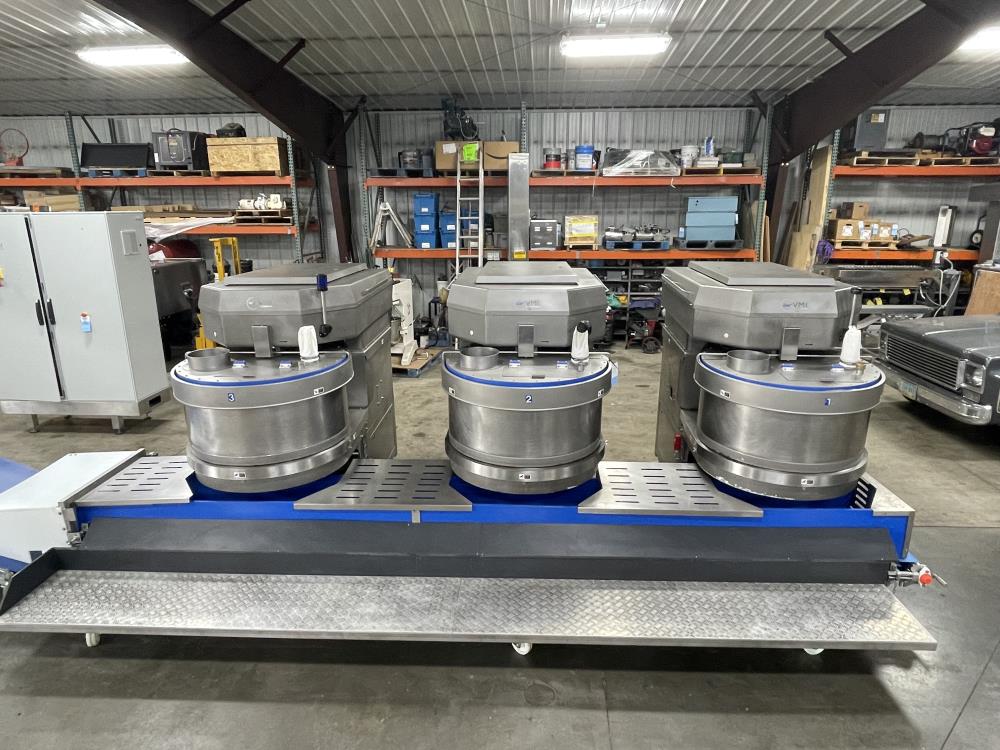

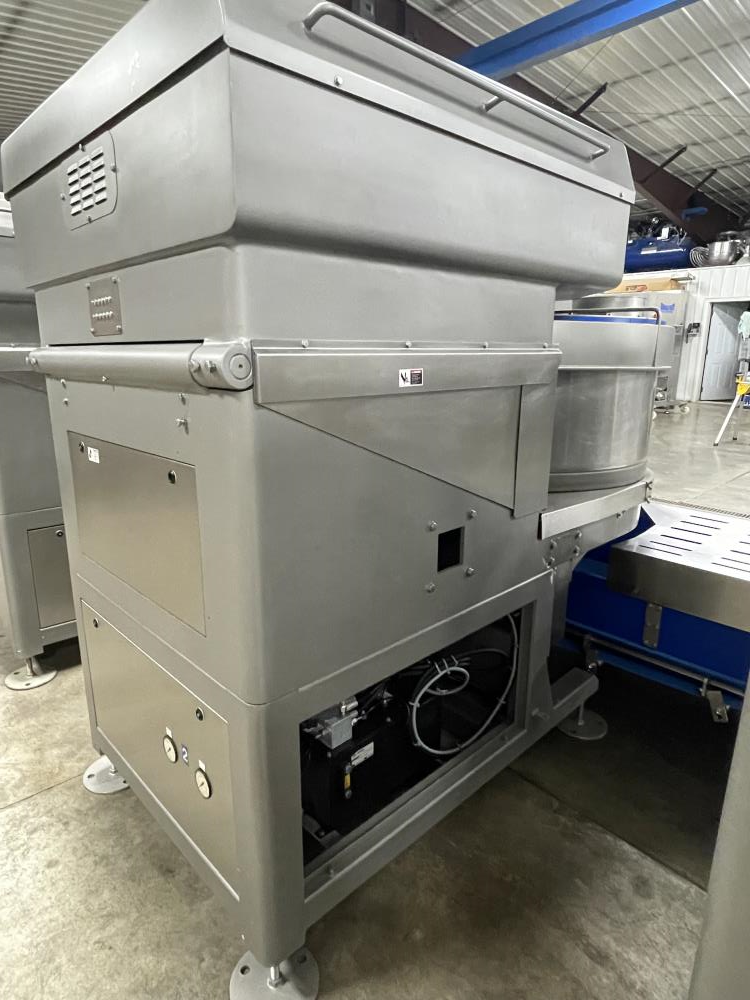

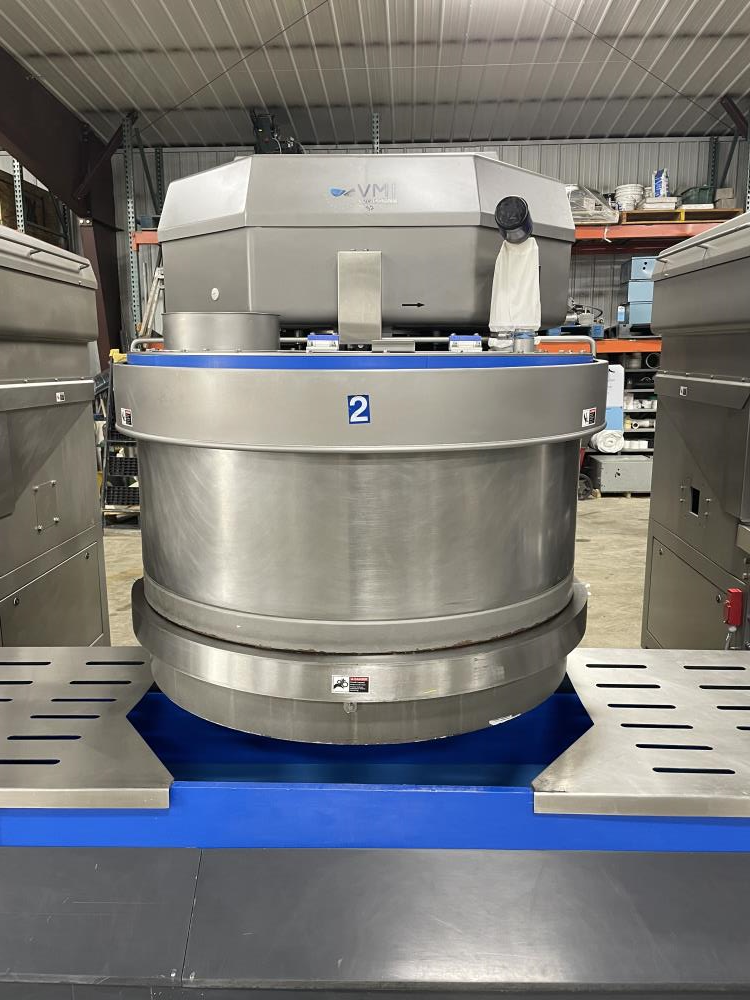

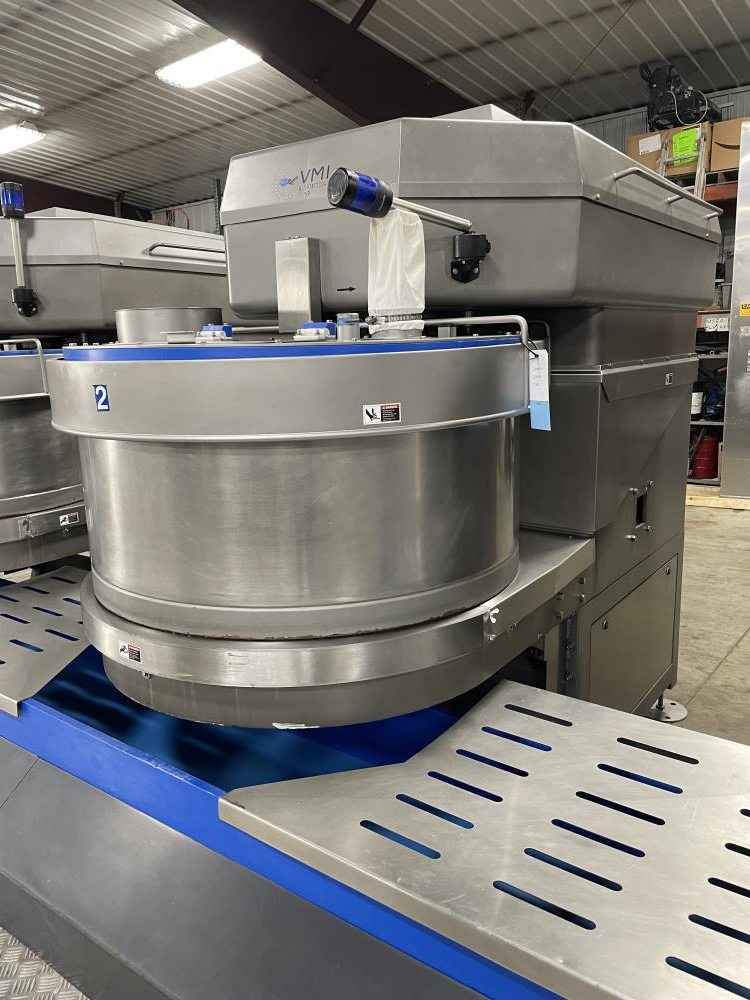

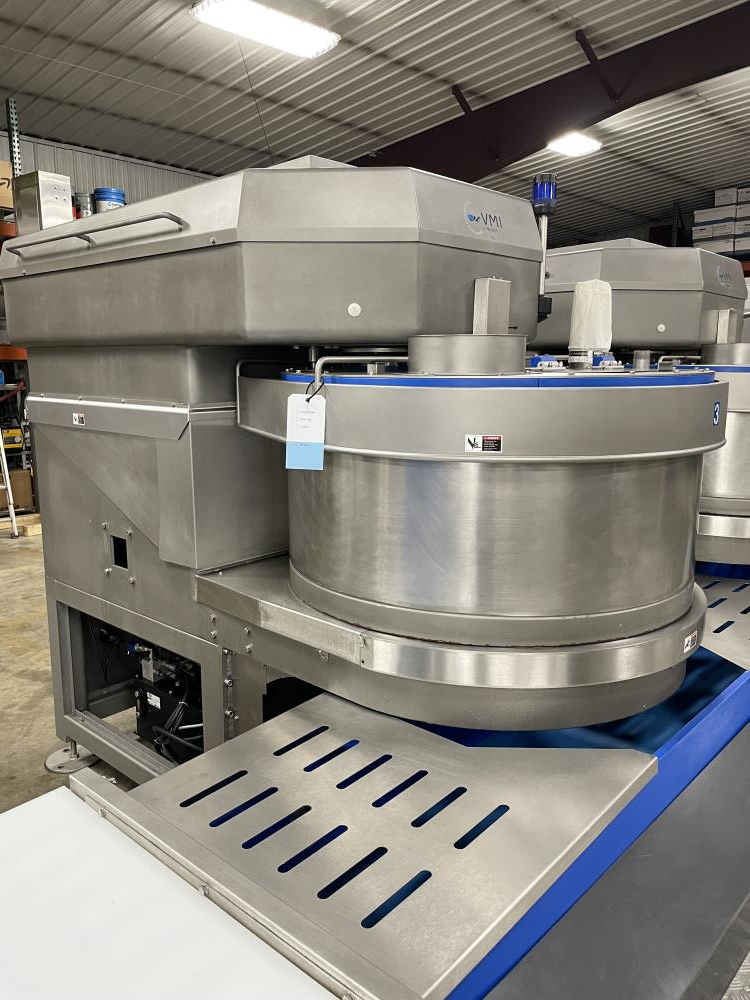

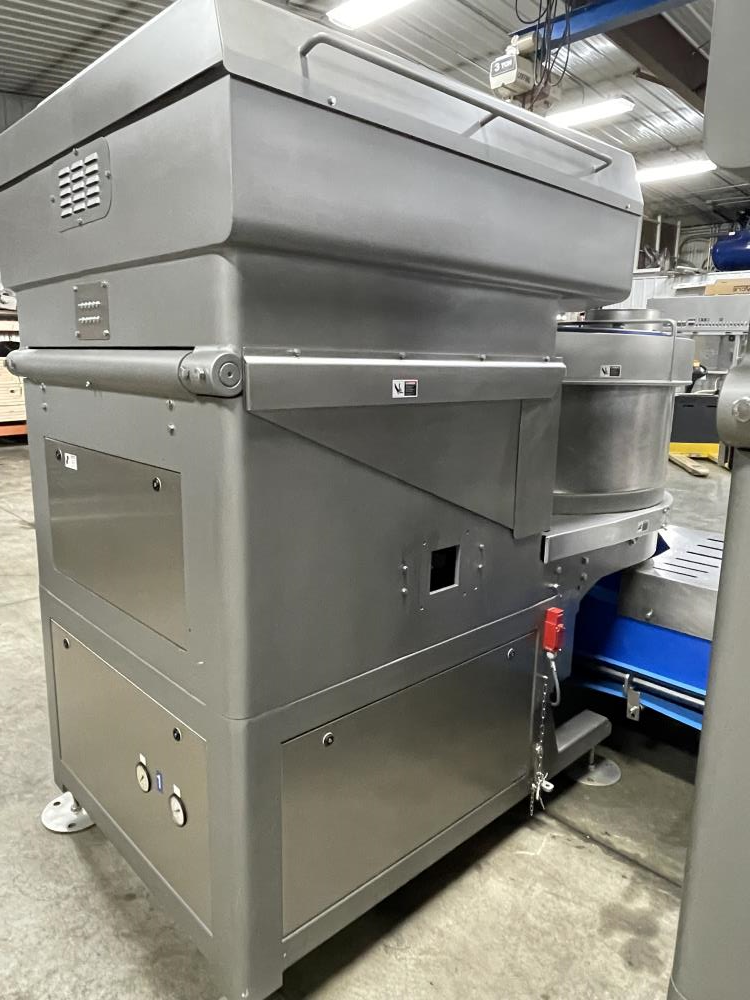

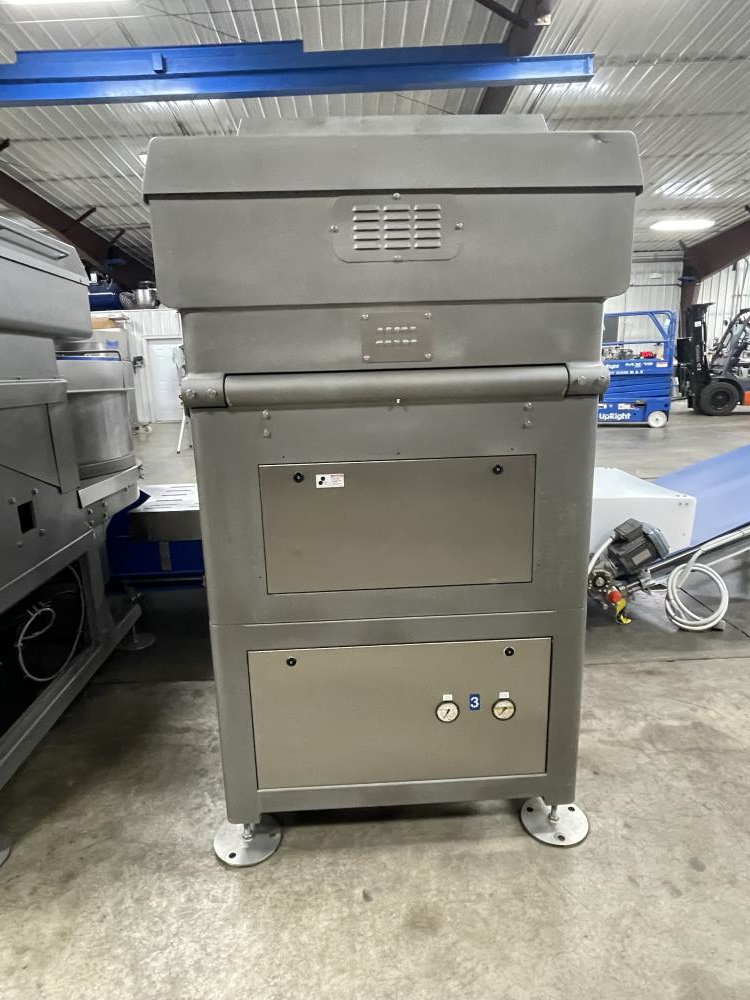

Includes (3) VMI 400 spiral mixers
Mixer bowl dimensions: 40 in. diameter x 20 in. deep

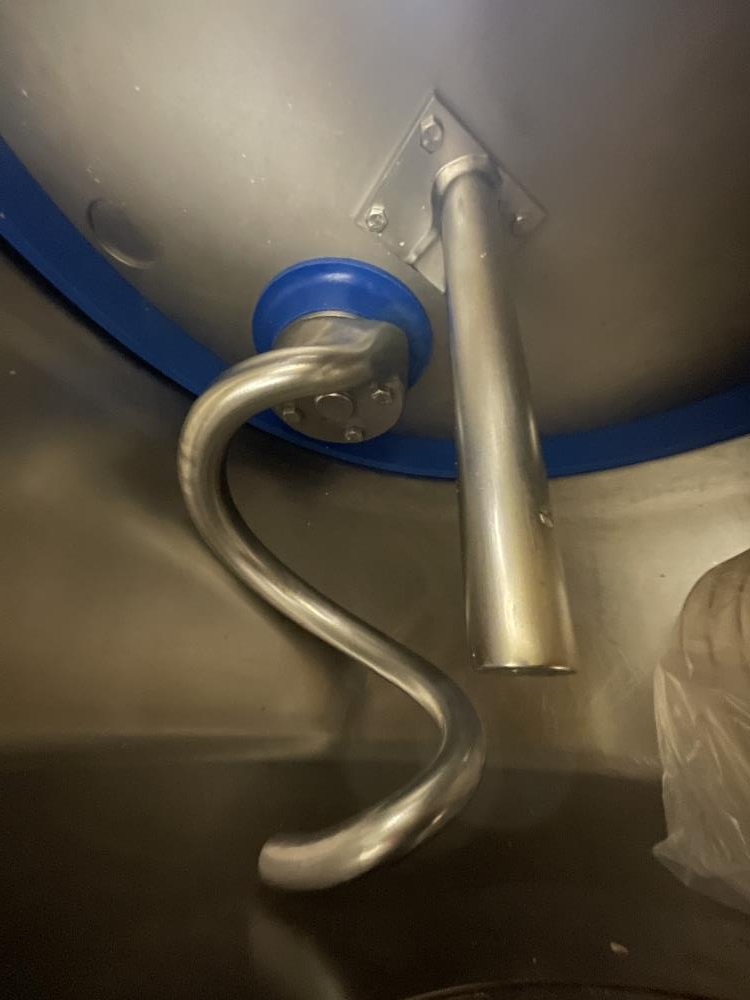

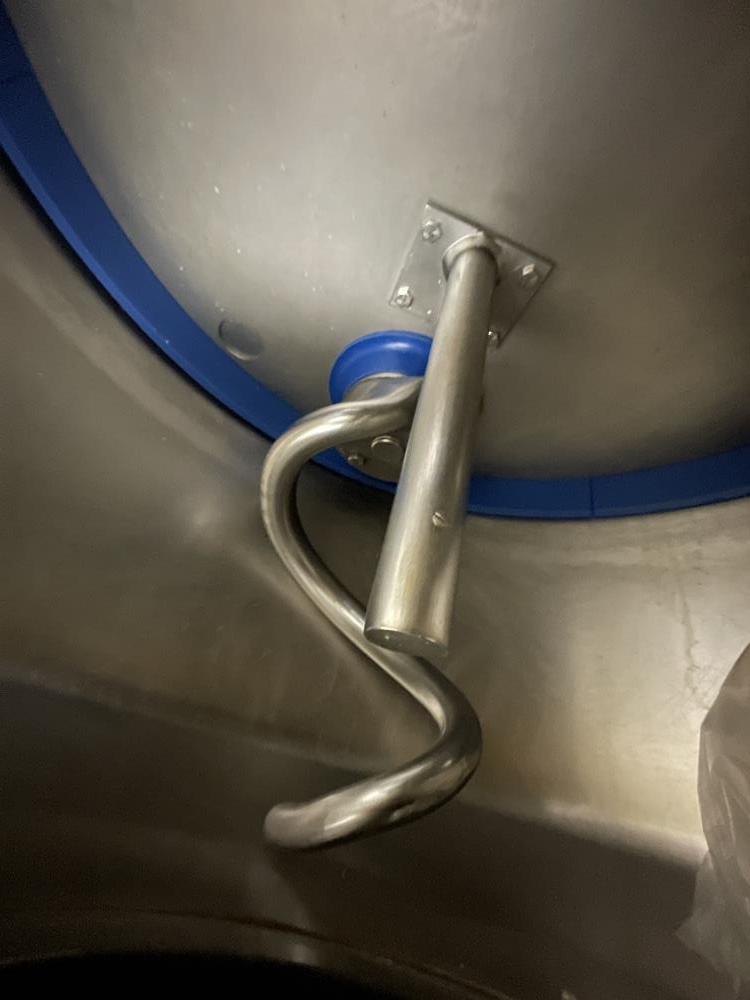

Spiral hook and guide bar included

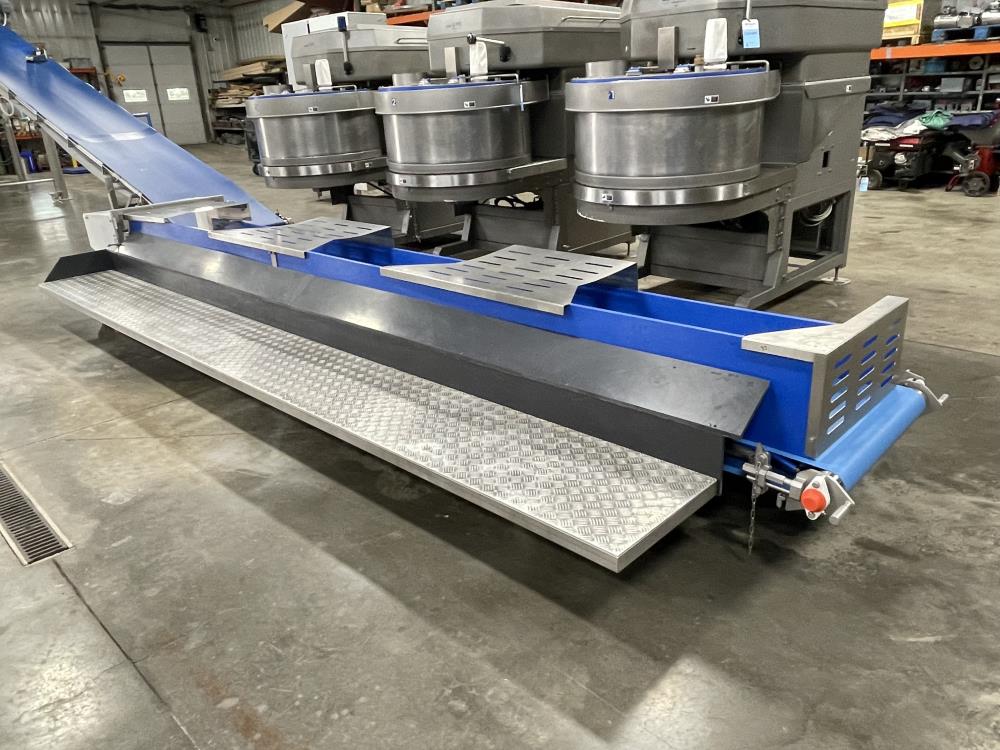

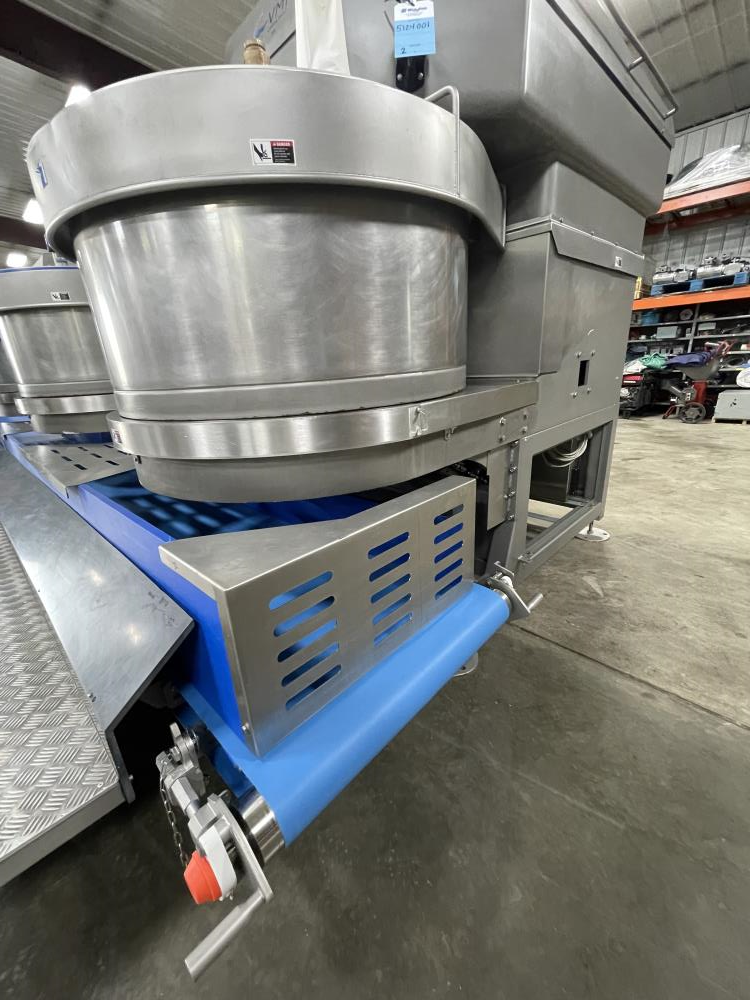

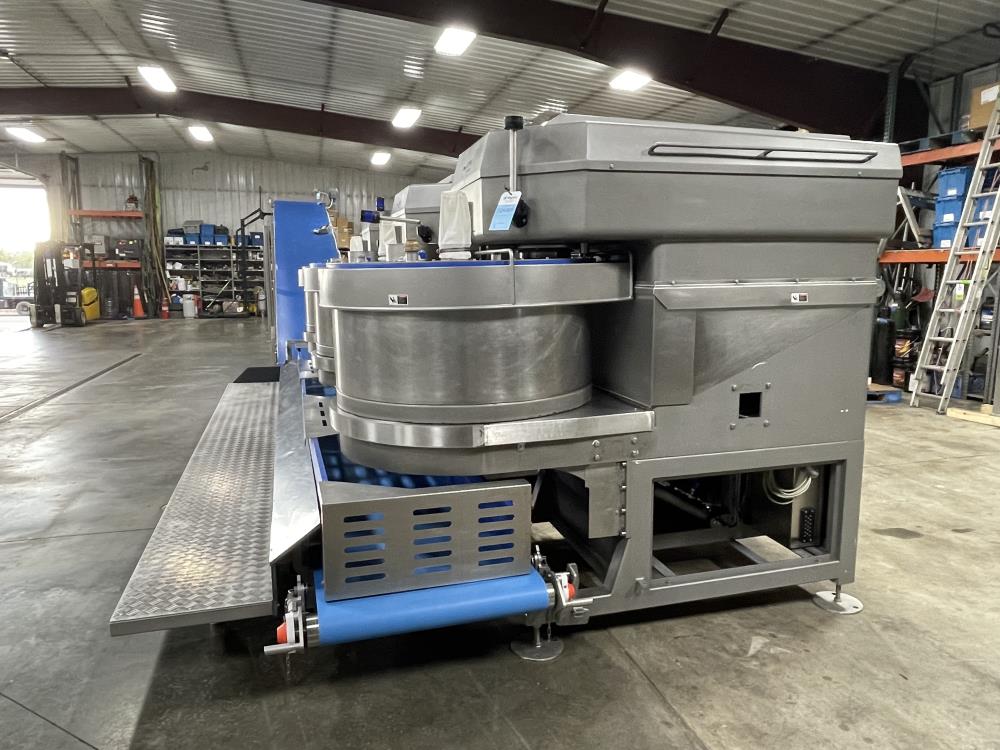

Bottom-drop design discharges onto conveyor

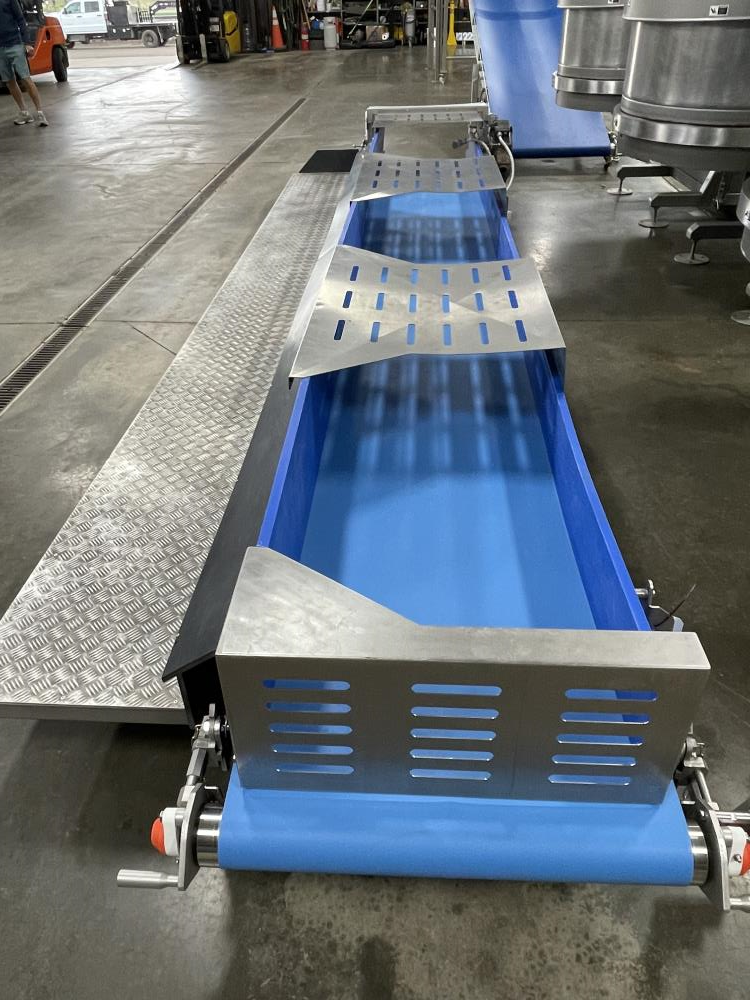

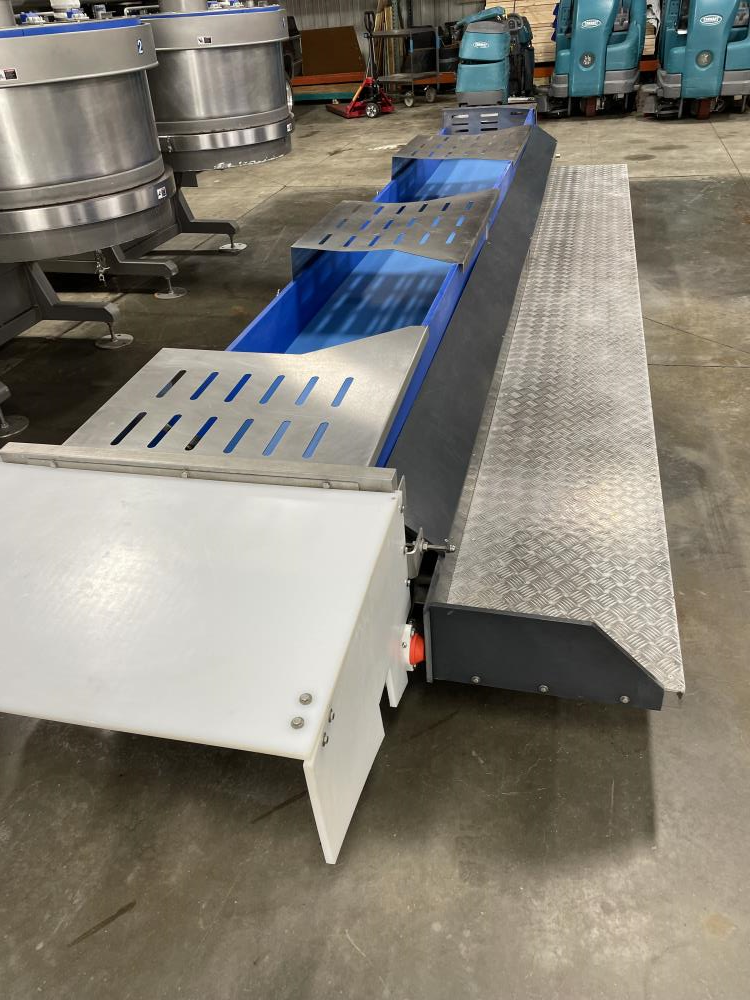

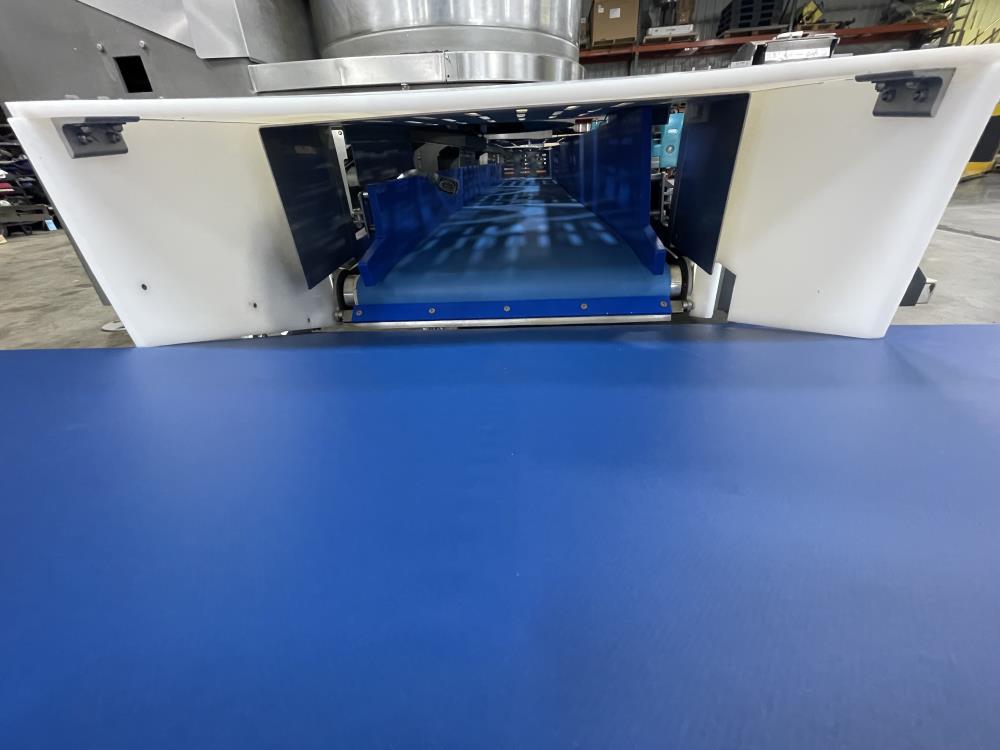

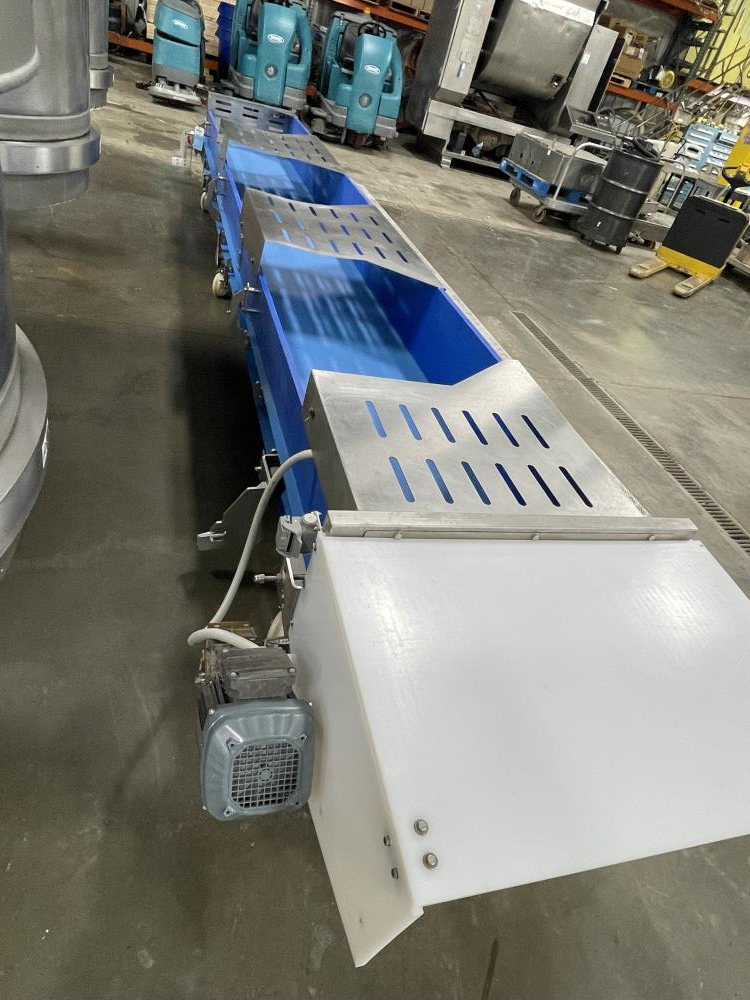

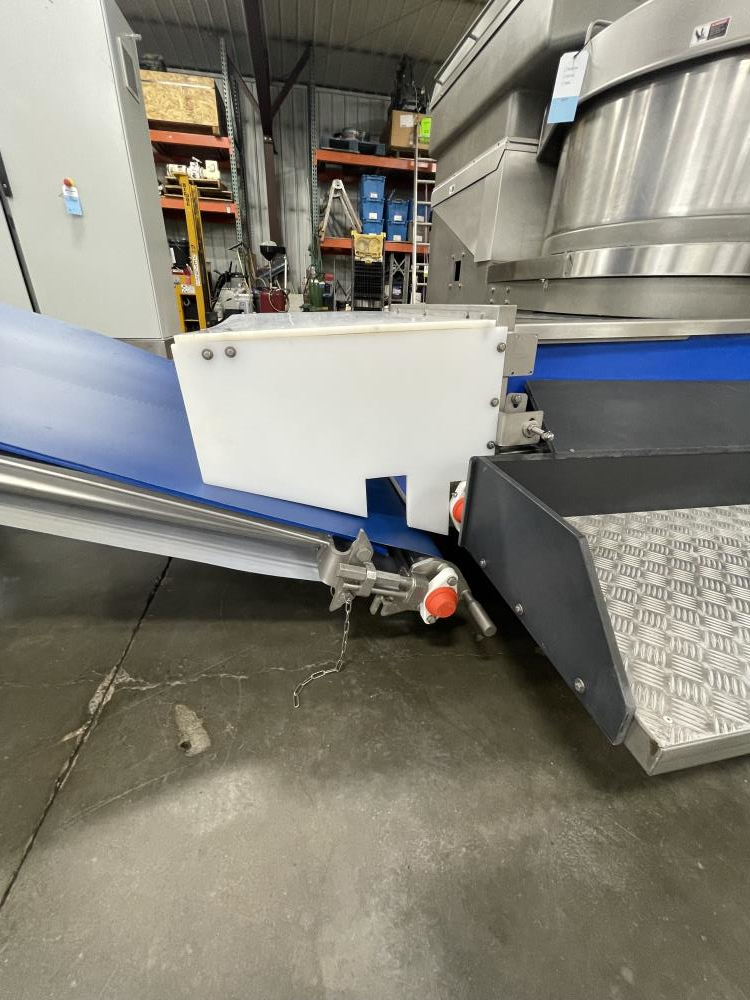

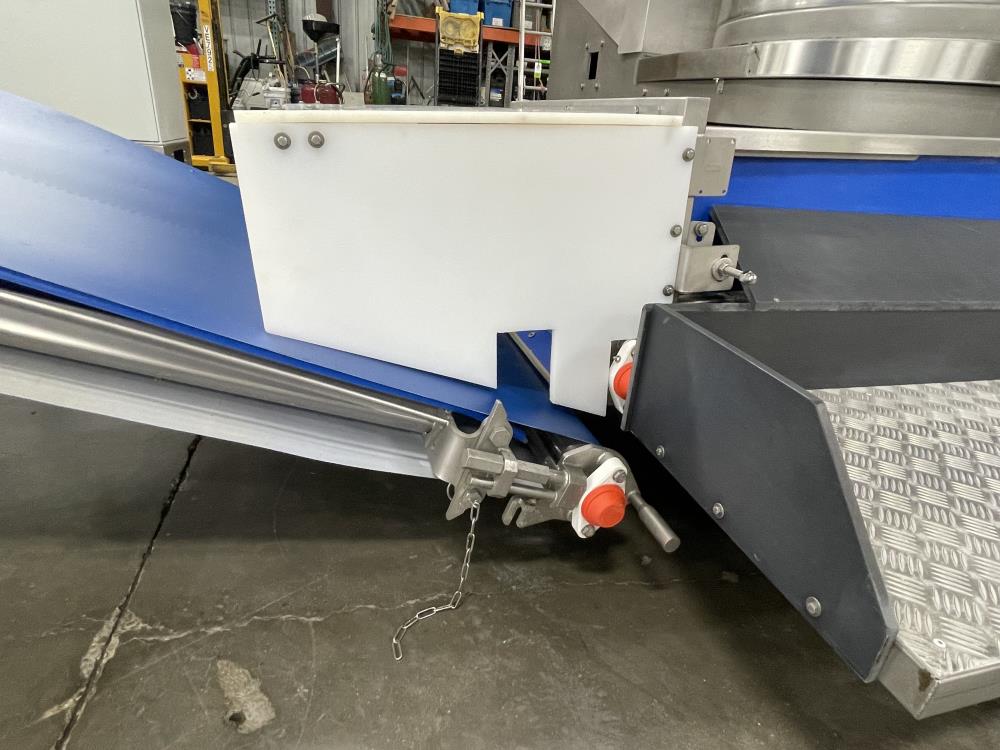

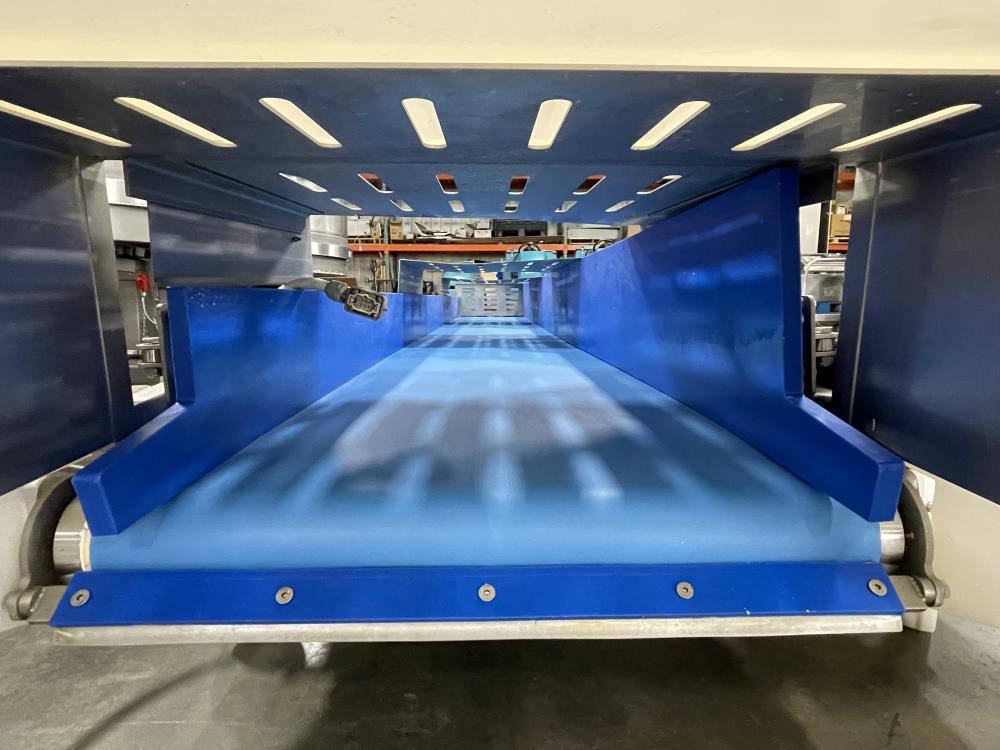

Conveyor: Blue sanitary belt, 212 in. long x 29 in. wide x 14 in. tall
Stainless steel frame, on casters
Includes access step for mixer loading

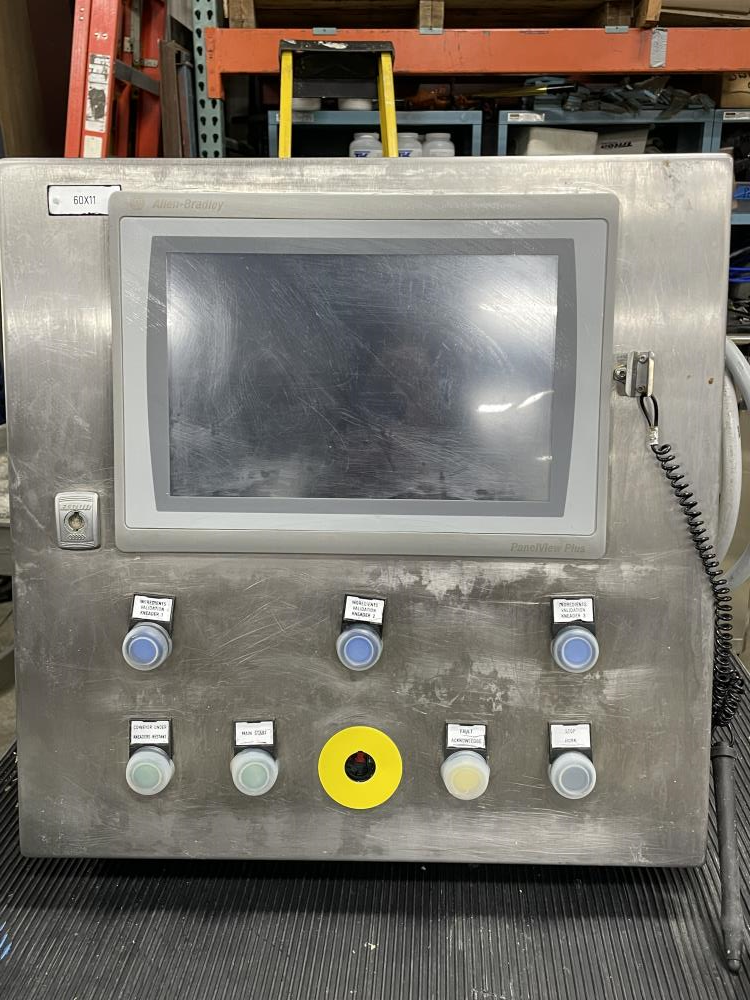

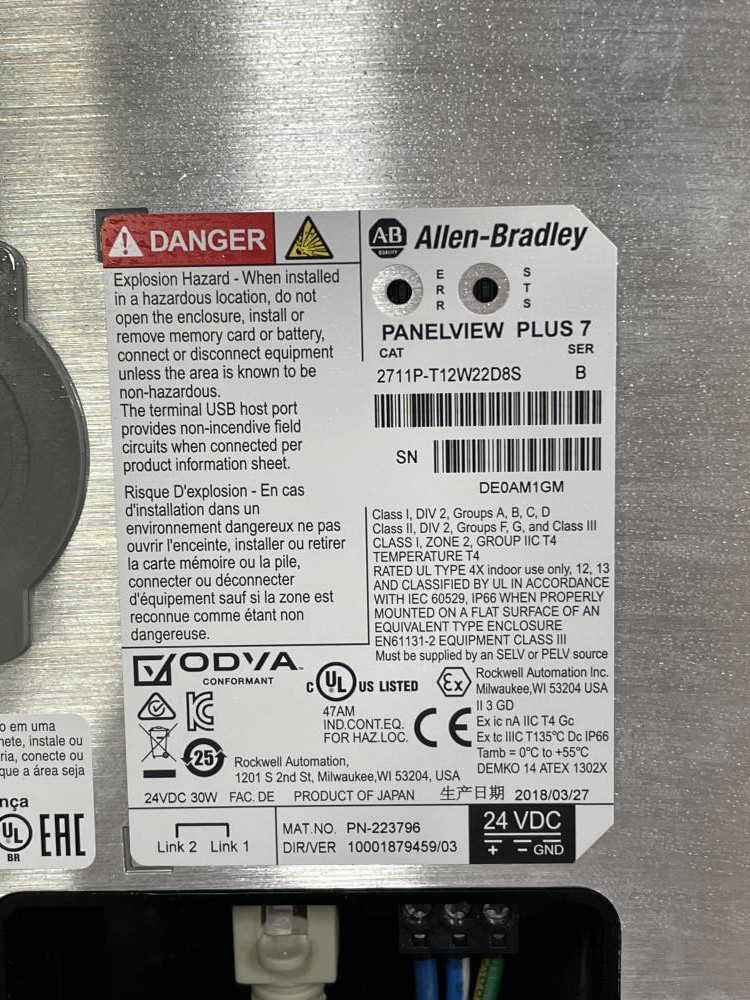

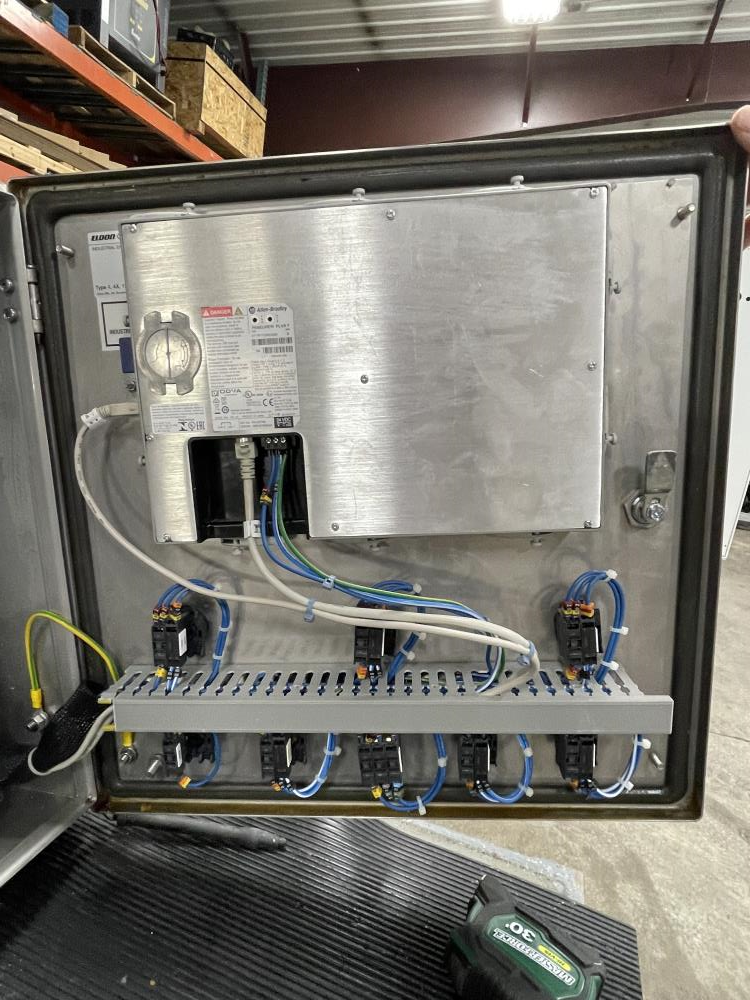

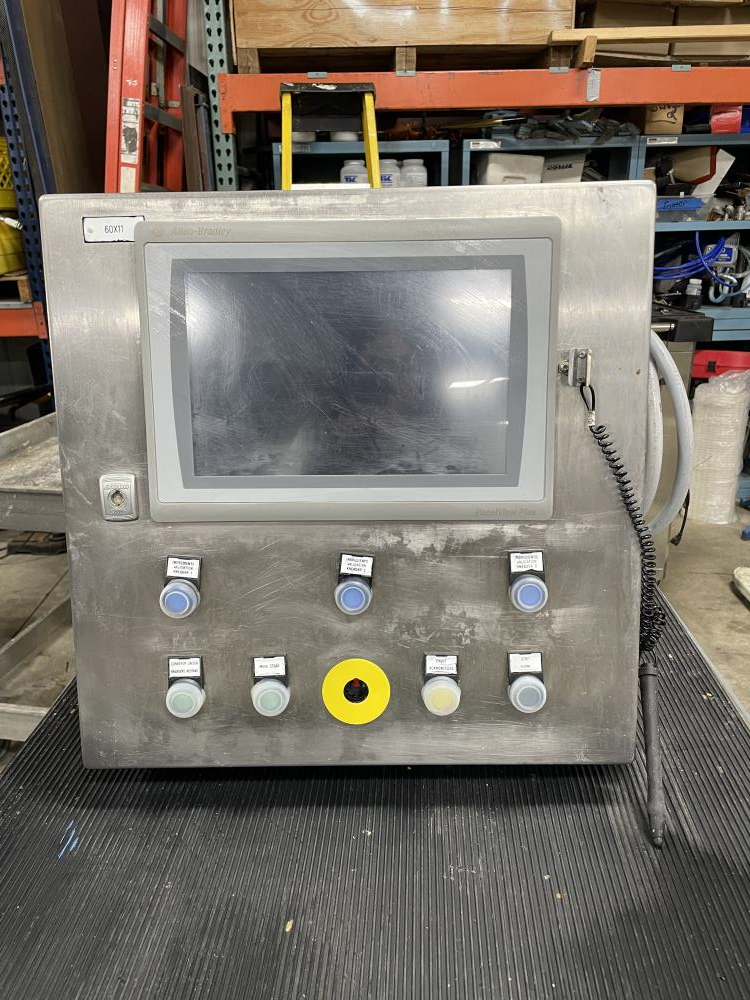

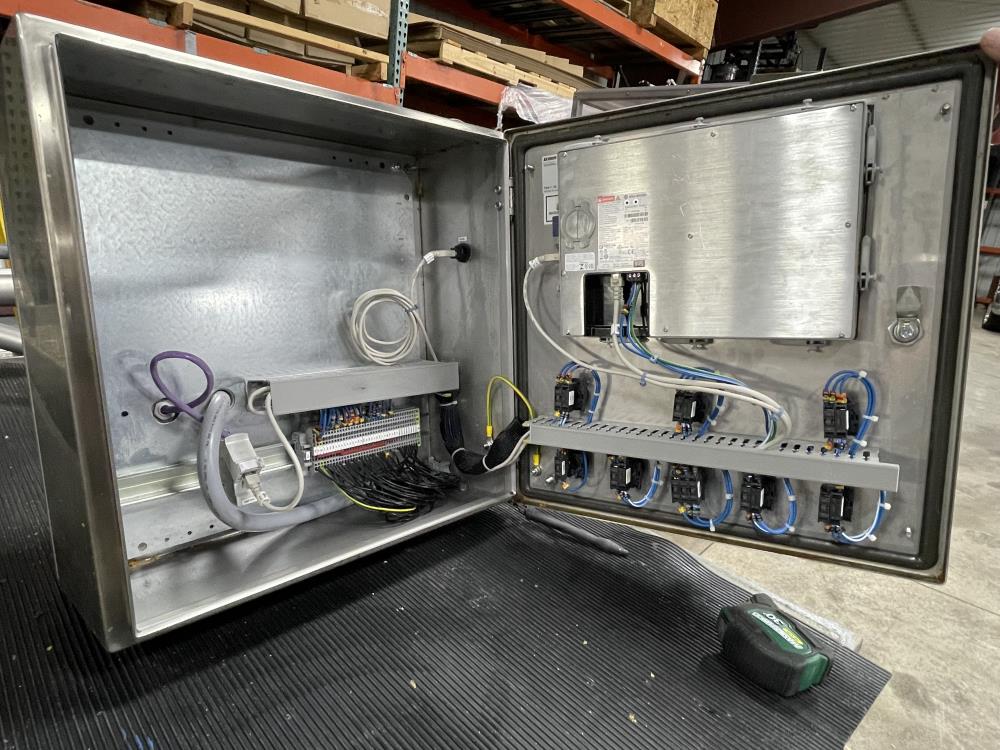

Allen Bradley PanelView Plus 7 touchscreen HMI

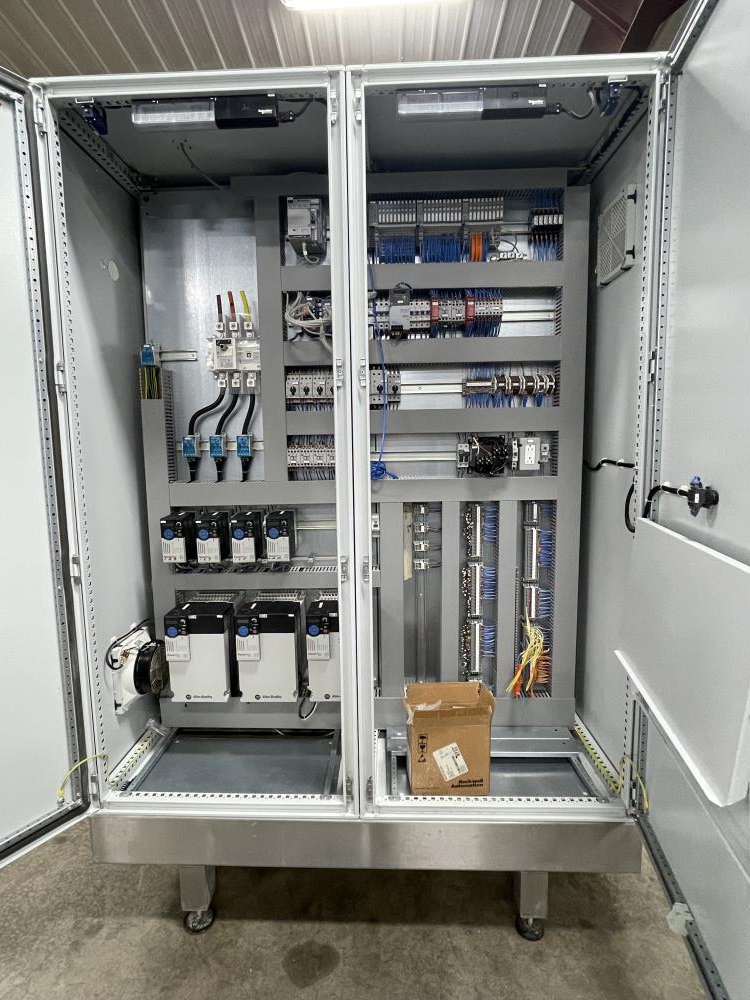

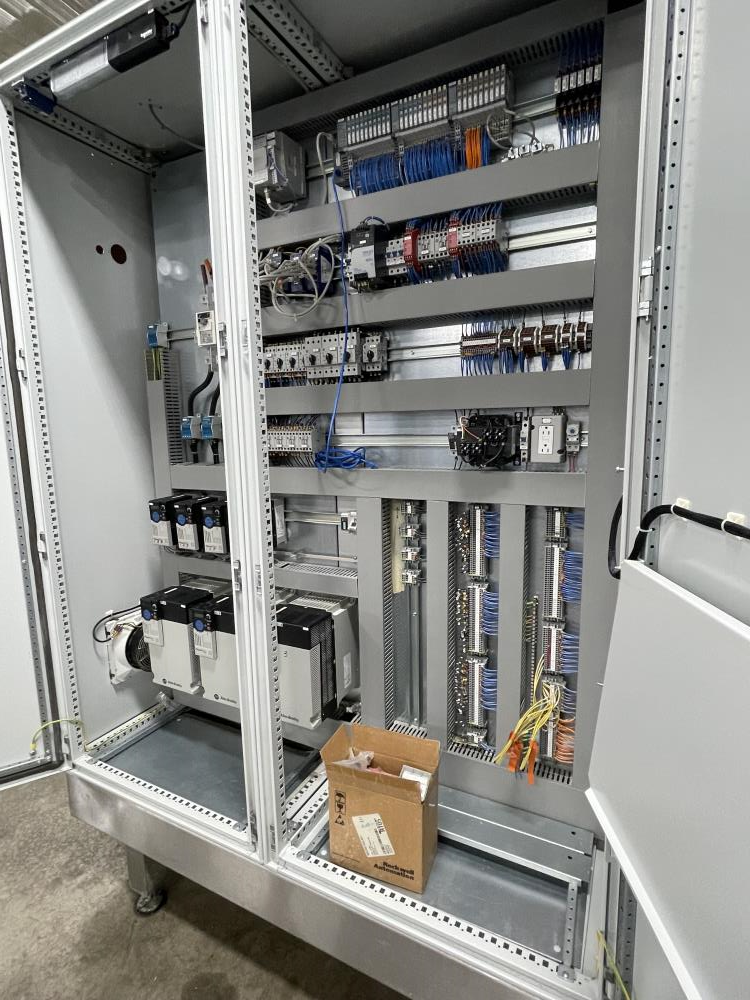

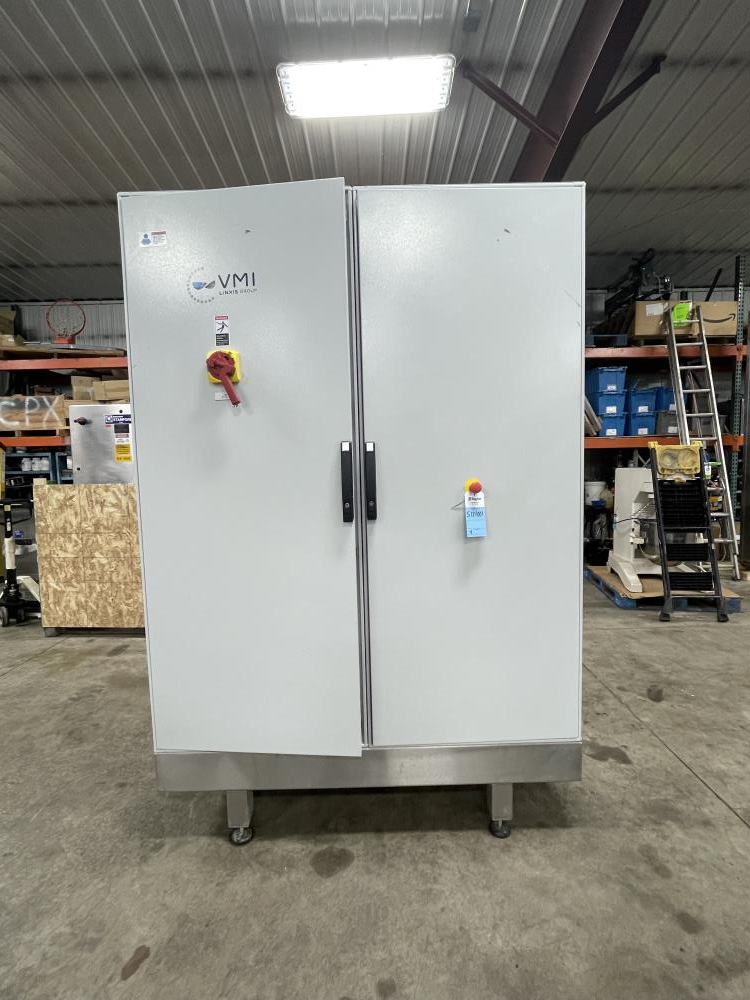

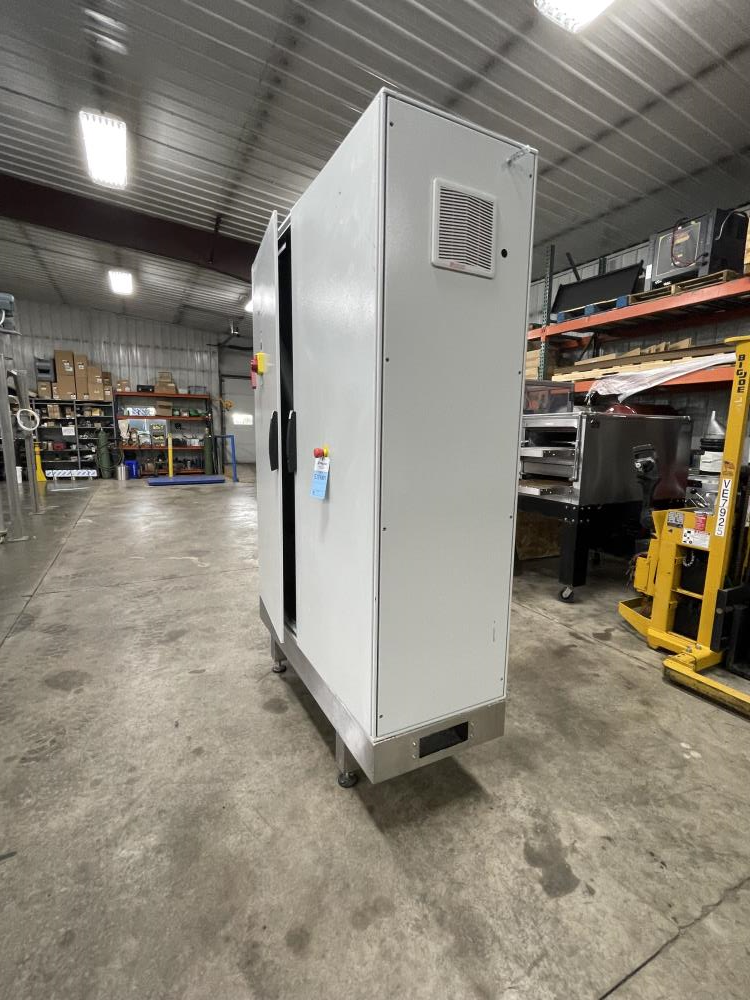

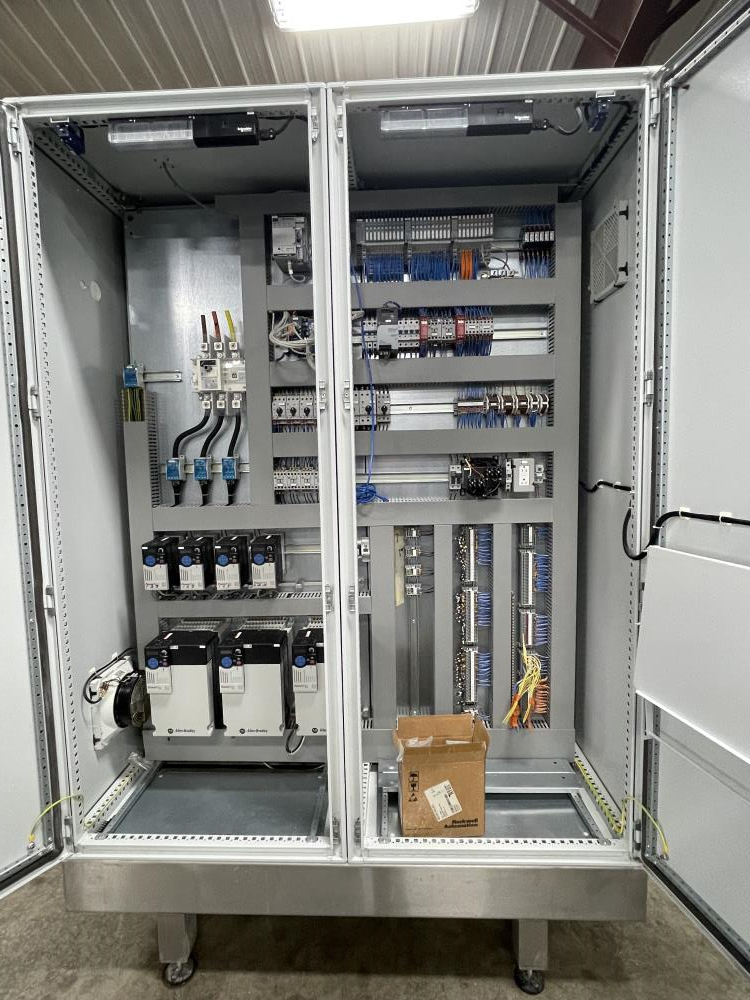

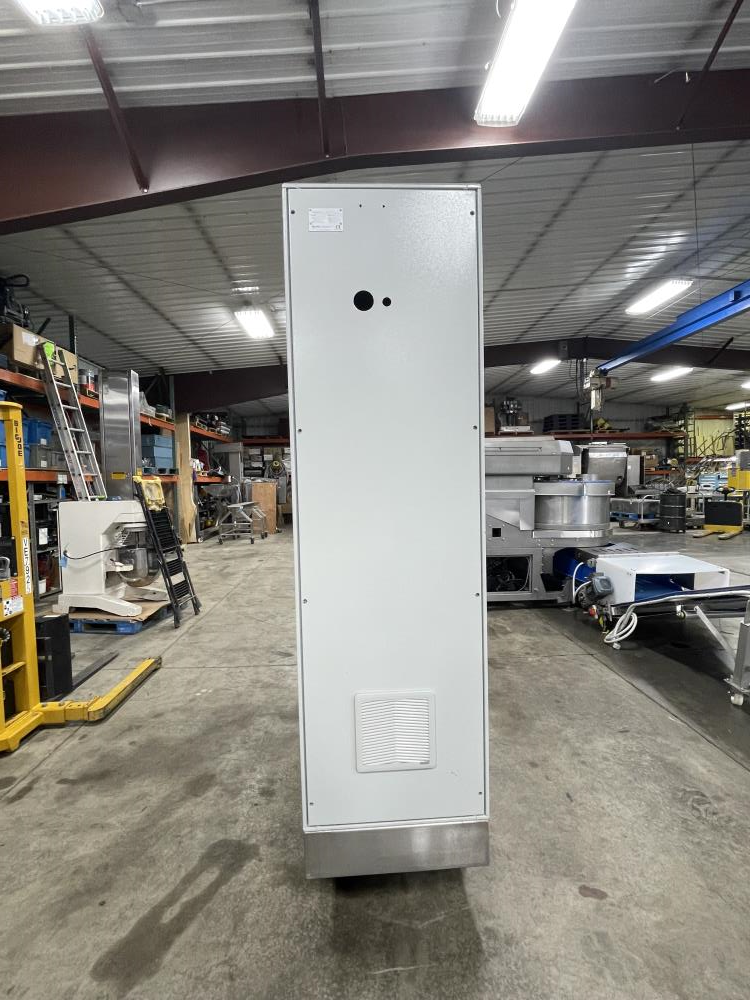

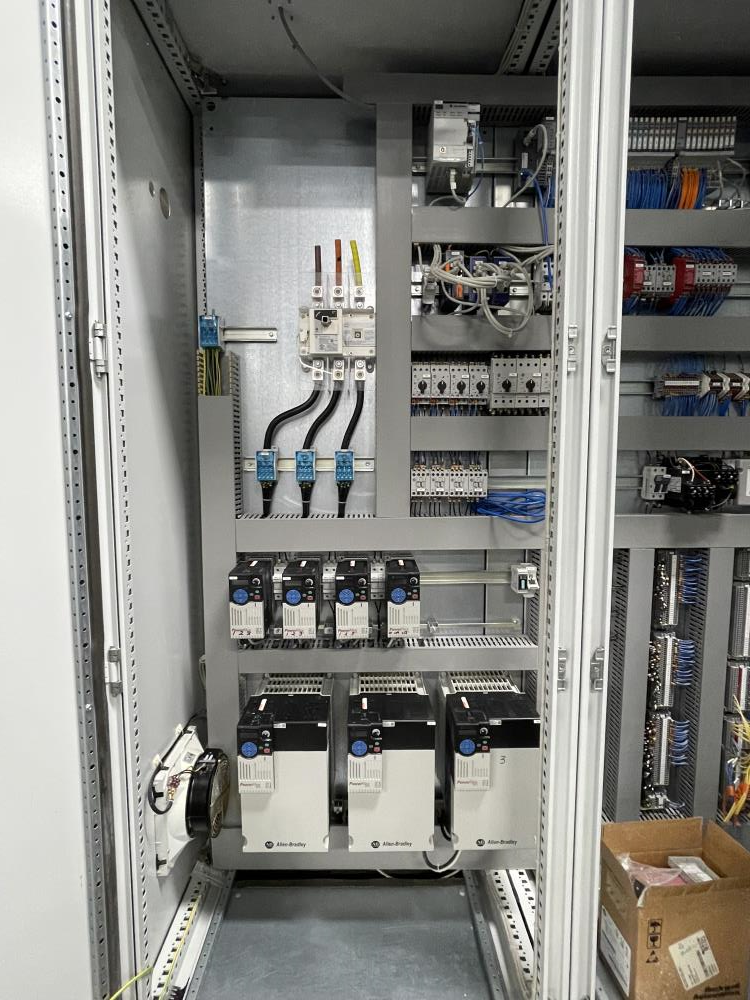

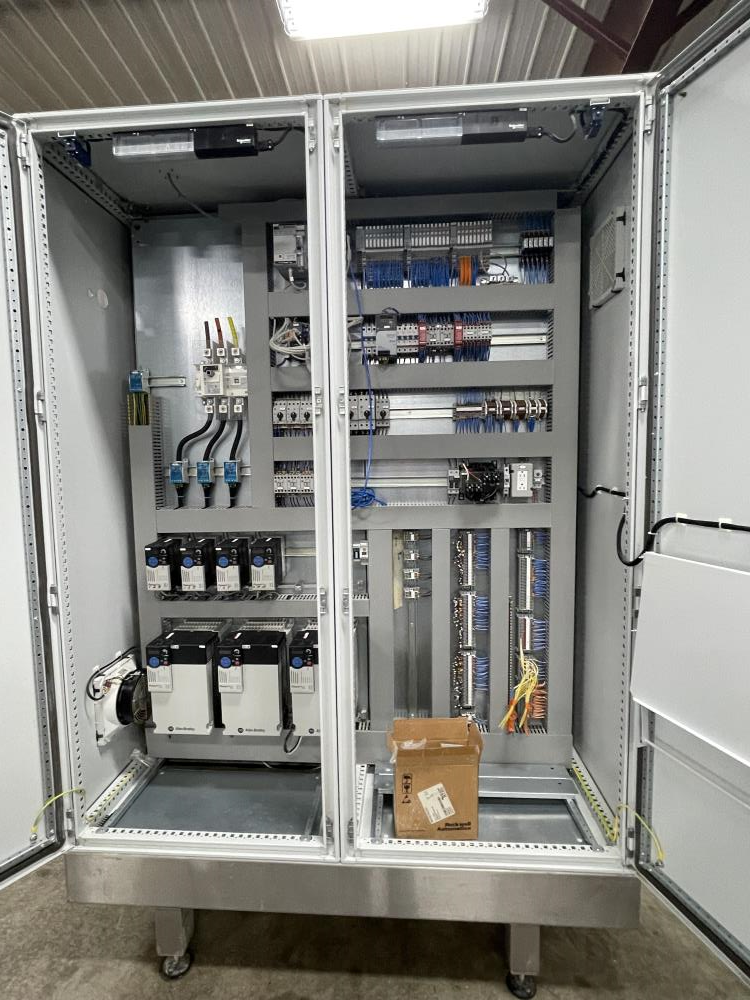

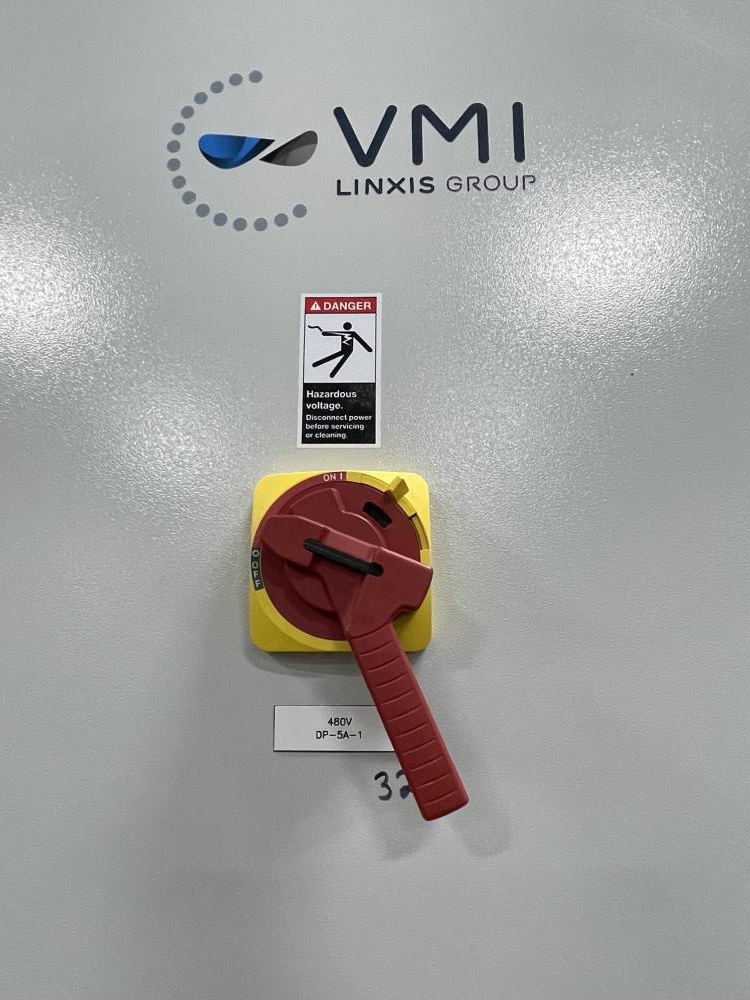

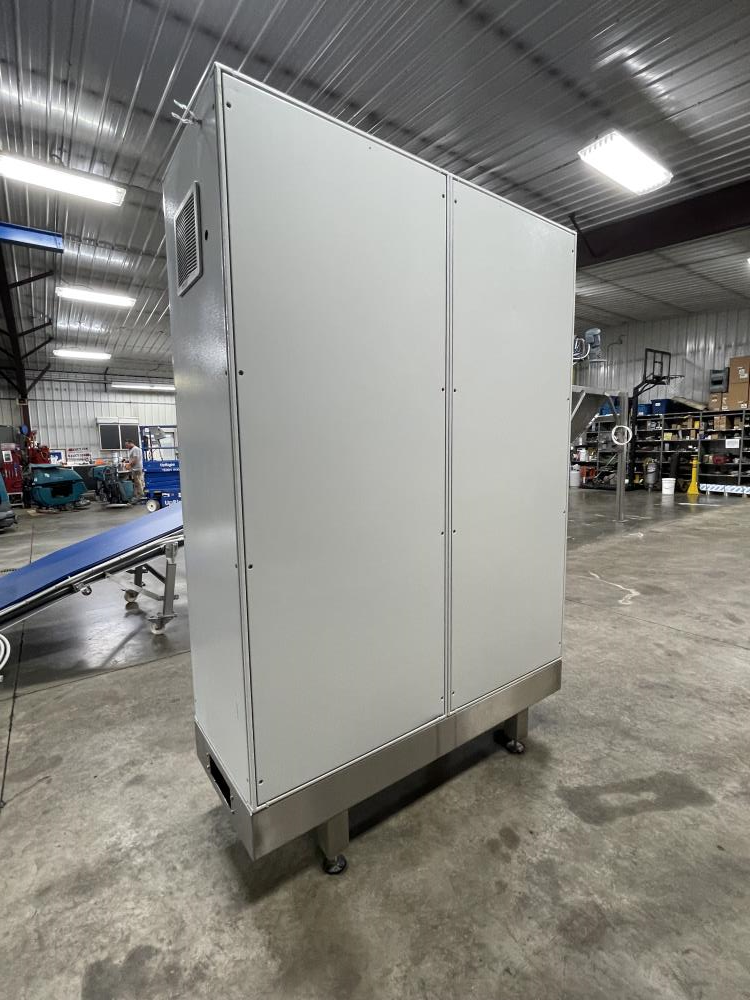

2-door stainless steel electrical control cabinet

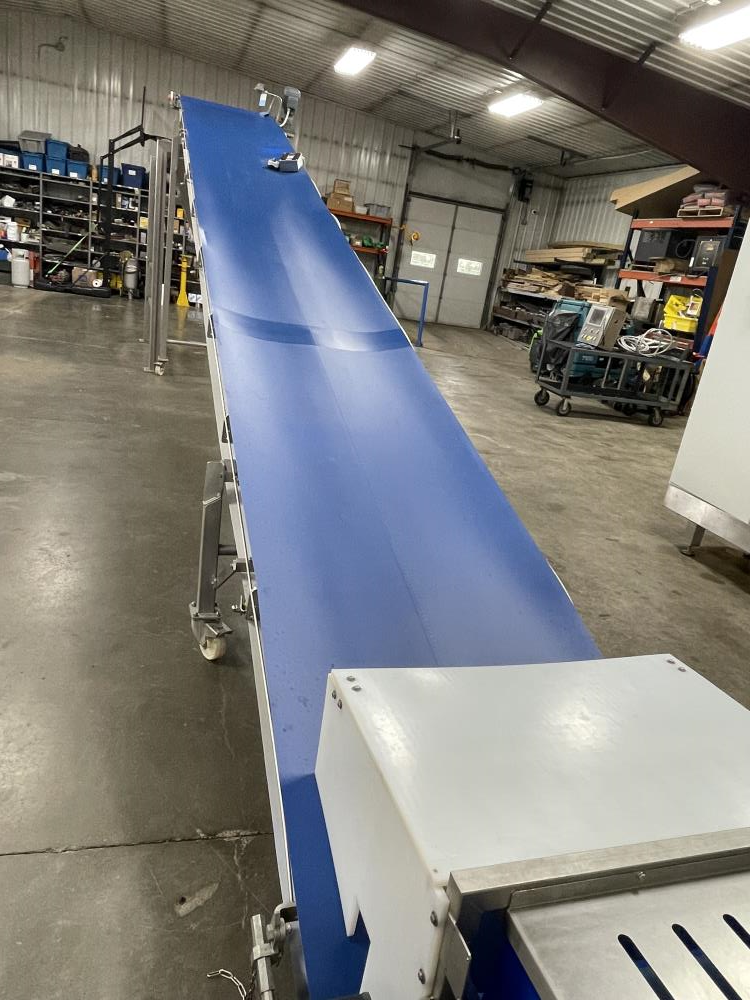

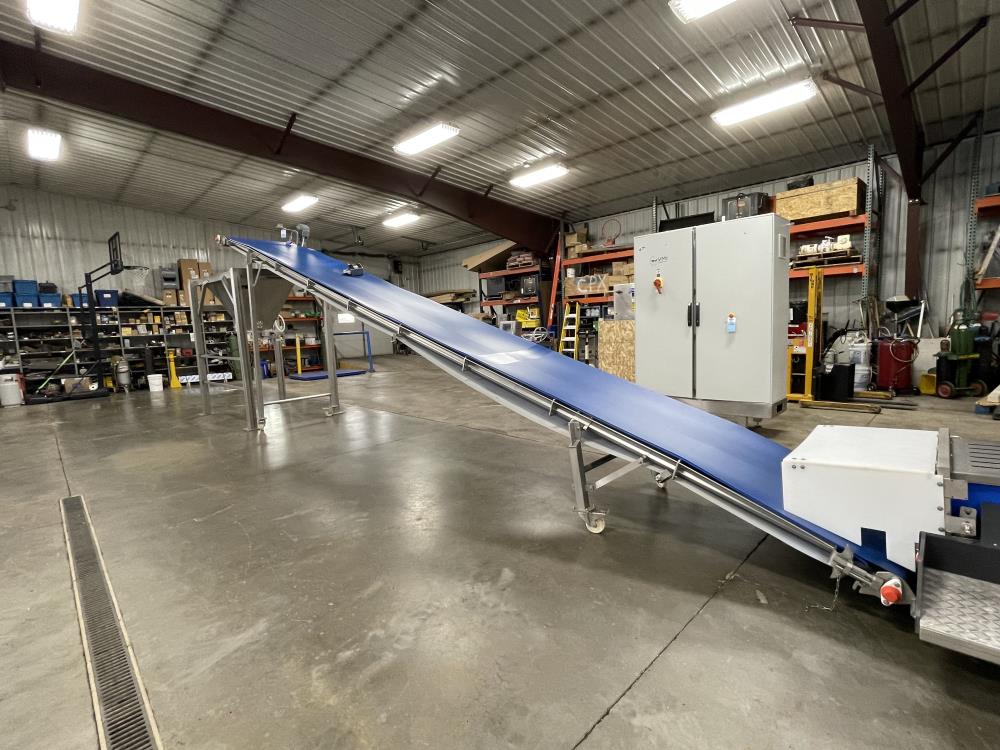

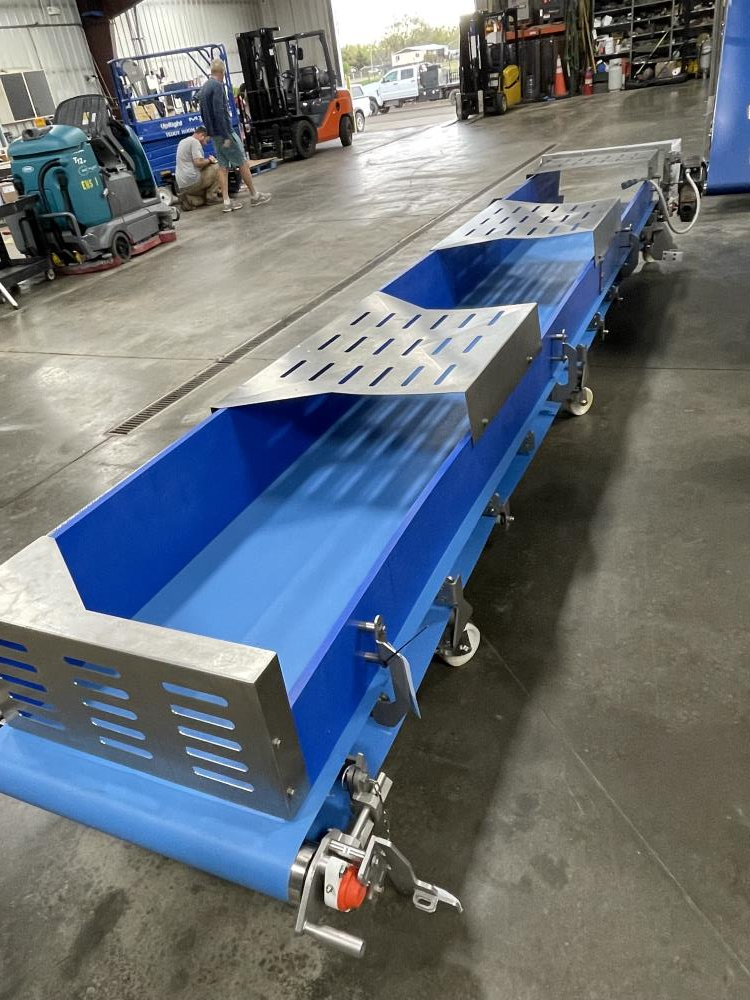

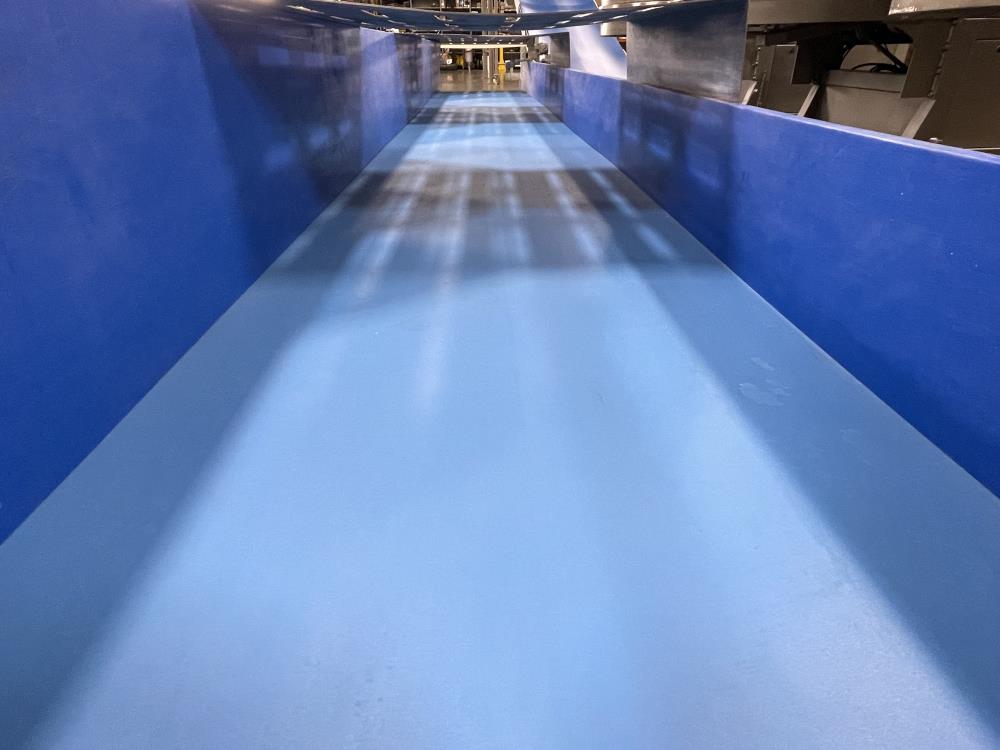

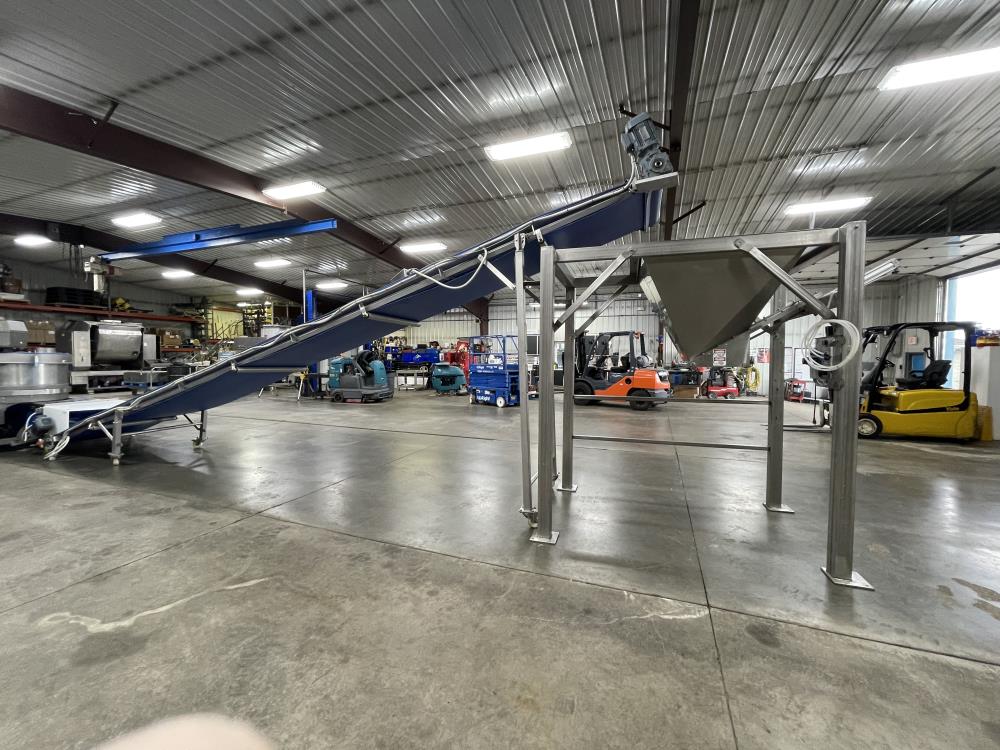

Incline Trough Conveyor

Length: 27 ft.
Belt width: 39 inches
Infeed height: 10 inches
Discharge height: 115 inches

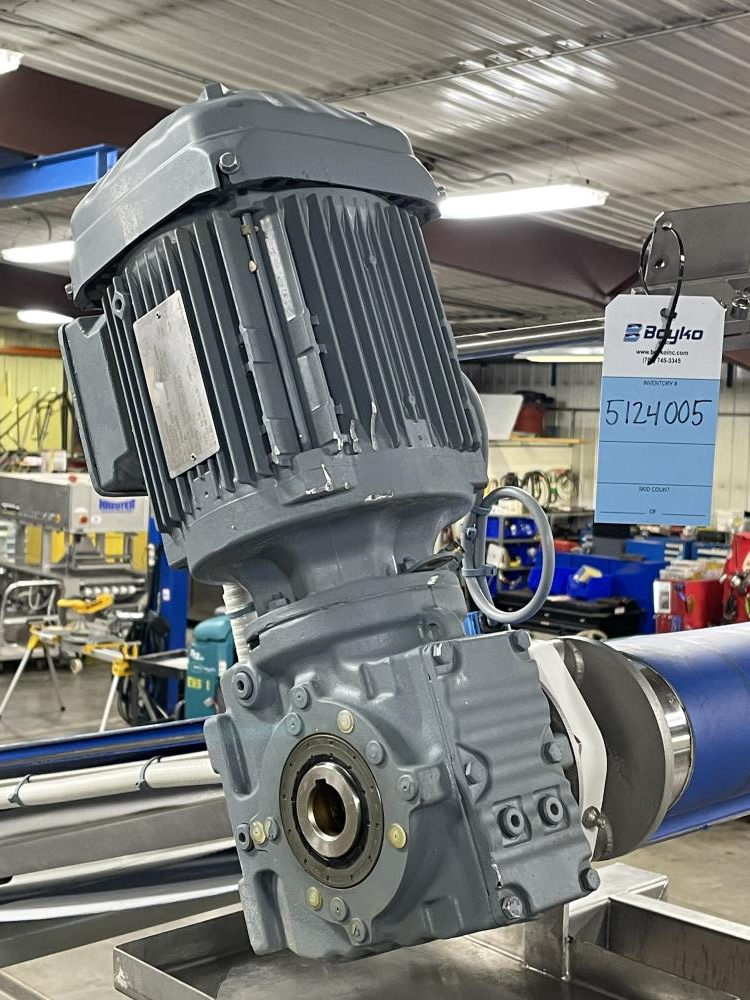

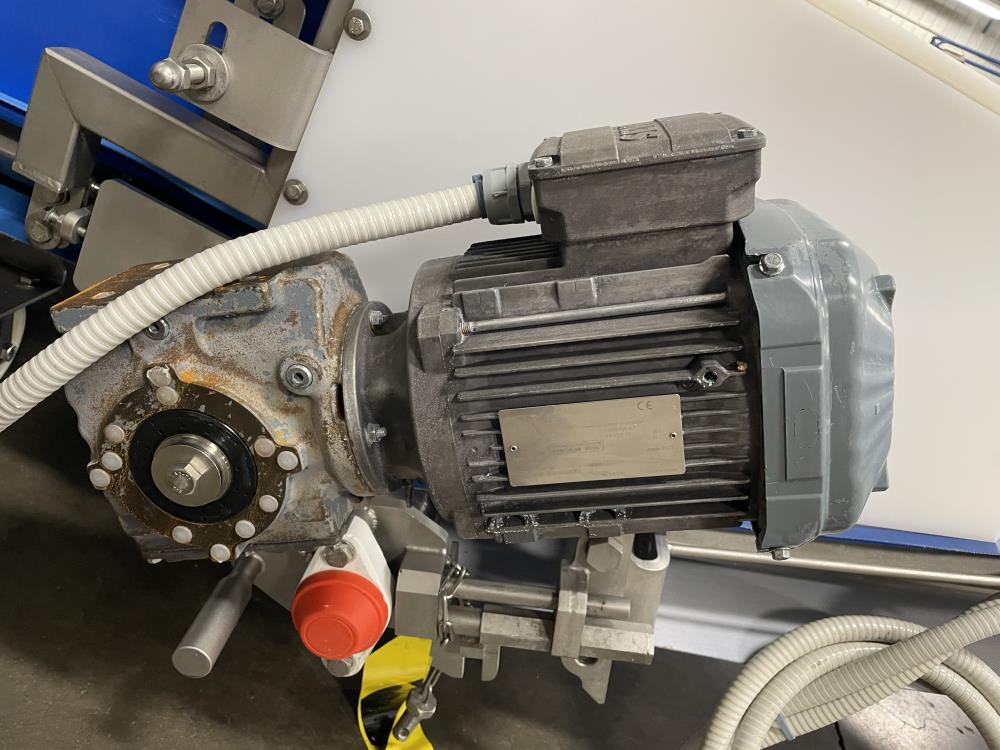

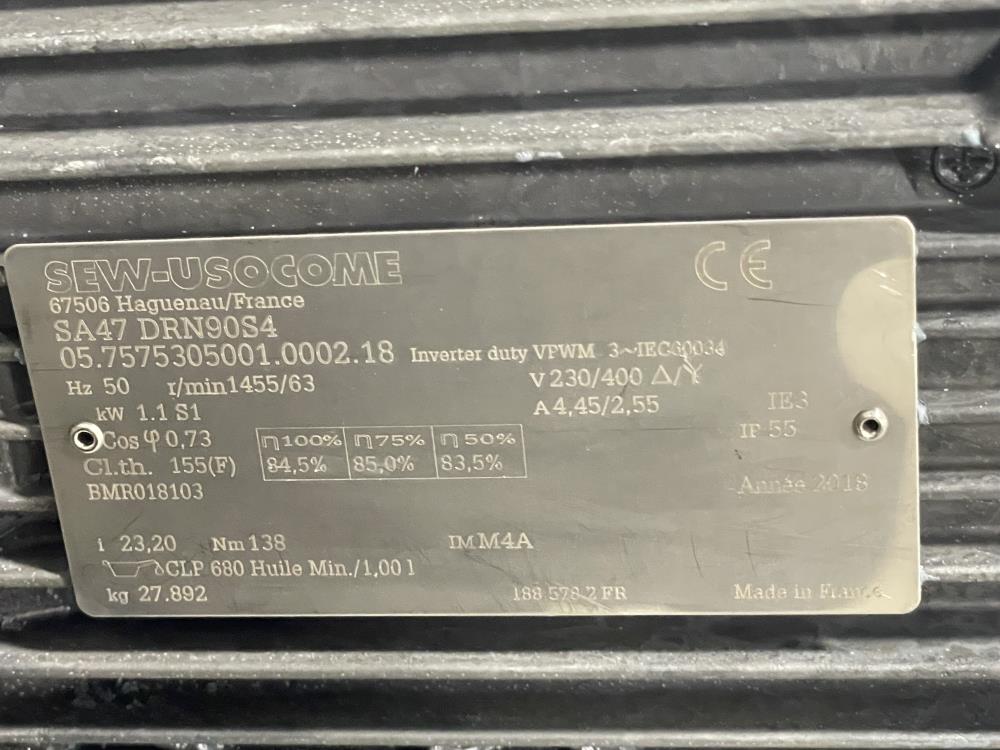

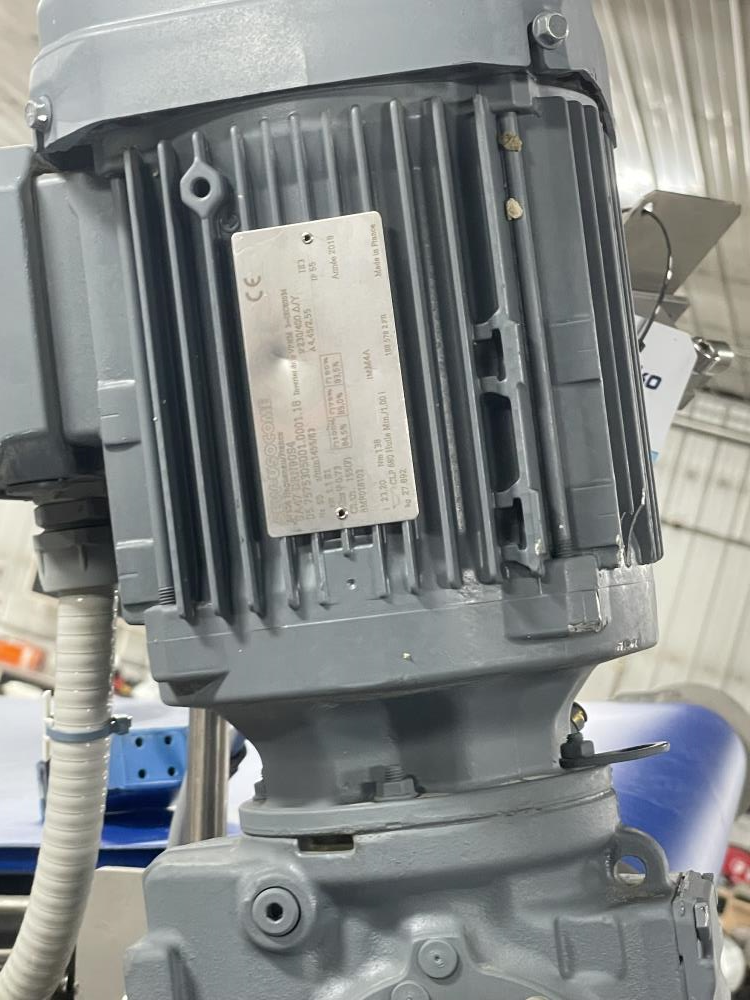

Stainless steel frame, with motor and drive
Mounted on casters

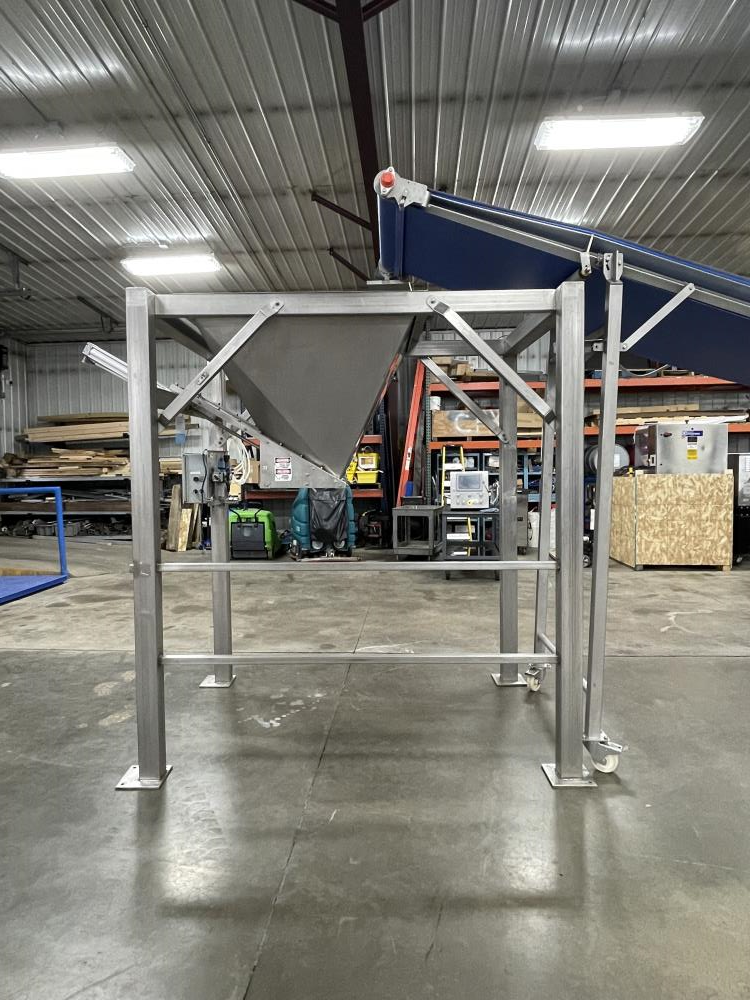

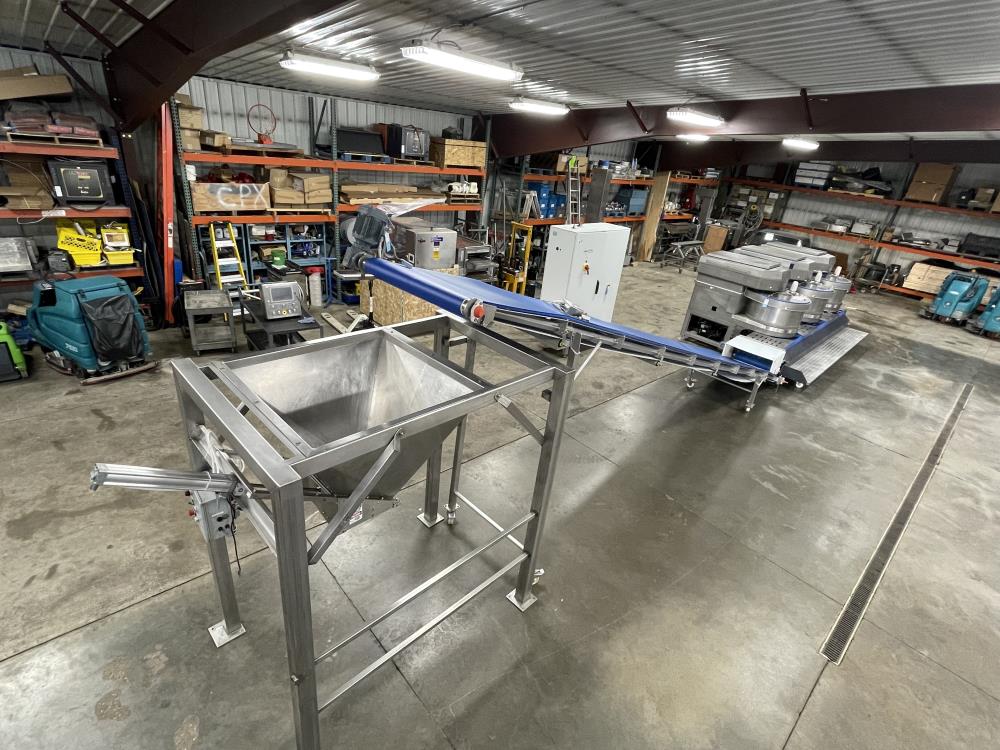

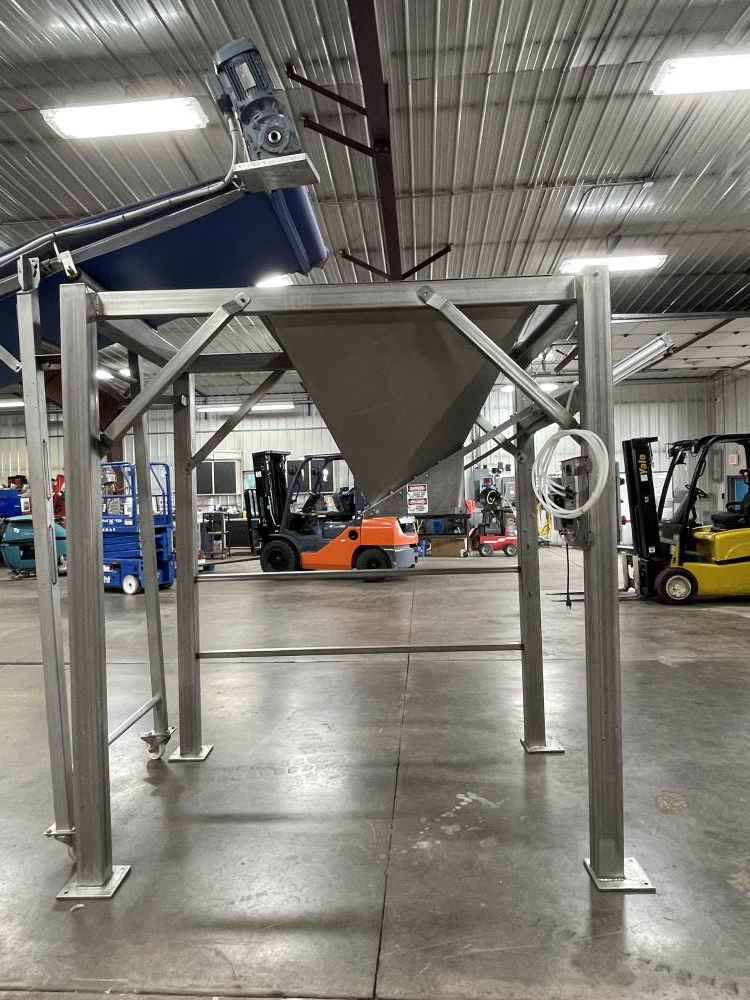

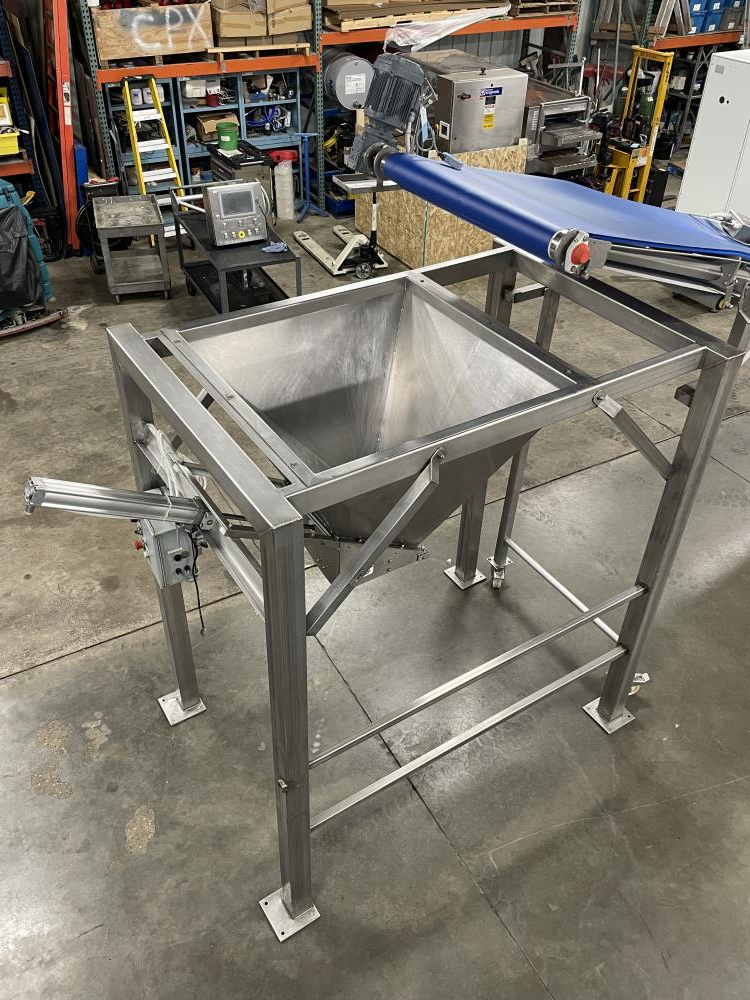

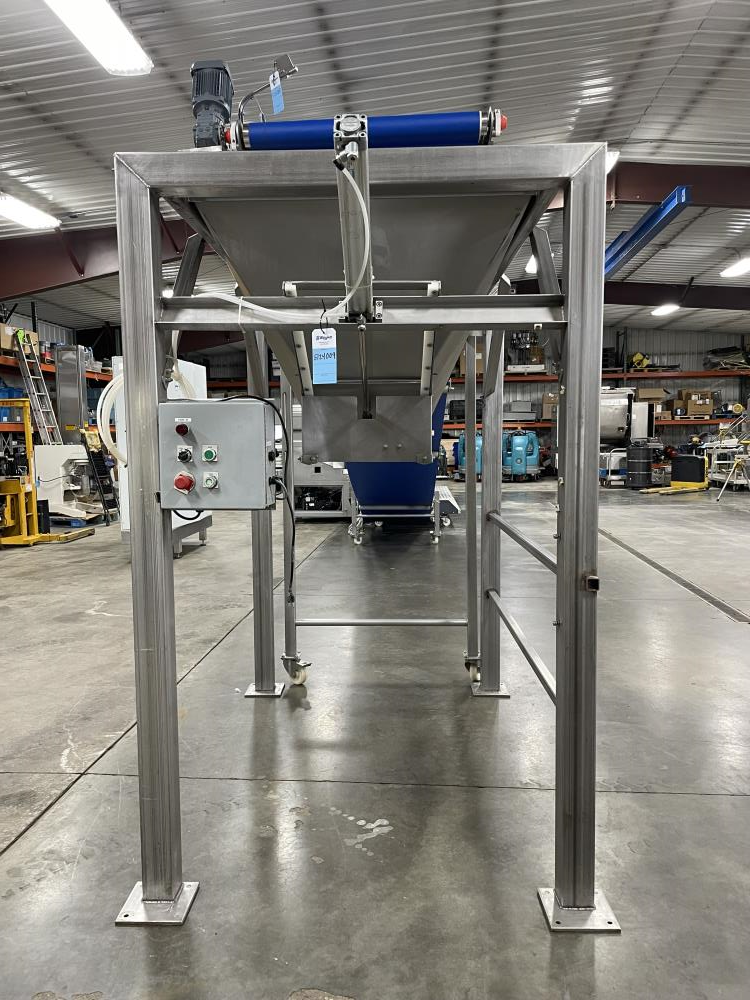

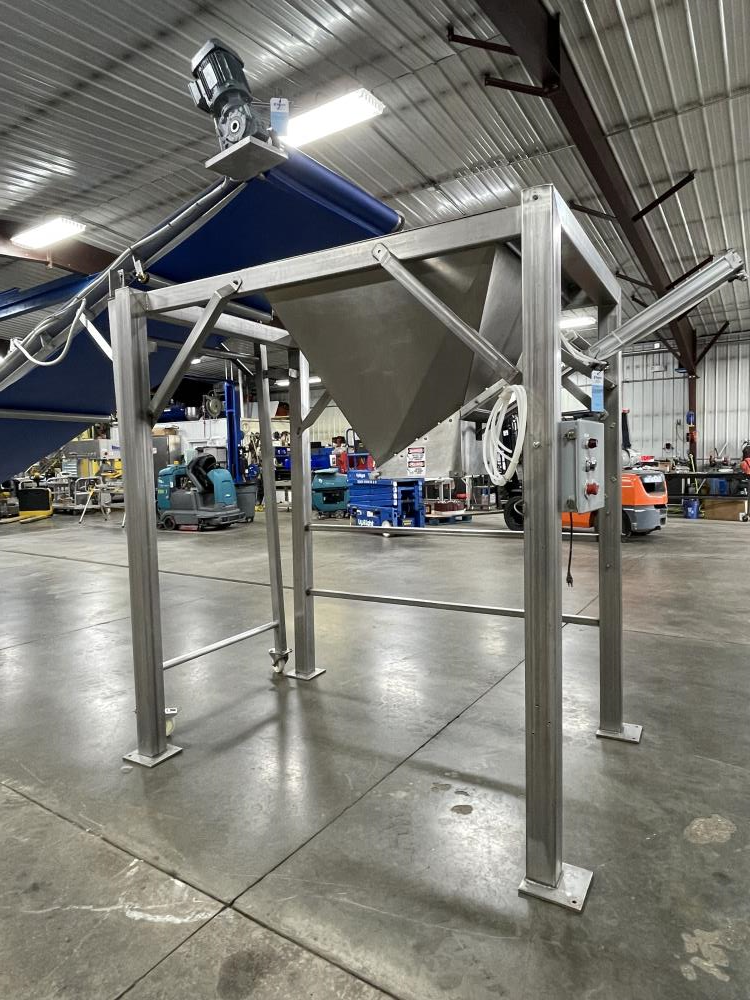

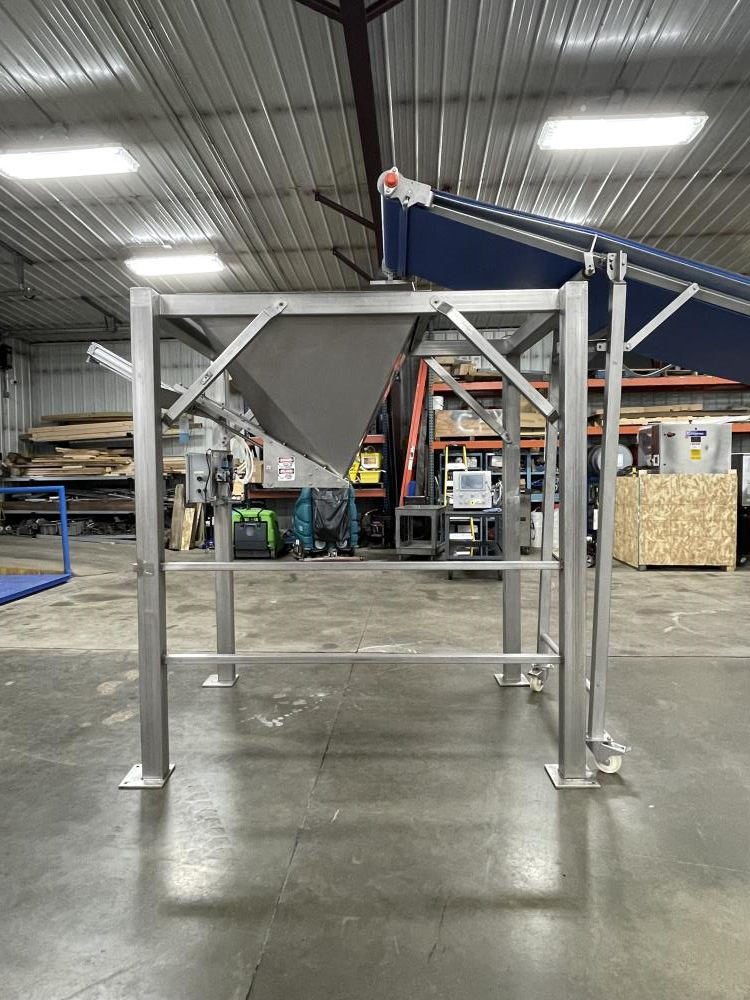

Stainless Steel Chunker

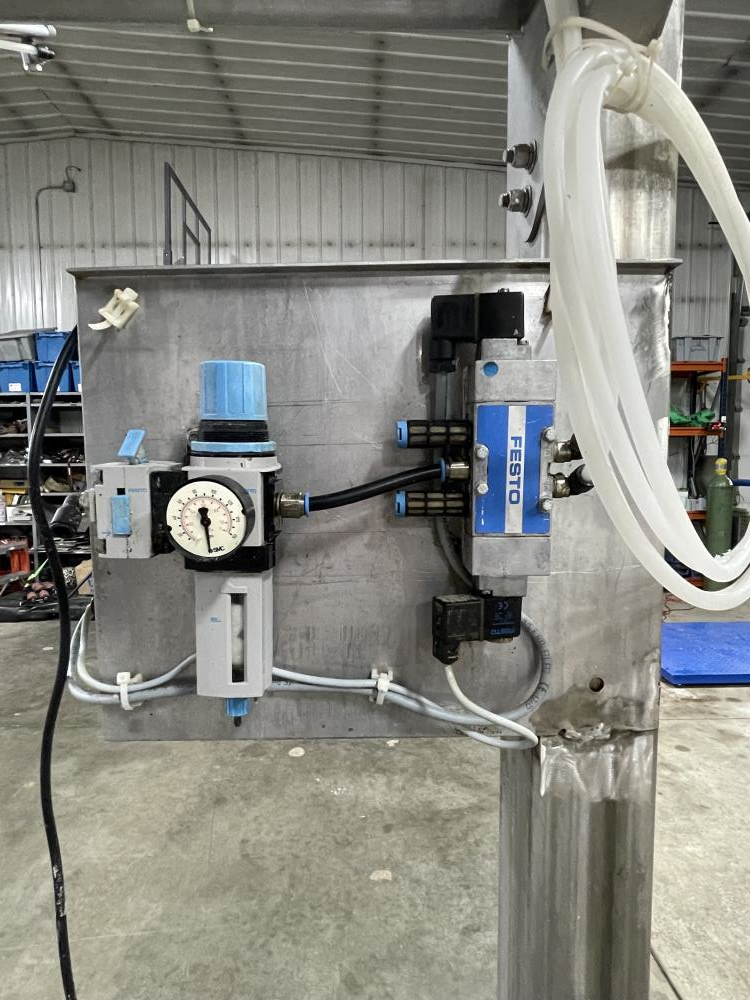

Pneumatic slide gate
Hopper dimensions: 40 in. L x 40 in. W x 30 in. D
Discharge height: 55 inches
Overall height: 91 inches
All stainless steel frame

Smoot Stainless Steel Scaling Hoppers (Qty 3)

Hopper dimensions: 37 in. diameter x 40 in. straight side x 24 in. cone bottom
10 in. diameter discharge
6 in. diameter inlet ports
3 in. diameter diverting pipe
Pneumatic butterfly valve
Rice Lake load cells with Mettler Toledo digital readout

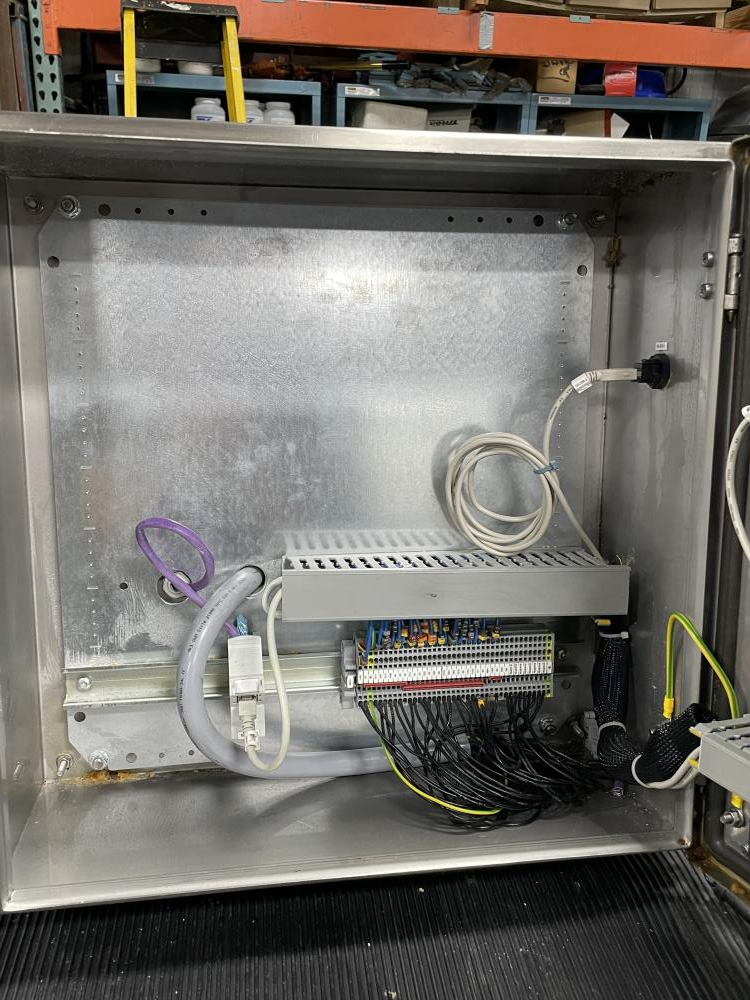

Includes Smoot control panel
Overall dimensions (each, on pallet): 96 in. L x 45 in. W x 46 in. H

This VMI spiral mixing system is ideal for high-volume commercial bakeries or food processors seeking a turnkey, integrated dough preparation and transfer line. With three mixers, conveyors, automated controls, and precision scaling, this system offers efficiency, consistency, and hygienic operation.

Smoot Scaling hoppers that matched with system are Item #s: 5124002, 5124003, 5124004

Specifications

Category :

Mixers / Blenders

Sub-Category :

Spiral Mixers

Manufacturer :

VMI

Model :

SPI 400 VPF

Serial Number :

183400

Year Built :

2018

Manual :

Included

Material of Construction :

Stainless Steel

Mixer Capacity :

540-550 lbs. per bowl.

Condition :

Used
