2014 Extreme Packaging S18 Wrapper with XT-18 Heat Shrink Tunnel

Description

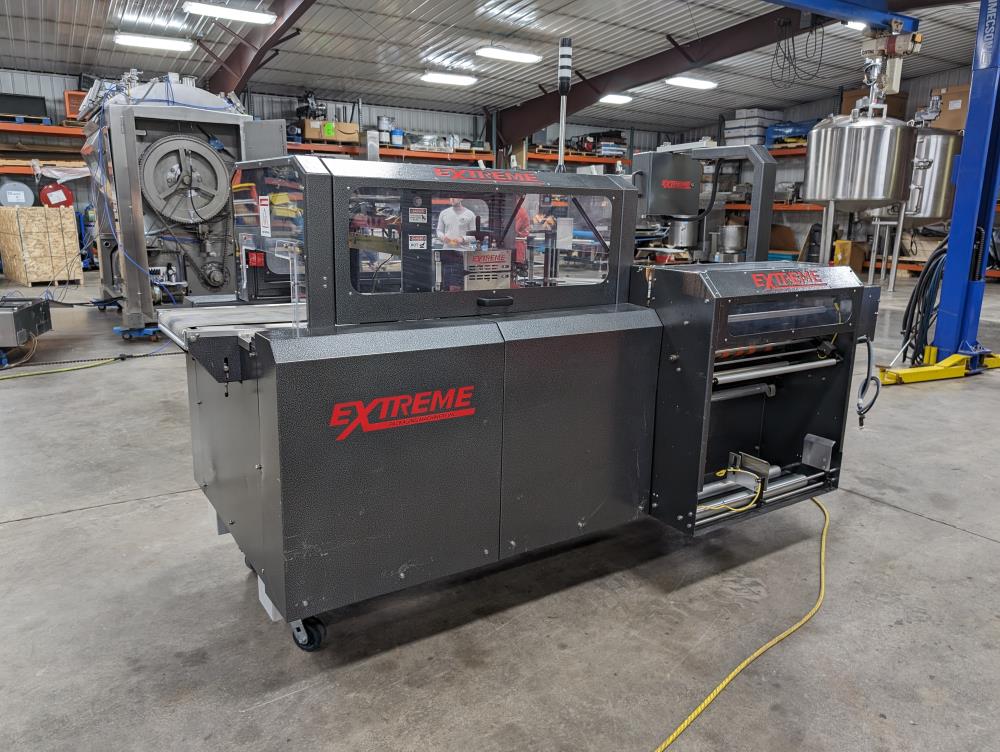

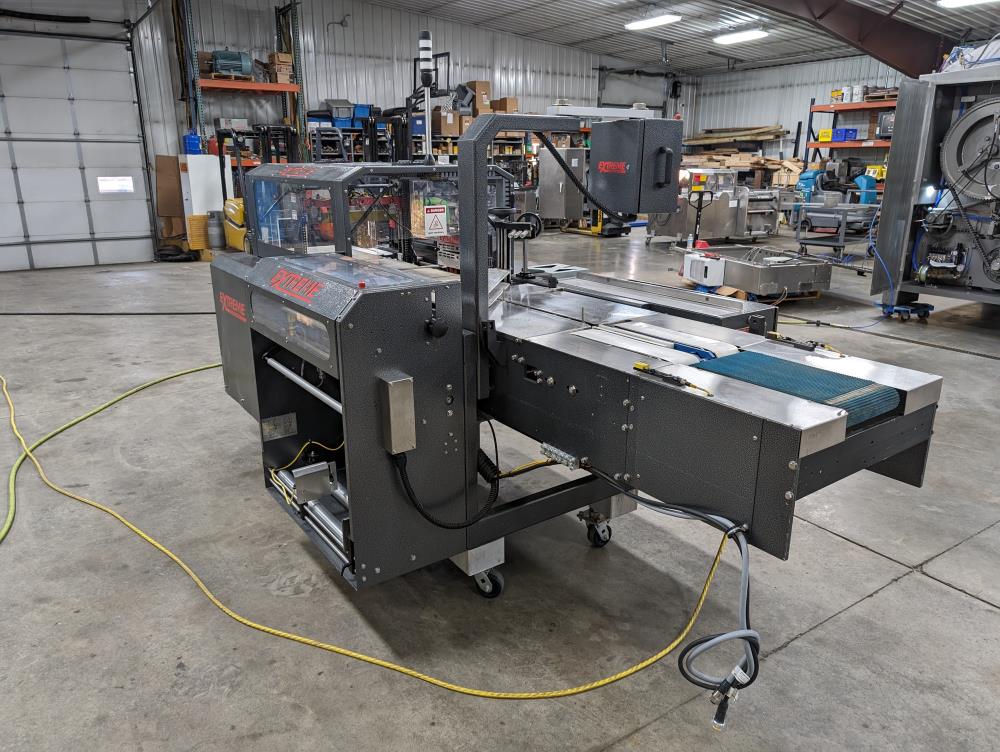

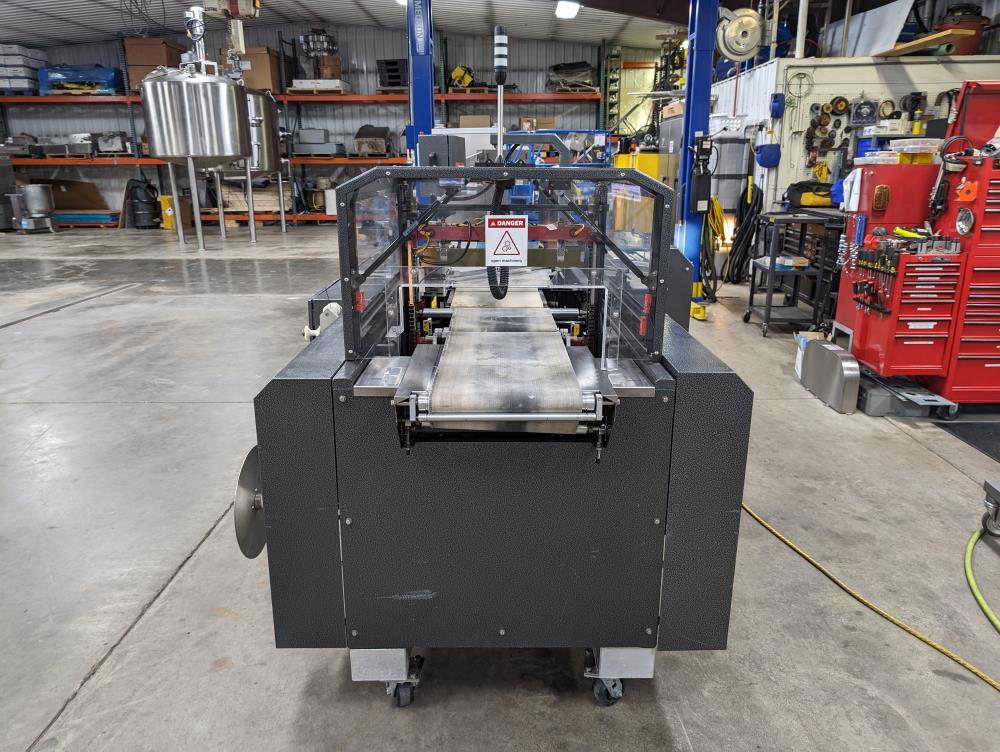

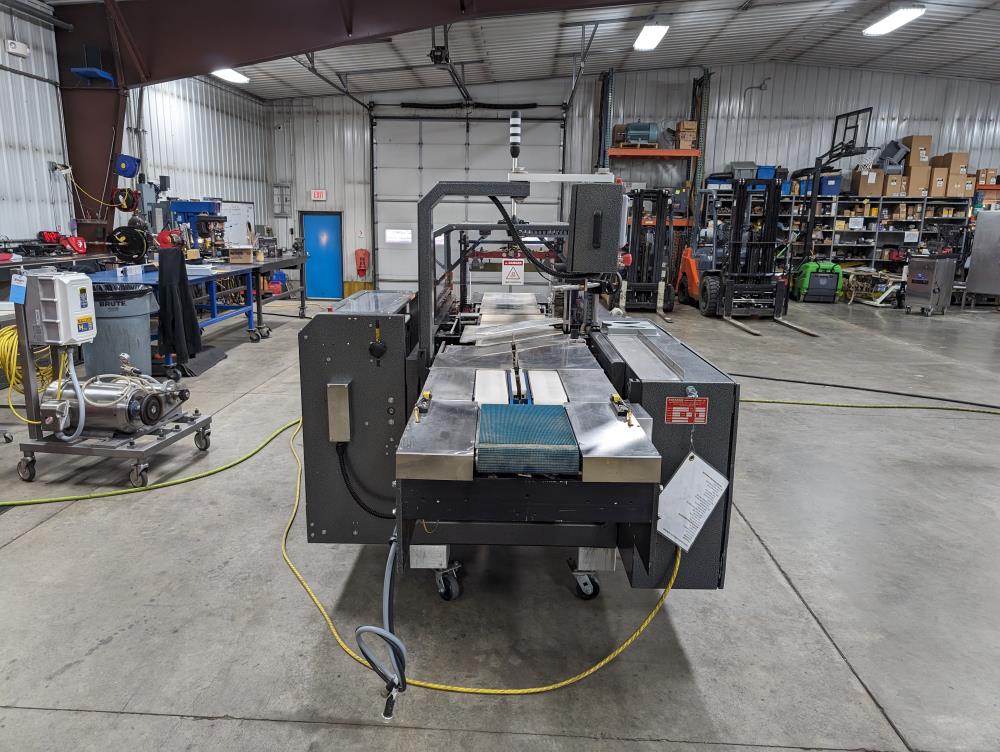

Extreme Packaging S18 Wrapper with XT-18 Heat Tunnel

Extreme Packaging S18 Wrapper with XT-18 Heat Tunnel is a high-performance shrink wrap system designed for efficient and precise packaging applications. With continuous side sealing, pneumatic product stop, and variable speed controls, this system ensures smooth operation for high-speed packaging lines.

Key Features & Specifications:

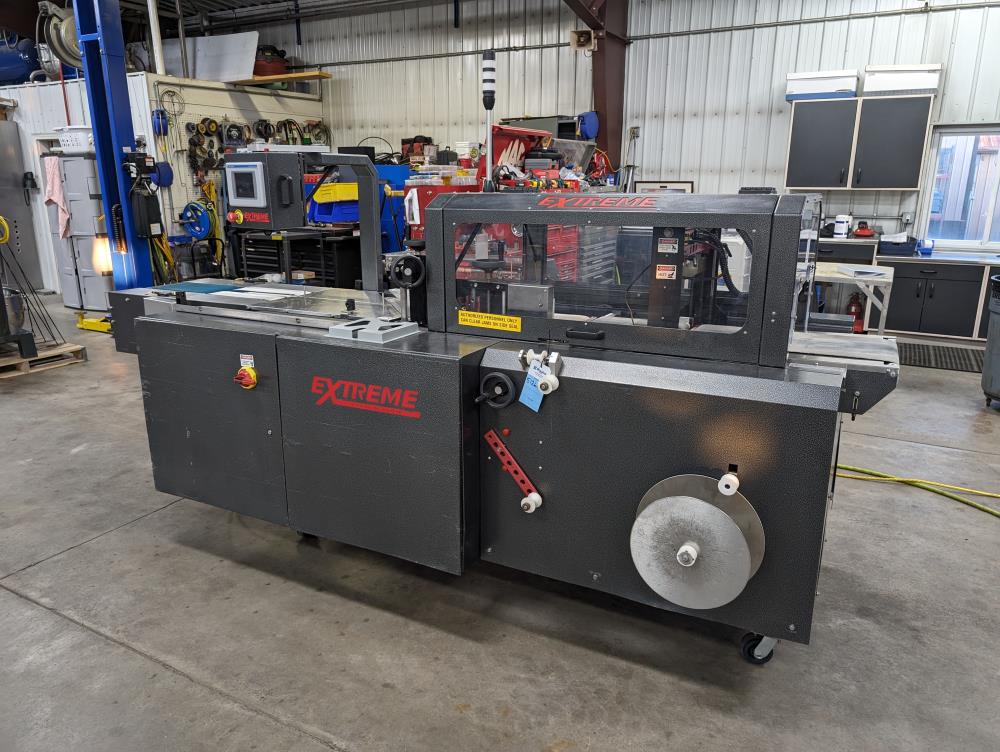

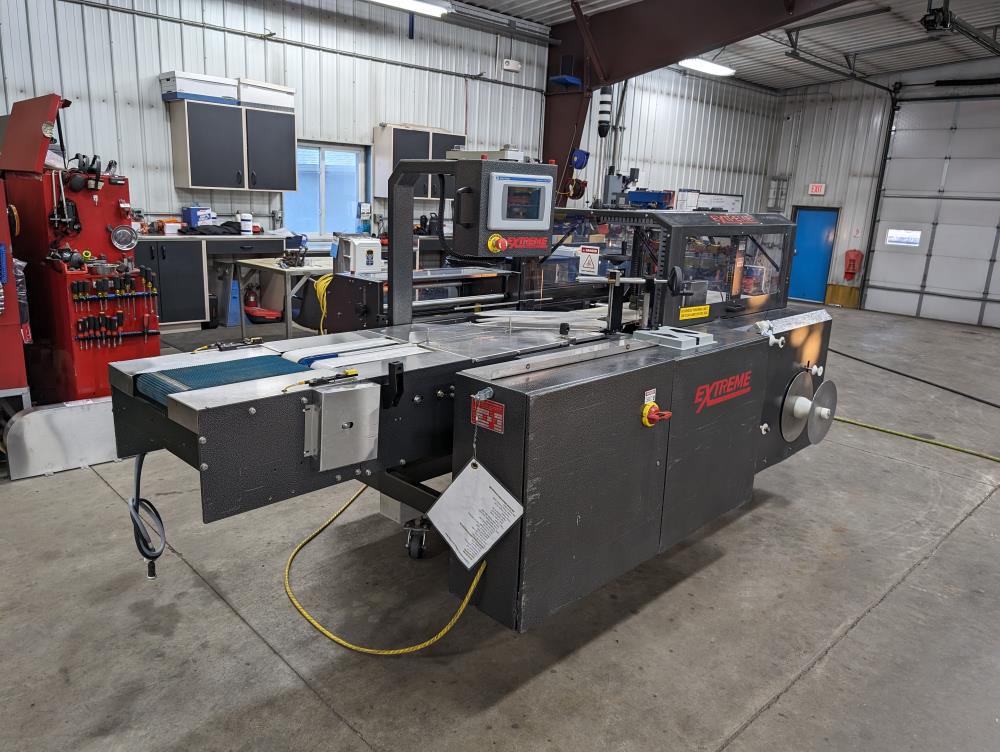

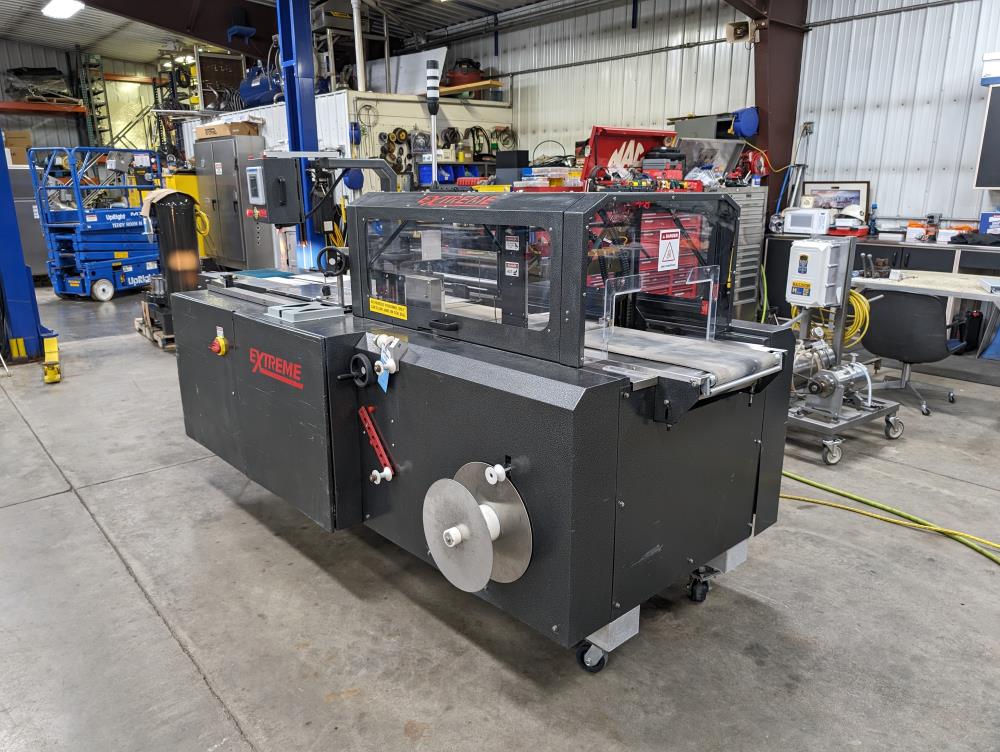

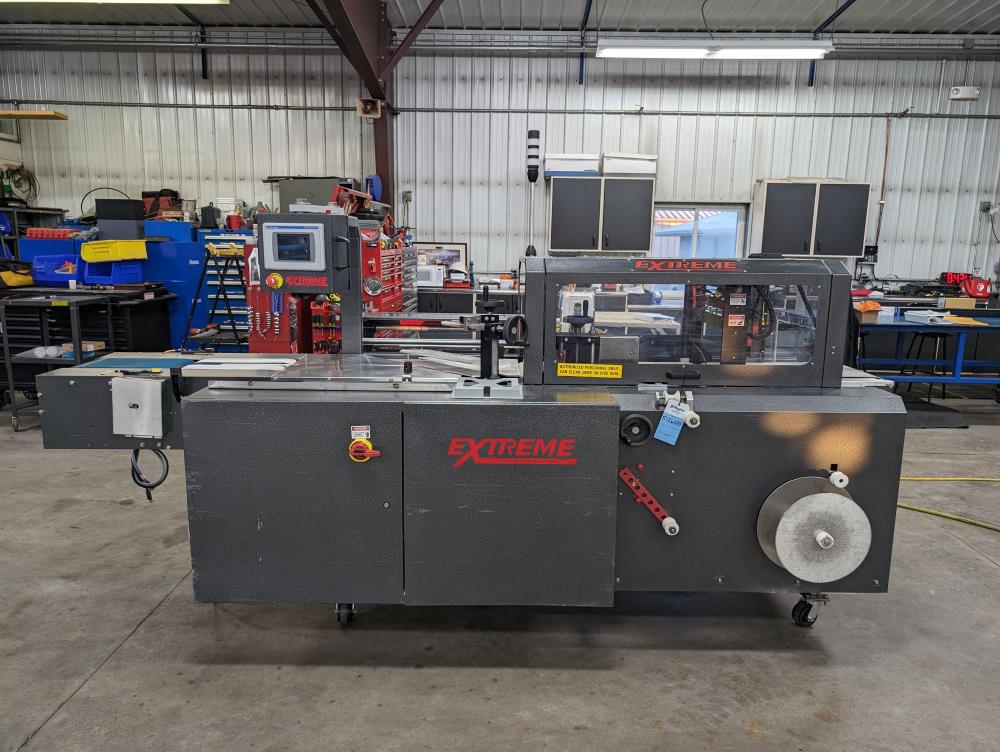

Extreme Packaging S18 Wrapper

• Infeed & Conveyor System:

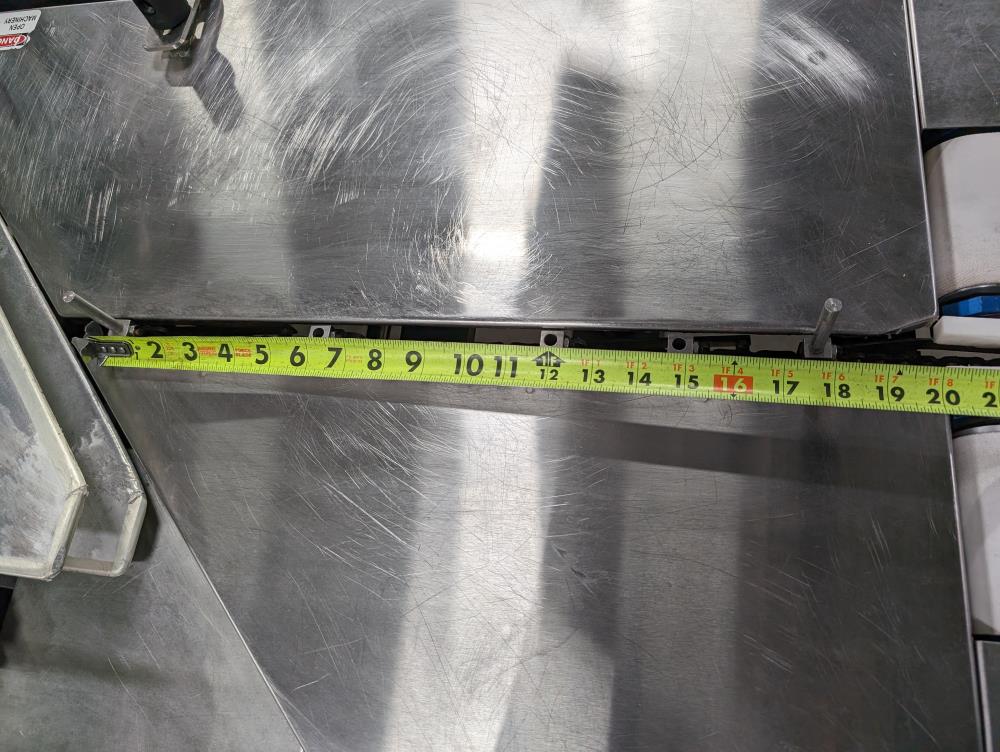

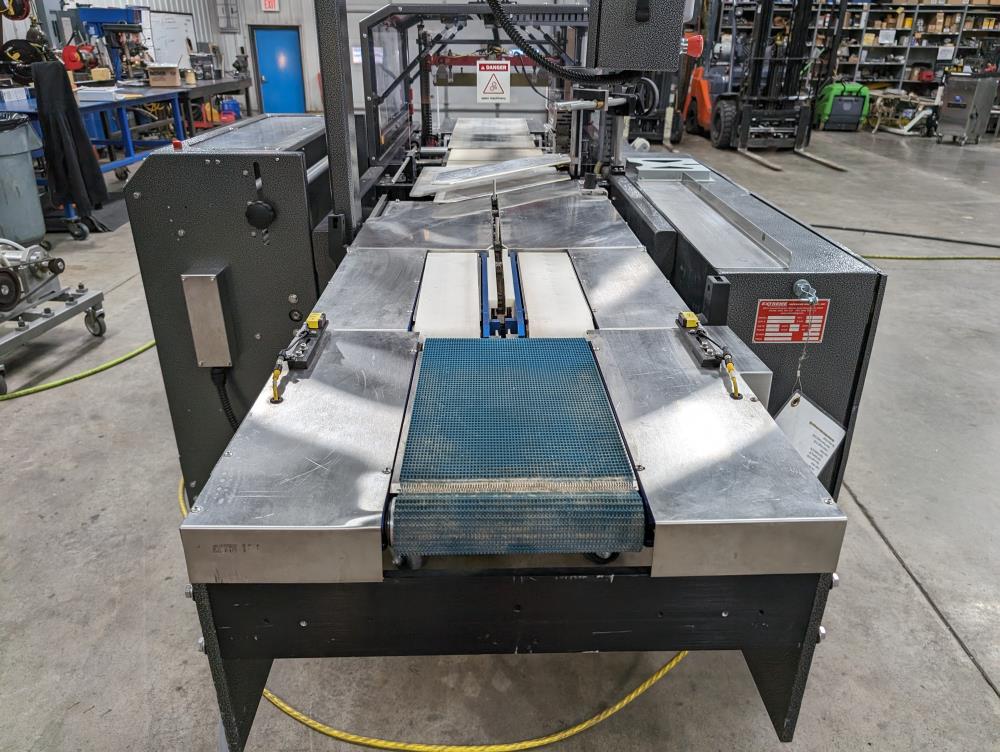

• Lug infeed: 38 inches long, 18-inch spacing, 1.75-inch tall lugs
• Timing belt conveyor feeds product into lug

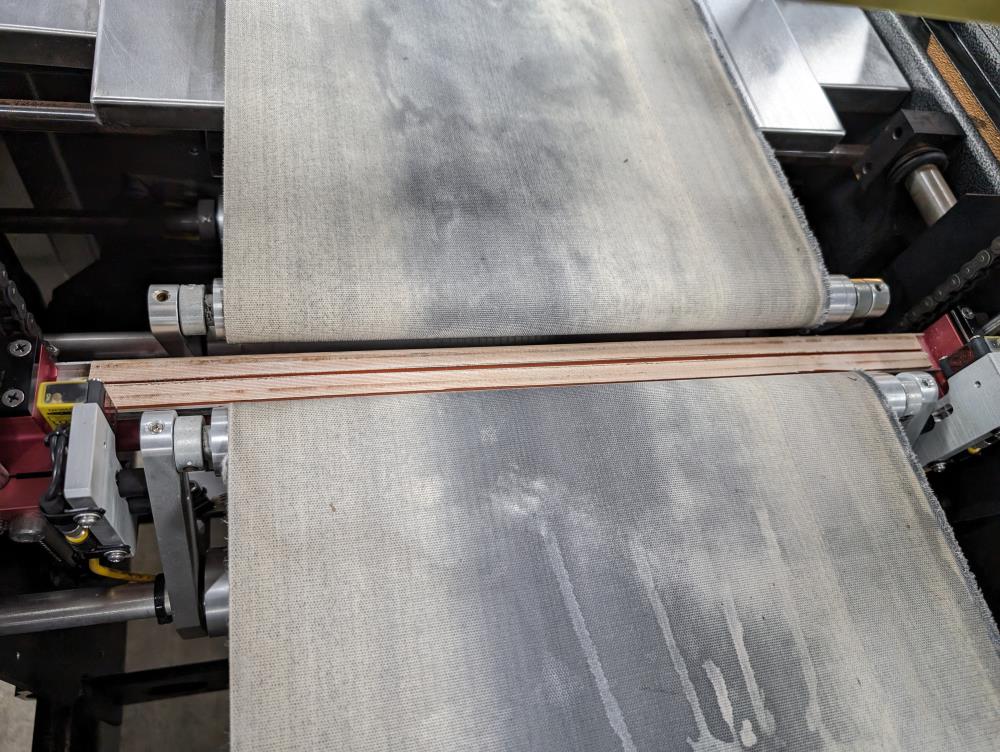

• Dual 18-inch-long x 4-inch-wide belts with pneumatic product stop

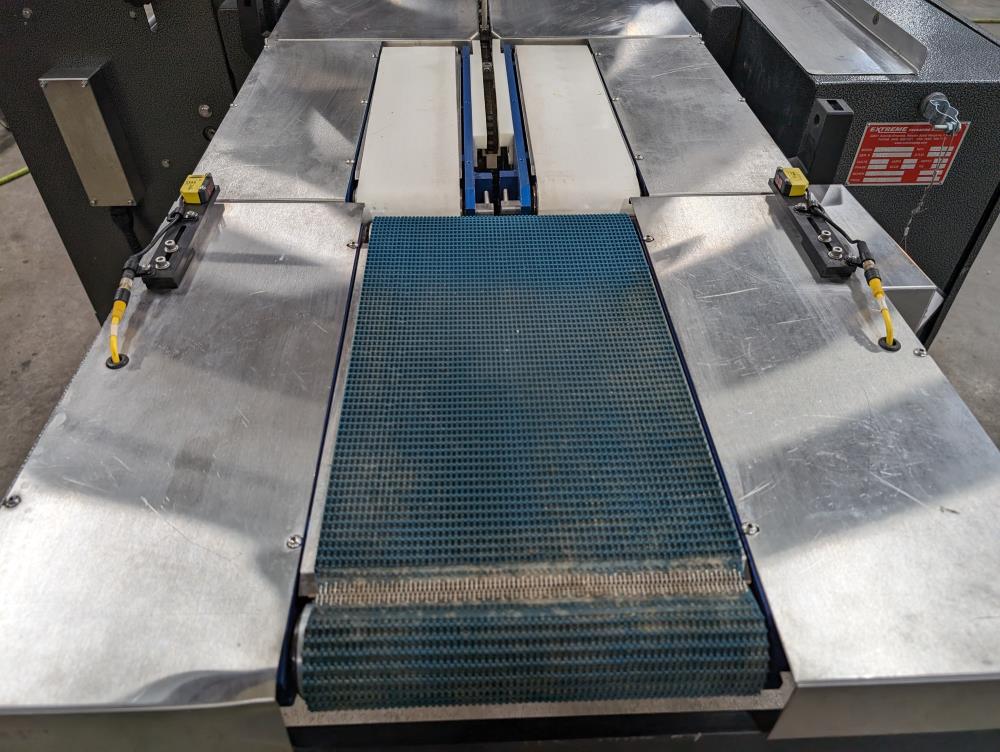

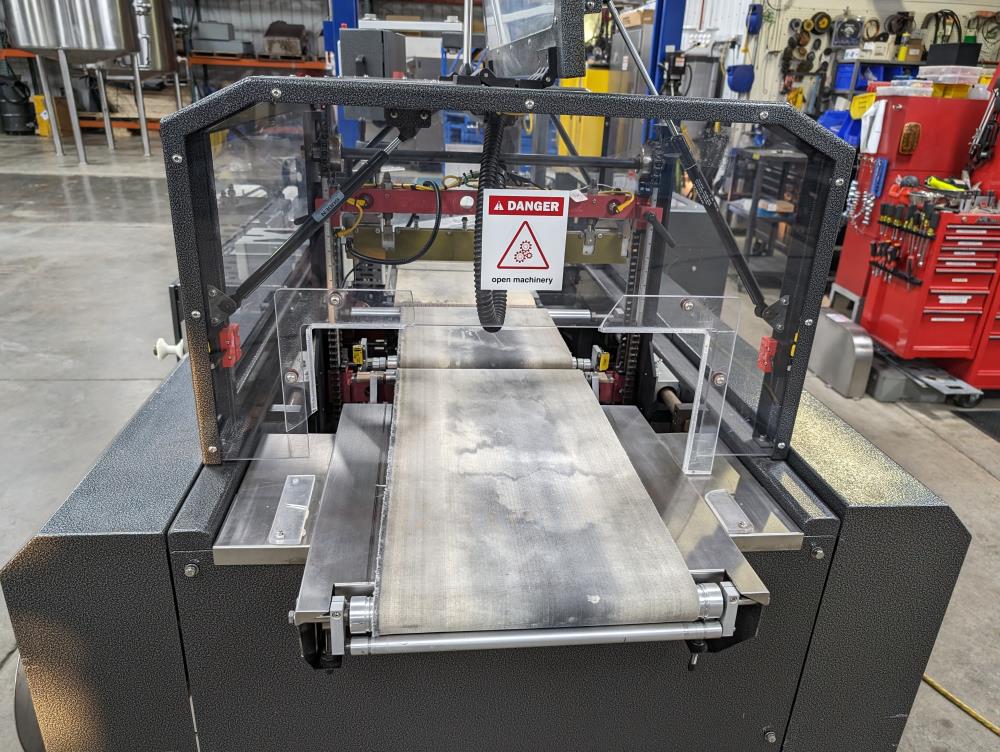

• Discharge conveyor: 34 inches long x 14 inches wide x 42 inches tall
• Sealing & Film Handling:

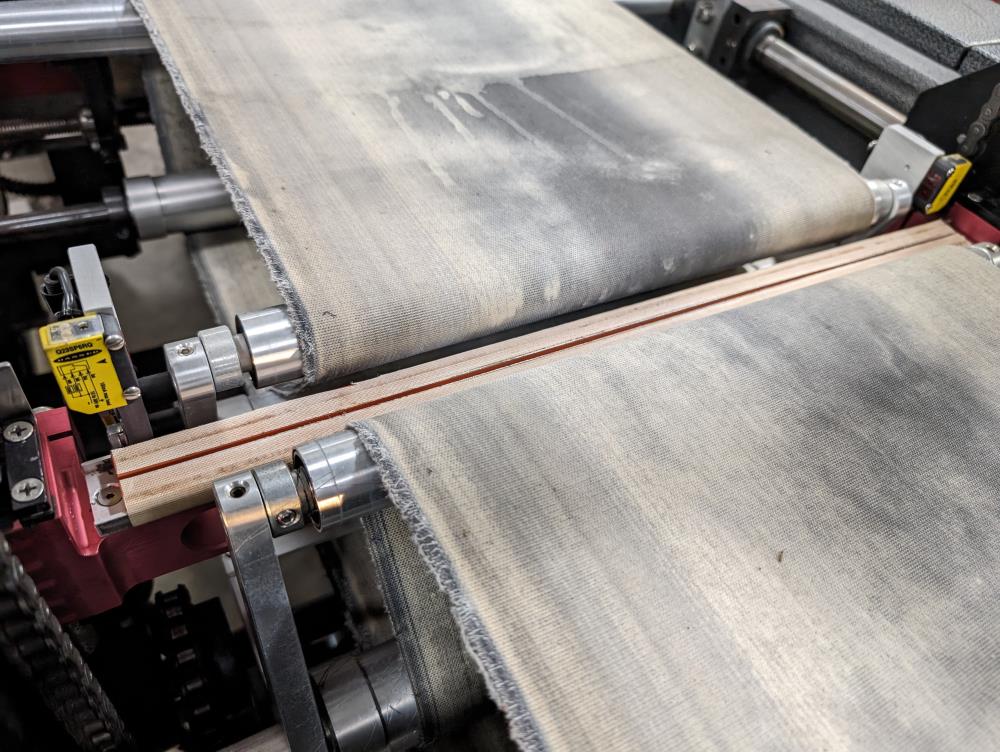

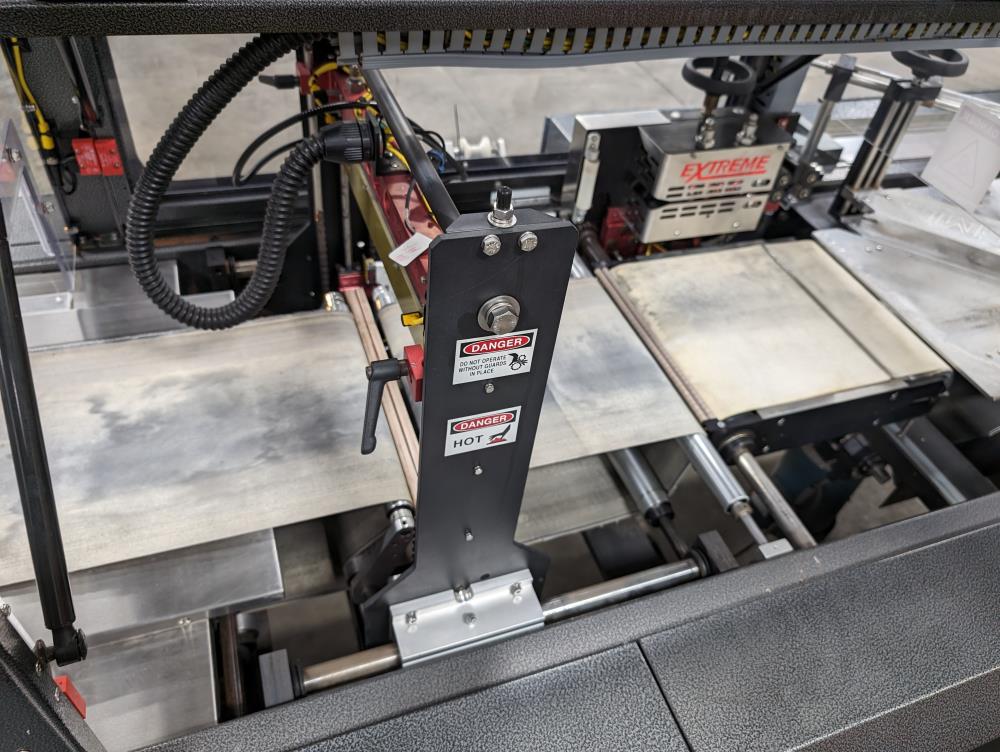

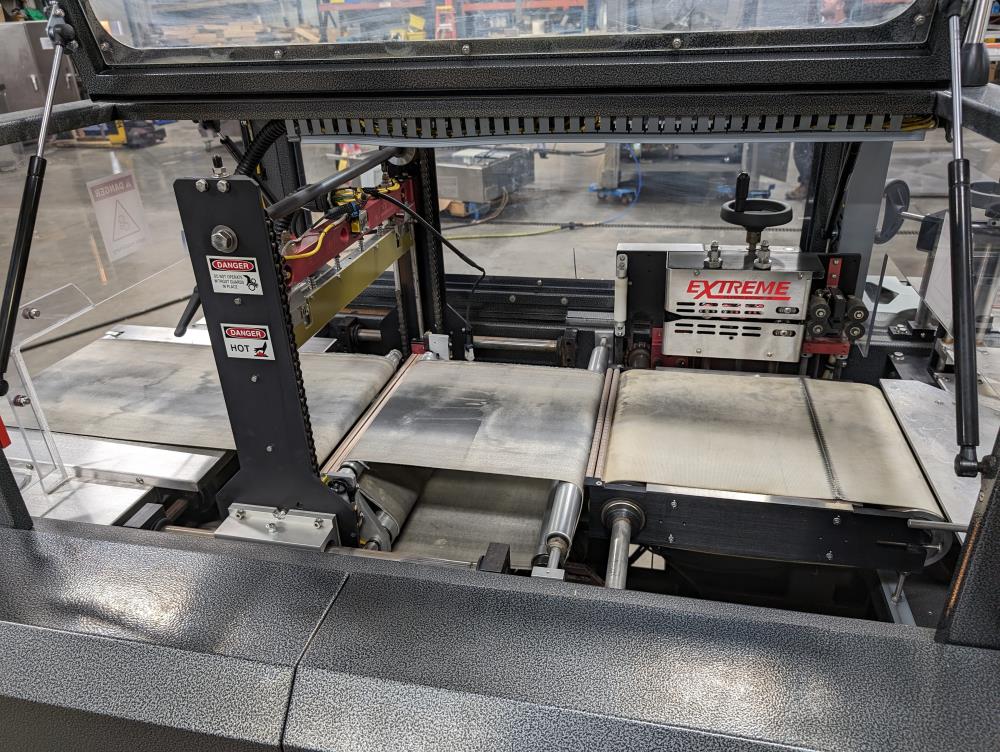

• Continuous side seal with scrap removal and winder

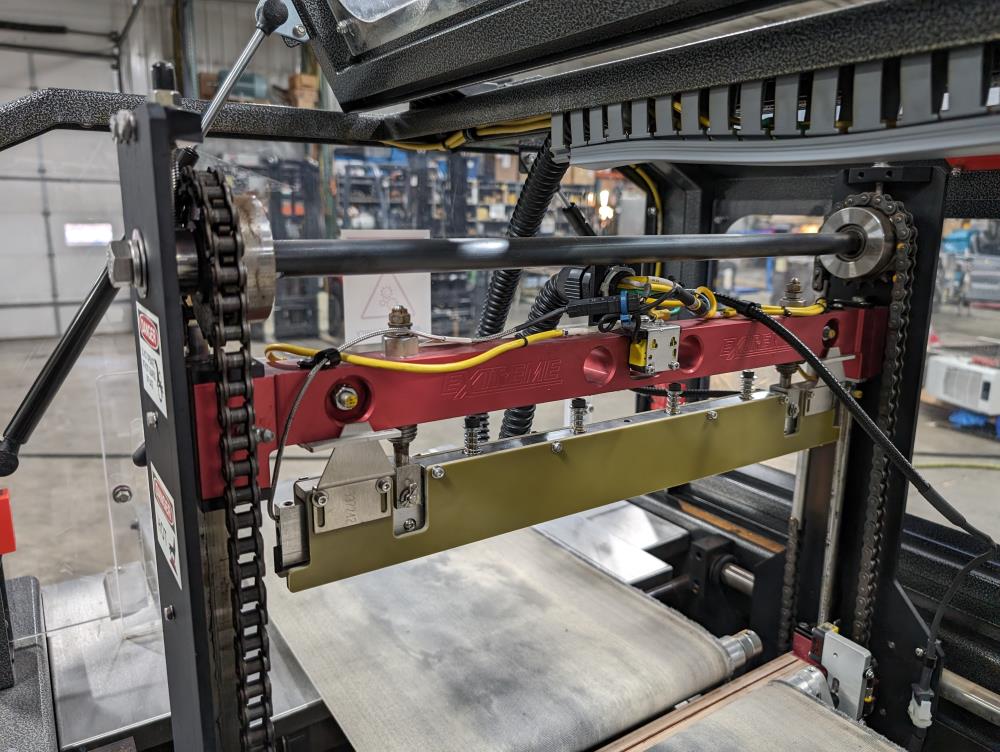

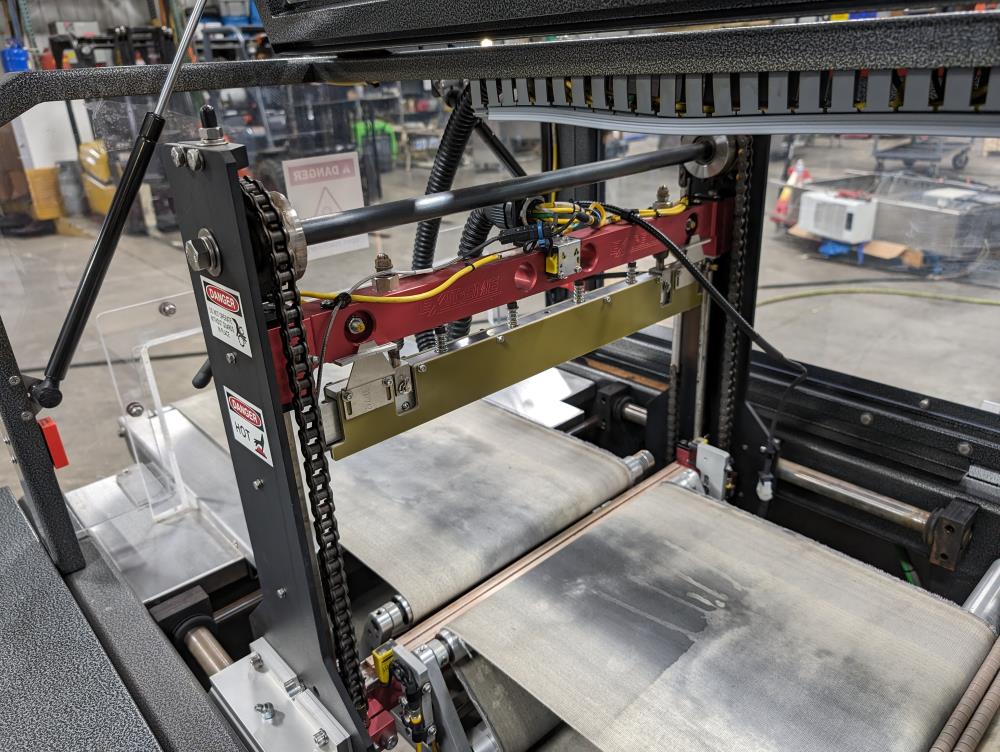

• Traveling end seal bar: 20 inches wide
• Film mandrel width: 28 inches
• Controls & Frame:
• Allen Bradley PanelView Plus 700 display
• Status indicator tree for system monitoring
• Stainless steel frame with removable covers
• Mounted on casters for mobility
• Power & Air Requirements:
• Electrical: 230-volt, 3-phase, 60 Hz, 50 amp
• Air requirements: 100 PSIG, 8 SFCM dry air

Extreme Packaging XT-18 Heat Shrink Tunnel

• Belt & Conveyor System:
• Wire belt dimensions: 84 inches long x 18 inches wide x 33 inches tall
• Aperture size: 21 inches wide x 12.5 inches tall
• Variable speed conveyor belt: Up to 125 ft/min
• Heating & Control Features:
• Variable speed air velocity for precise heat control
• Tunnel cool-down control
• Digital temperature controls
• Inspection glass on both sides for easy monitoring
• Frame & Mobility:
• Mounted on casters with adjustable legs
• Power Requirements:
• Electrical: 240-volt, 3-phase, 60 Hz
• Overall Dimensions:
• 87 inches long x 44 inches wide x 62 inches tall

This Extreme Packaging S18 Wrapper with XT-18 Heat Shrink Tunnel is designed for high-speed, precision shrink wrapping, making it an excellent solution for industrial packaging operations.
