Used 2018 Mince Master 535-1000 Single Plate Vertical Emulsifier

Download All Pictures

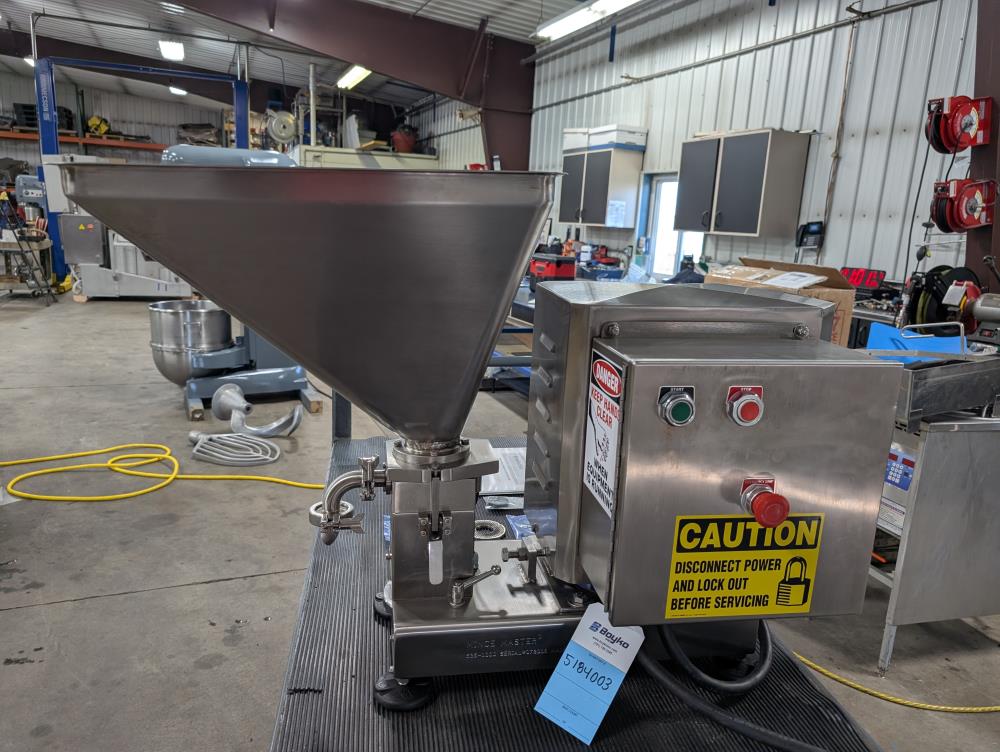

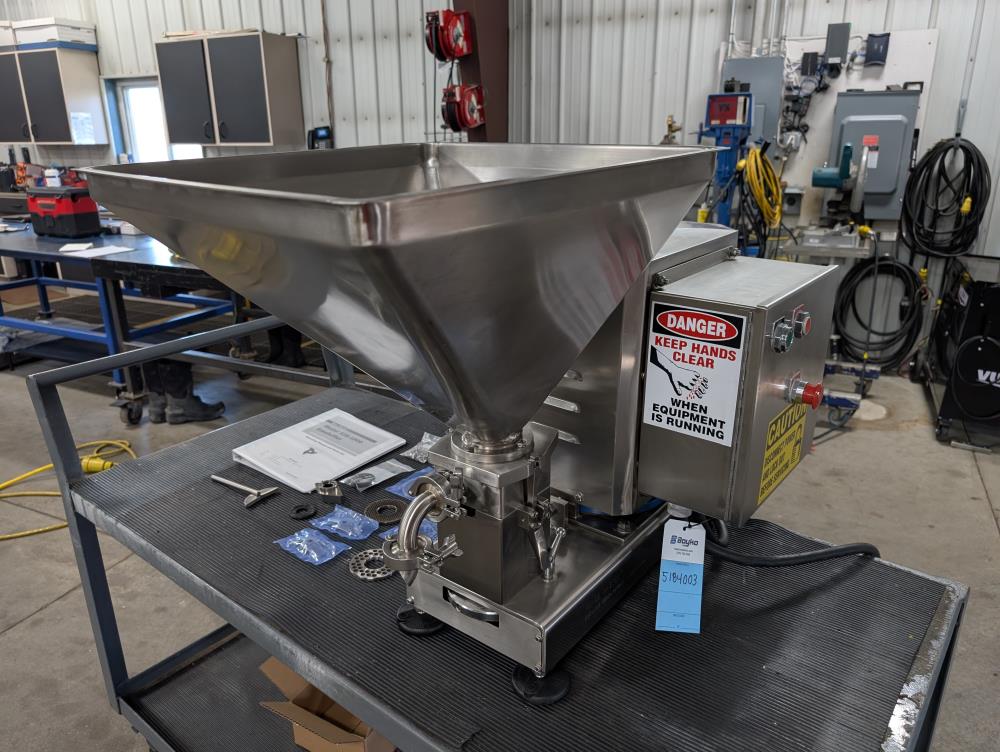

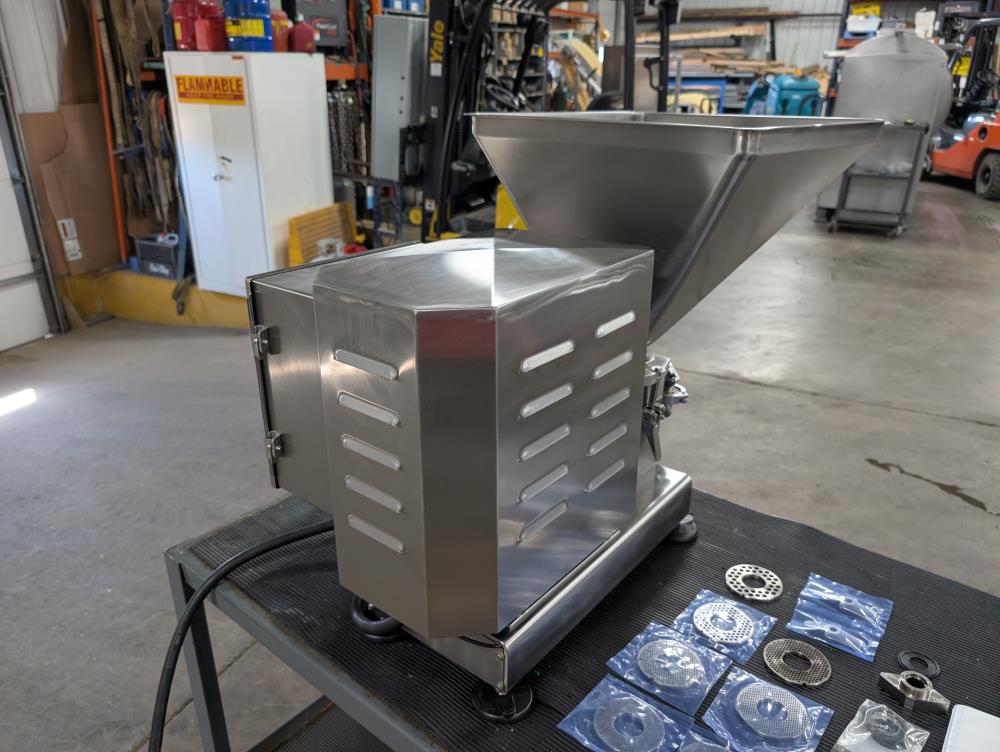

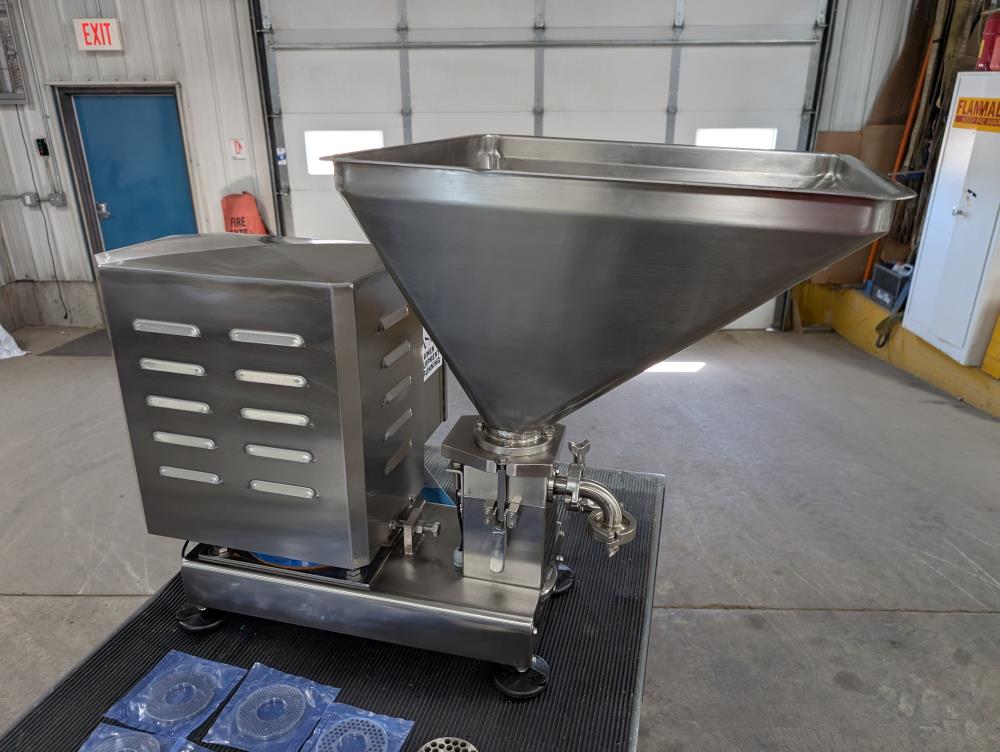

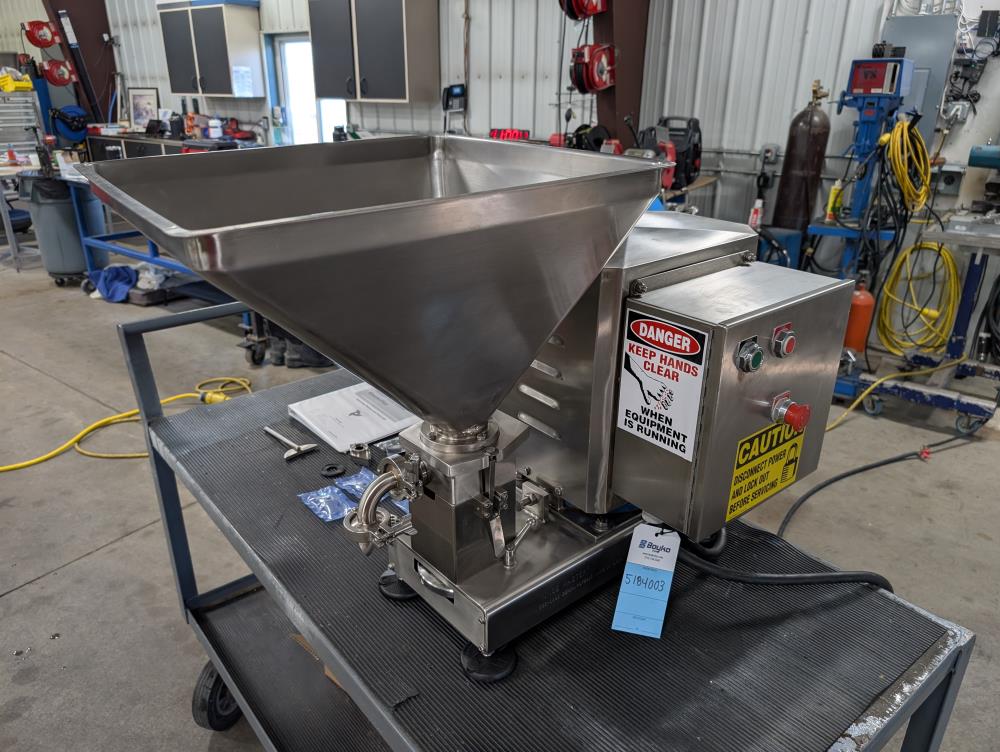

Used 2018 Mince Master 535-1000 Single Plate Vertical Emulsifier

Item #: 5184003

Sell Us Yours

Description

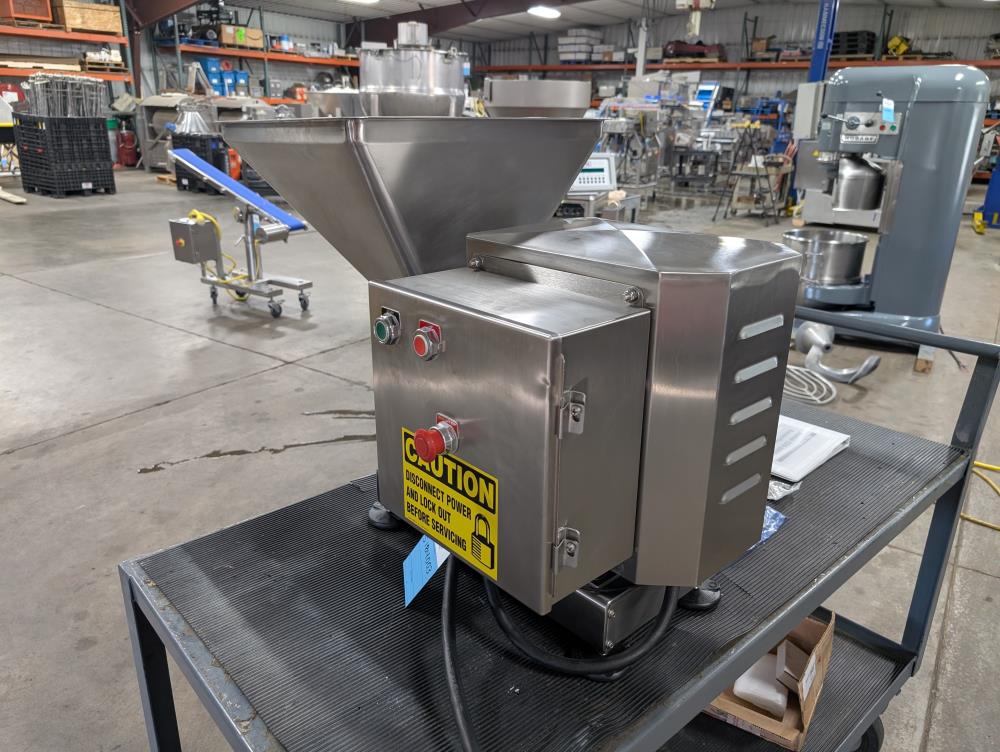

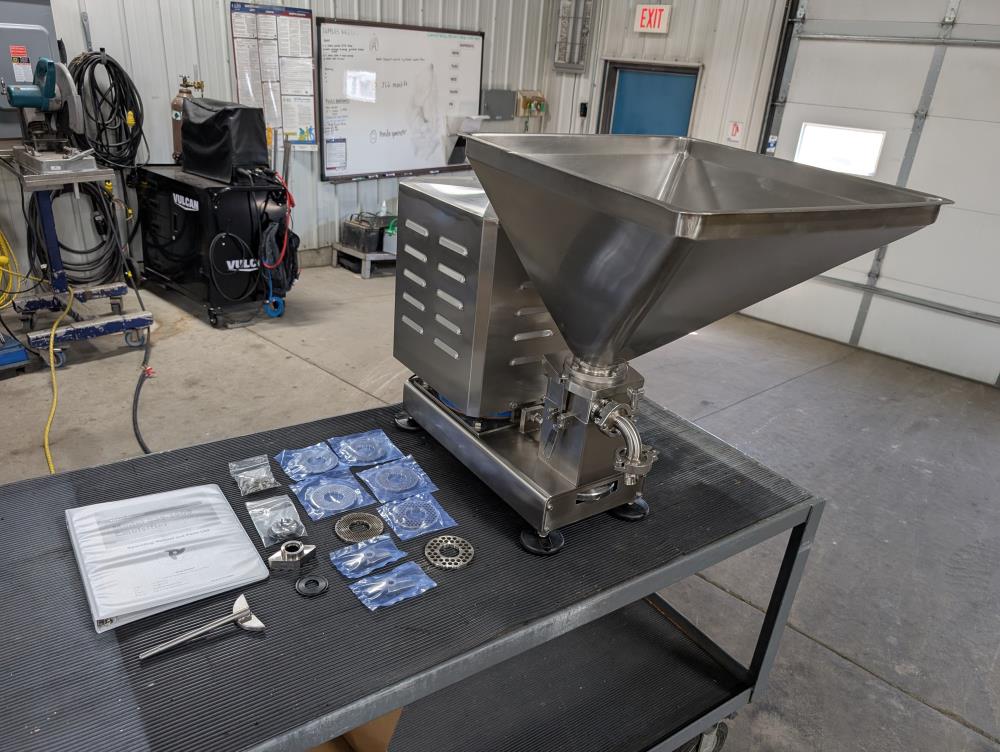

The Mince Master 535-1000 is a robust vertical emulsifier designed for fine-cut processing in industrial food production. Built from stainless steel with adjustable legs, this machine is designed for easy cleaning, durability, and precise emulsifying. It comes with a complete set of spare plates and knives, providing flexibility for different product types.

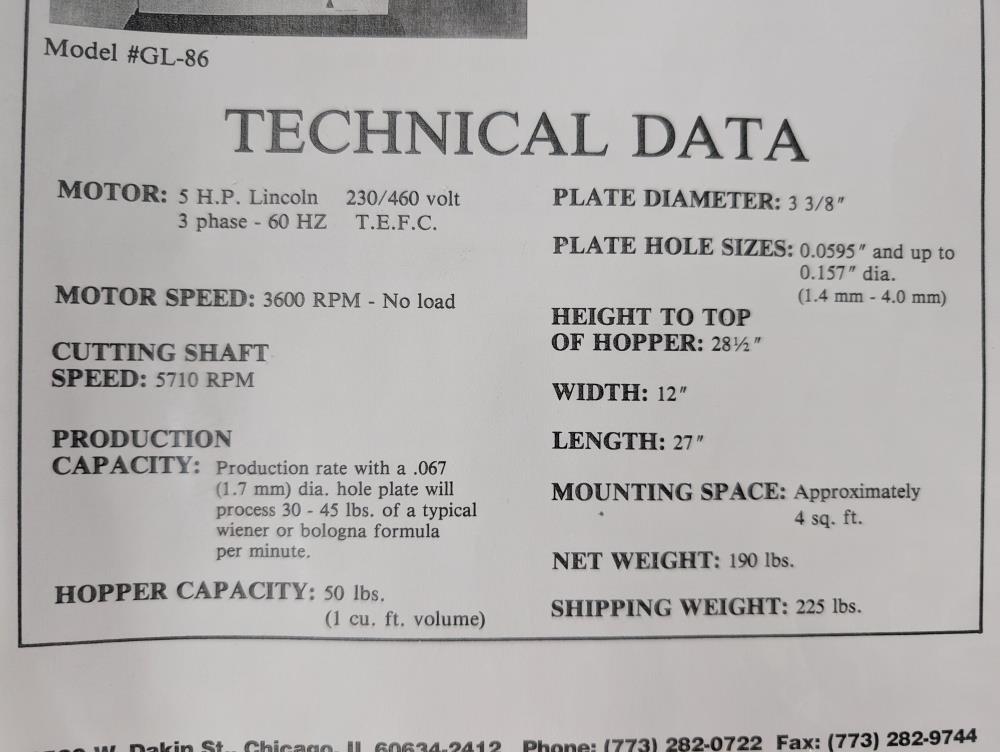

Key Features & Specifications

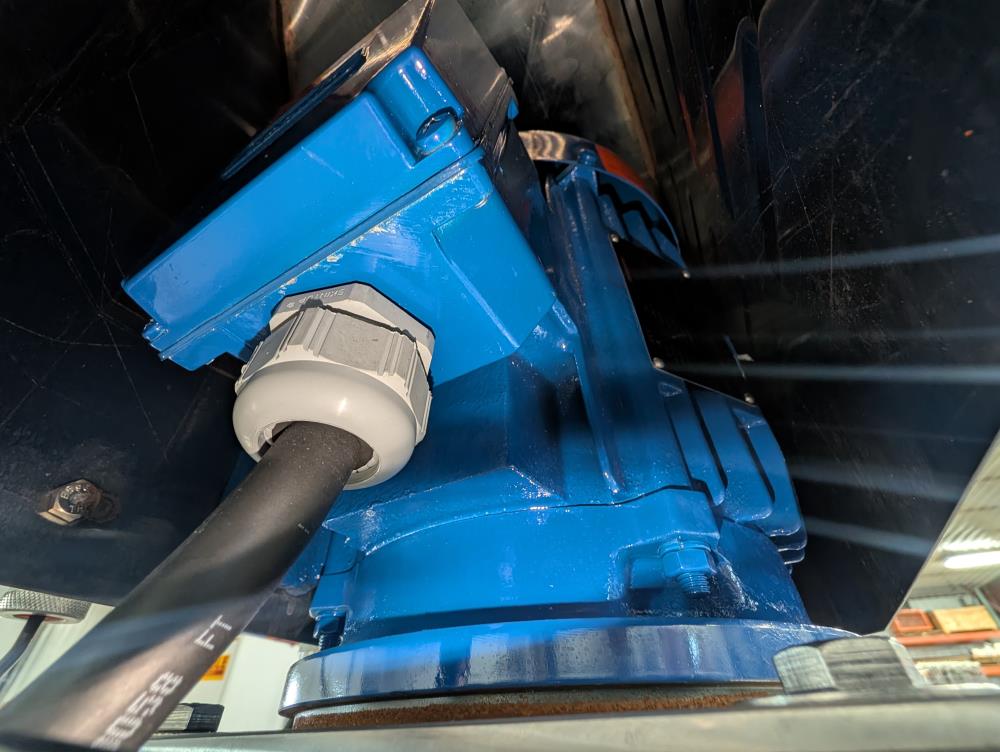

Motor & Drive

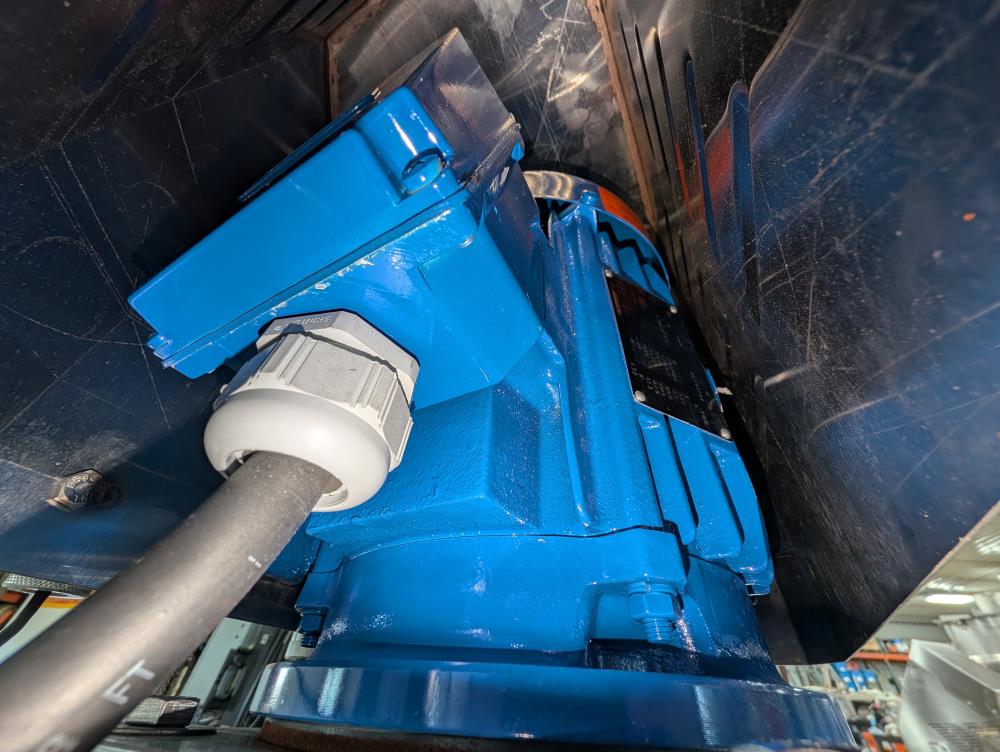

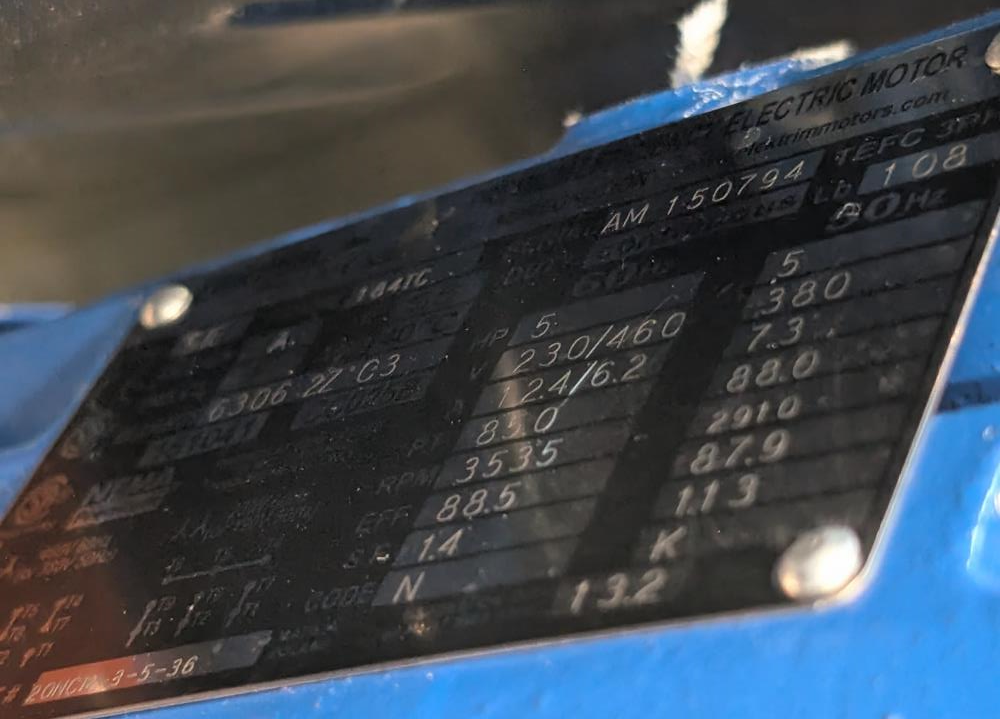

Motor: 5 HP
Voltage: 230/460 VAC, 3 Phase, 60 Hz
Motor speed: 3600 RPM
Cutting shaft speed: 5710 RPM

Hopper & Infeed

Stainless steel hopper
Capacity: 50 lbs (22.7 kg)
Dimensions: 19 in. L x 18 in. W x 16 in. H
Infeed height: 27 inches

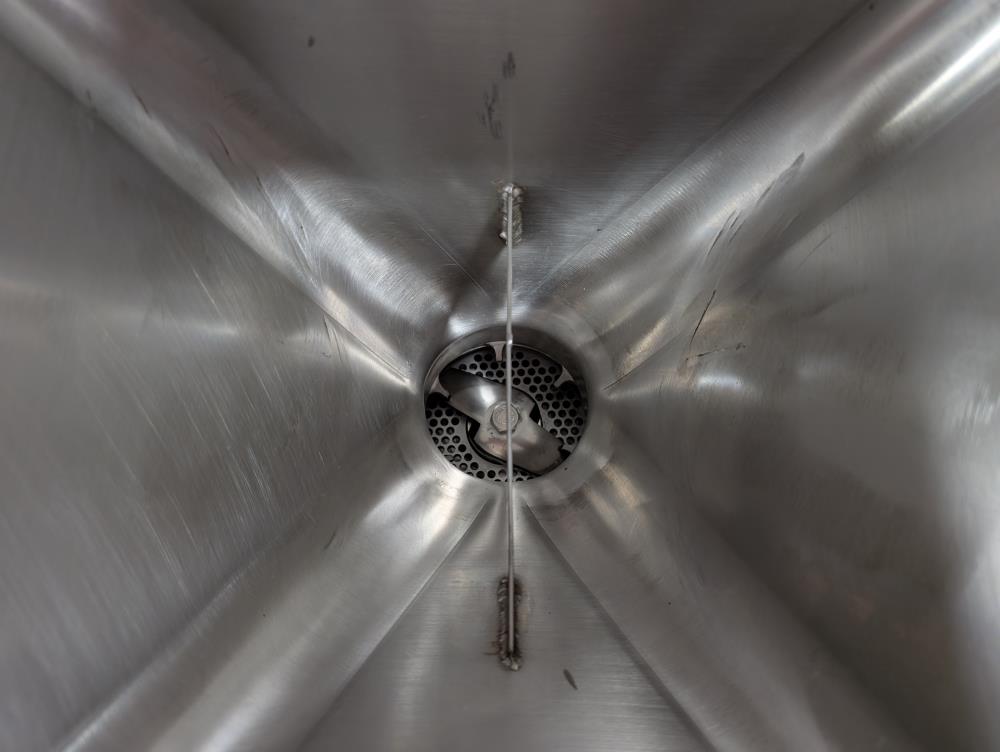

Cutting Plate & Spare Parts

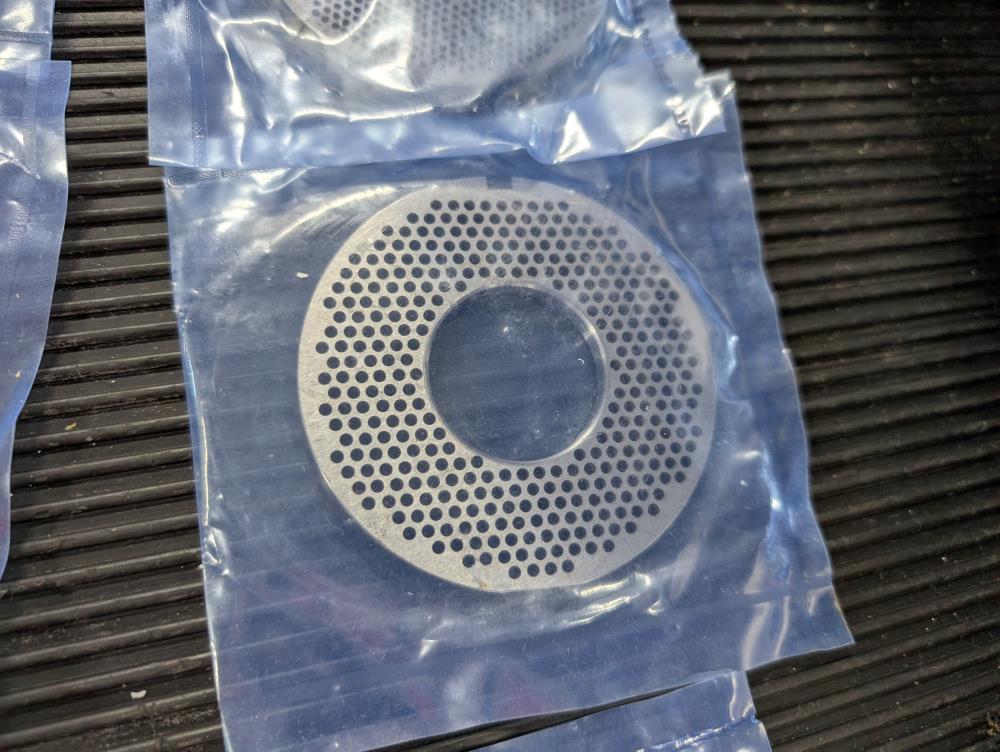

Plate size: 3 3/8 inches (86 mm)
Plate hole size options: 1.4 mm to 4.0 mm

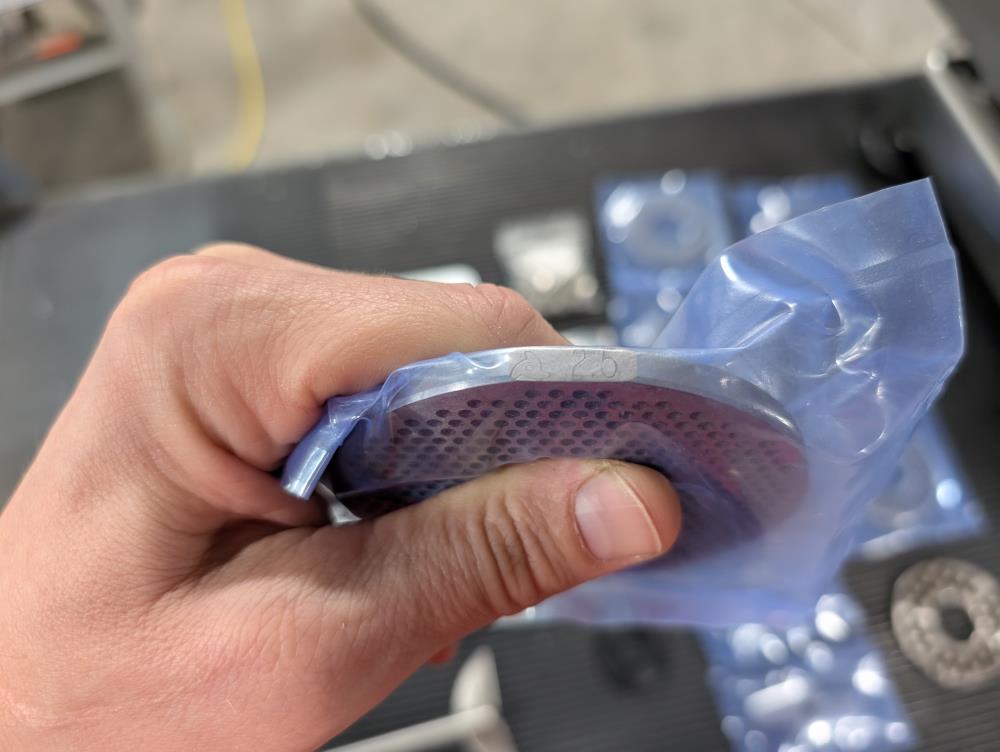

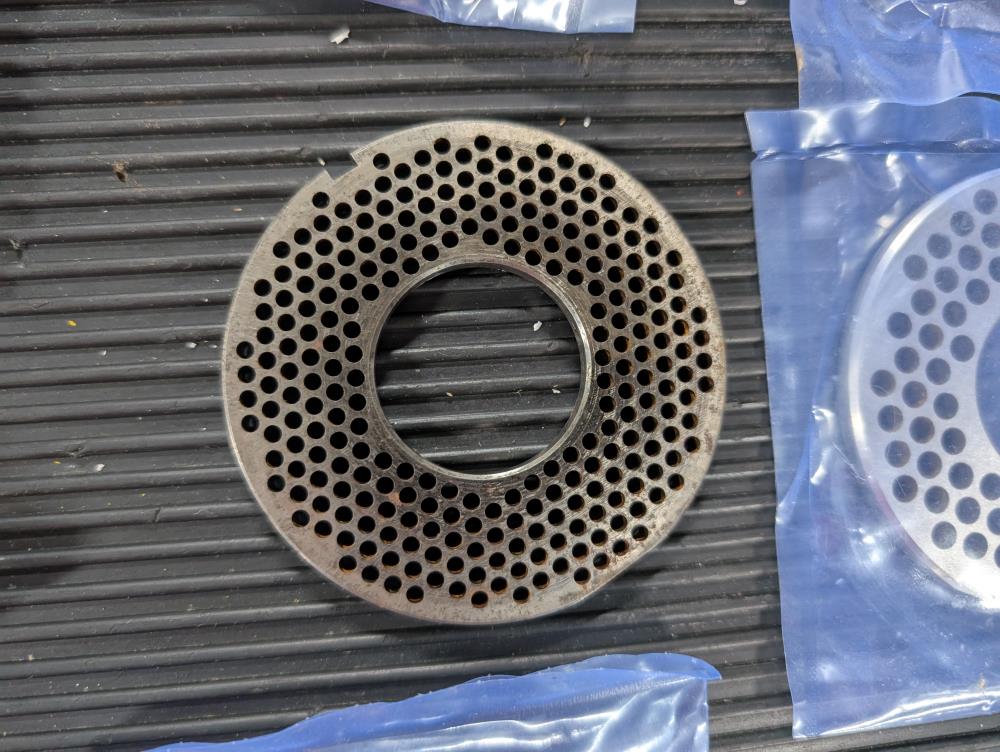

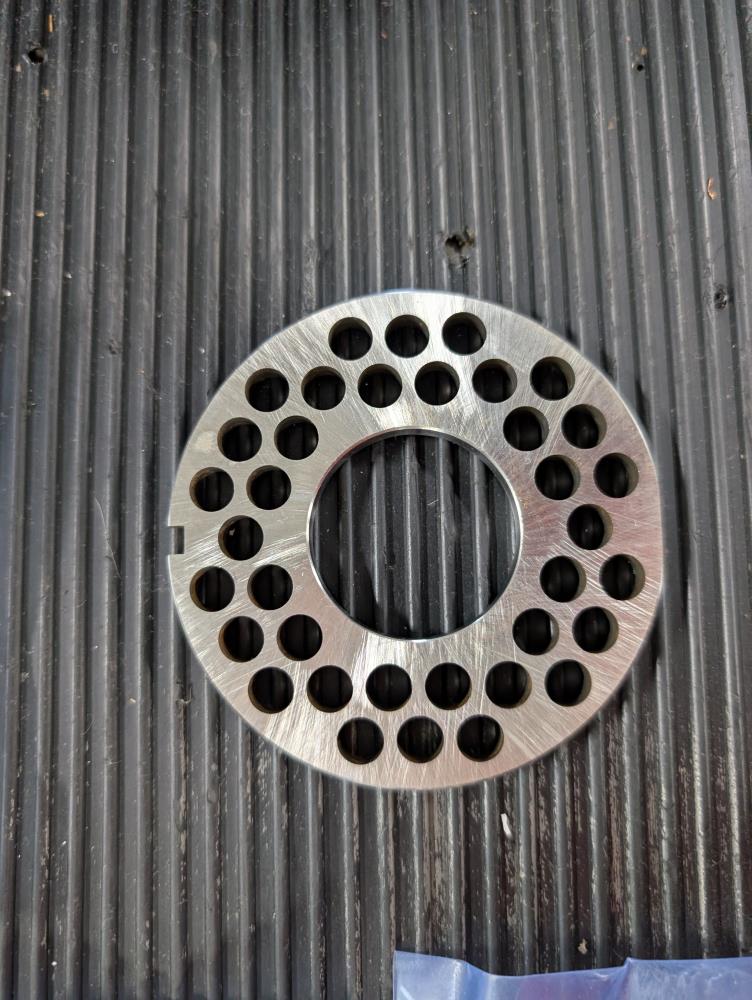

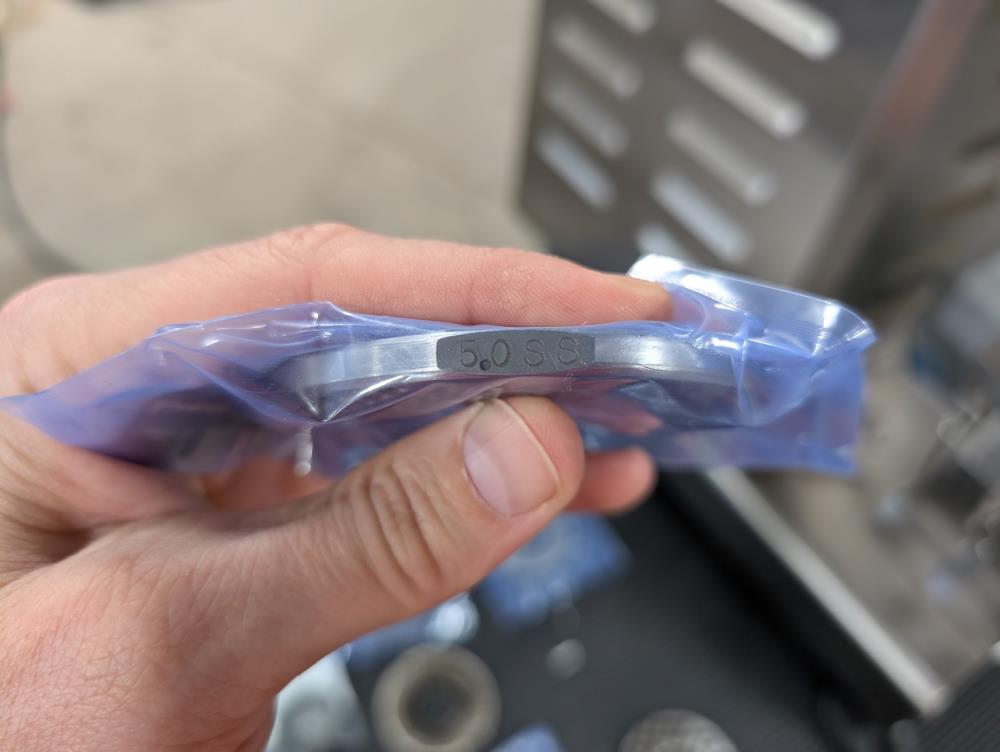

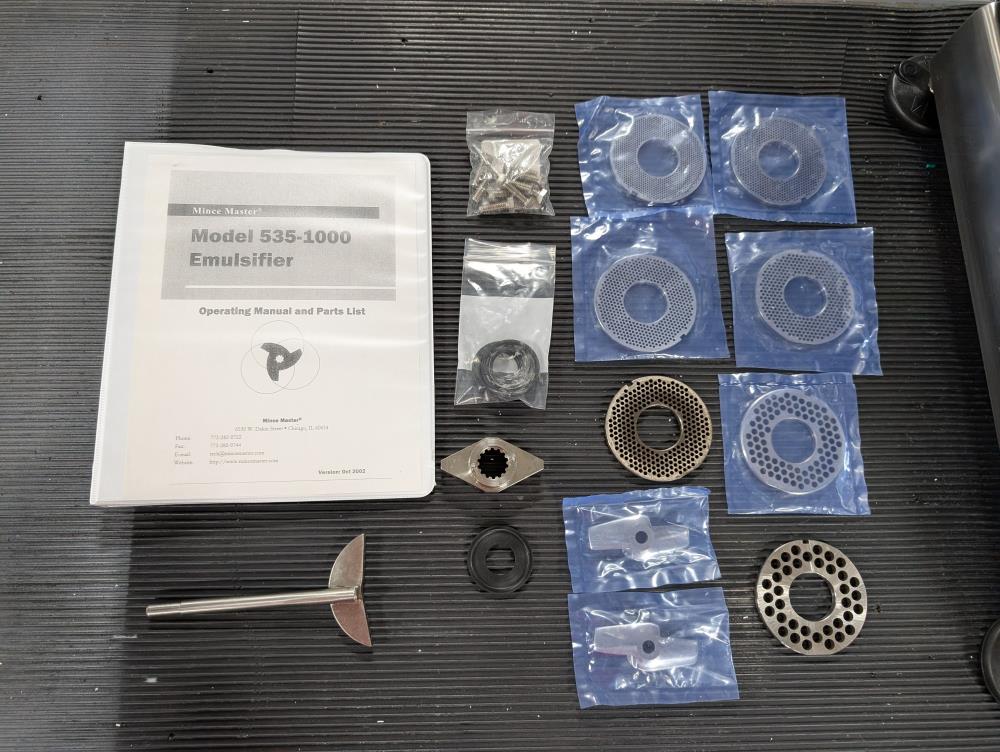

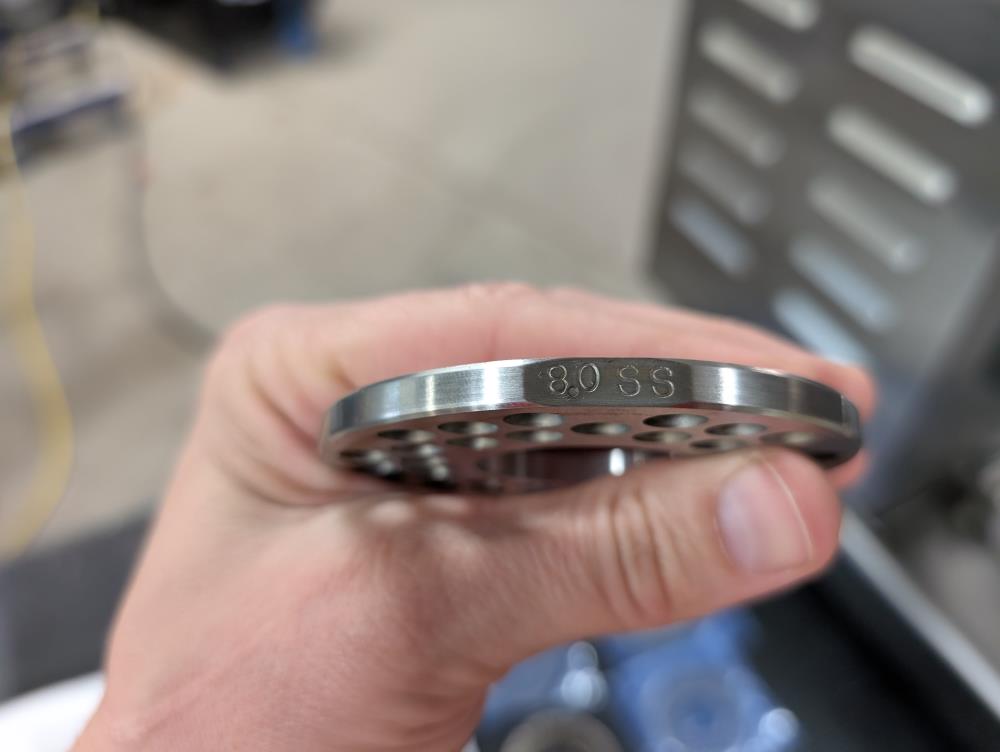

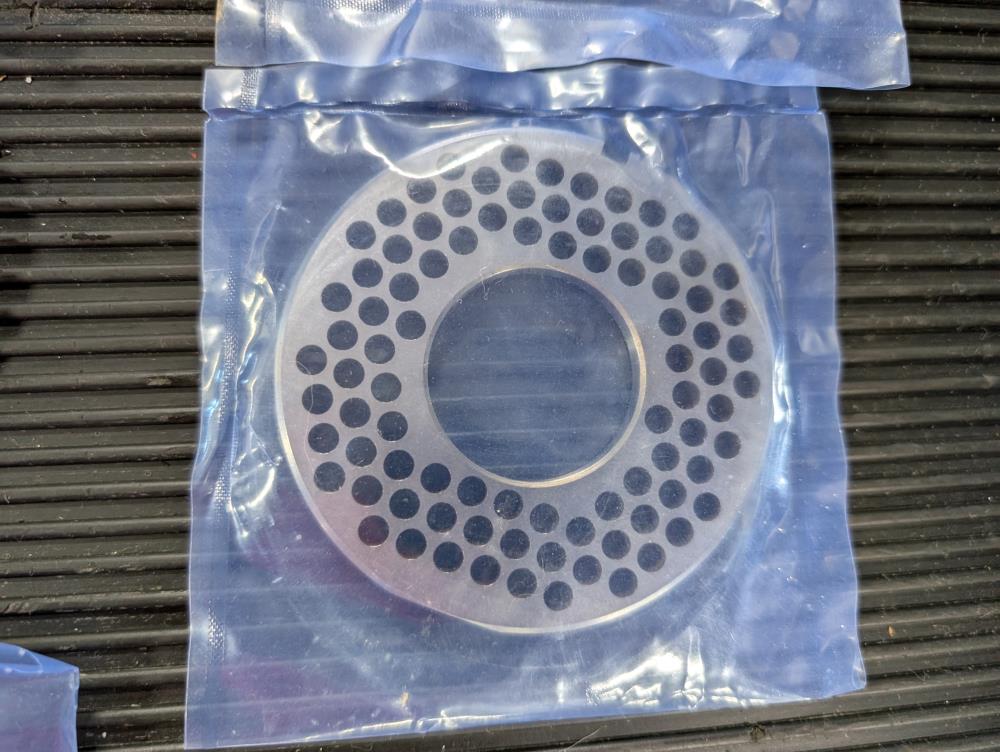

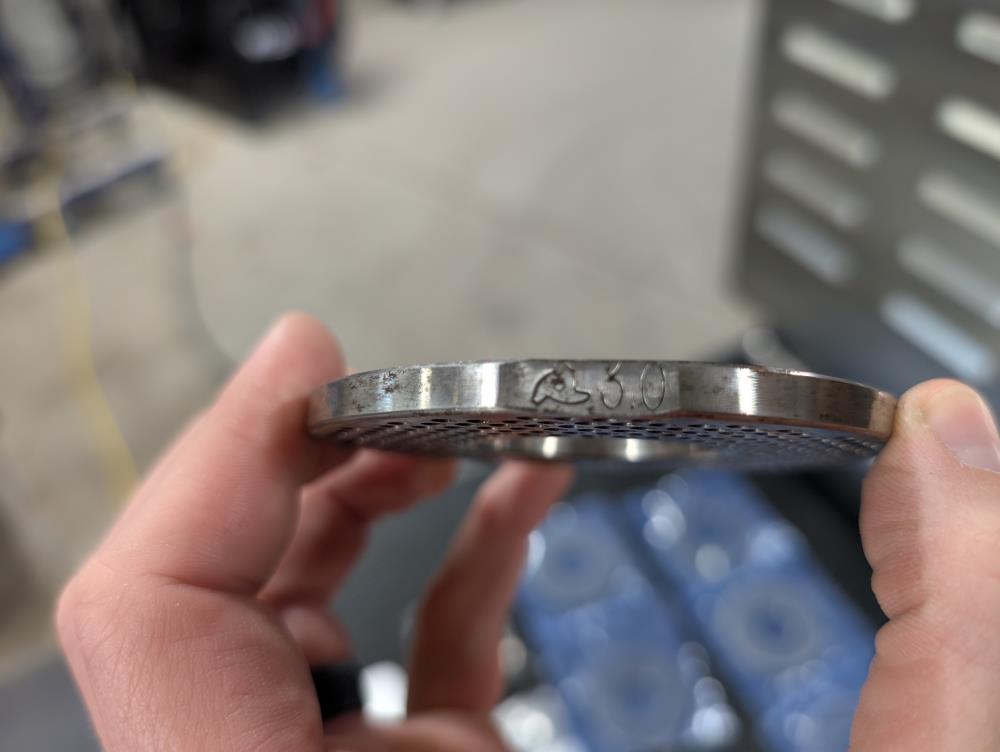

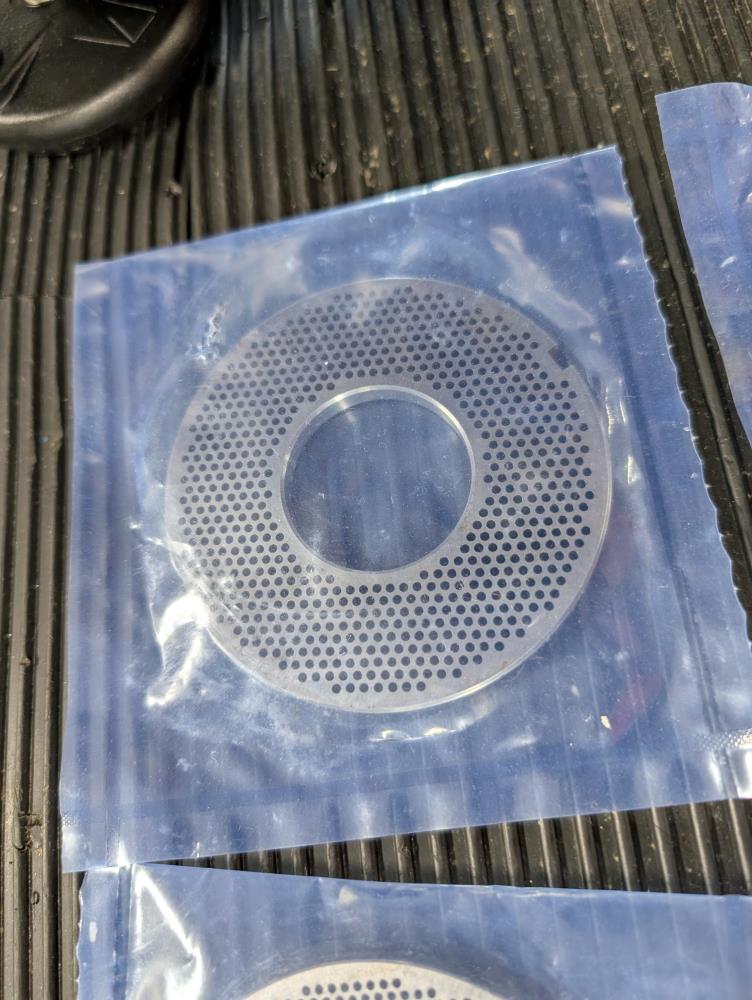

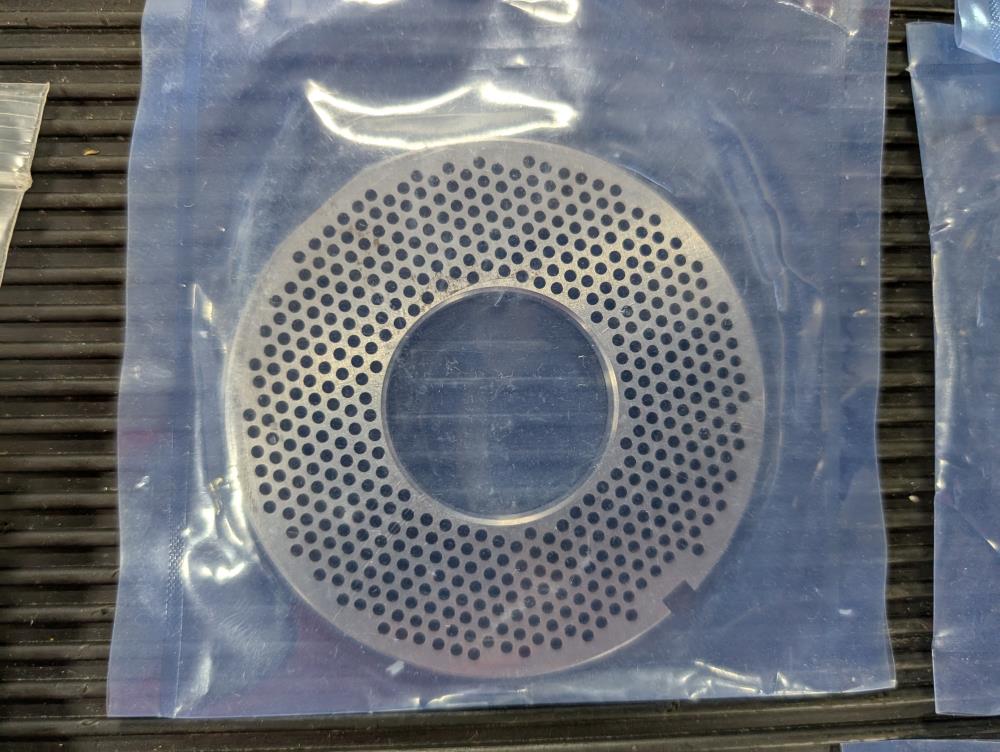

Spare Plates Included:

Used: 3.0 mm, 4.0 mm, 8.0 mm

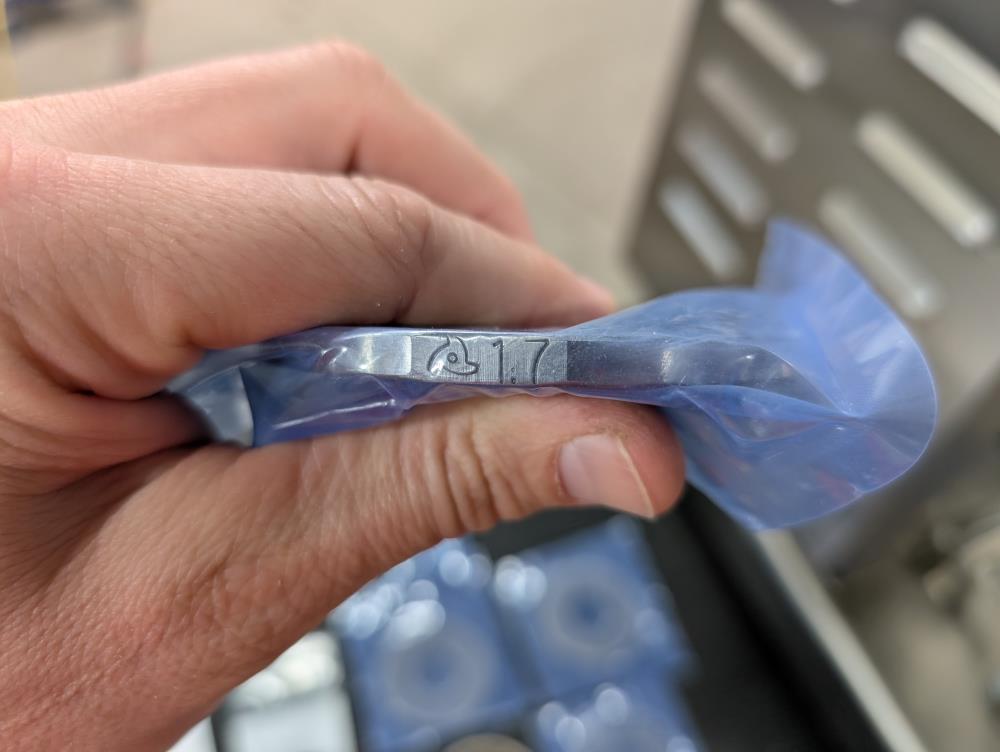

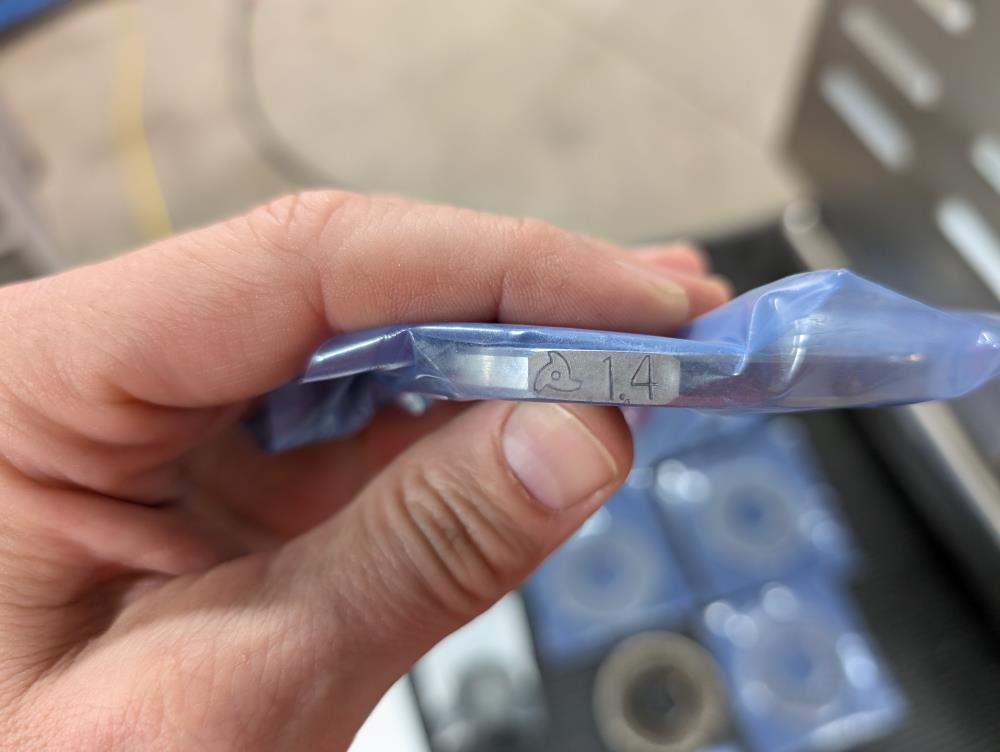

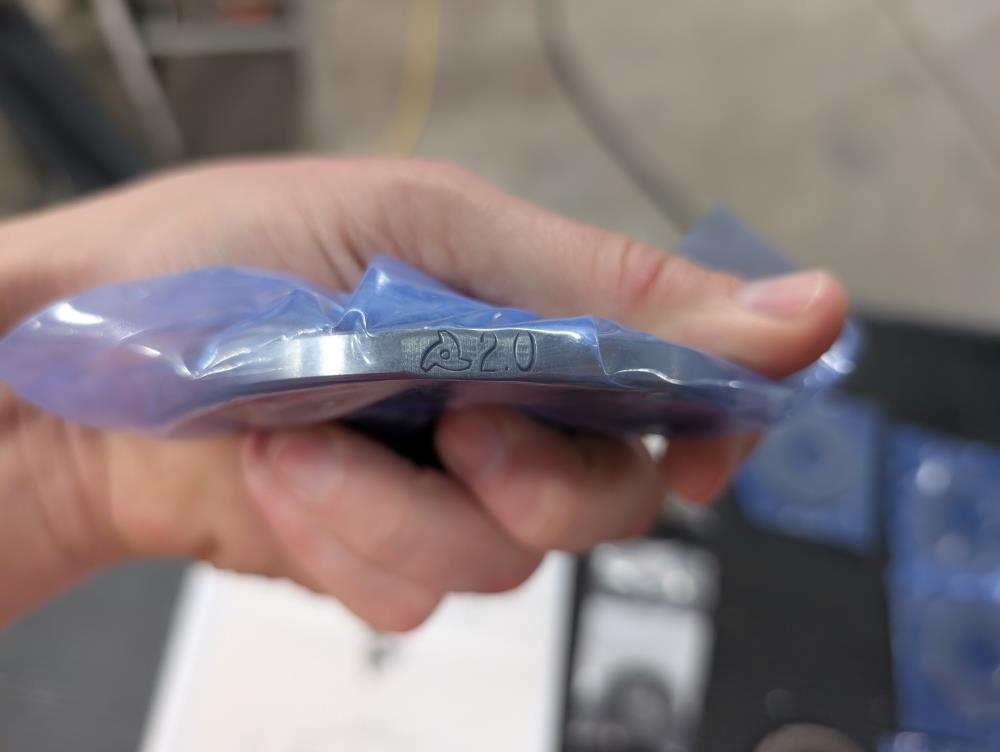

New: 1.4 mm, 1.7 mm, 2.0 mm, 2.5 mm

Spare Knives Included:

(2) new knives
(1) used knife

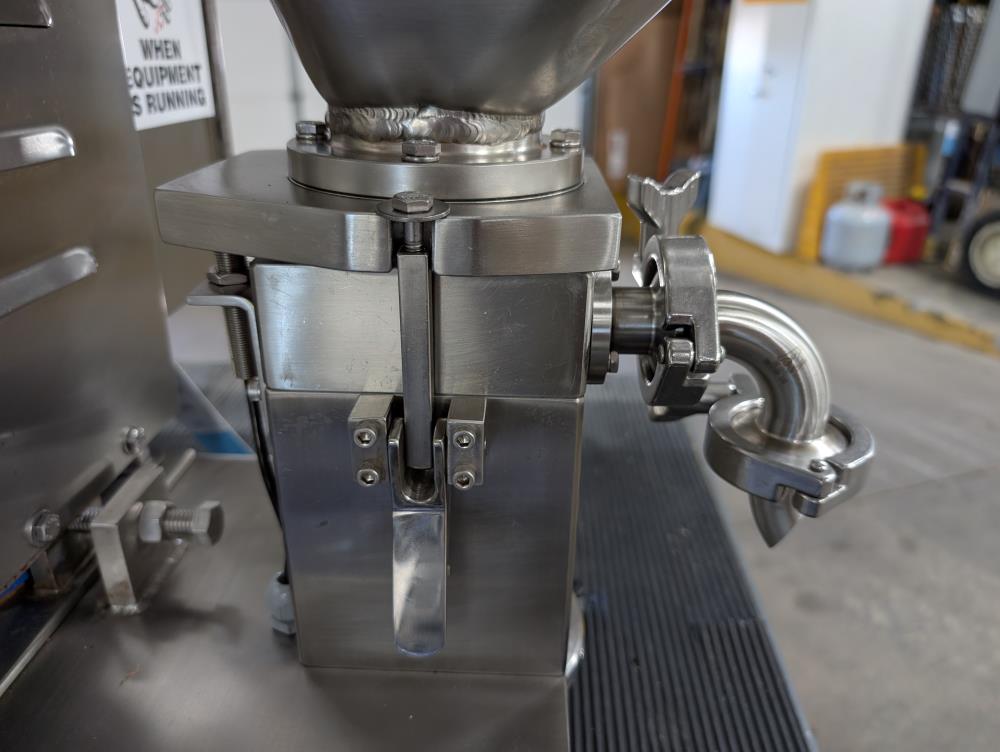

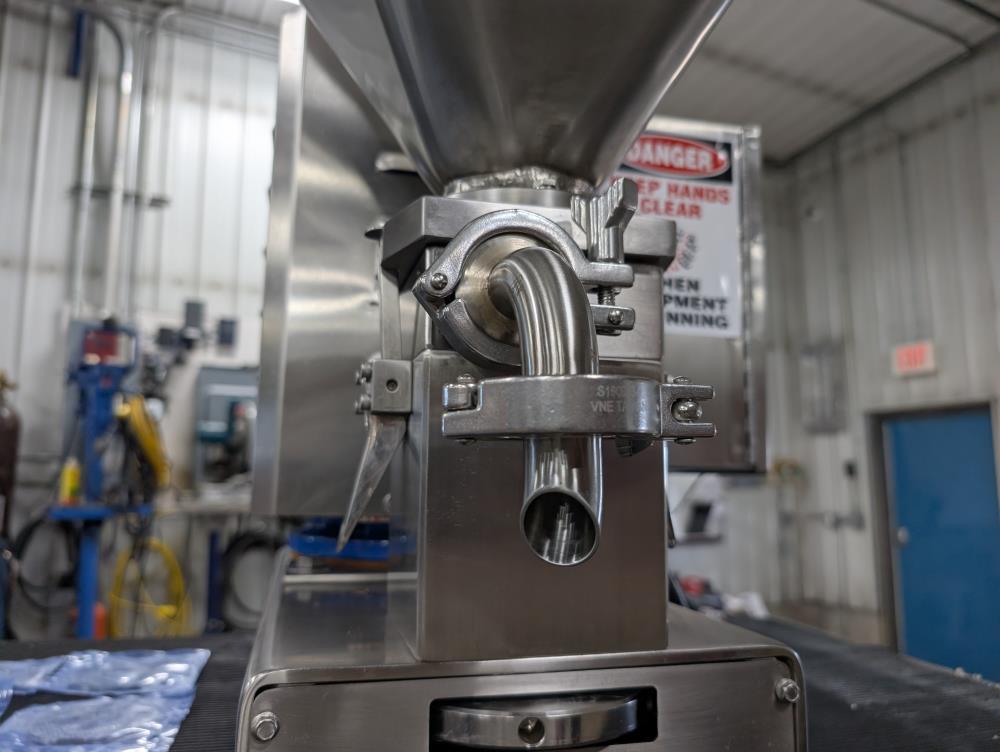

Discharge

1-inch diameter sanitary clamp fitting

Performance

Production capacity: 30–45 lbs/min (based on typical wiener or bologna formula using 1.7 mm plate)

Construction

All stainless steel frame
Adjustable legs for height customization

Overall Dimensions & Weight

36 inches long x 24 inches wide x 27 inches tall
Approximate weight: 190 lbs (86 kg)

This Mince Master 535-1000 vertical emulsifier delivers powerful, sanitary, and flexible operation for high-quality emulsified meat and food products, with spare parts included for versatile production needs.

Specifications

Category :

Processing Equipment

Sub-Category :

Meat Forming

Manufacturer :

Mince Master

Model :

535-1000

Condition :

Used

Year Built :

2018

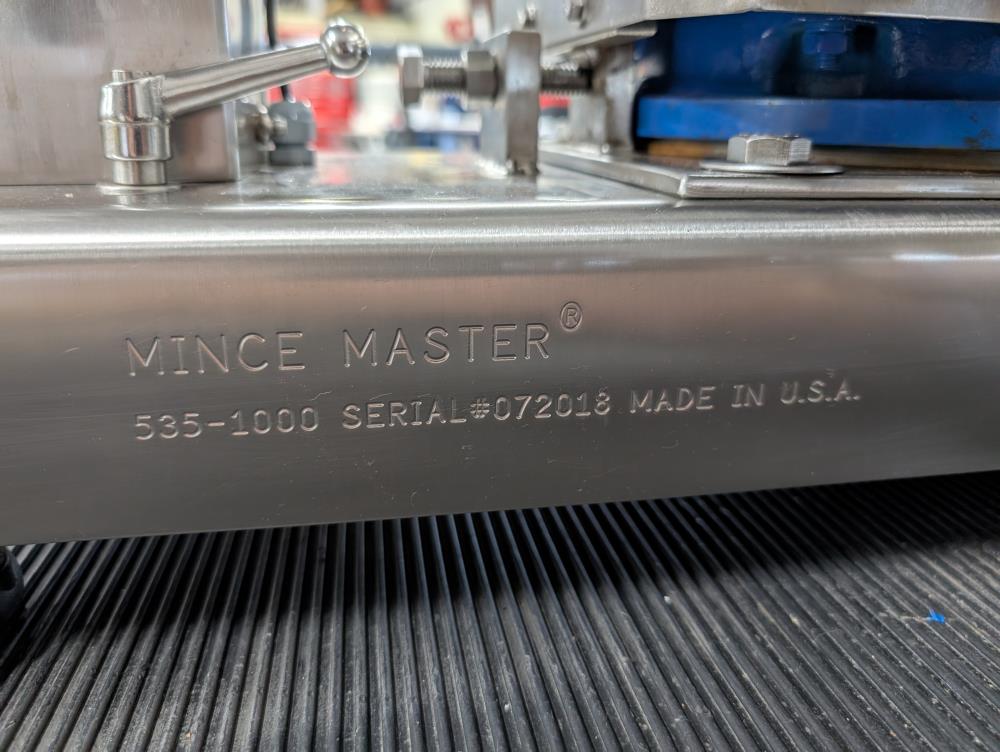

Serial Number :

072018

Material of Construction :

Stainless Steel

Overall Dimensions :

36 inches long x 24 inches wide x 27 inches tall

Approximate Weight :

190 lbs (86 kg)

Manual :

Included

Shop Tested :

Shop Tested - Running
